Rare Mitsubishi DA-P10 / DA-A10 Pre/Power Resurrection

Come with me as we repair a rarely-seen Mitsubishi DA-P10 dual-mono pre-amplifier and DA-A10 dual-mono power amplifier!

Readers might not know that Mitsubishi made hi-fi gear, not just cars and industrial equipment. In Japan they traded under a hi-fi specific brand you may have heard of – Diatone, and produced some crazy good speakers for example, like the Diatone DS-5000, and many others.

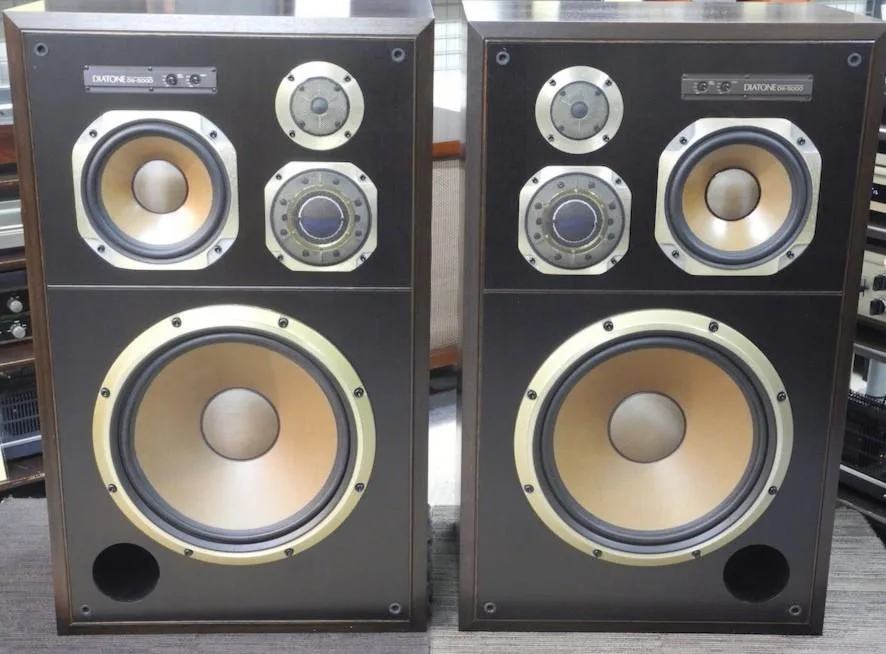

diatone ds 5000
Diatone produced very, very good speakers. Like many older speakers, they have big bass drivers… to reproduce bass… because physics…

The Mitsubishi DA-P10 / DA-A10, also sold as the Diatone DA-P10 / DA-A10, are beautiful examples of their craft, a pre/power amp combination that bolts together to form a one-piece ‘integrated’ amplifier with serious punch. For those interested, this Mitsubishi DA-P10 / DA-A10 pair is for sale; details are at the end of the article.

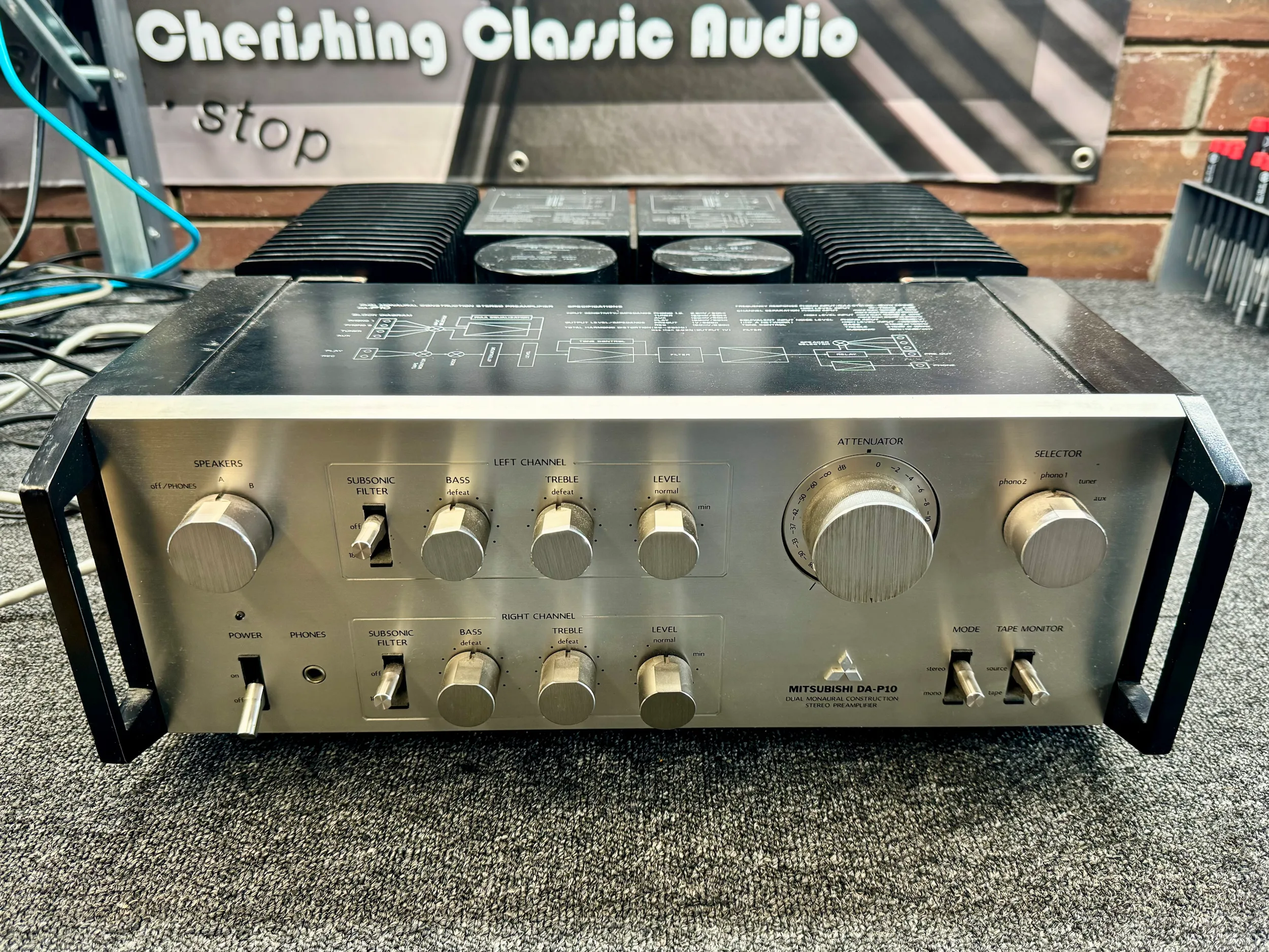

Mitsubishi DA-P10 & DA-A10

Background

This gorgeous, dead Mitsubishi DA-P10 / DA-A10 pair came to me via a new customer who seemed very keen to have them running again. I was naturally keen to help him, so we discussed his budget and I promised to do my best and let him know the news.

You can imagine how pleased I was to get both of these beauties cleaned up and running beautifully again and for considerably less than the allocated budget. This is an especially good result when you see how the power amplifier had failed, later in this article.

Unfortunately though, after emailing and calling the customer with the good news multiple times, he vanished and has not made contact since leaving these with me. That was almost 6 months ago.

Mitsubishi DA-P10 & DA-A10

I’m pretty flexible in terms of finalising accounts, collection and short-term storage but I’m running a business. There is a little room to move but we are talking days rather than months! Variation from standard terms must also be agreed upon and that means there needs to be a conversation.

Equipment abandonment is a worst-case scenario and extremely unusual. Cases like this waste time, energy and goodwill and put me in an awkward and unnecessary position. Thankfully I’ve only had two other abandonments in 10+ years and thousands of jobs, more on those here. That’s because of overwhelmingly great customers, and some careful filtering on my part!

My payment-on-collection policy generally safeguards against non-payment but not always. If there are financial issues, I’ll be happy to offer assistance via a payment plan for example but disappearing and leaving a sizable bill with someone you’ve hired to do a job is never OK.

I don’t enjoy selling abandoned equipment but as this account is now almost 6 months overdue which means these pieces are now available for sale. Let me know if you’d like them, details at the end of the article!

Features

The Mitsubishi DA-P10 / DA-A10 pre/power combo is just that – a preamplifier and power amplifier that bolt together, to form one rather heavy ‘integrated’ amplifier without the usual integrated amplifier compromises.

As the dual-mono name suggests, these two are constructed in dual-mono fashion with separate left and right transformer windings and two separate buffer and phono boards in the DA-P10 preamplifier, and separate transformers, power supplies and heatsink assemblies for the DA-A10 power amplifier.

Construction quality is very good and the preamp has all the expected filters, headphone socket and phono stage, and some lovely knobs and rack handles. The power amplifier has little coloured thermal indicators on the heatsinks to visually indicate overheating and nothing else to note except for the heavy build, 100 Watts per channel and thoughtfully placed channels within each heat sink to neatly route power and signal cables.

IMG 2051 scaled
Perfect for playing virgin vinyl like this new and unopened (until now) pressing of New Gold Dream I found in Japan! What a gorgeous pressing.
IMG 2052 scaled
You know I never miss an opportunity to sneak in something like this.

Mitsubishi DA-P10 / DA-A10 Specifications

Mitsubishi DA-A10, courtesy of HiFi Engine

Power output:100 watts per channel into 8Ω (stereo)
Frequency response:20Hz to 20kHz
Total harmonic distortion:0.1%
Damping factor:100
Input sensitivity:1V
Signal-to-noise ratio:100dB
Speaker load impedance:4Ω (minimum)
Dimensions:425 x 170 x 285mm
Weight:16.5kg
Year:1976

Mitsubishi DA-P10, courtesy of HiFi Engine

Frequency response:10Hz to 70kHz
Total harmonic distortion:0.02%
Input sensitivity:2.2mV (MM), 150mV (line)
Signal-to-noise ratio:79dB (MM), 90dB (line)
Channel separation:80dB (MM), 85dB (line)
Output:150mV (line), 1V (Pre out), 9V (Pre out Max)
Dimensions:425 x 170 x 204mm
Weight:5.8kg
Year:1976

Resurrection

So, what was wrong with these two? Quite a bit. Both needed deep cleaning and TLC that included various component replacements in the DA-P10 pre and significant power supply faults/issues rectified (get it..?) in the DA-A10 power amplifier. Keep in mind that this was a repair and service work order. You’ll see no crazy shotgun parts replacement here. Let’s go!

Mitsubishi DA-P10 Preamplifier

Mitsubishi DA-P10 / DA-A10

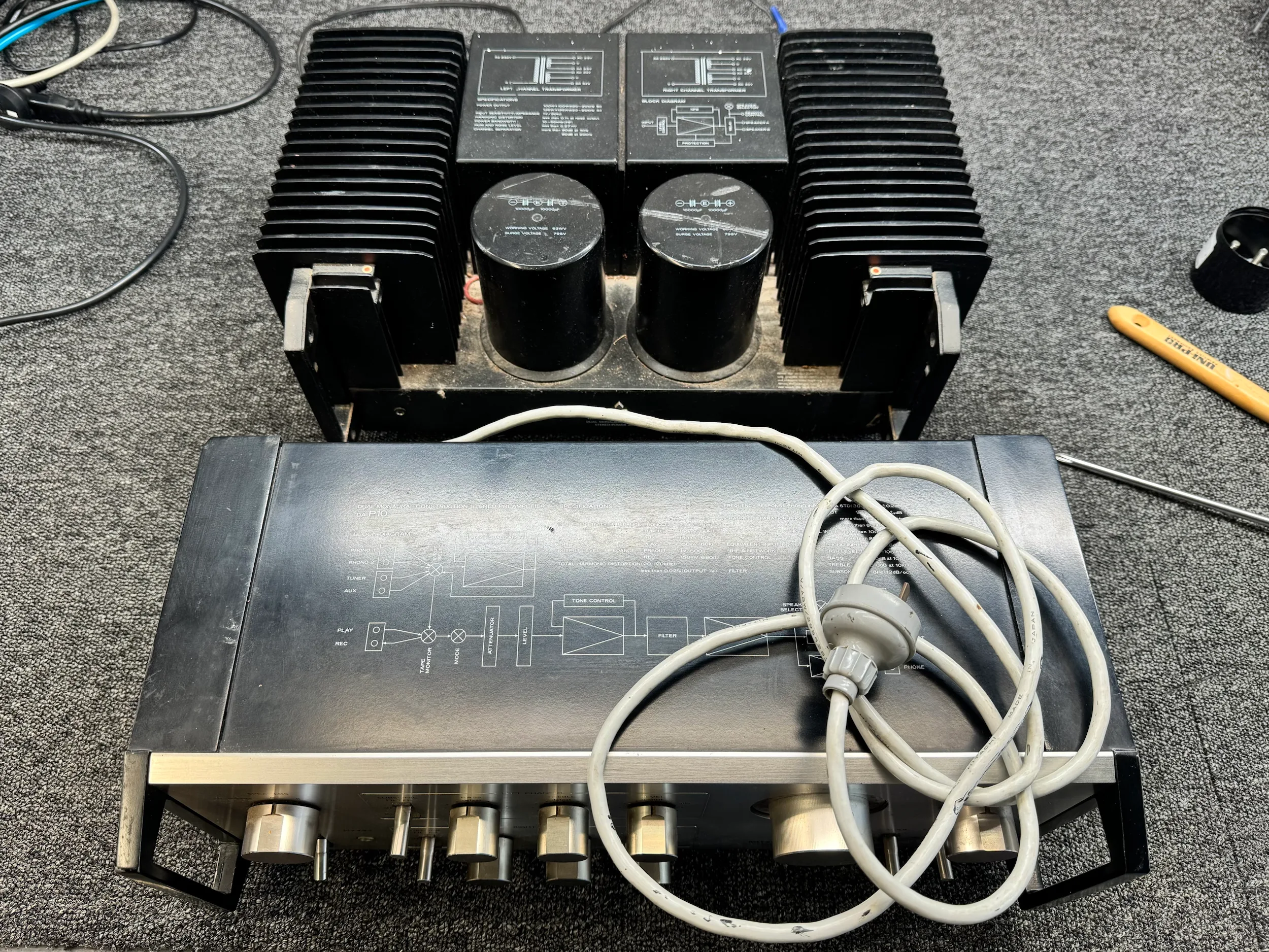

Here I’ve just separated the Mitsubishi DA-P10 pre from the DA-A10 power amp behind it.
Mitsubishi DA-P10 / DA-A10

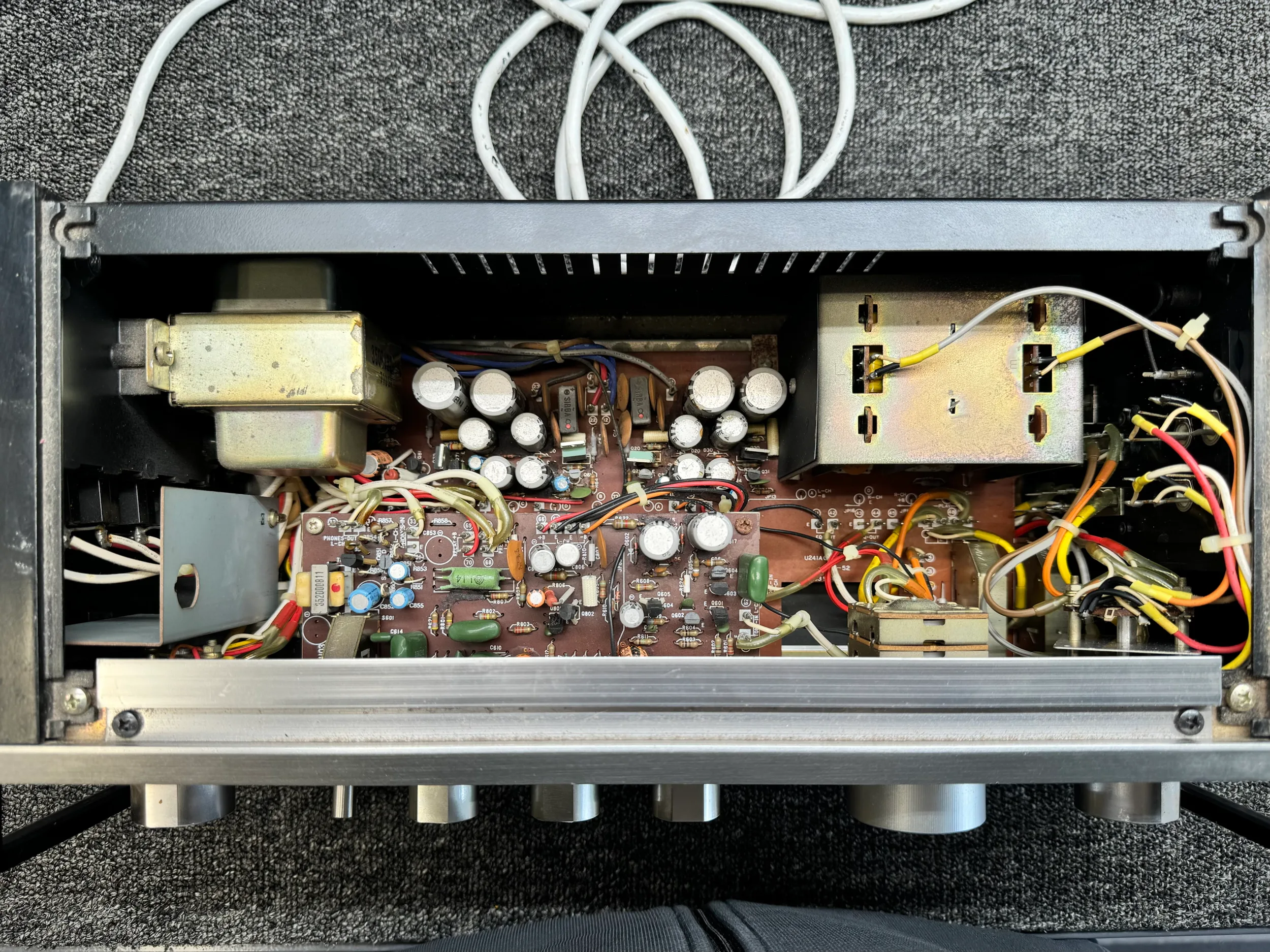

My first look inside the DA-P10 pre and I see a few issues that need resolution.
Mitsubishi DA-P10 / DA-A10

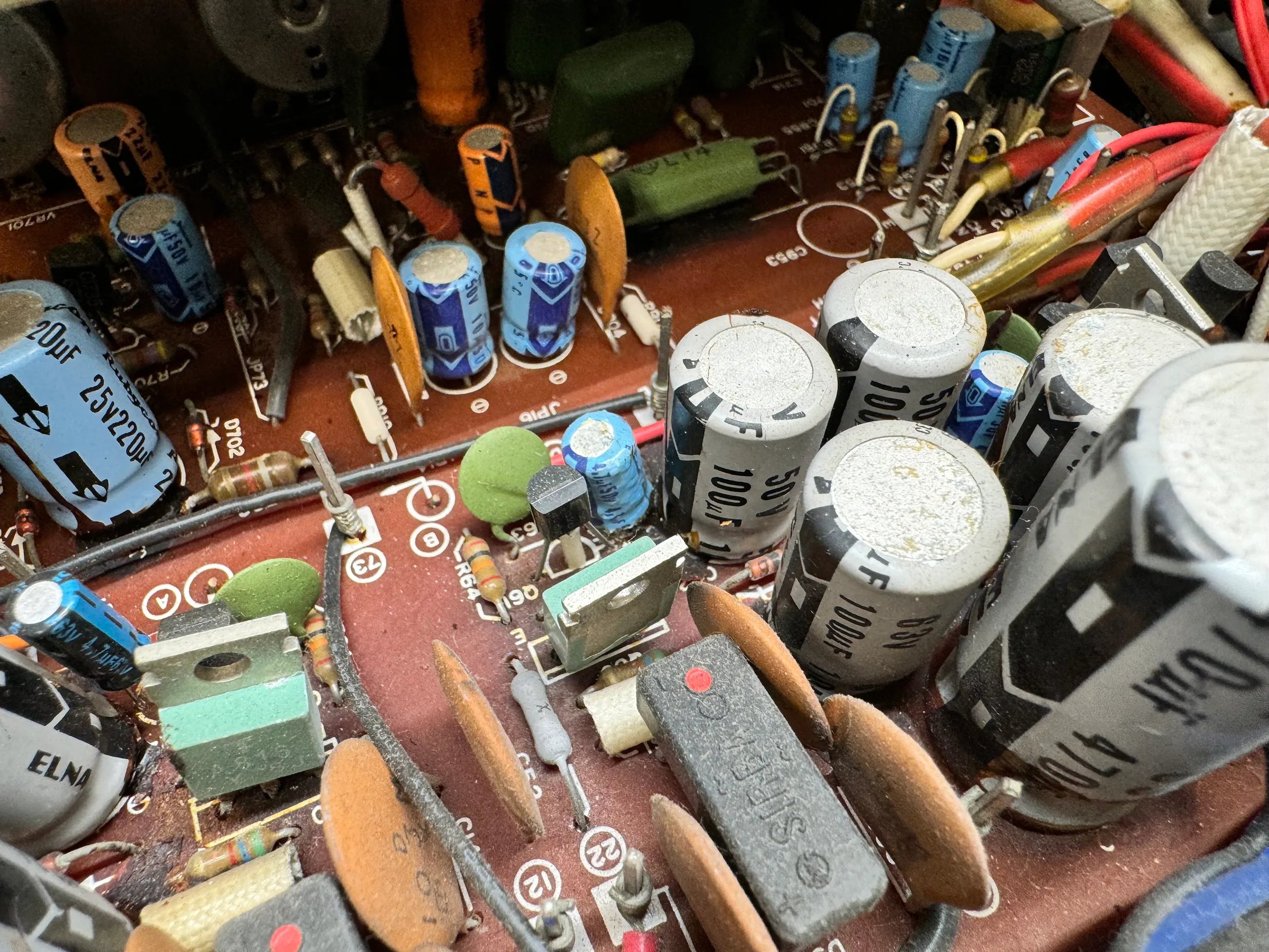

Here we can see a few badly corroded capacitors, a few non-original and much worse Jamicon capacitors and a couple of resistors that have drifted significantly. Also, note the polychloroprene glue and general dirt and grime.
img 0146
I’ve initially deep cleaned the unit and it is now ready for further work.
Mitsubishi DA-P10 / DA-A10

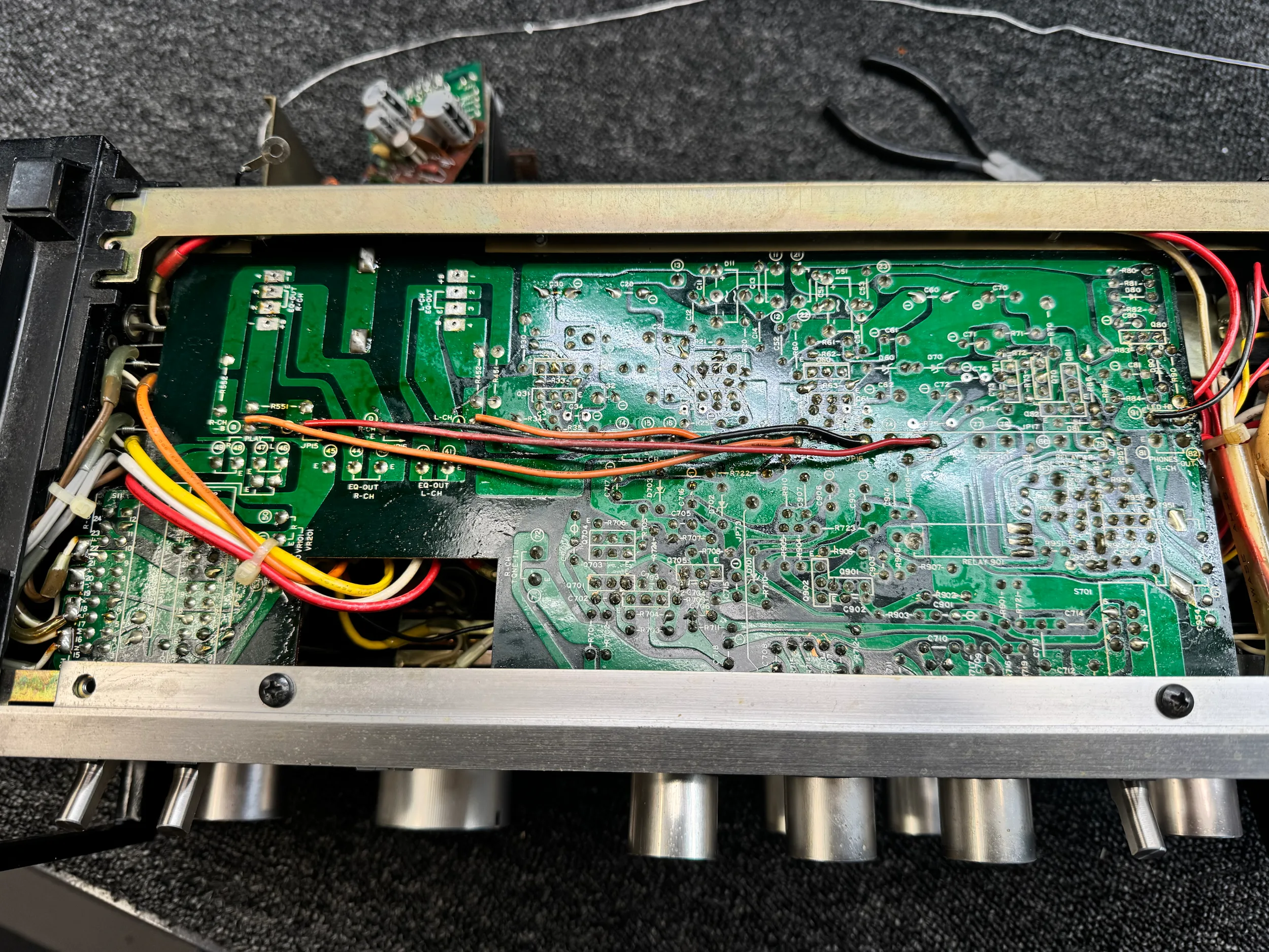

View of the underside of the main board.
Mitsubishi DA-P10 / DA-A10

Mitsubishi DA-P10 / DA-A10
Some of the parts I replaced in this Mitsubishi DA-P10 preamplifier. Note that the brief was to repair and service her.
Mitsubishi DA-P10 / DA-A10

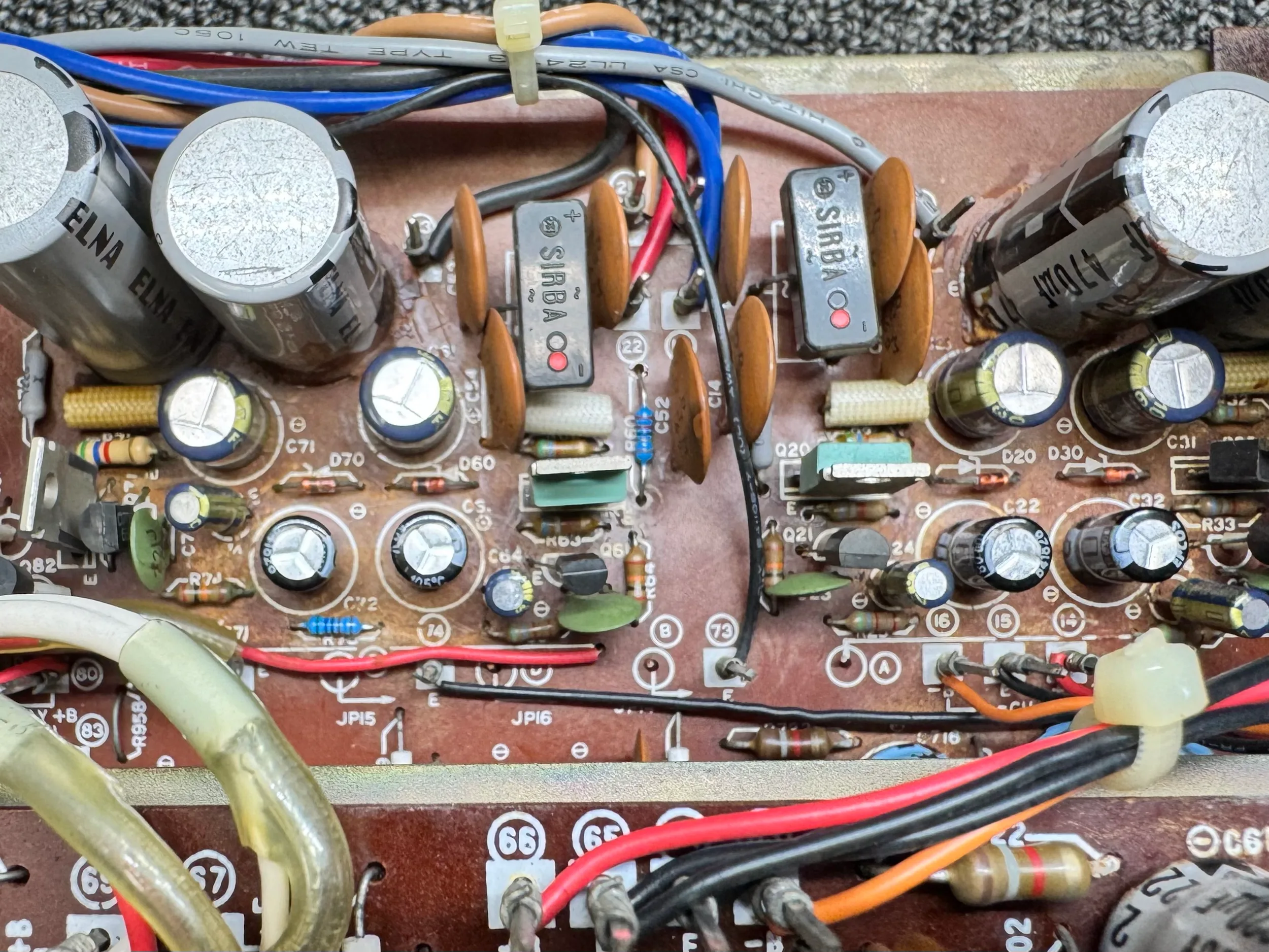

Spot the replacement parts – no Suntan or Jamicon here.
Mitsubishi DA-P10 / DA-A10

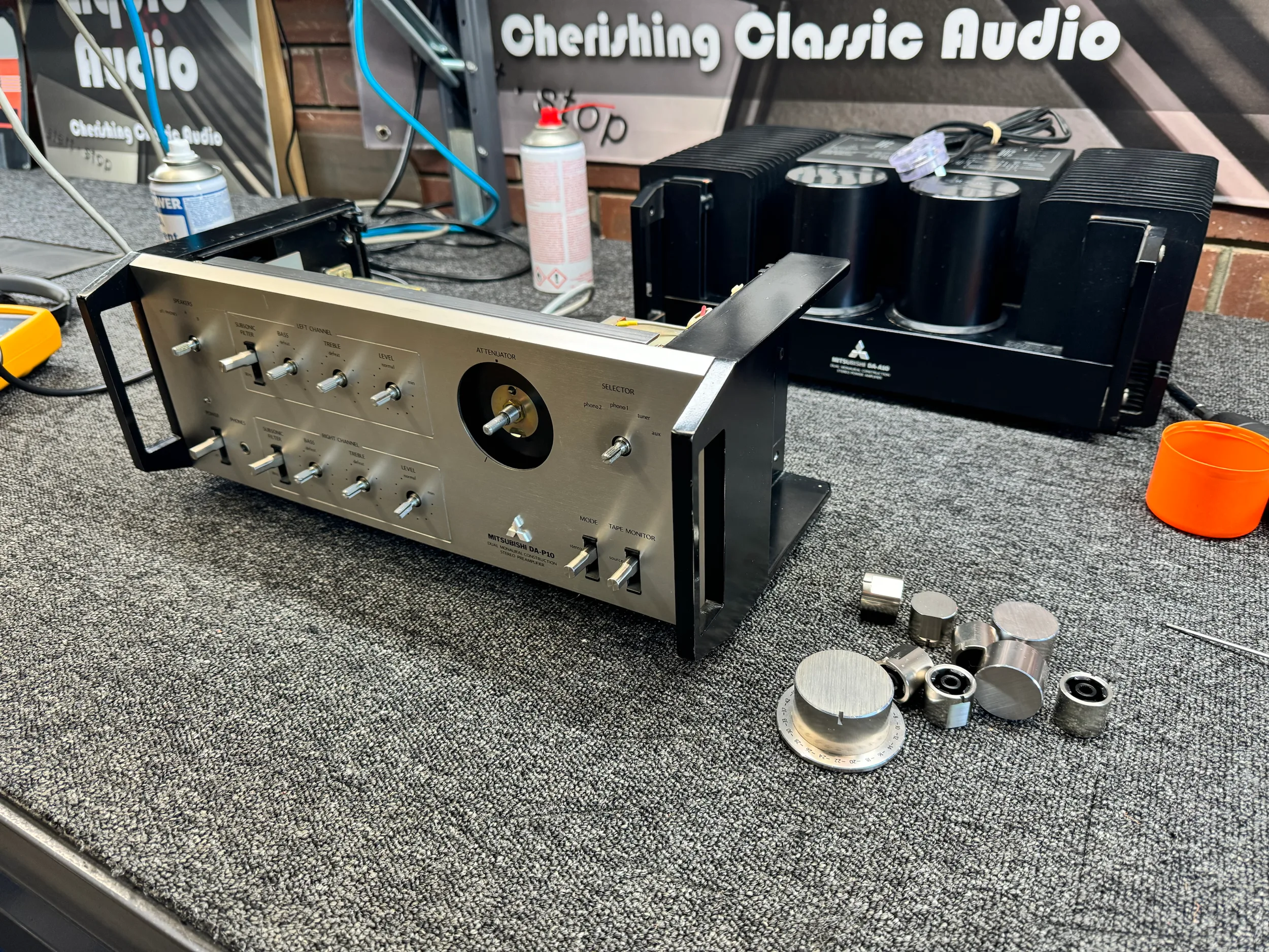

More cleaning. Note the already gleaming DA-A10 in the background. I went to significant effort for the owner of these two, both in terms of results and the invoices. This will be of no surprise to most, but it’s especially worth noting given the circumstances.
Mitsubishi DA-P10 / DA-A10
Just a lovely thing!

Mitsubishi DA-A10 Power Amplifier

Mitsubishi DA-P10 / DA-A10

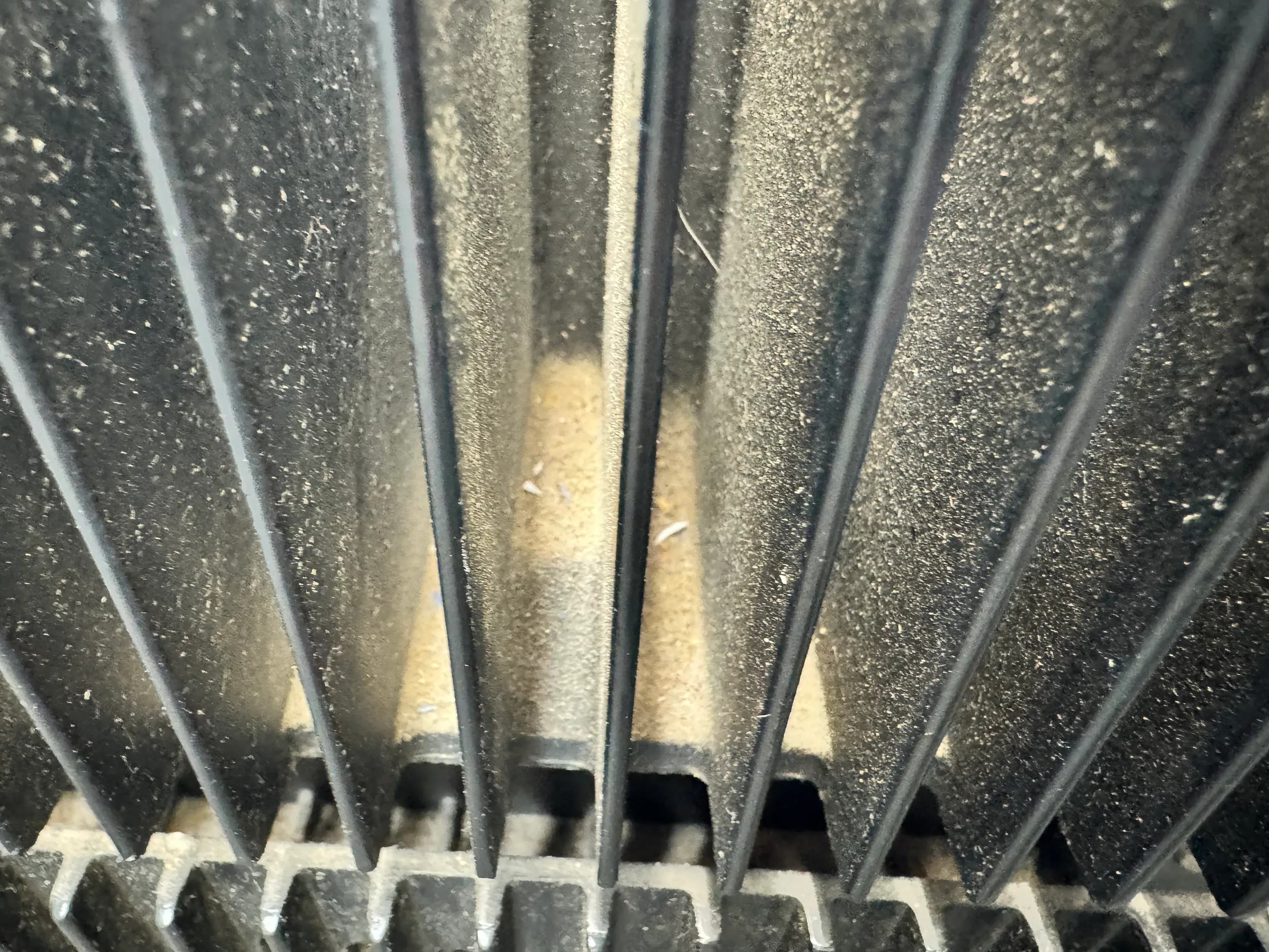

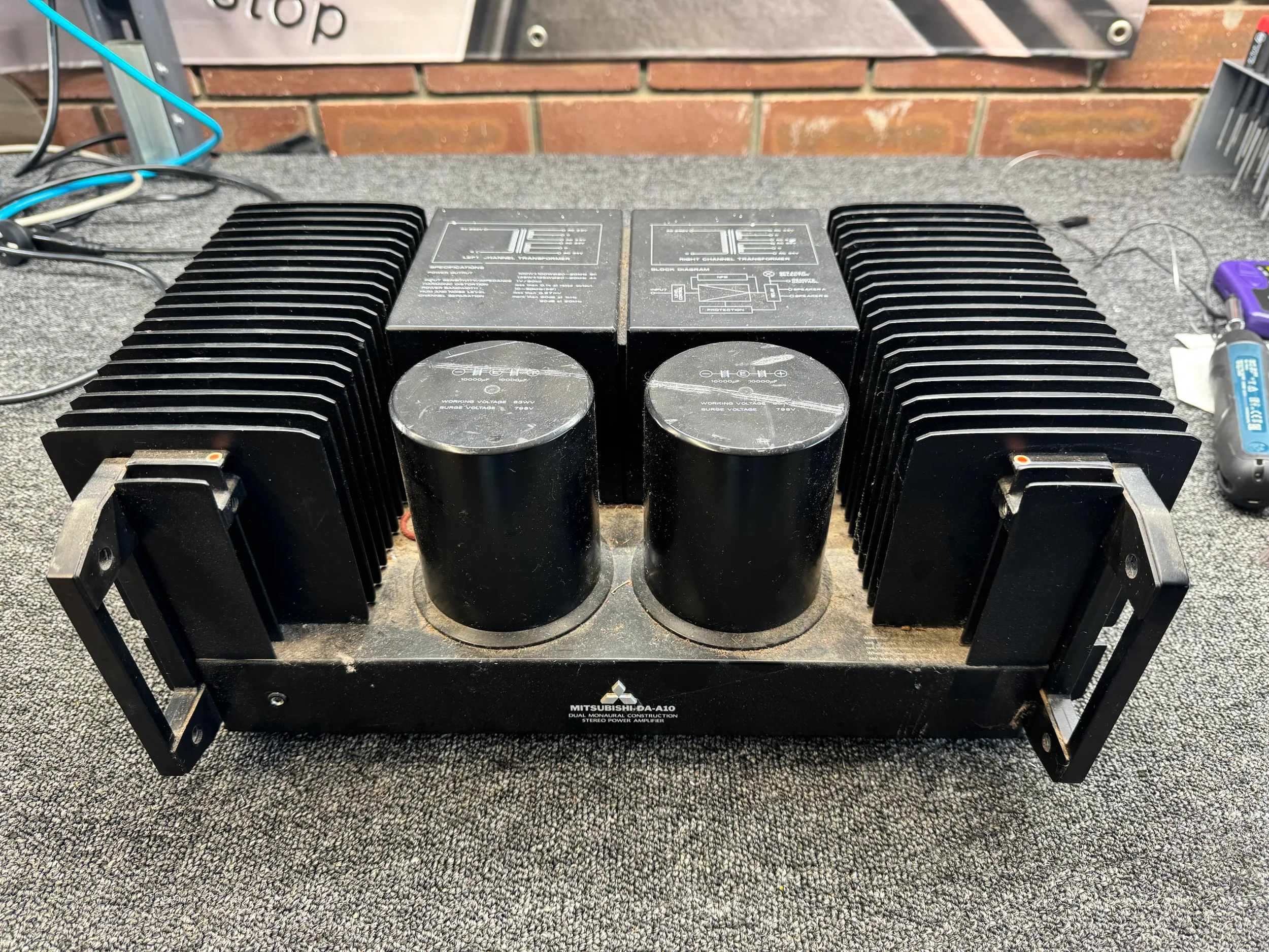

You can see how neglected these two were in terms of their general condition. I suspect they hadn’t worked for a very long time.
Mitsubishi DA-P10 / DA-A10

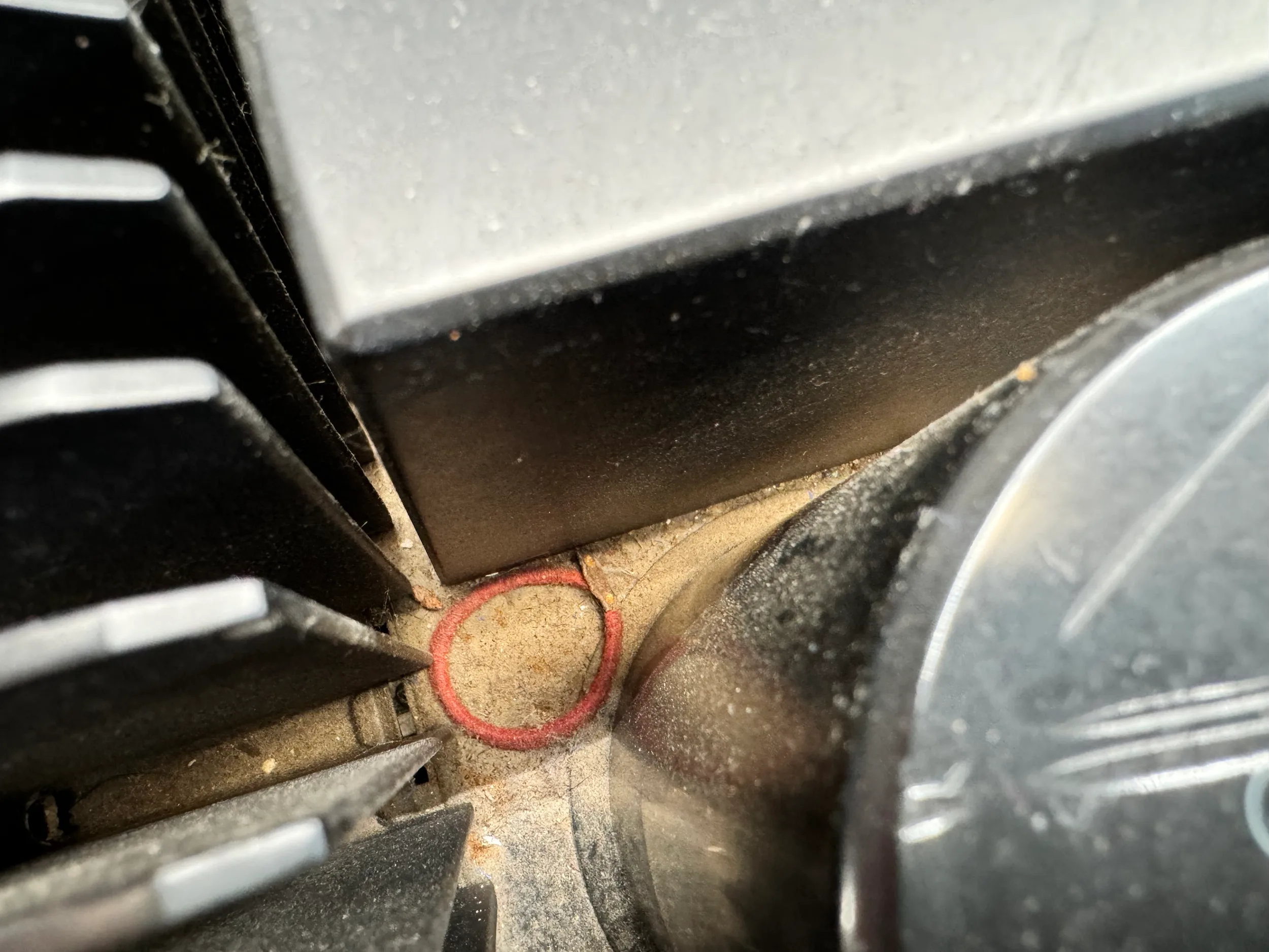

There is only one way to properly deal with this and long-term readers know what that is. This hair band almost became part of the structure of the DA-A10.
Mitsubishi DA-P10 / DA-A10
Mitsubishi DA-P10 / DA-A10

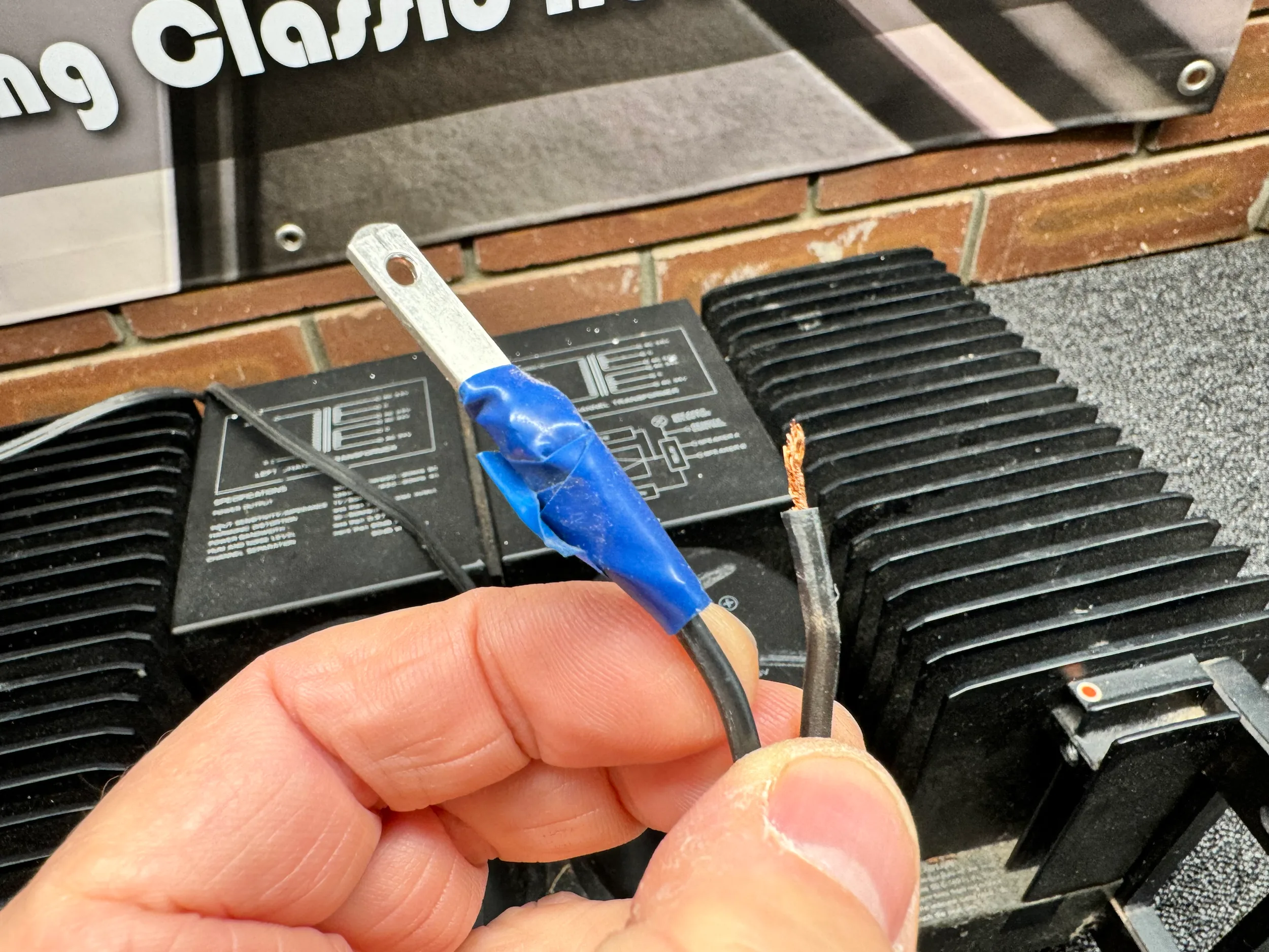

One of the first and most obvious issues with the DA-A10 power amp was this mains plug thing. This is incredibly dangerous anywhere, let alone on an ungrounded system and is quite possibly involved in the issues this pair presented with. I added a new mains plug and the unit is now separate from the front-mounted preamp, from a mains power perspective.
Mitsubishi DA-P10 / DA-A10

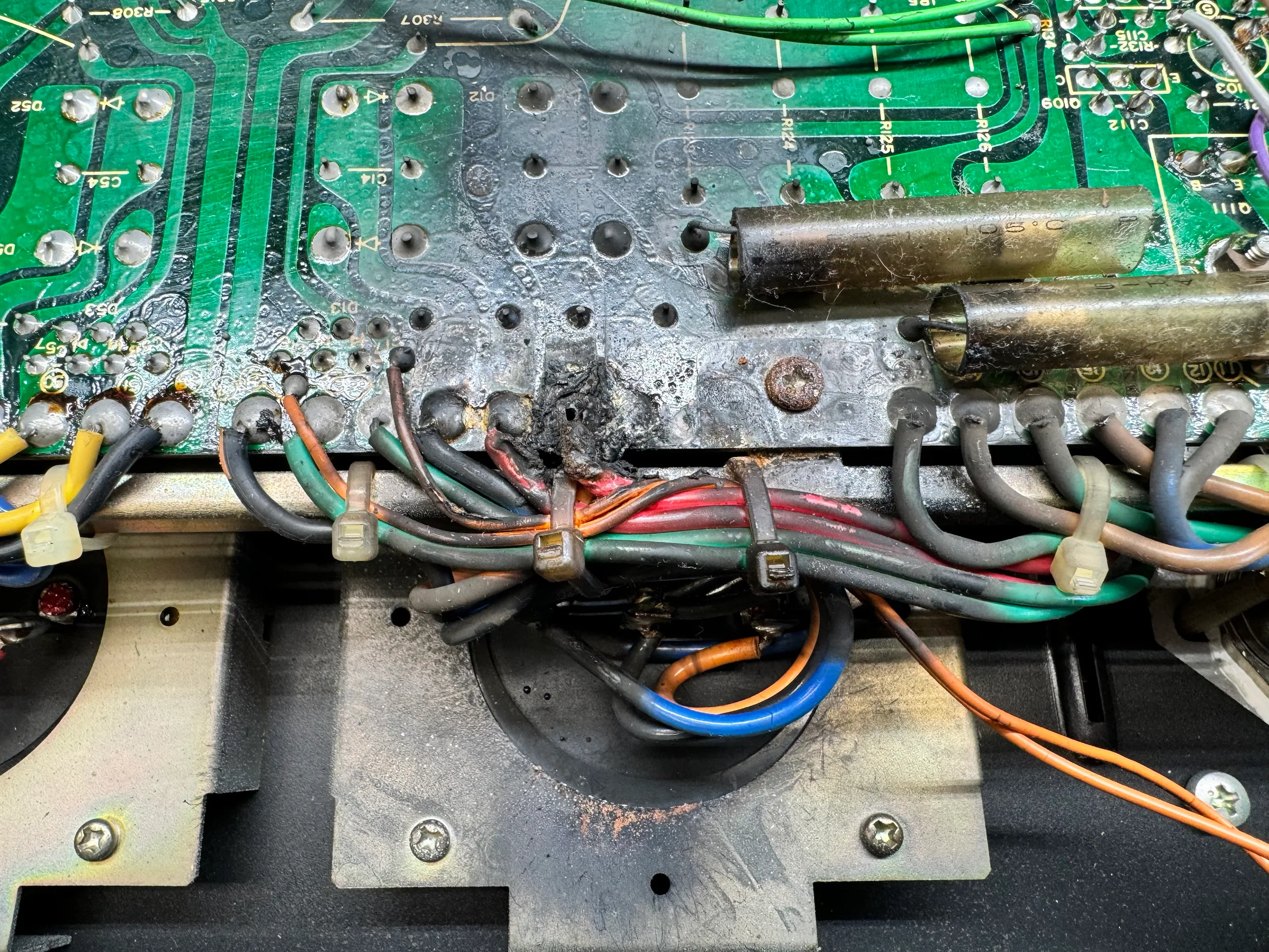

Does anyone spot the obvious problem here..?! We need to establish why this happened and resolve the damage IF it can be resolved within budget.
Mitsubishi DA-P10 / DA-A10

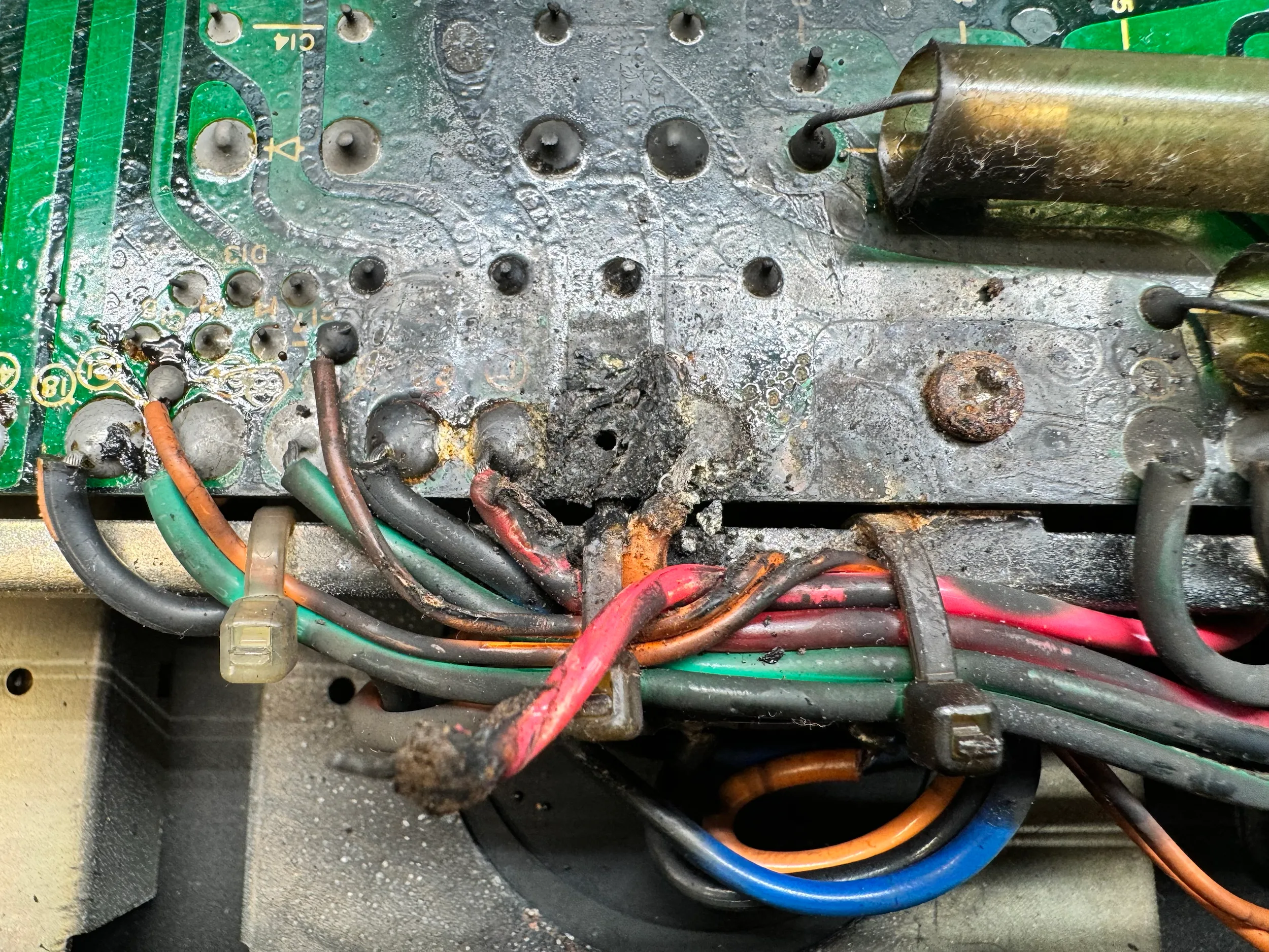

The very first thing to do in a case like this is to unpick the wiring and remove as much of the carbon and other gunk as possible. Carbon is conductive and we don’t want it here, so some surgery is needed. Keep in mind none of these boards can be replaced, what we are doing here is surgery to repair the damage.
Mitsubishi DA-P10 / DA-A10
Those of you who also work on electronics will know that this is significant damage. I wasn’t sure I could repair this at this point. Many would simply give up on this piece.
Mitsubishi DA-P10 / DA-A10

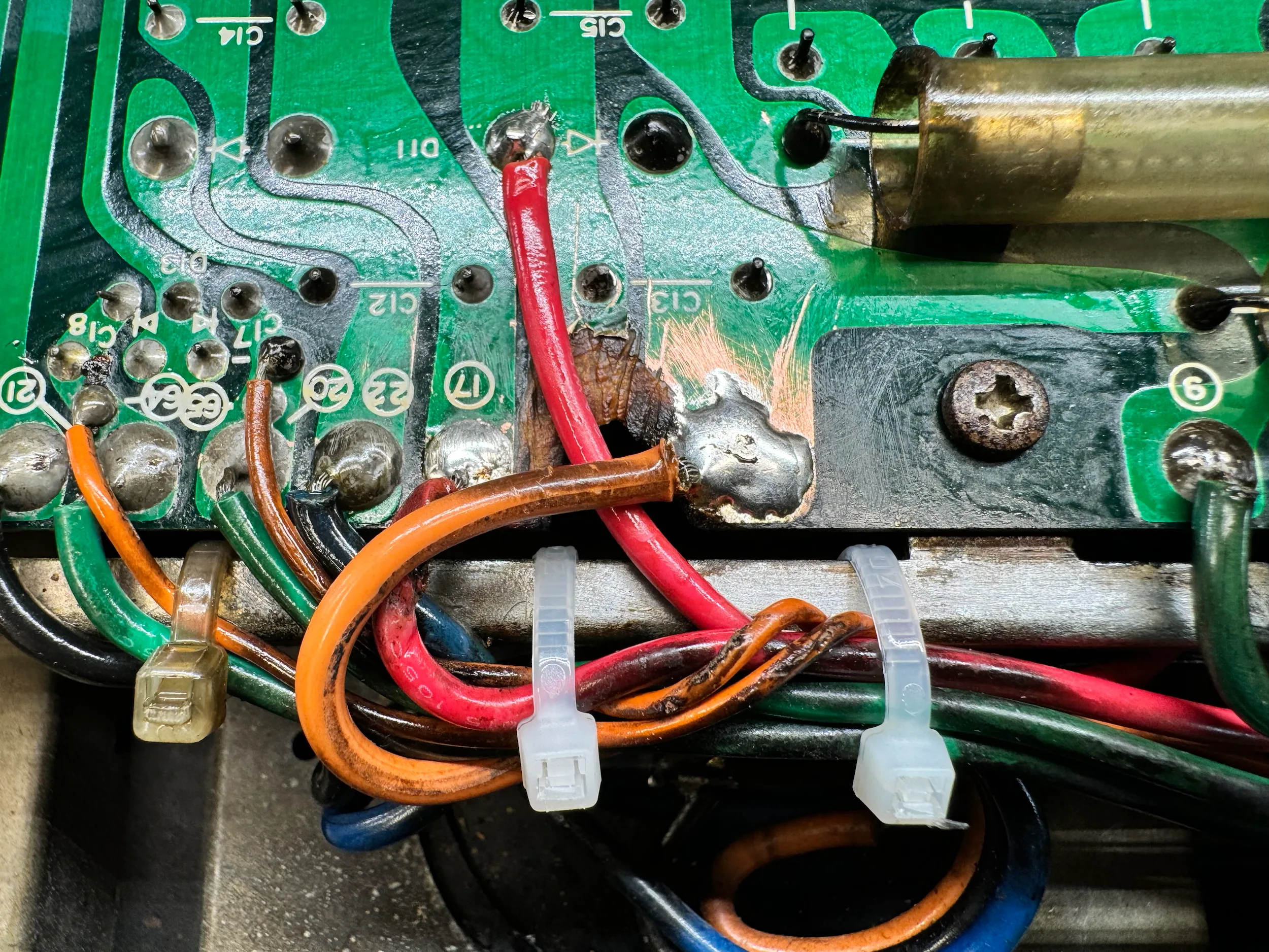

I think that’s a particularly good result given how bad the damage was. I’ve remade and re-terminated various high-current wiring and removed as much carbon and charcoaled board as possible, given the limitations of time, budget etc.
Mitsubishi DA-P10 / DA-A10

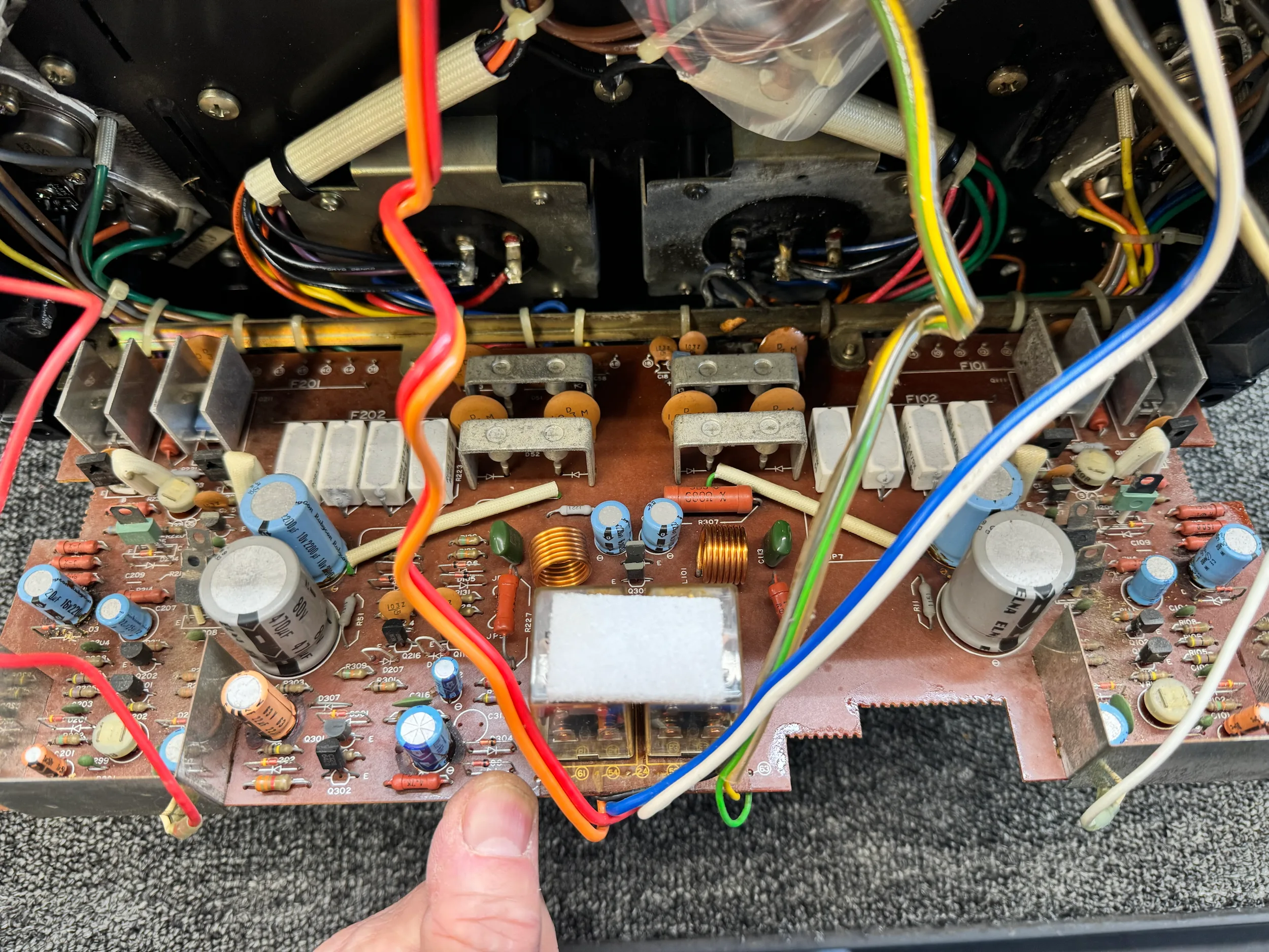

Naturally, I dug around on this side of the board to check for any other signs of damage and cleaned up any remaining mess. Incredibly, the damage was isolated to the power supply wiring and there were no dead or damaged output devices for example. This was fantastic news for the owner. Here, I’m about to start further cleaning.
Mitsubishi DA-P10 / DA-A10

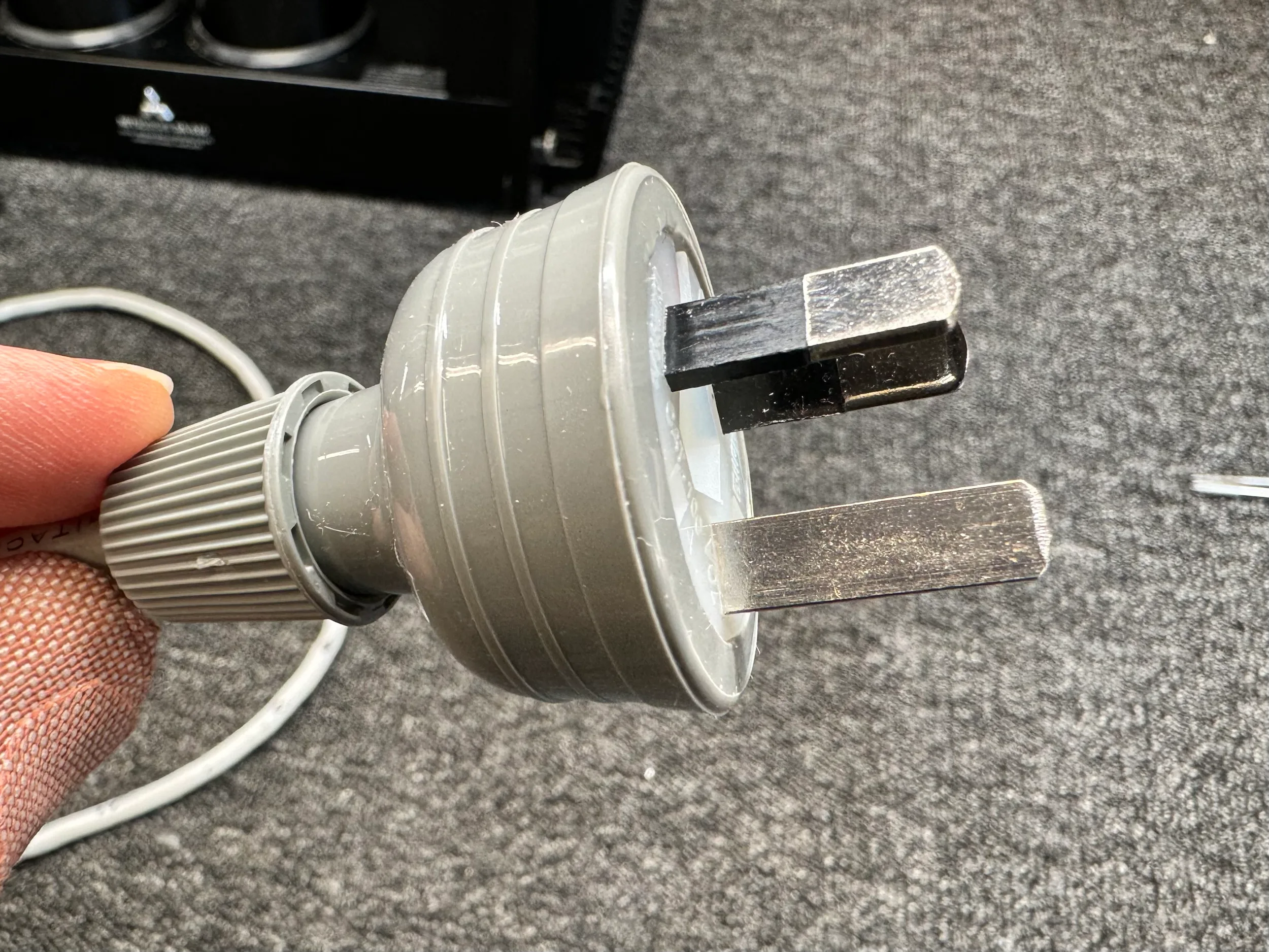

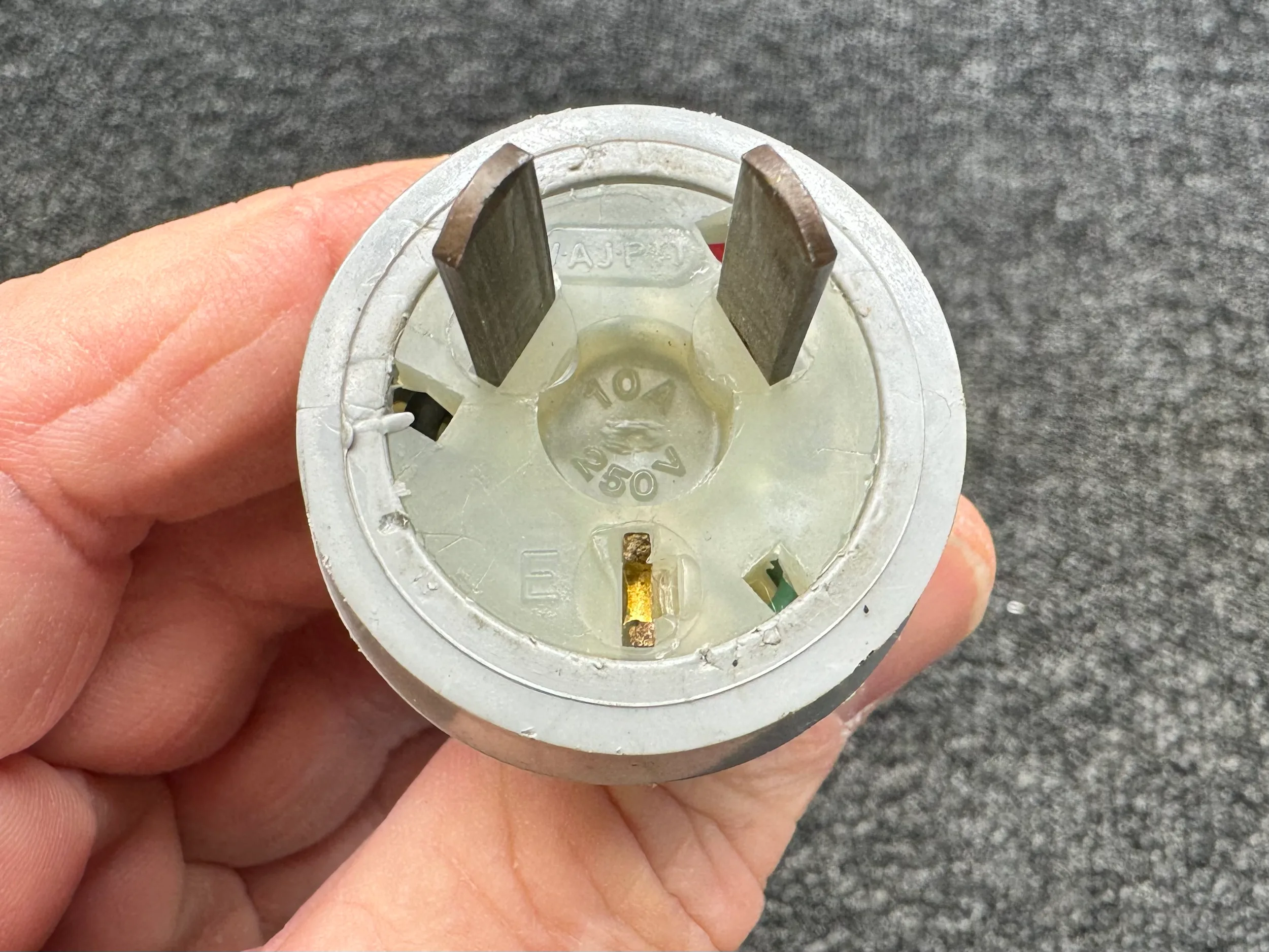

We need to tackle this on the preamplifier before powering this unit on. Cutting off an earth pin is ill-advised, at best…
Mitsubishi DA-P10 / DA-A10
Much better, and much safer, at least the pair has a mains earth reference now.
Mitsubishi DA-P10 / DA-A10

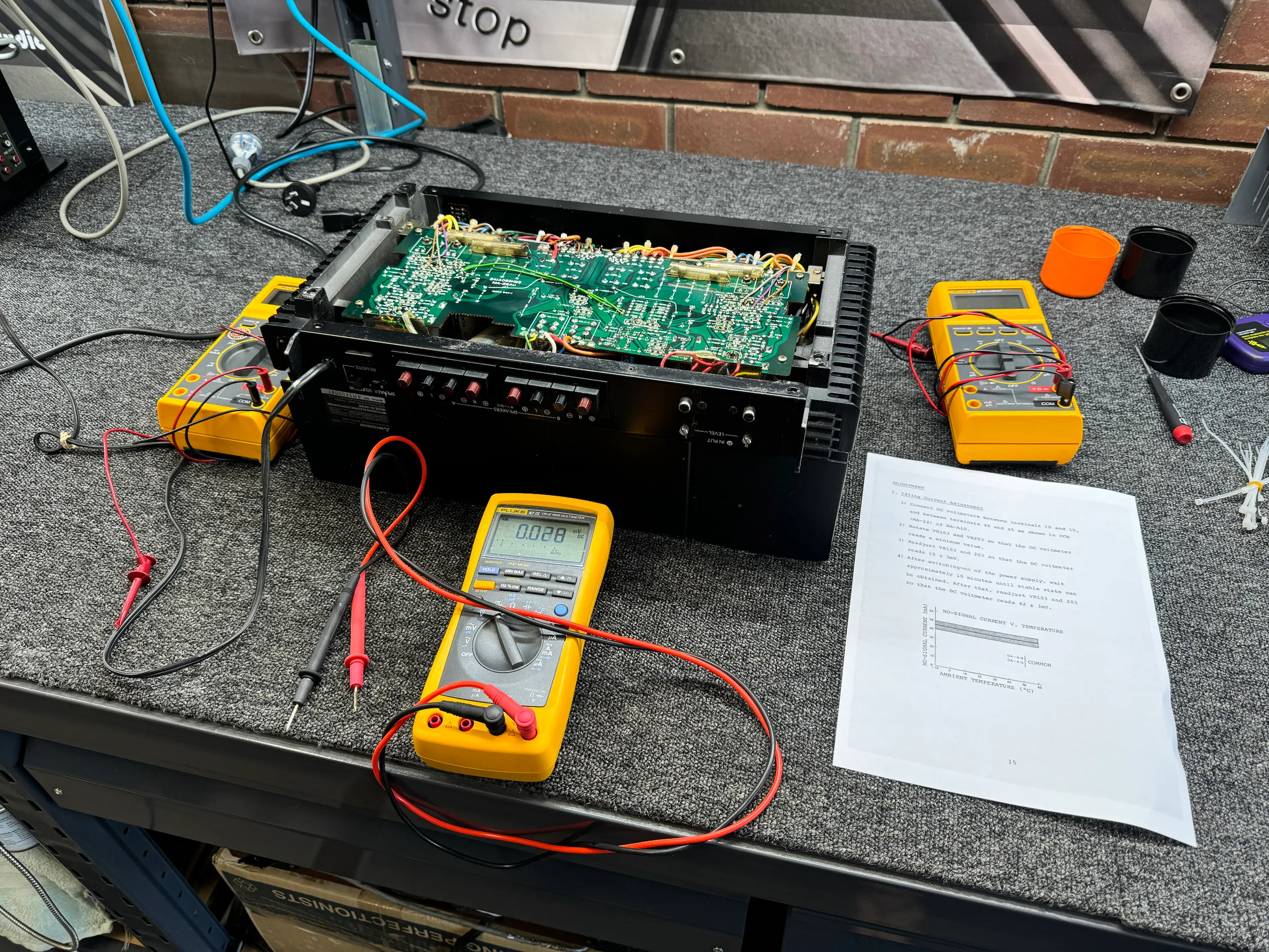

I made a full set of electronic adjustments of course and then ran her for an extended period to verify the repair.
Mitsubishi DA-P10 / DA-A10
I think this sums up both my surprise and satisfaction at bringing this Mitsubishi DA-A10 back to life!

Results

I’m sure you’ll agree that saving these two was well worth the effort, especially given how nice they sound and how unique and rare they are to find here in Australia. Keep in mind this was a repair and service job. Her next owner can ponder what if any additional work they’d like to have done, and they may be perfectly happy with this duo as they are.

Mitsubishi DA-P10 / DA-A10

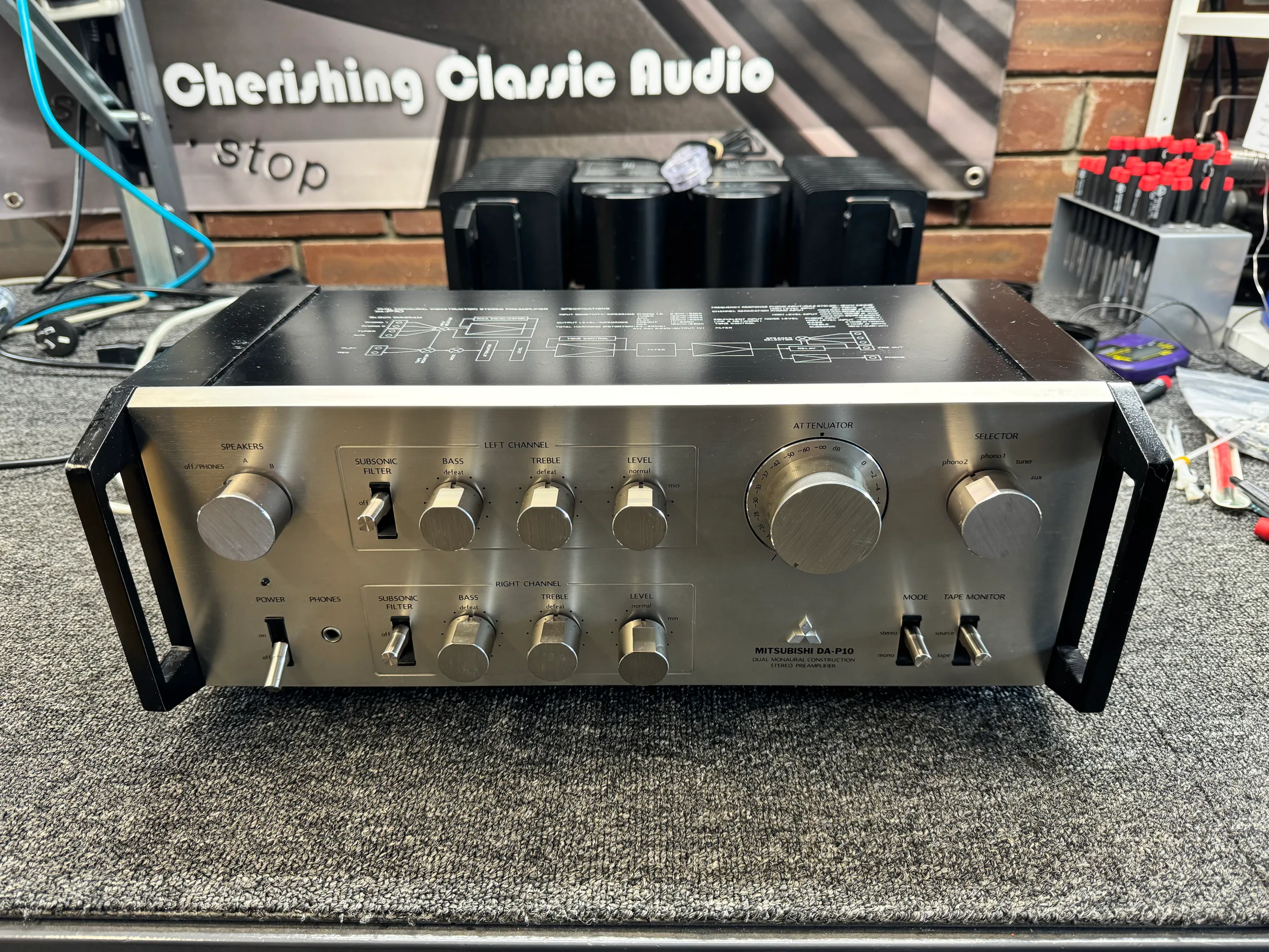

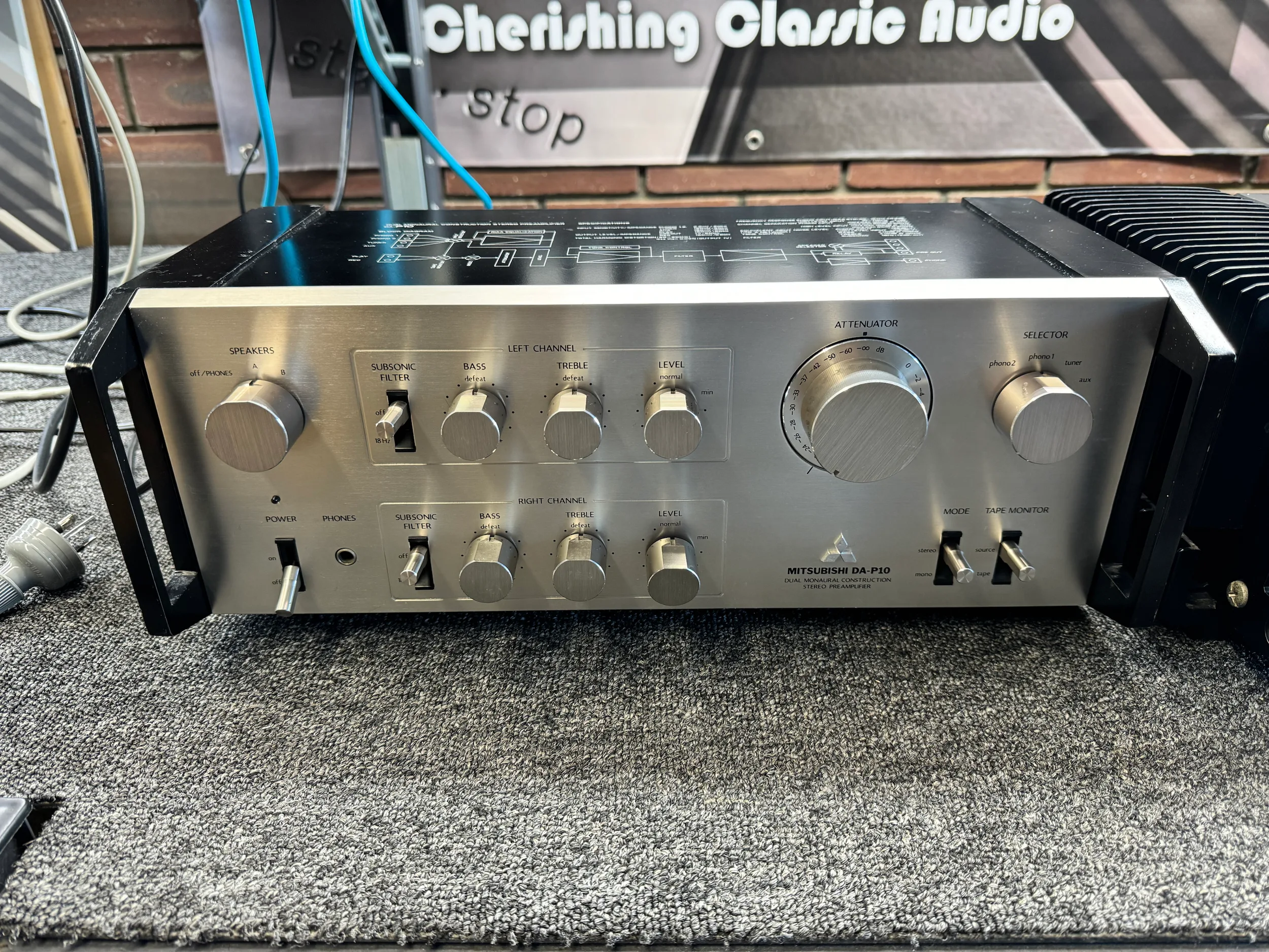

You little beauty! You might notice the only obvious cosmetic flaw is one wonky gain pot on the preamp. Can this be fixed..? Probably.
Mitsubishi DA-P10 / DA-A10

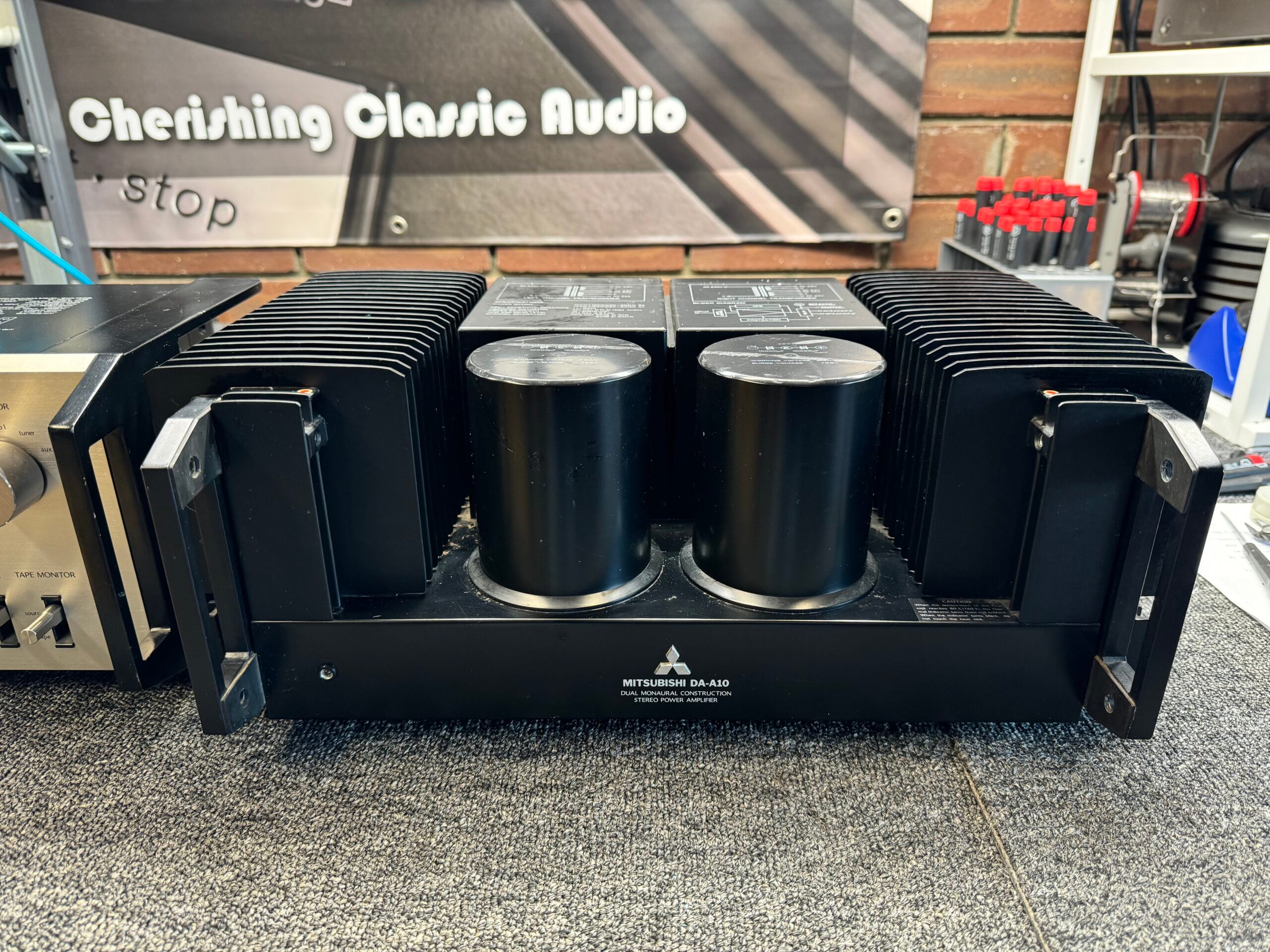

The DA-A10 is MUCH cleaner, though some bits were hard to access. The pair can of course be used side-by-side as you see here…
Mitsubishi DA-P10 / DA-A10

Mitsubishi DA-P10 / DA-A10
… Or bolted together as their designers intended. A truly gratifying result. Here, I’ve added a signal cable to join pre and power amplifiers together. Note that the factory link cable that controls speaker switching is missing, but you are going to either have one or two sets of speakers permanently connected, so this is of little consequence.
Mitsubishi DA-P10 / DA-A10
I have to say these two are quite beautiful when joined.
Mitsubishi DA-P10 / DA-A10
This Mitsubishi DA-P10 / DA-A10 combo lives on and will bring more enjoyment to its next owner.

In terms of moving this abandoned Mitsubishi pair on, I would much rather the owner collect and pay for them, but as this hasn’t happened and I don’t have the space to store them, they have to go.

I’m offering this Mitsubishi DA-P10 / DA-A10 pair for $1950. The warranty period for the work I did back in June has elapsed but I tested them again today (11-11-2024) and they are running very nicely. Prospective customers are of course welcome to test the pair in the workshop.

For anyone worried about the original owner of this equipment ‘looking’ for these pieces, two things: 1) it’s a little late for that now, and 2) rest assured that I’m legally entitled to sell equipment when been abandoned for a certain amount of time. Local buyers only!

If this doesn’t sell and you are interested, make me an offer!

img 0223

As always, thank you very much for visiting. Don’t hesitate to contact me if you’d like me to look at your Mitsubishi / Diatone hi-fi equipment or any other classic hi-fi gear for that matter.

More soon, friends 🙂
