Denon SL-7D Direct-Drive Turntable Service & Repair

I’ve just finished repairing and servicing a lovely old deck that one doesn’t often see – a Denon SL-7D direct-drive turntable.

My customer received the run-around from several technicians and wanted me to have a look to see if I could get her going again. This Denon SL-7D came fitted with a gorgeous old AKG P25MD moving iron cartridge – more on that later.

The SL-7D is a nice turntable and quite rare – I’d not worked on one before this one. The tonearm appears to be oem’d by JelcoMore information and the owner’s manual can be found at the always excellent Vinyl Engine.

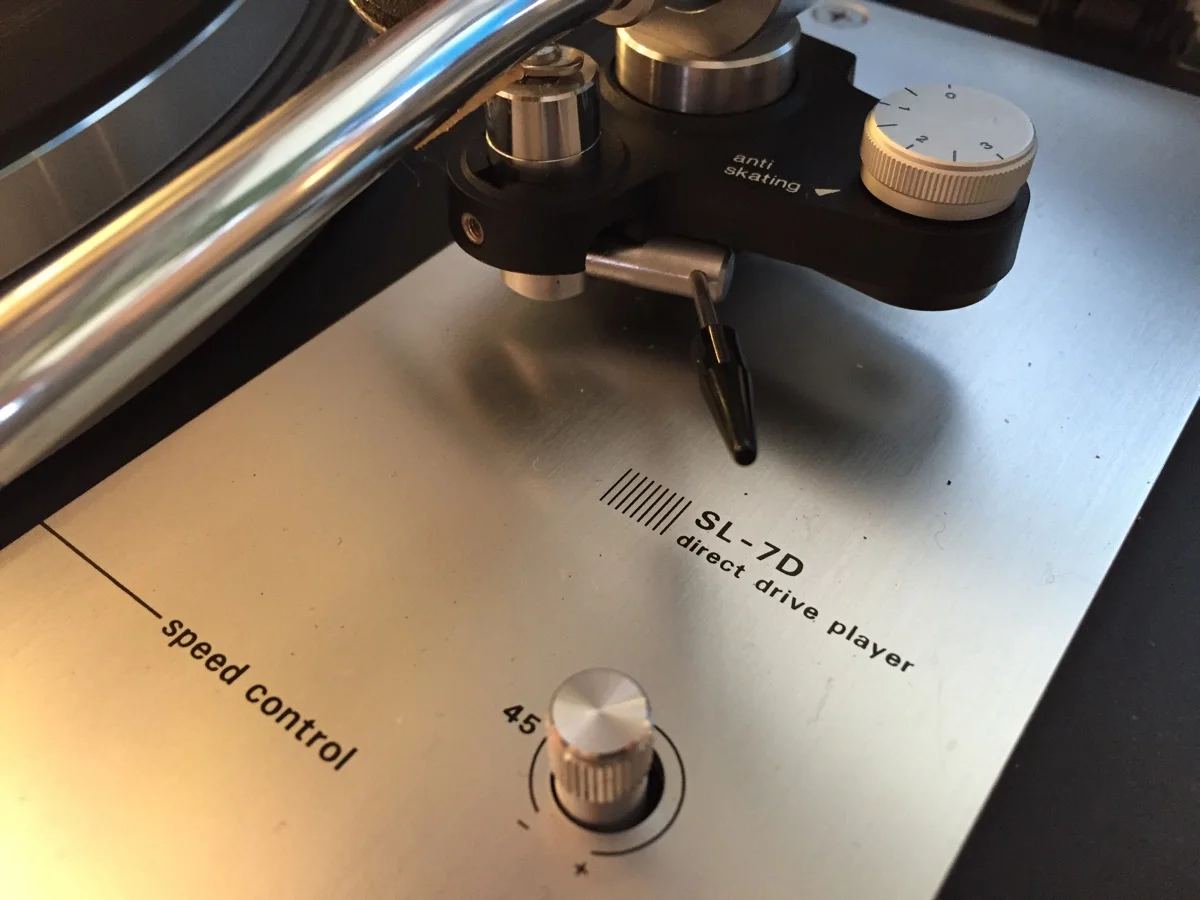

IMG 2884

Issues

This particular Denon SL-7D was overhauled at some point a few years ago, and never worked properly from that point. The main issue was poor speed control and lack of Quartz lock.

IMG 2886

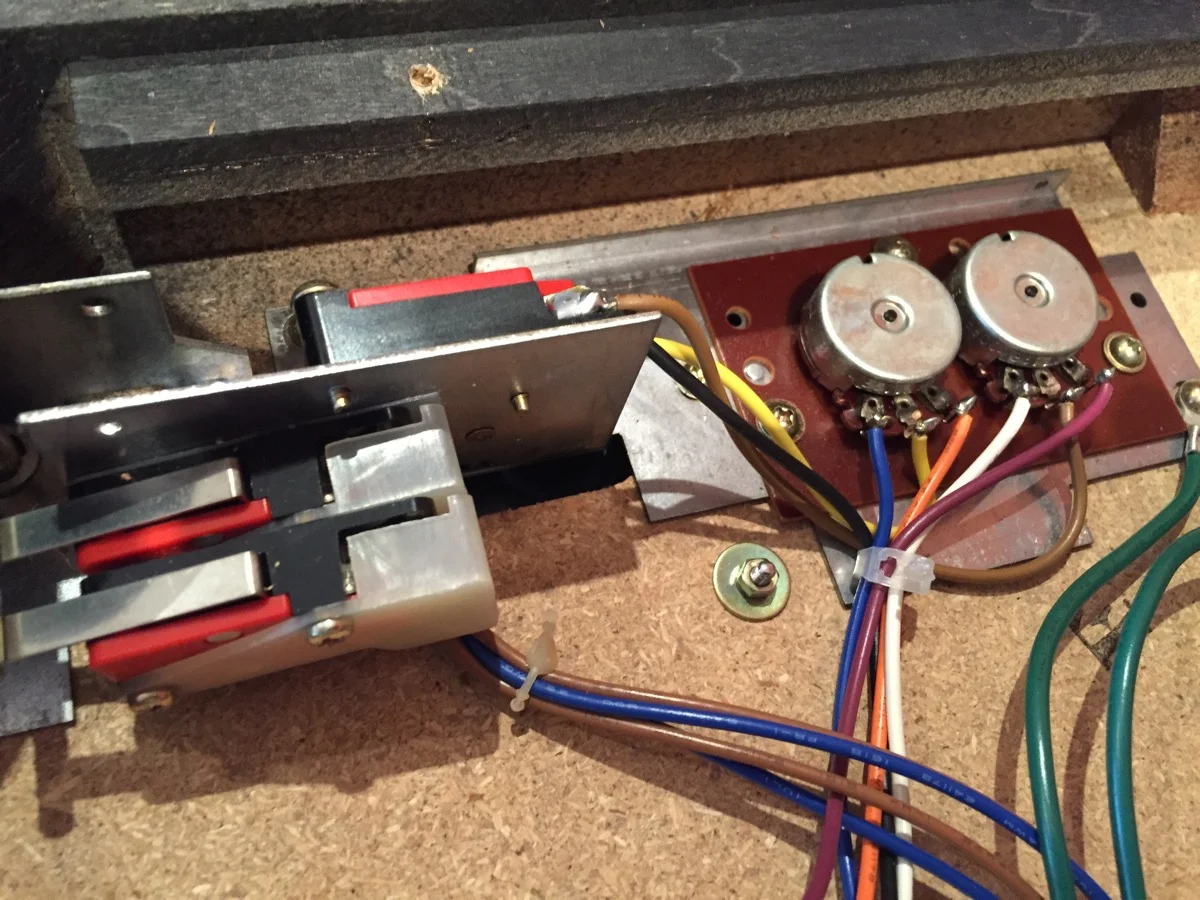

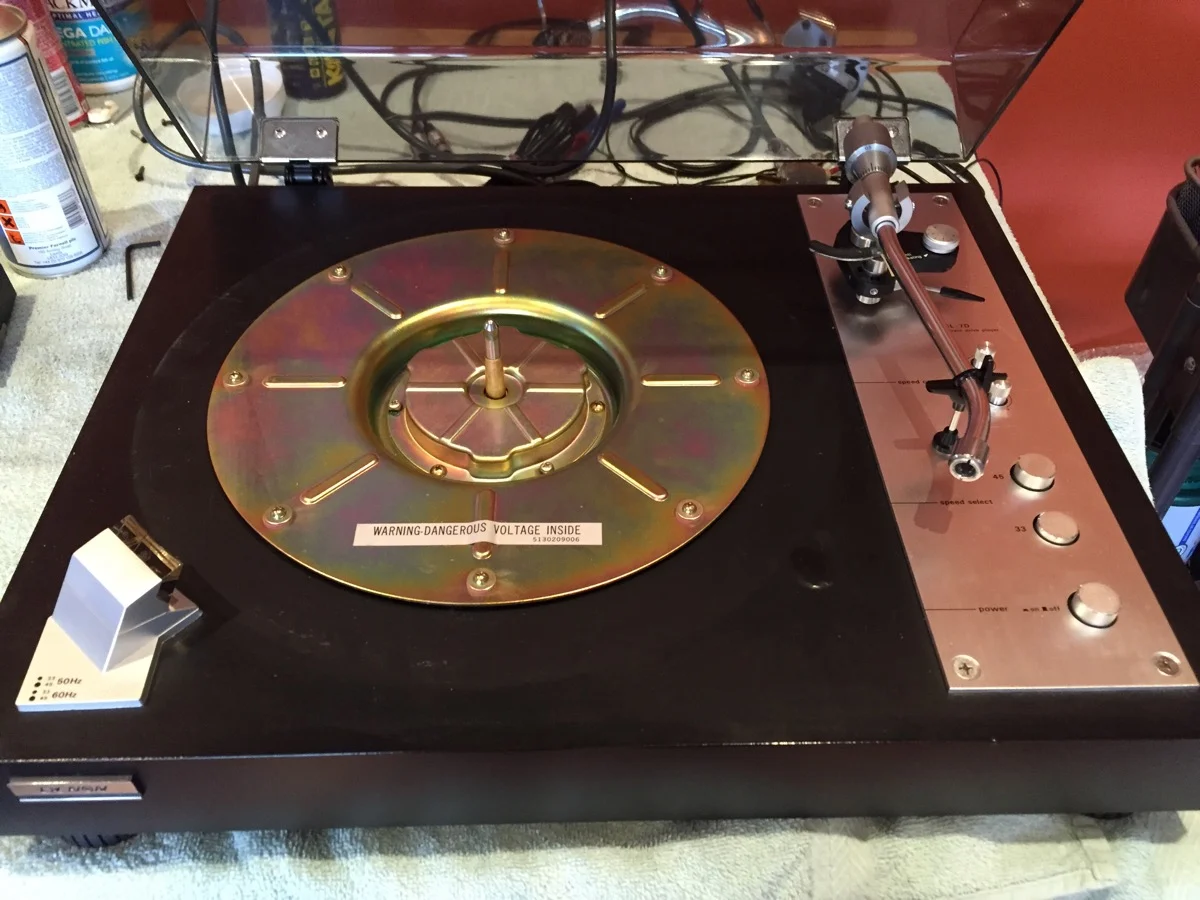

I cleaned the old girl up and then had a good look inside the chassis to start with. The speed controls needed cleaning and lubrication and the spindle bearing contained only a little old, dirty oil, so I fixed that too.

IMG 2887

IMG 2888

IMG 2890

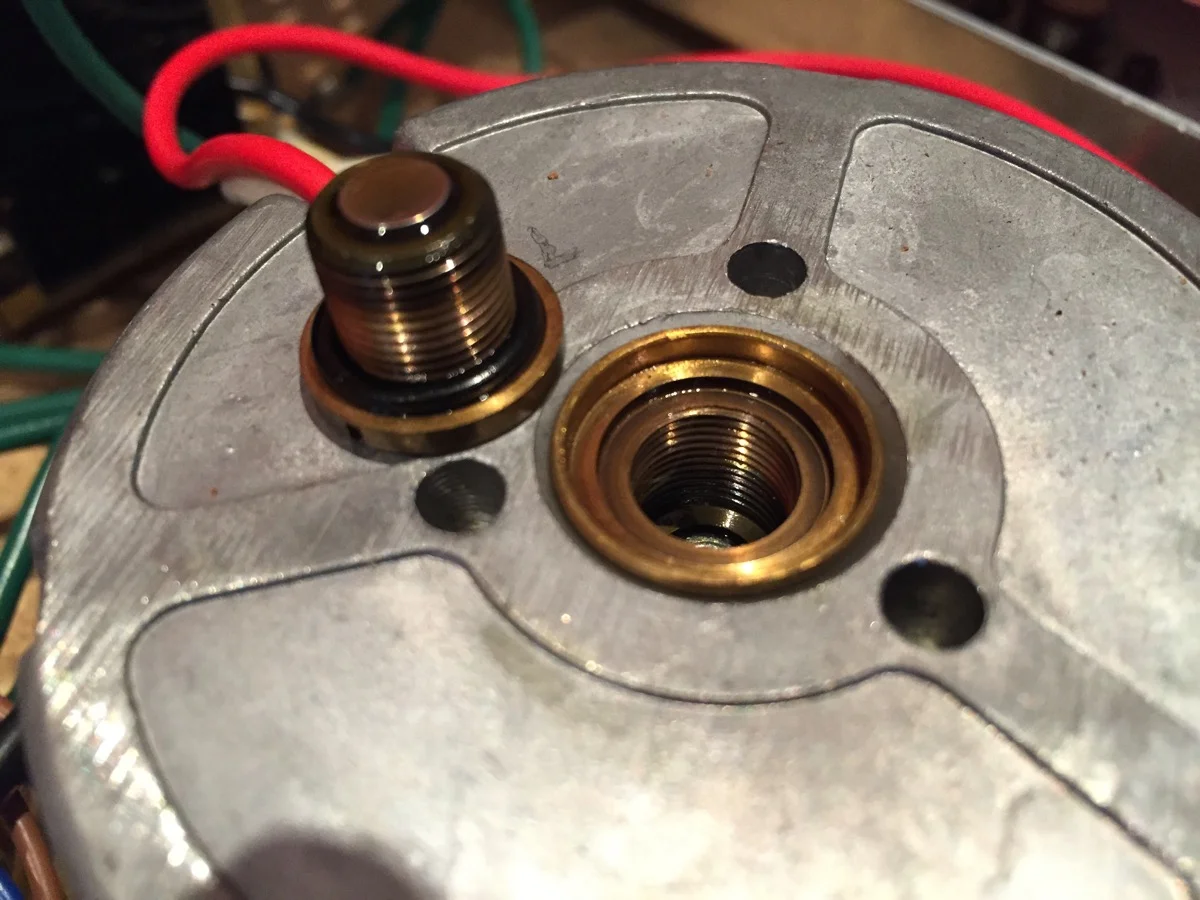

This is how to build a serviceable bearing – removable brass bearing base, complete with thrust pad, fine screw pitch and sealing ‘O’ ring – very nicely done.
IMG 2889

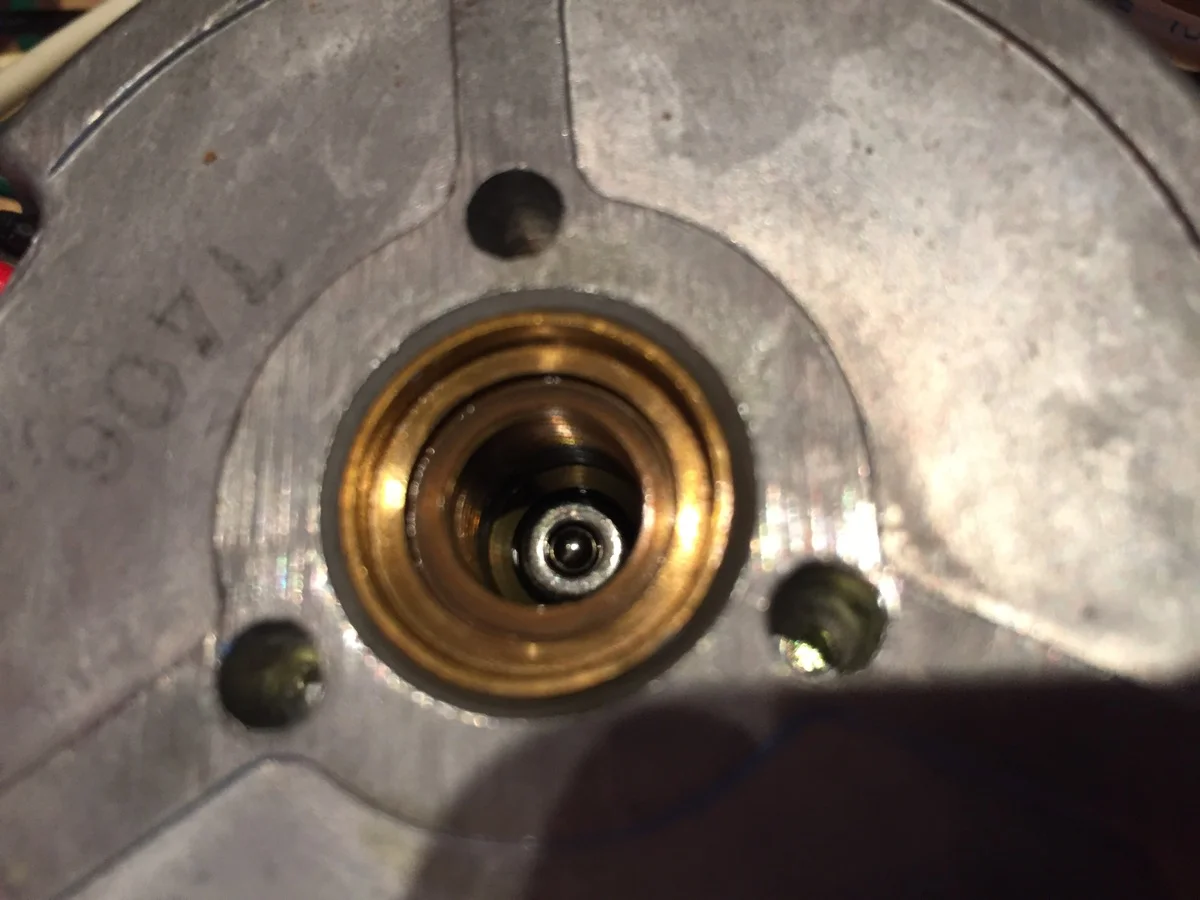

Looking from the bottom of the bearing, you can see the steel ball bearing resting in the bearing shaft. I cleaned out the old oil and added fresh synthetic oil.
Goofs

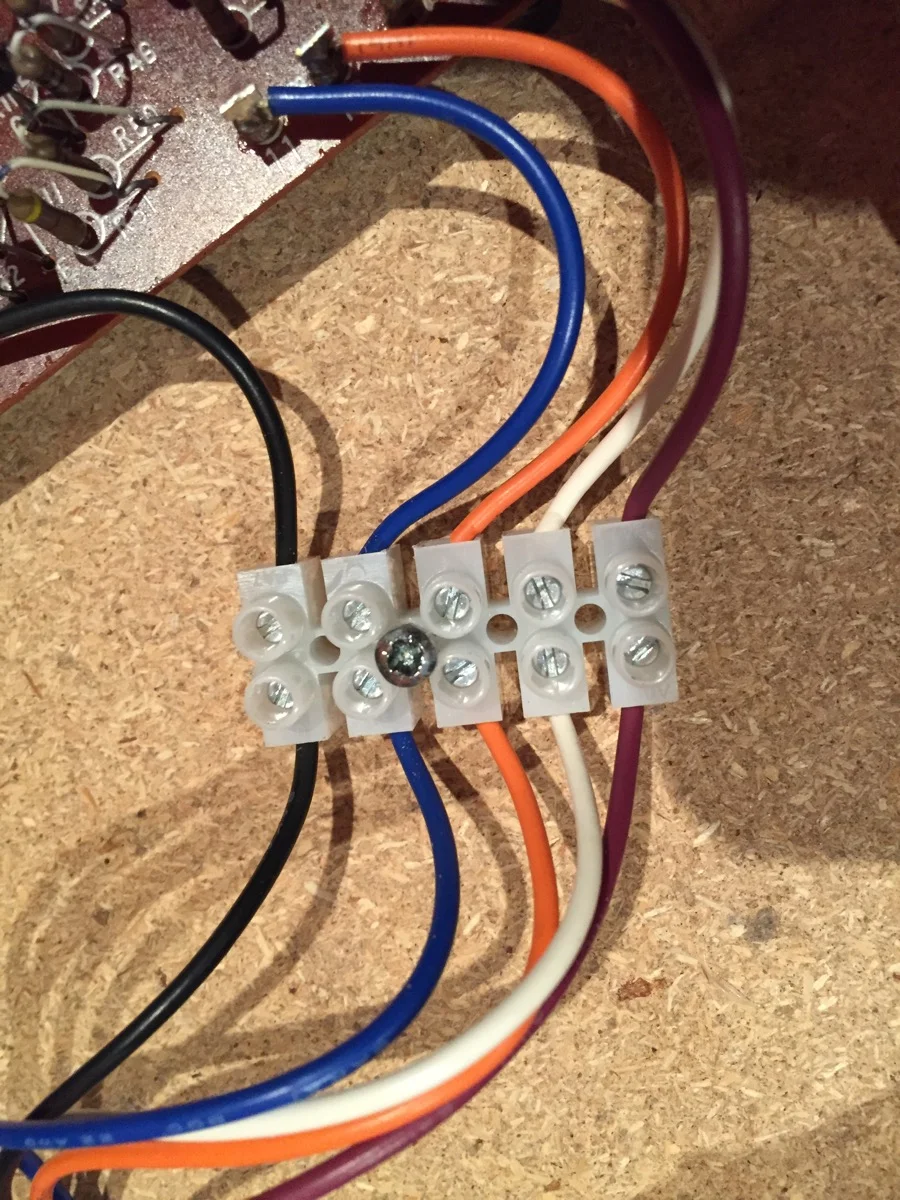

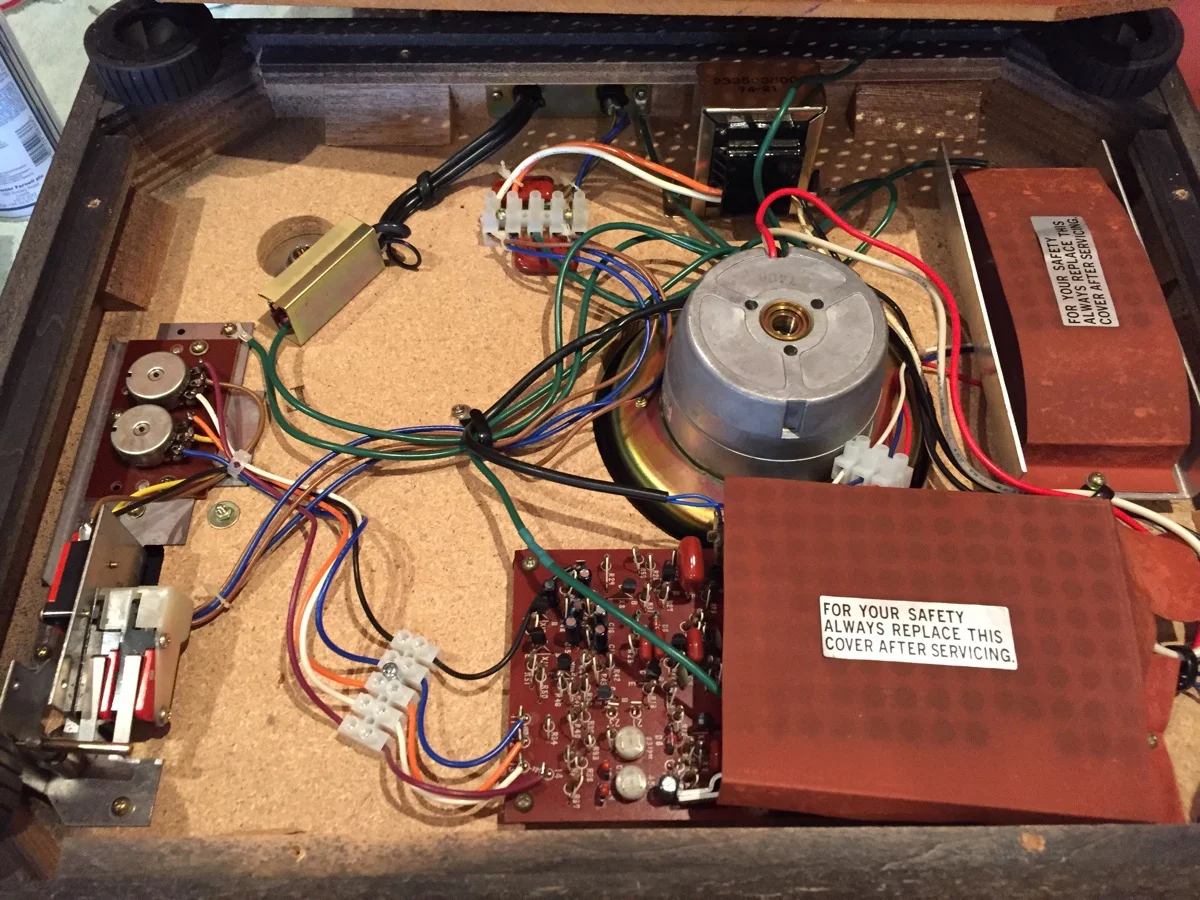

The guy who worked on this deck previously had seriously goofed though. Rather than take the time to disconnect and desolder the wires from each board before he removed the boards to work on them, this guy just cut though the looms to each board. He then used cheap terminal blocks to reconnect the broken wiring, a crude technique indeed, and completely unnecessary in this case.

IMG 2891
I’m going to be blunt – there is no reason to do this, this is a poor decision when the wires could simply have been desoldered.
IMG_2892
Again, there was no reason to do this. It is always better to simply desolder wires at one end, but in this case the wiring looms were long enough that you didn’t even need to do this – I was able to gain access to the boards I needed to without having to desolder or disconnect anything!

Thankfully, once I have cleaned everything, checked all the wiring and careful set the deck up again, she worked perfect and played a record very nicely, so this was a great result.

The AKG P25MD Moving Iron Cartridge

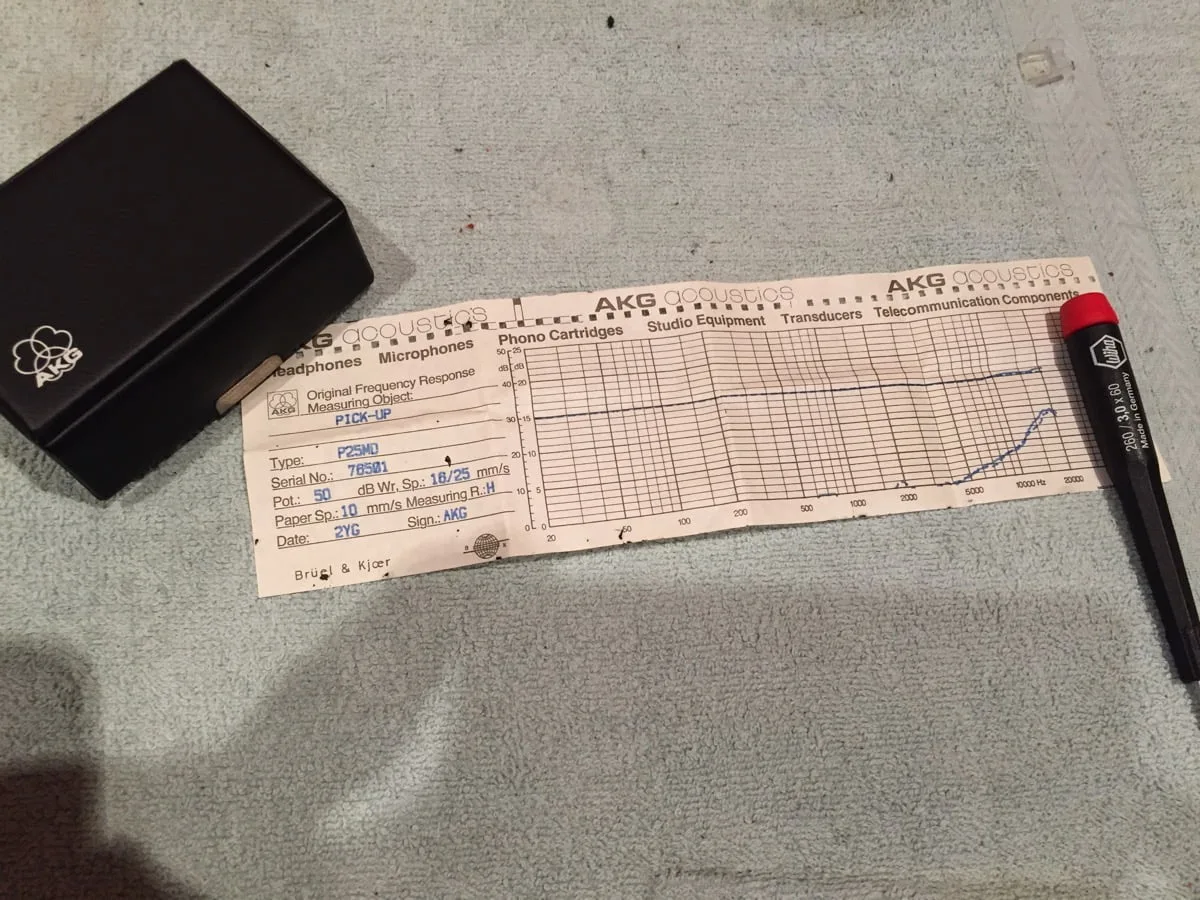

Back to that beautiful old AKG P25MD moving iron cartridge. These things have a super low tracking force of around 1.2g and come with their own individualized frequency response plot like a Denon DL-103 does now for example. Very nice.

IMG 2893

IMG 2895

IMG 2894

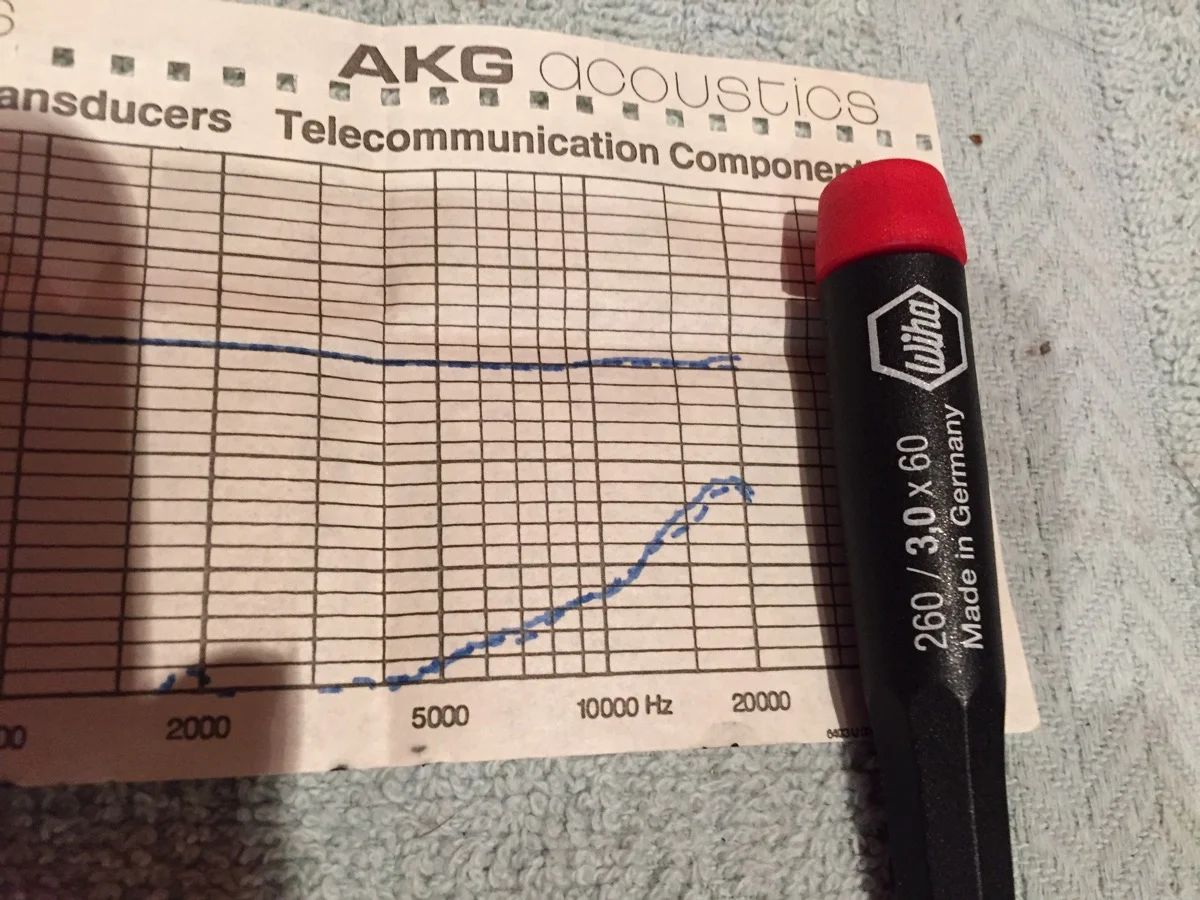

Individual frequency response chart for the P25MD cartridge

Summing up, the Denon SL-7D is a really solid direct-drive turntable. She is well-made and the deck sounds great, fitted with a classic period cartridge, like this Audio Technica P25MD. The tonearm also features quality construction and operates smoothly.

This repair went very smoothly and the owner messaged me to tell me how happy he was with the sound and that I was able to get this lovely deck working for him again.

2 thoughts on “Denon SL-7D Direct-Drive Turntable Service & Repair”

  1. Musyrif Abu Bakar

    Hi Mike.

    I just own this beauty today. However I need some of your advices.

    The cue rest/holder or I think the correct term ‘lifter’ was worn out and broken due to corrosion. Do you have any idea how to replace that?

    When cleaning the tonearm, the counterweight that should be in the tonearm, not functioning properly due to the cylinder that connects to the tonearm was not fixed at it’s position. I noticed there is a black plastic/rubber that supposed to make ghe cylinder stay put in fixed position, but its not. Should I glue the cylinder into the black plastic part?

    If you have spare parts for this items, please let me know.

    Thanks.

    1. Hi Musyrif, thanks for your questions. It’s tricky to comment on these things without having the deck in front of me. Yes, I carry a range of parts for these and other decks, but many repairs must be improvised based on what I find. I’d need to see the lifter to see what exactly is going on there and likewise the counterweight stub. These stubs can be sometimes either screwed or glued back into place. If you live near Liquid Audio you are welcome to arrange to book her in, but if not, I’ll need more information, photos etc.
