You are currently viewing Mission Cyrus One Amplifier Repair & Review

Mission Cyrus One Amplifier Repair & Review

In my Naim Nait article, I noted that the Mission Cyrus One is perhaps its closest contender from the time. Let’s take a look at the Mission Cyrus One as I repair and service this example.

I’m going to try to keep articles coming, even the smaller ones like this one. Stay tuned as there is so much more in the pipeline including equipment that you honestly won’t believe! Anyway, a chat about the Mission Cyrus One is the perfect complement to our discussion last time about the Naim Nait, so let’s go.

Mission

Mission is/was an interesting company with a fascinating history. Another UK manufacturer, Mission started out with some seriously weird gear – the classic Mission 776 and 777 pre and power amplifiers. They also made some absolutely classic speakers over the years, like the stunning Mission 752 Freedoms, a pair of which I proudly owned for many years, and the classic Mission 753, which I nearly bought, but liked ever so slightly less.

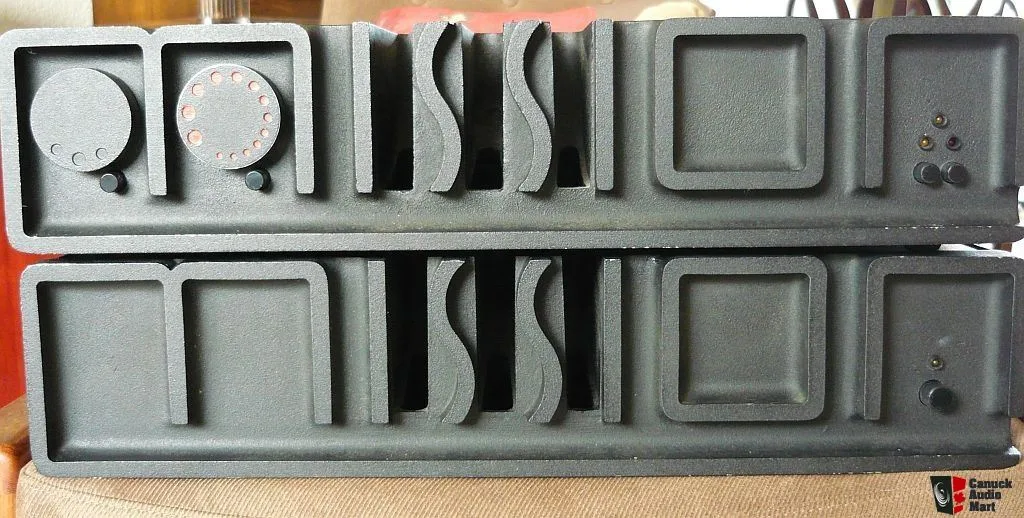

Mission 776 & 777
The super-weird, super-cool Mission 776 battery-powered preamp and 777 power amp really put Mission on the scene. You know you want a pair of these too.
Mission 752 Freedom
This pair of Mission 752 Freedoms is identical to the pair I used to own. Superb sounding speakers, these were ever so slightly better than the 753 I compared them to, way back in the day.

Mission morphed into Cyrus over the years and are still around, albeit in a very different guise, unlike Naim. Their product line is not something I’m especially fond of and I can’t really think of a good reason to buy modern Cyrus gear but hey, that’s just my opinion! They do retain some of the original design aesthetics of the very first Cyrus products though if that helps.

The Cyrus One

Mission was perhaps best known for the classic Cyrus product line that began with the slightly famous Mission Cyrus One integrated amplifier. The Cyrus One is a 25 Watt per channel baby, similar in size and slight more powerful than the Naim Nait we discussed in my last article.

Don’t confuse this original Mission Cyrus One with the new Cyrus One. You can read a comparison of these two at What Hi-Fi.

Mission Cyrus One

Let’s get this out of the way – the Cyrus One isn’t an amplifier I particularly love. Given the stiff competition from Japanese, European, American and local competitors like the aforementioned Naim Nait, I just found and find it difficult to get excited about a plastic amplifier with upward-facing RCA connectors and loose knobs that shed paint.

That being said, the amp is moderately more powerful than the Nait and, whilst in my experience doesn’t sound as good, is nice and compact and does sound good! Some folks love them and they certainly sound nice, there’s just too much that’s off for me.

Specifications

Power output: 25 watts per channel into 8Ω (stereo)
Frequency response: 1Hz to 50kHz
Total harmonic distortion: 0.005%
Damping factor: 100
Input sensitivity: 0.4mV (MC), 4mV (MM), 65mV (line)
Signal to noise ratio: 67dB (MC), 84dB (MM), 86dB (line)
Dimensions: 85 x 215 x 345mm
Weight: 4.5kg
Finish: black / grey
Price: GBP £230 (1991)

Cyrus One vs Naim Nait

In terms of design, the basics are quite similar. Both are shoebox-sized, low-power bipolar amplifiers. Both use just two pairs of TO-220 output devices, a transistor case style reserved for low power designs. The Cyrus used high-voltage devices with higher power dissipation than the Nait, but then hobbled it with the worlds puniest heatsink!

The Nait utilised complementary devices in its design, whilst the Cyrus One featured a quasi-complementary design with a pair of identical NPN devices per channel. This eliminates the issues created by PNP/NPN device differences. Both feature reasonably high-quality parts.

The Nait has an altogether more industrial build though. It feels much more substantial and expensive. In the Nait, the chassis is the heatsink. The Cyrus One has a horrible (to be honest) plastic case and the aforementioned internal heatsink that can simply cannot dissipate the heat created when the amplifier is run under load.

Mission I think hoped that duty cycle considerations and the small systems British hi-fi owners typically employed would mitigate the cooling problem. It doesn’t, this is a problem, just less so in a cold climate. Here in Australia, you really need to keep an eye on this.

Mission Cyrus One
Ultra-flimsy plastic case of the Cyrus One.

So, sonically and from a design standpoint, I prefer the Nait. Your mileage may vary!

Service and Repair

This particular Cyrus One came to me with the usual complaints on switch and control issues, dirt, dust, bias drift etc. My standard approach in cases like this is to clean everything, wash the chassis using my proprietary process, service switches, controls, trimmers, lubricate controls, shafts, rework boards, adjust and test. Once all this is done, I deal with any remaining issues.

Mission Cyrus One

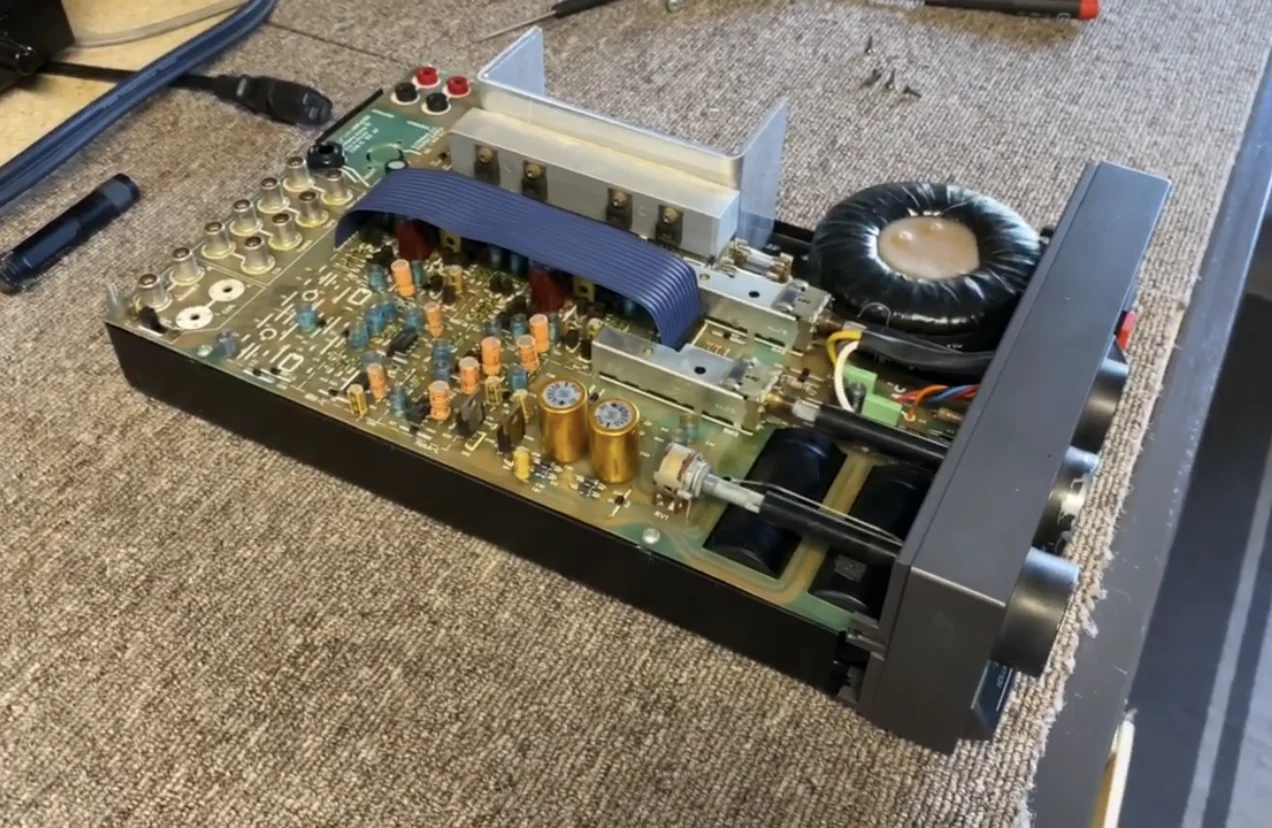

Mission Cyrus One, minus lid. Here we can see the neat layout, row of four output devices attached to heat spreader, attached to the small heatsink. Toroidal transformer of similar size to the that in the Nait sit in the front right. Switches are remote actuated, board mounted ALPS parts.
Mission Cyrus One
In this view, the filter capacitors are visible, lying horizontally under the control shafts, behind the front panel. This arrangement helps with the compact layout.
Mission Cyrus One

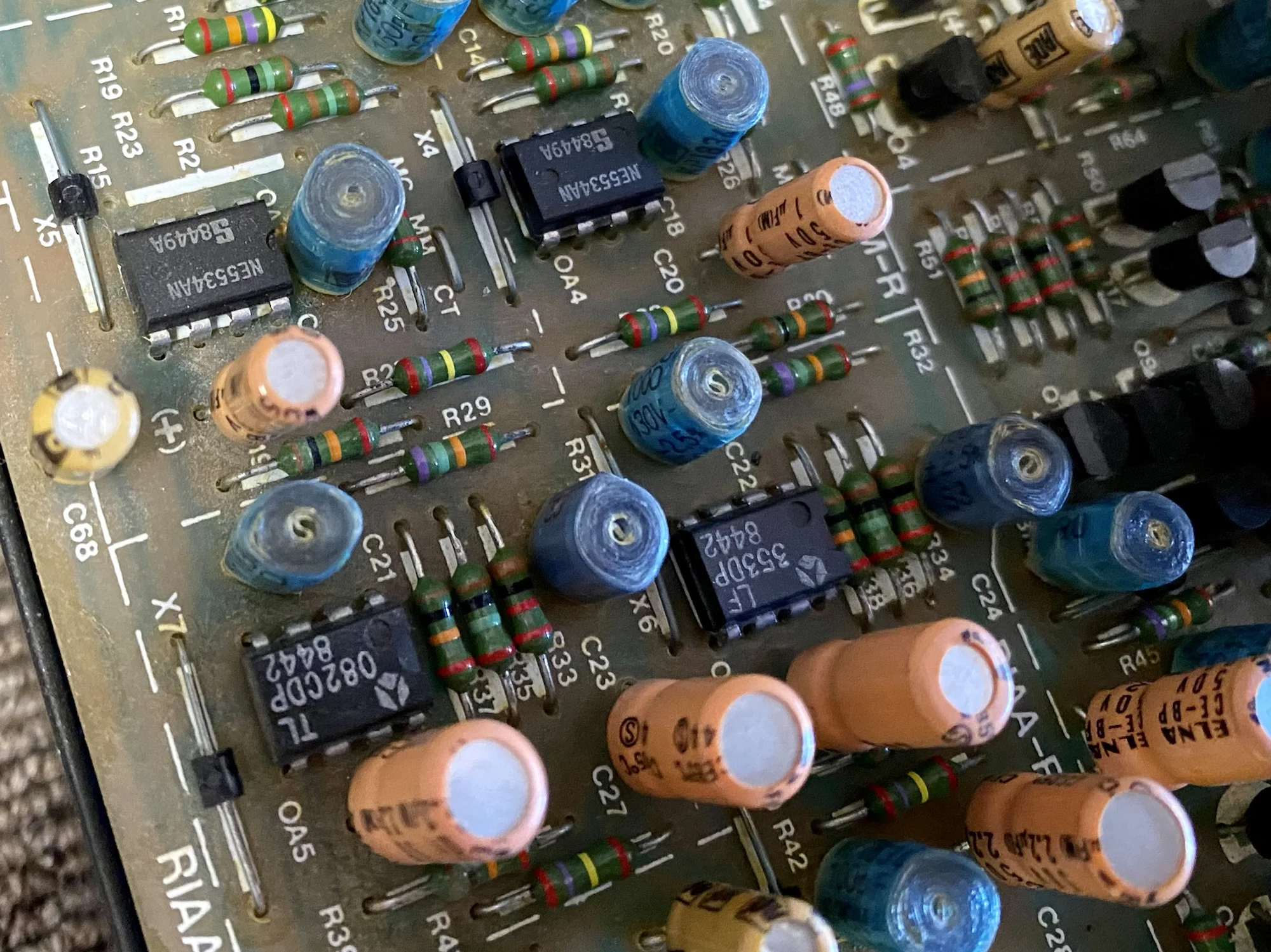

A board close-up reveals good quality parts, certainly ahead of contempories like Musical Fidelity for example. The parts used here are more like one would find in Audiolab gear from the time, including lots of expensive polystyrene capacitors, Roederstein electrolytic and 2% film resistors. Opamps are used to reduce component count, saving money and space.
Mission Cyrus One

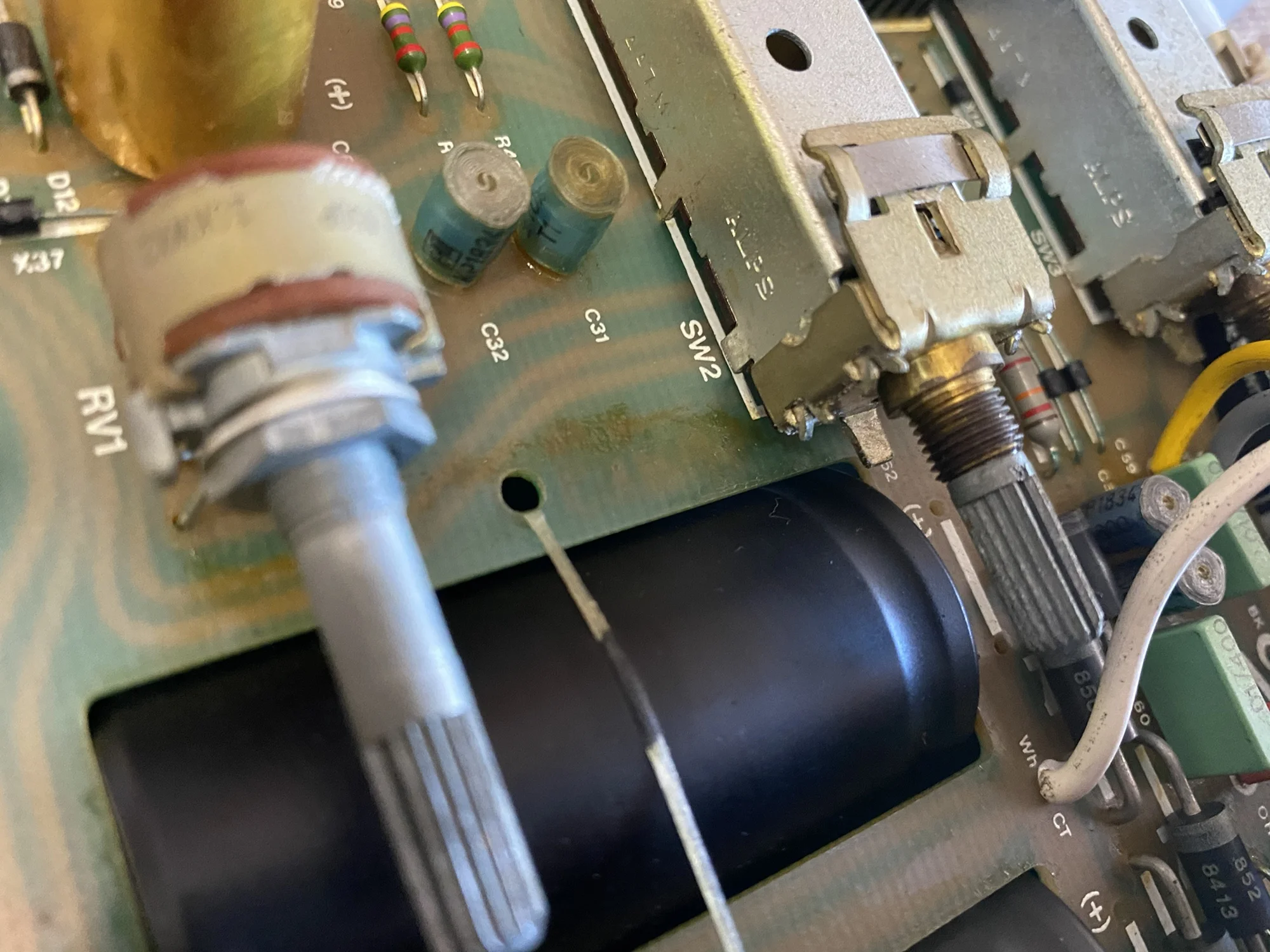

ALPS switches are some of the best and feature in most Japanese gear from this period too. Very servicable.
Mission Cyrus One
Another ALPS shot. I love these switches, they are so reliable and easy to service.
Mission Cyrus One

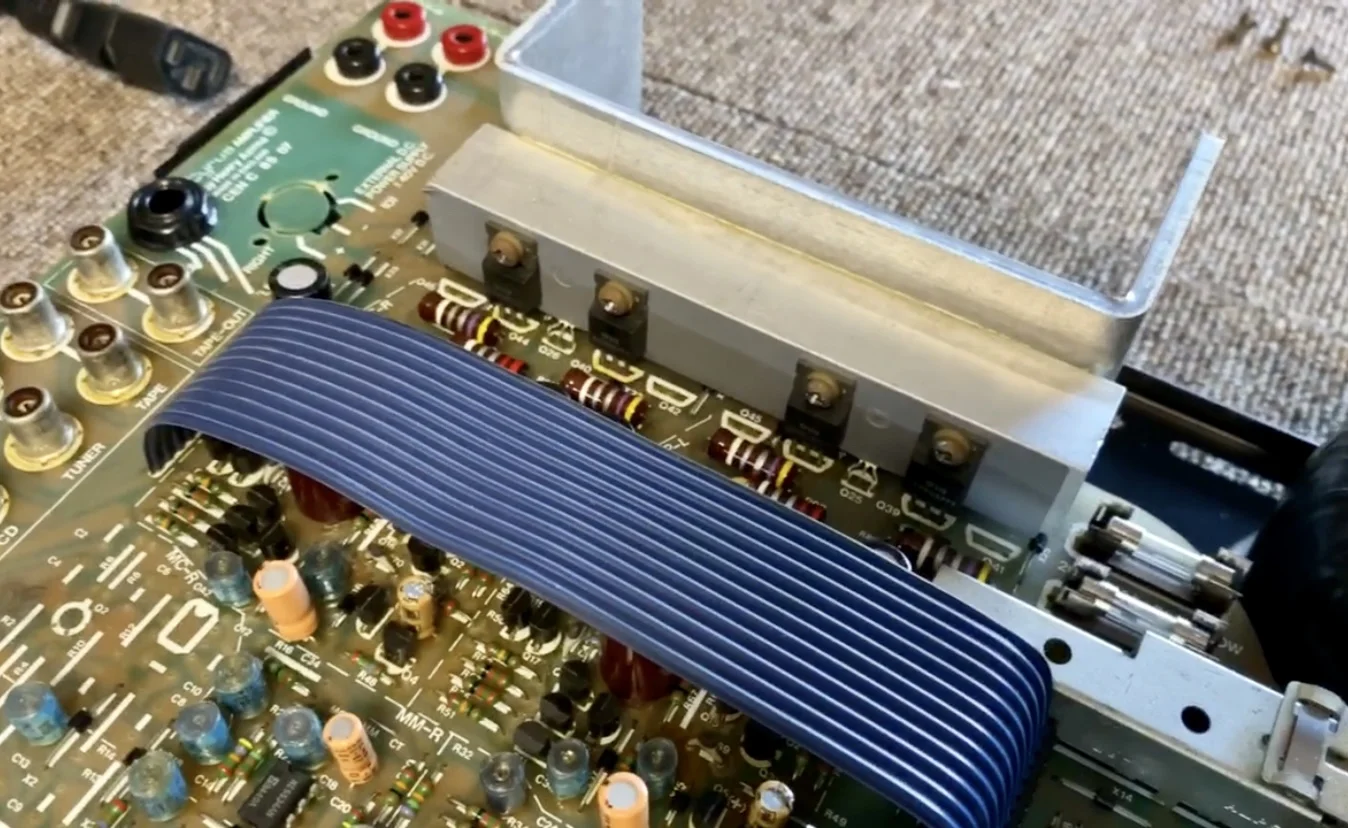

This large ribbon cable carries signals from the inputs at the back to the switching at the front. No relays or electronics to break here, just mechanical connections.
Mission Cyrus One
The Cyrus One, viewed from the right-hand side. Sorry about the image quality, some of these were video caps as I didn’t take enough photos!
Mission Cyrus One

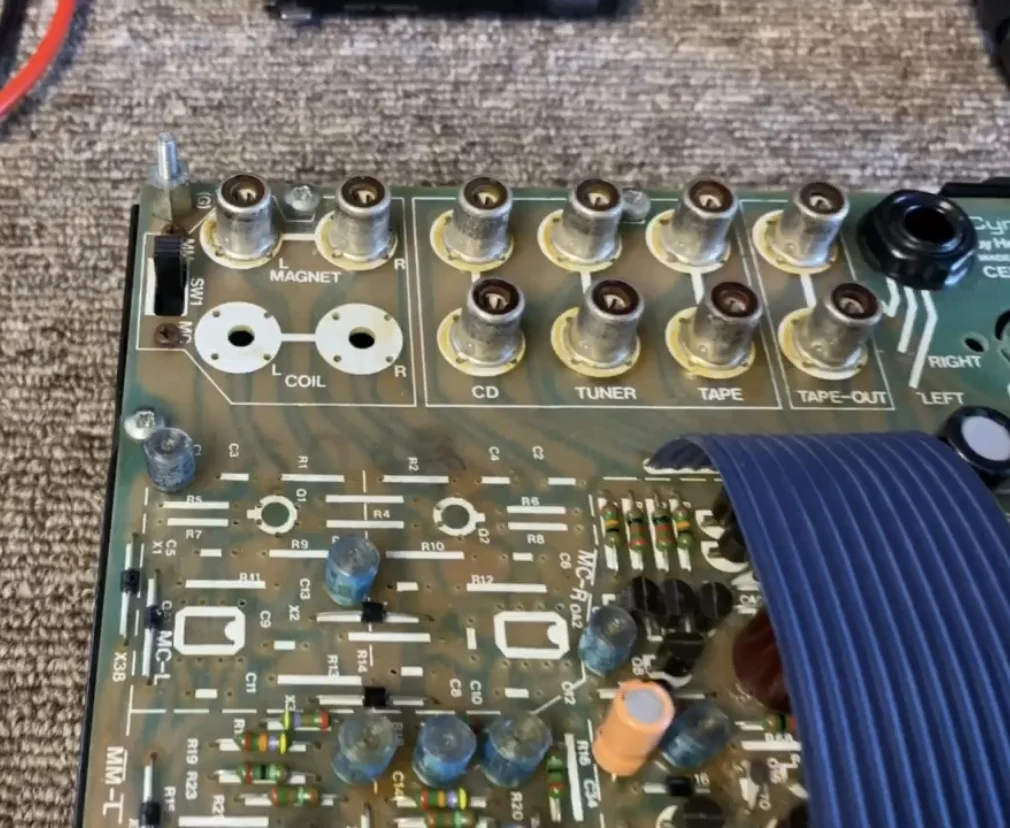

You can see an unpopulated section of the board here, designated MC-L, giving away its purpose. This whole board was used in the Mission Cyrus Two, a more powerful version of this amplifier. In the Two, the MC-L area is populated and operated by the rear panel sliding switch you see to the left rear, underneath the moving magnet input jacks.

Results

After service and much-needed maintenance, this Cyrus One purred again for her happy owner. The process of deep chassis cleaning, washing away decades of accumulated grease, grime, crappy contact cleaners and so on, never fails to improve every aspect of operation and aesthetics of a piece of hi-fi equipment, like this Cyrus One.

Mission Cyrus One

Mission Cyrus One
Cute little thing isn’t she!

Performance

There’s not a great deal to note here, except to say that this thing crushes low-powered Japanese STK module based amplifiers in most cases, and gives other contemporaries like the Naim Nait and NAD 3020 a good run for their money. I’d rate the Audiolab 8000A and Naim Nait as definitely better, the 8000A, in particular, is a favourite of mine.

The  Mission Cyrus One really does sound great. Listening to this little amp as I do all equipment that passes through the Liquid Audio workshop, powering my Yamaha NS-10s, I’d describe this as a clean, snappy amplifier, quite detailed and fast sounding. It has surprisingly good bass performance for its size and power rating and for me, the Mission Cyrus One is really only let down by build quality issues and the inability to run and higher power for any length of time, due to the inadequate heatsinking.

img 8917

I would choose an Audiolab 8000A over the Cyrus one, as it is an altogether better made, more powerful amplifier. That being said, the Cyrus One was cheaper at the time of sale and this has to be factored in. If you can live with the lower power, I reckon the Naim Nait also sounds better, but it does struggle to keep up with bigger, more powerful competition.

The Bottom Line

If chasing down a Mission Cyrus One today, look for some sort of service history and check that everything works. Keep an eye out for wobbly connectors, those knobs that shed paint and the general condition of the plastics. Other than that, for the right price, for those looking for an affordable, smaller, genuine high fidelity amplifier, this could be a perfect choice.

As always, thanks for reading. Don’t hesitate to let me know if you’d like me to service your Mission Cyrus One, or any other hi-fi stereo amplifier!

Mission Cyrus One

$300 - $750 AUD
7

Build quality

5.0/10

Appearance

6.5/10

Sound quality

7.0/10

Scalability

7.5/10

Bang-Per-Buck

9.0/10

Pros

  • Another collectible classic
  • High performance to price ratio
  • High-quality parts and board
  • Clean, fast sound

Cons

  • Cheap chassis and external build
  • Feels flimsy compared with others

Liquid Mike

As a kid, I cherished my Tandy 200-in-1 electronics project lab, Dick Smith electronics kits, my Dad's hi-fi and my own first proper system. Later, I created Liquid Audio to help keep classic hi-fi gear alive and well. Our mission: to deliver TLC for classic Japanese, American and European hi-fi stereo equipment.
