Gorgeous Realistic STA-2000 Receiver Repair & Service

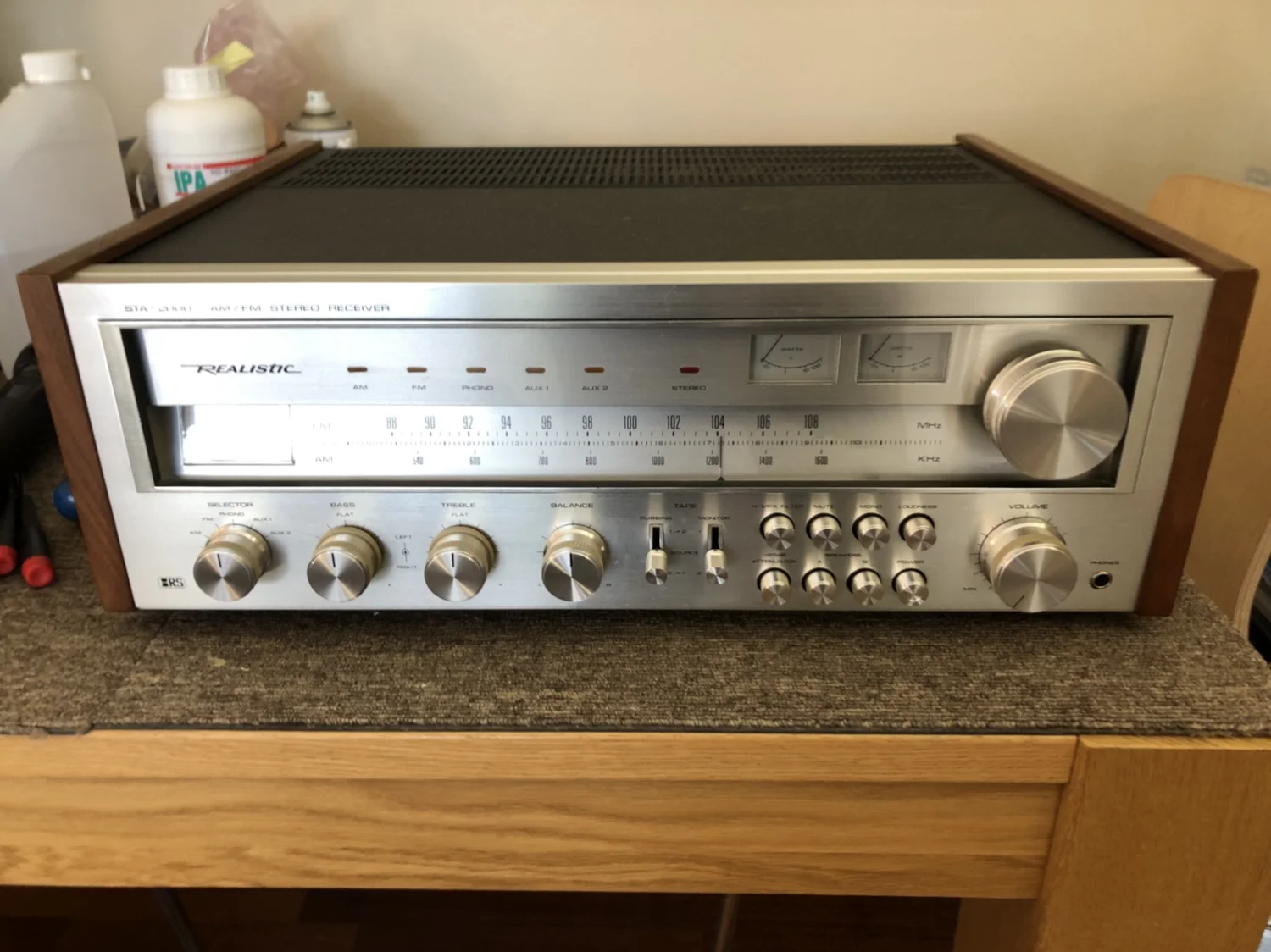

Wow, take a look at this beautiful old girl. This Realistic STA-2000 is one of the most beautiful receivers I’ve had the pleasure of working on.

The Realistic STA-2000 was sold here in Australia in the late ’70s, through the Tandy Electronics chain. As a kid, I used to hang visit the local Tandy store and marvel at all the wonderful array of electronics for sale. One of my favourite things was my Science Fair 200-in-1 electronics kit, a Christmas present from my parents, purchased from Tandy Electronics.

I was especially interested in Tandy’s hi-fi section, who’d have guessed? I had a small pair of Realistic speakers and lusted after the legendary Mach One speakers proudly on display at my local store, probably not far away from this old girl.

Realistic STA-2000

STA-2000 Roots & Manufacturer Mystery

The STA-2000 has a distinctly Pioneer vibe in terms of aesthetics, but there’s a bit more to it. I was under the impression that Tandy didn’t make their own stuff and that a major Japanese manufacturer OEM’ed this and other models for them. Thanks to Norman and Ed, American readers who worked for Tandy Corporation, we have more information on this, though perhaps still no definitive answers.

Norman told me that the STA-2000 was manufactured by Foster, a Japanese OEM who made speakers, radios and various other electronics for many companies back in the day. This ties in with my thinking at the time. More recently, however, Ed commented that Norman’s information was incorrect and that Tandy did in fact made this and many other models, in their own factory.

It’s difficult to know for certain who actually manufactured these and other electronics for Tandy Corp. Perhaps the only way to know exactly would be to speak to someone who worked in or managed some aspect of the factory back in the day. I’m sure more information will come to light and if you have anything additional to contribute to this story, please do so in the comments, below.

Update

Ed has provided some excellent additional information about which models were made where, and by whom. Ed also provided a link from the Tandy catalogue page about the STA-2000. It clearly states that the STA-2000 was made in Tandy’s own factory, though there’s still some uncertainty around this as some STA-2000s were made in Japan and some in Korea.

Tandy was certainly big enough by this point that they could have either purchased an OEM and called it Tandy or built their own factory from scratch. Anyway, you can read Ed, Norman and many other people’s contributions in the comments!

Realistic STA-2000 Specifications

Courtesy HiFi Engine

Tuning range: FM, MW
Power output: 75 watts per channel into 8Ω (stereo)
Frequency response: 15Hz to 25kHz
Total harmonic distortion: 0.25%
Signal-to-noise ratio: 70dB (MM), 75dB (line)
Dimensions: 19.25 x 16.5 x 6.25 inches
Finish: silver front, walnut veneer side panels
Year: 1977
Price: USD $499.95 (1978) = USD $2118 in 2018!

Service & Repair

This STA-2000 arrived with a broken left channel, stiff tuning and looking a little dull. I replaced a noisy transistor differential pair using high-spec parts, similar in performance, but with a much higher voltage rating. These won’t fail again and I’m happy to report the unit is now singing again and back with her happy owner.

Let’s take a look and check out some of the extra little things I do when working on vintage hi-fi gear.

Realistic STA-2000
Let’s go!
Realistic STA-2000

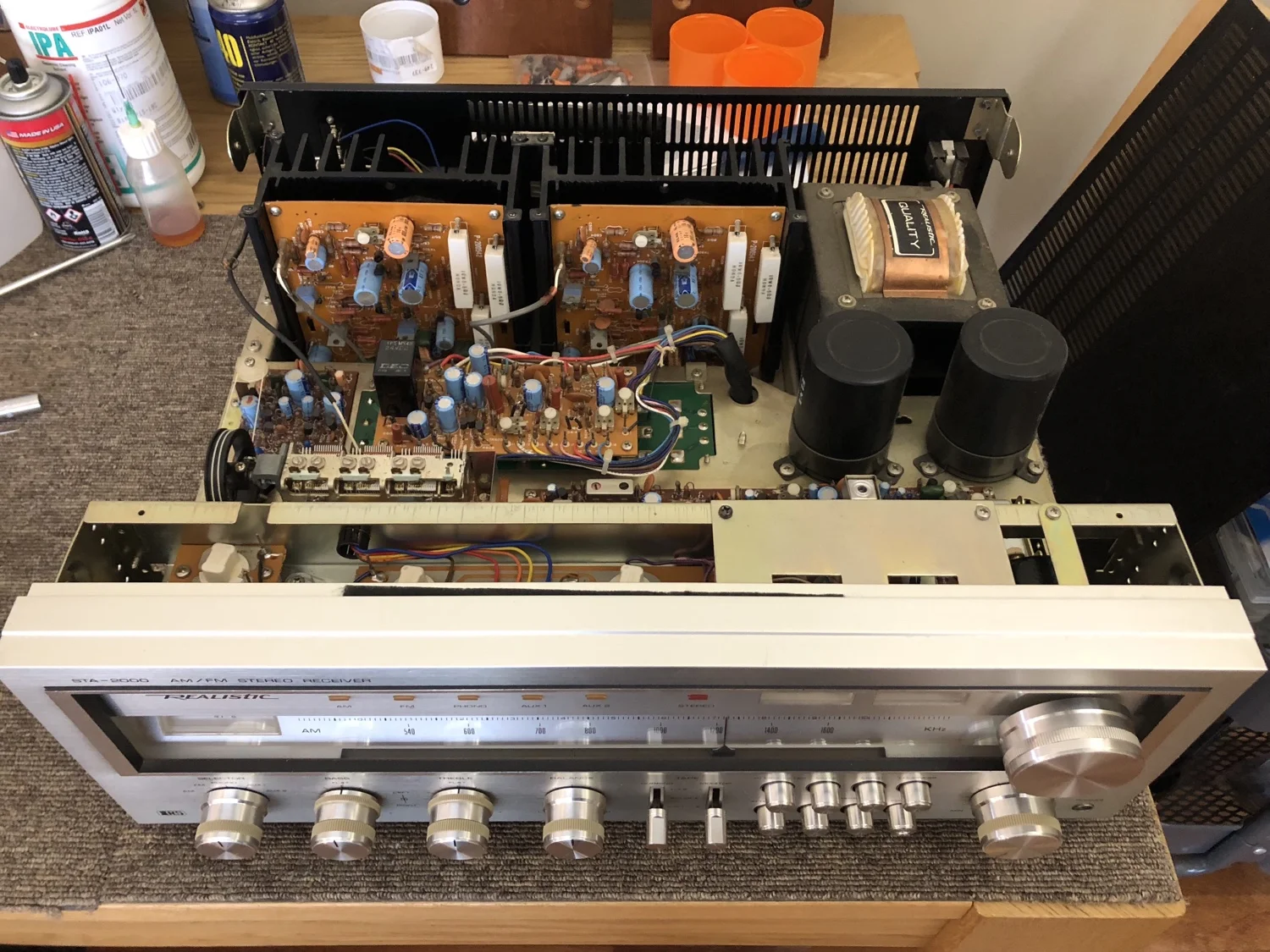

Nice spacious layout in older gear like this makes it a pleasure to work on.
img 1983

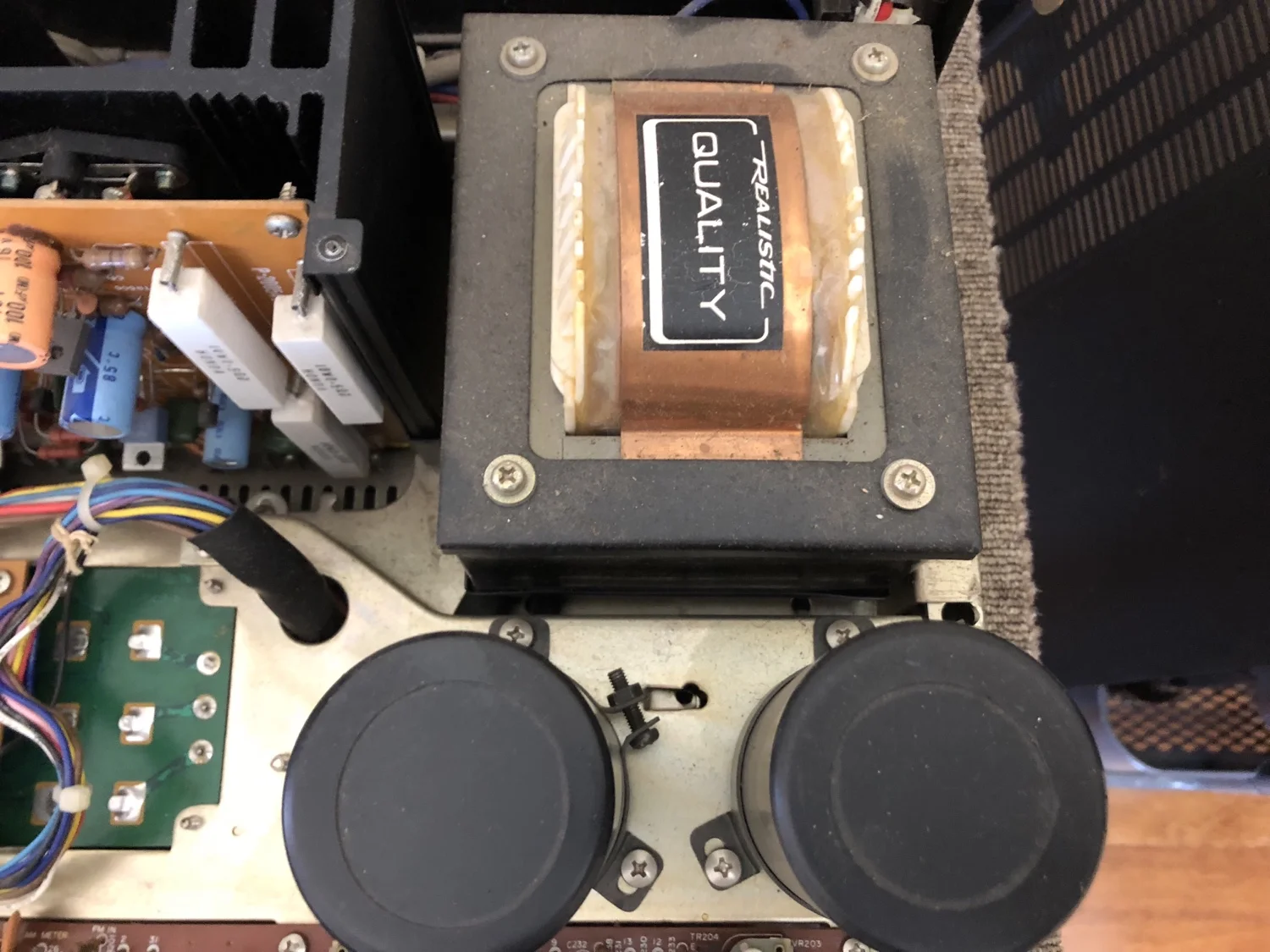

Realistic Quality, love it!
Realistic STA-2000

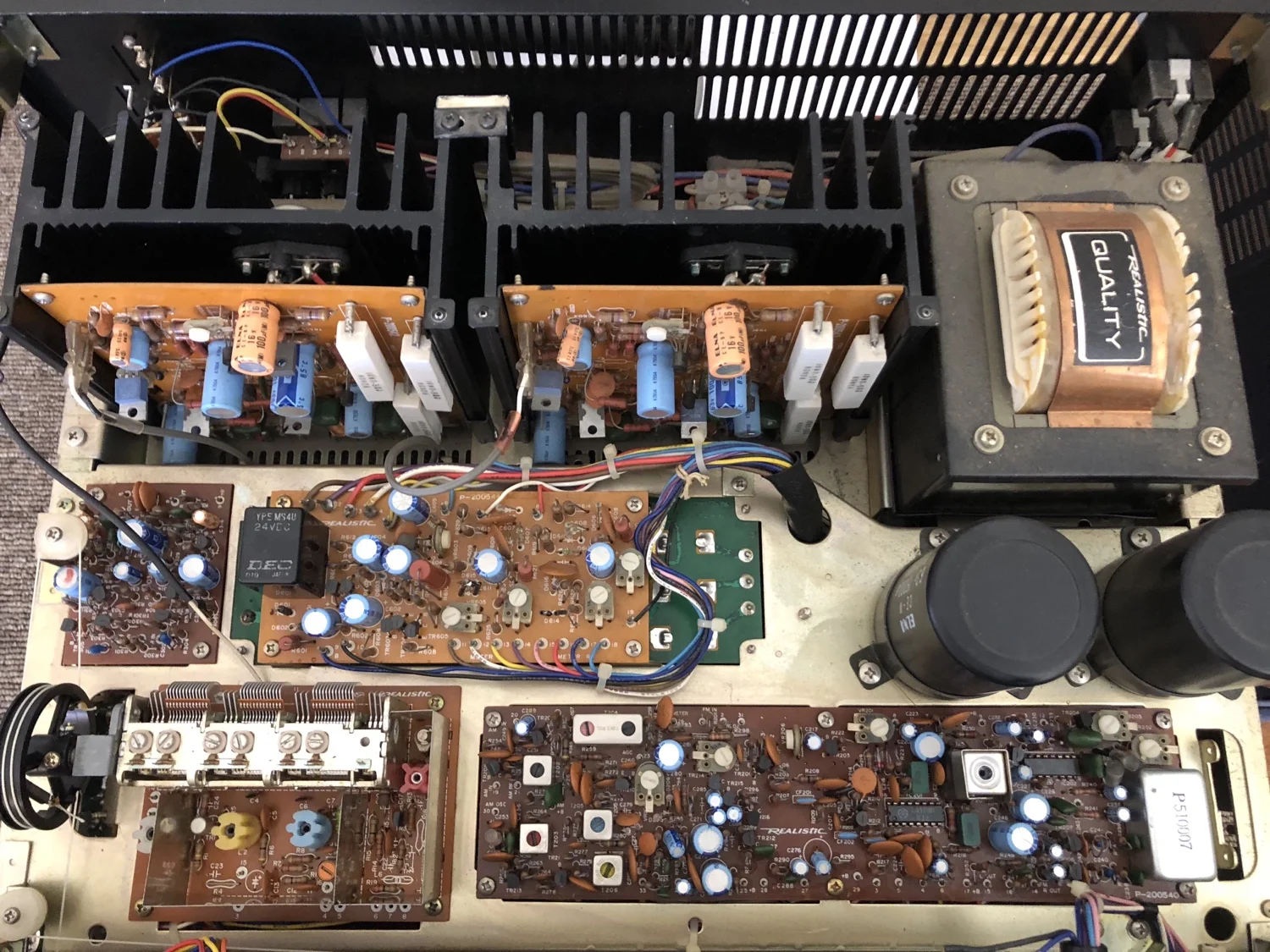

Two amplifier modules, top left, generous transformer top right. Middle left is the phono pre, next to it some power and protection stuff, next to it the filter capacitors. Bottom left is the RF front end, and next to it, the tuner board. There are some power and preamp elements hidden underneath.
img 1987

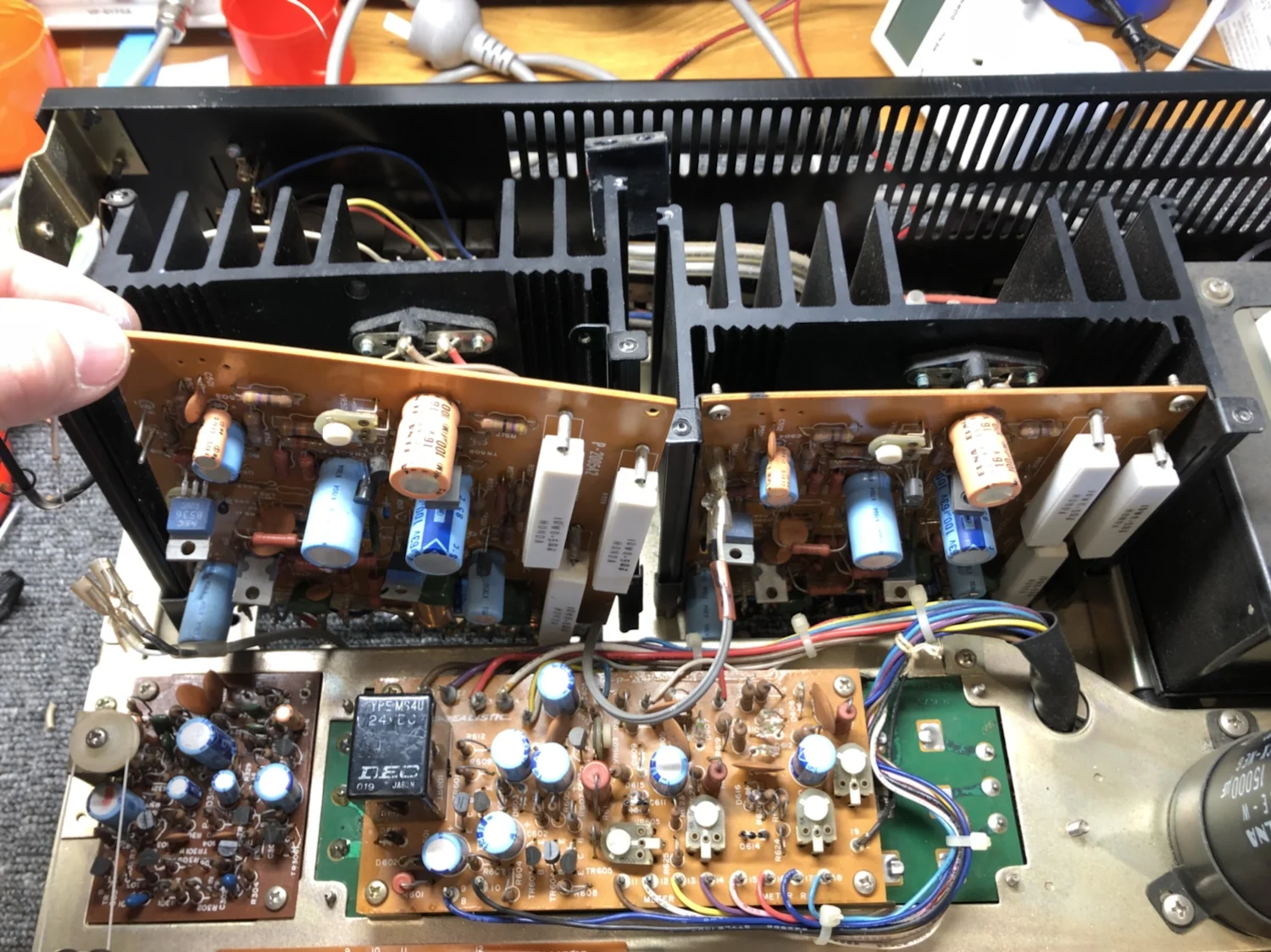

It’s fiddly to remove the module and separate the board and heatsink, but well-designed overall.
img 1986

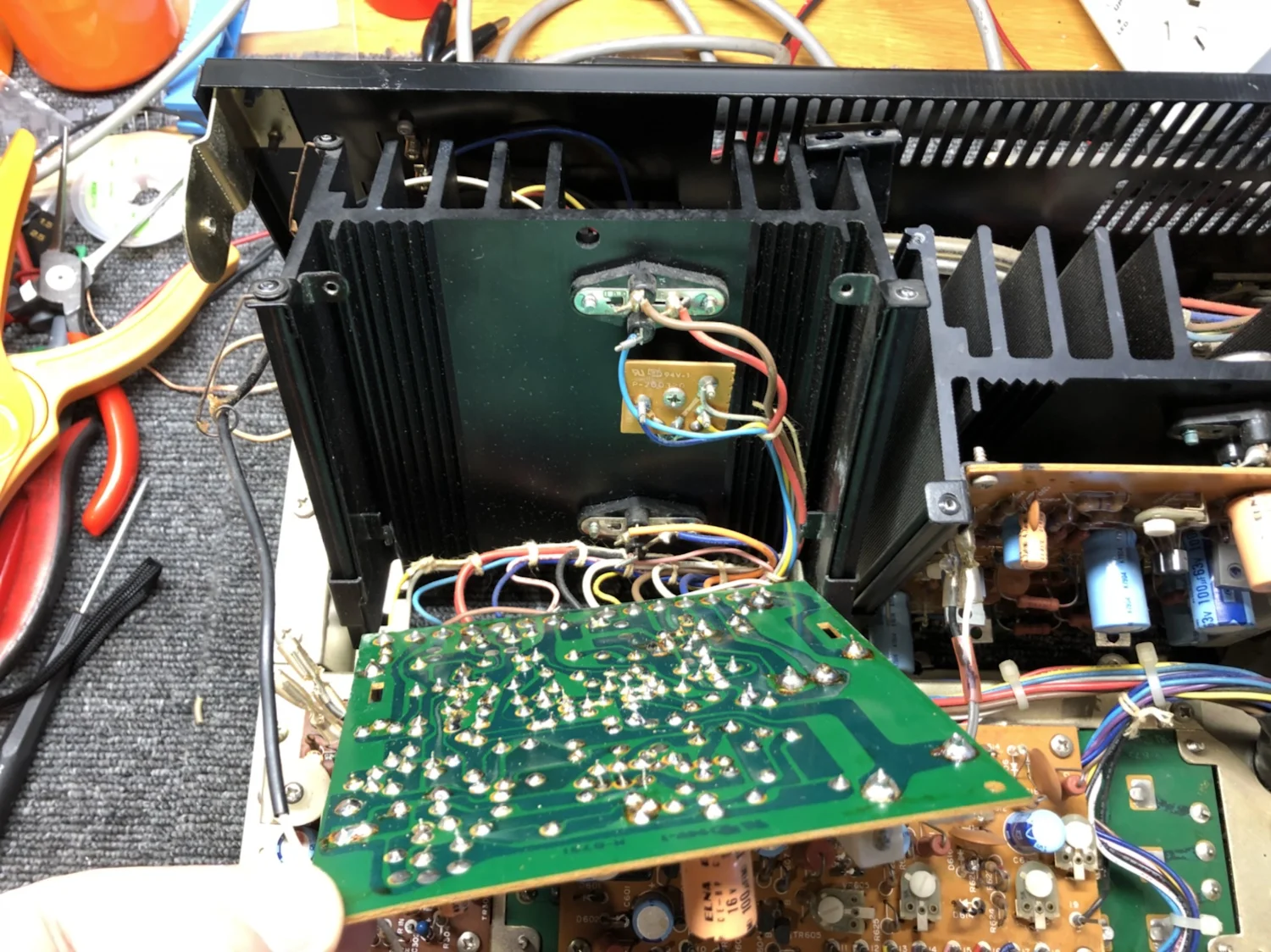

Out with that noisy differential pair.
img 2015

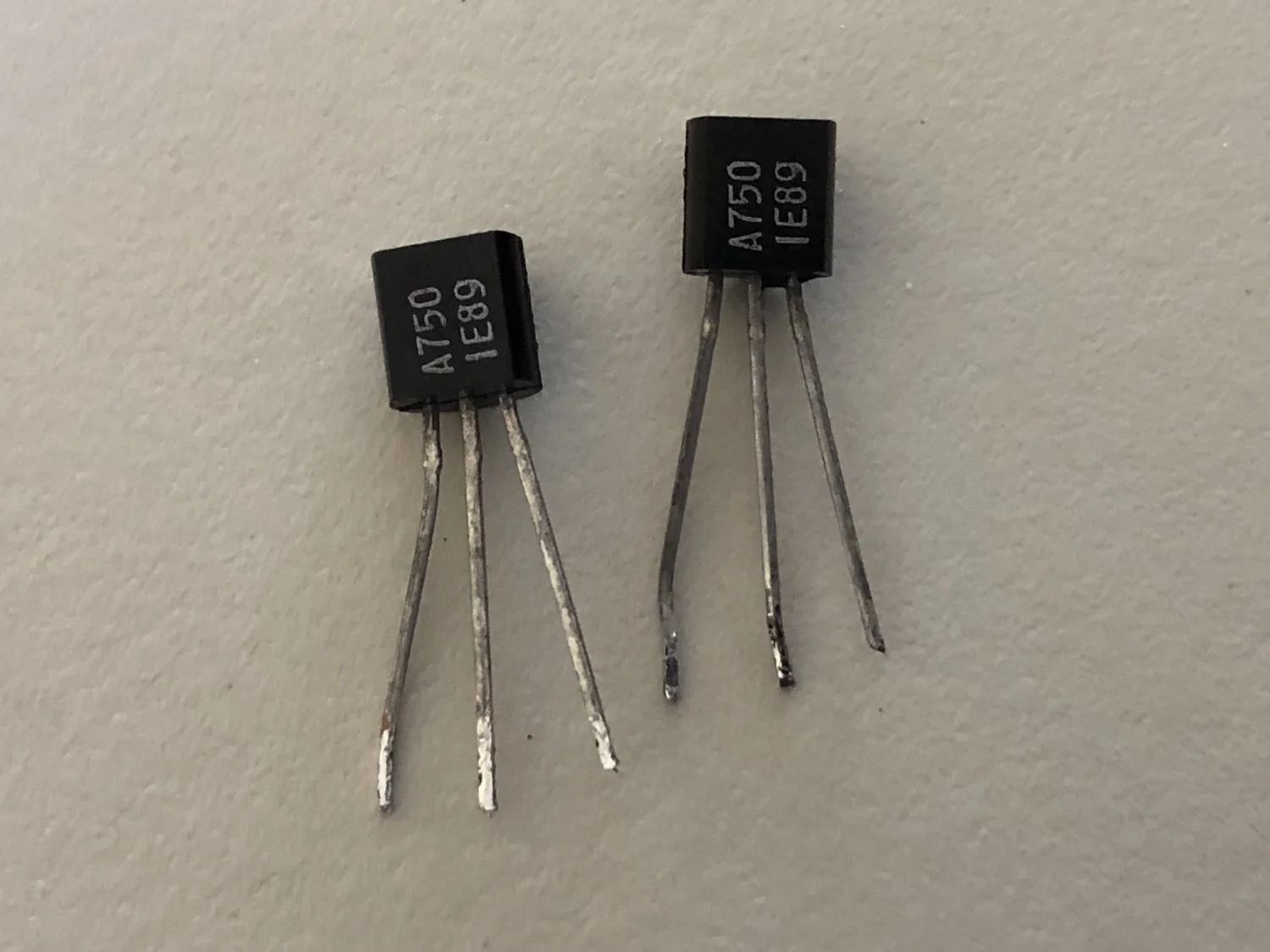

This pair of transistors was the problem. They tested well, but one or both were noisy. Testing semiconductors doesn’t always reveal their faults. That’s where experience and diagnostics on the actual unit come into play.
Realistic STA-2000

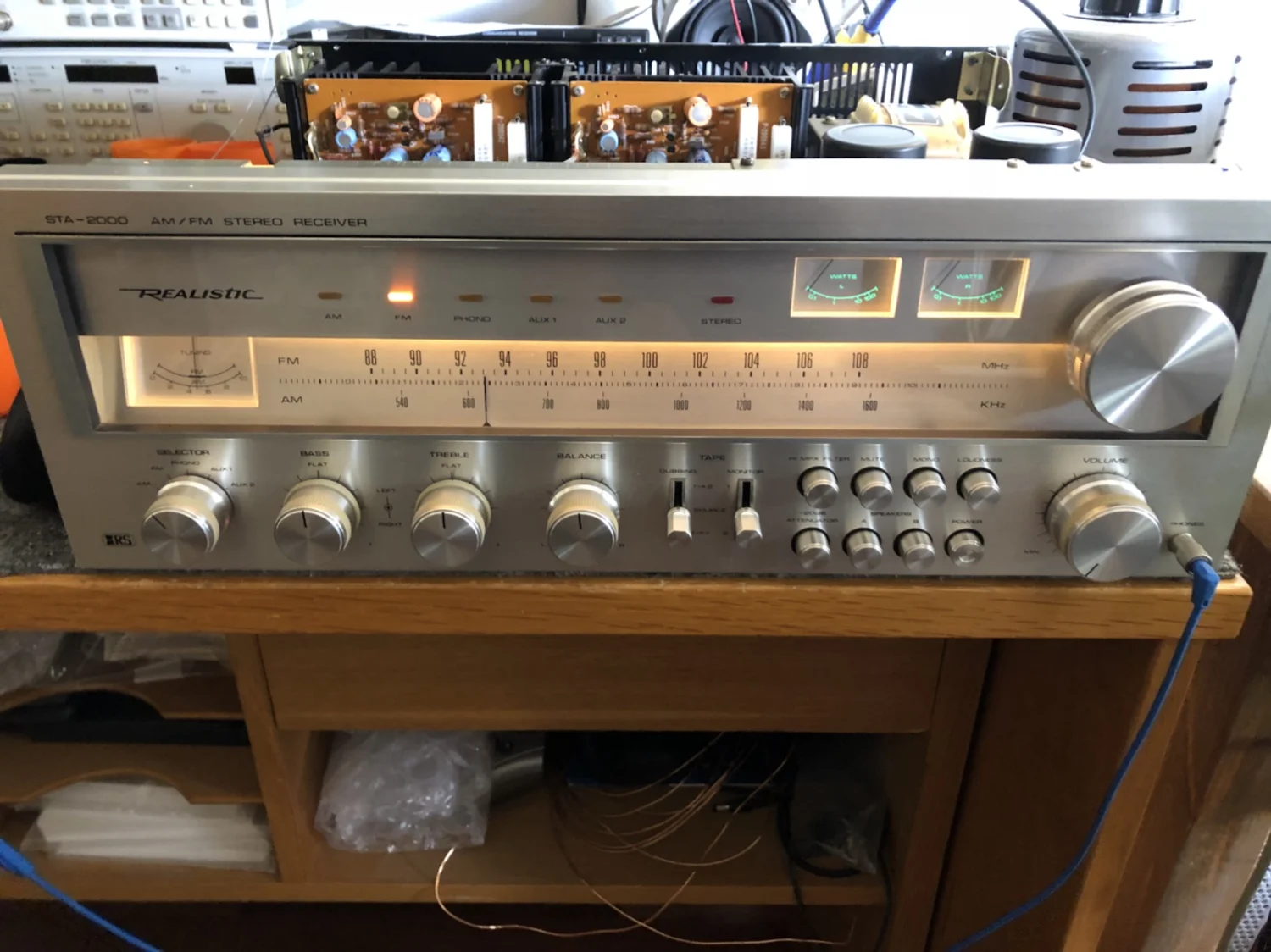

With the new transistor pair in place, it’s time to adjust DC offset and do a few other service-related tasks…
img 1990
…like lubricating the many moving parts in the tuning mechanism, switches and controls. This work makes all the difference. Prior to lubrication the tuning, for example, was stiff and noisy, now it’s buttery-smooth and spins for ages when you twirl the knob.
img 1993

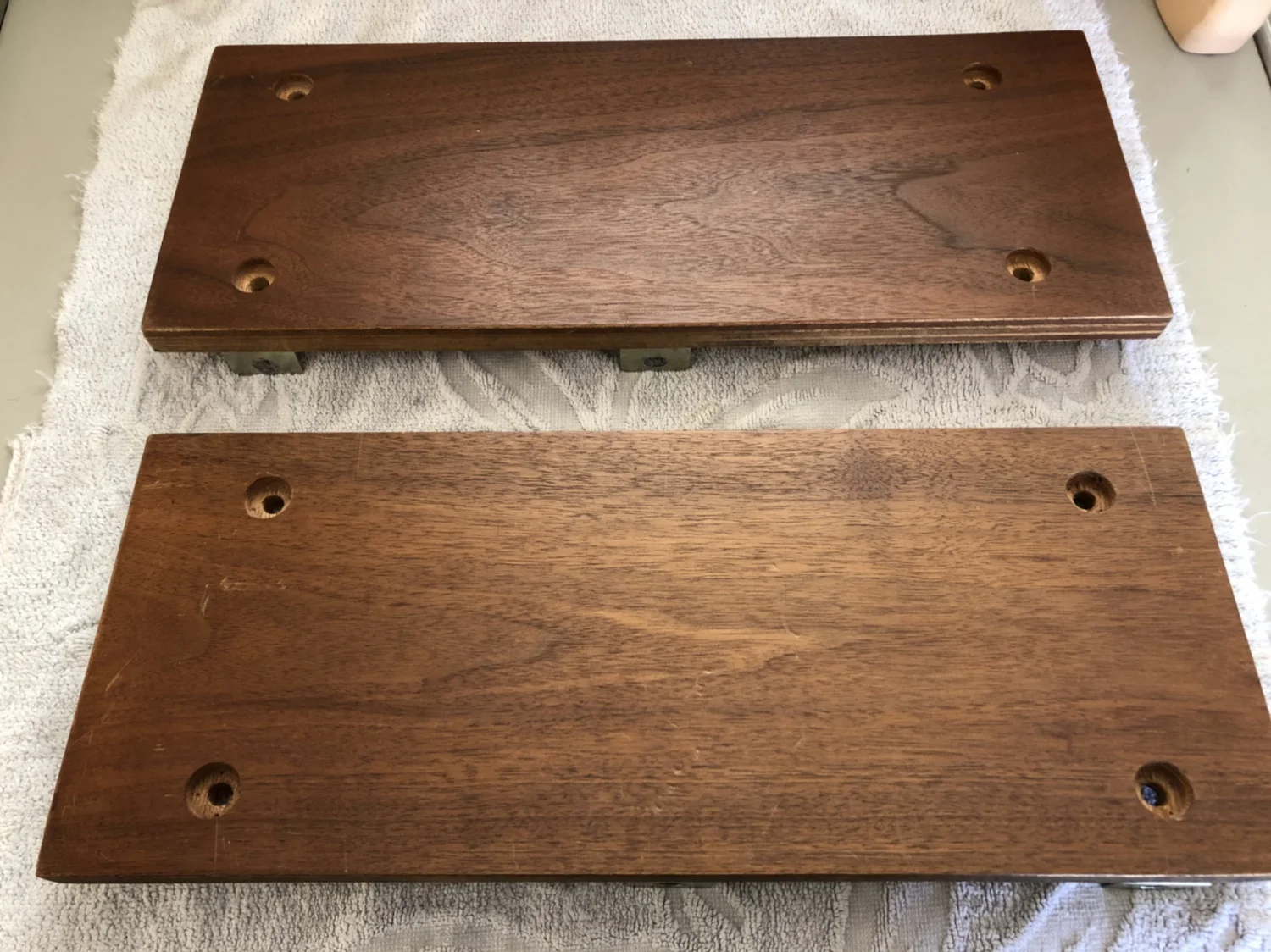

Cleaning and waxing these walnut side panels really enhances their appearance. Few other repairers take the time to do this, but in my mind, it makes all the difference.
img 1995

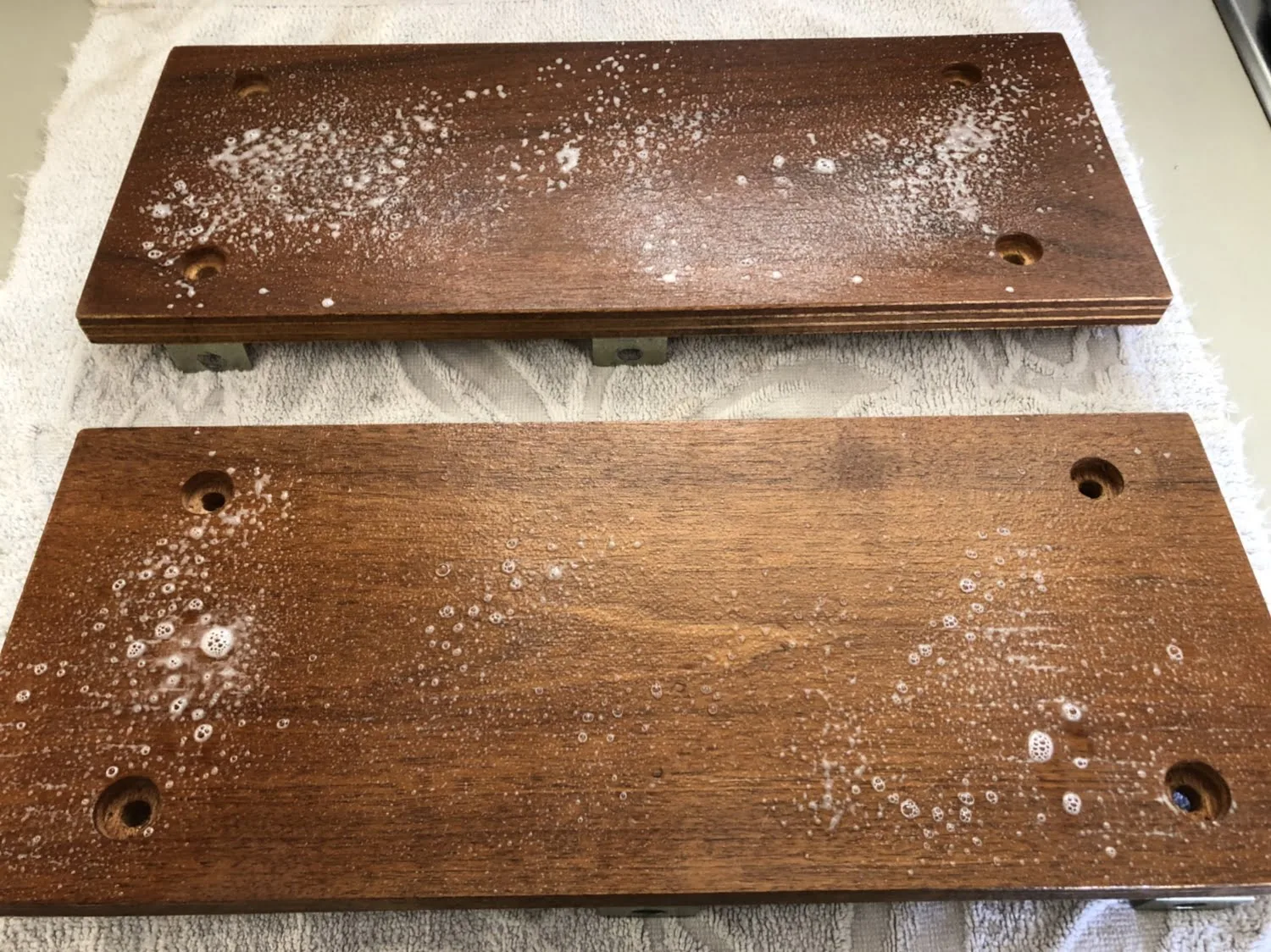

I start with a special wood cleaning solution, designed to remove crud and nourish the timber.
img 1997

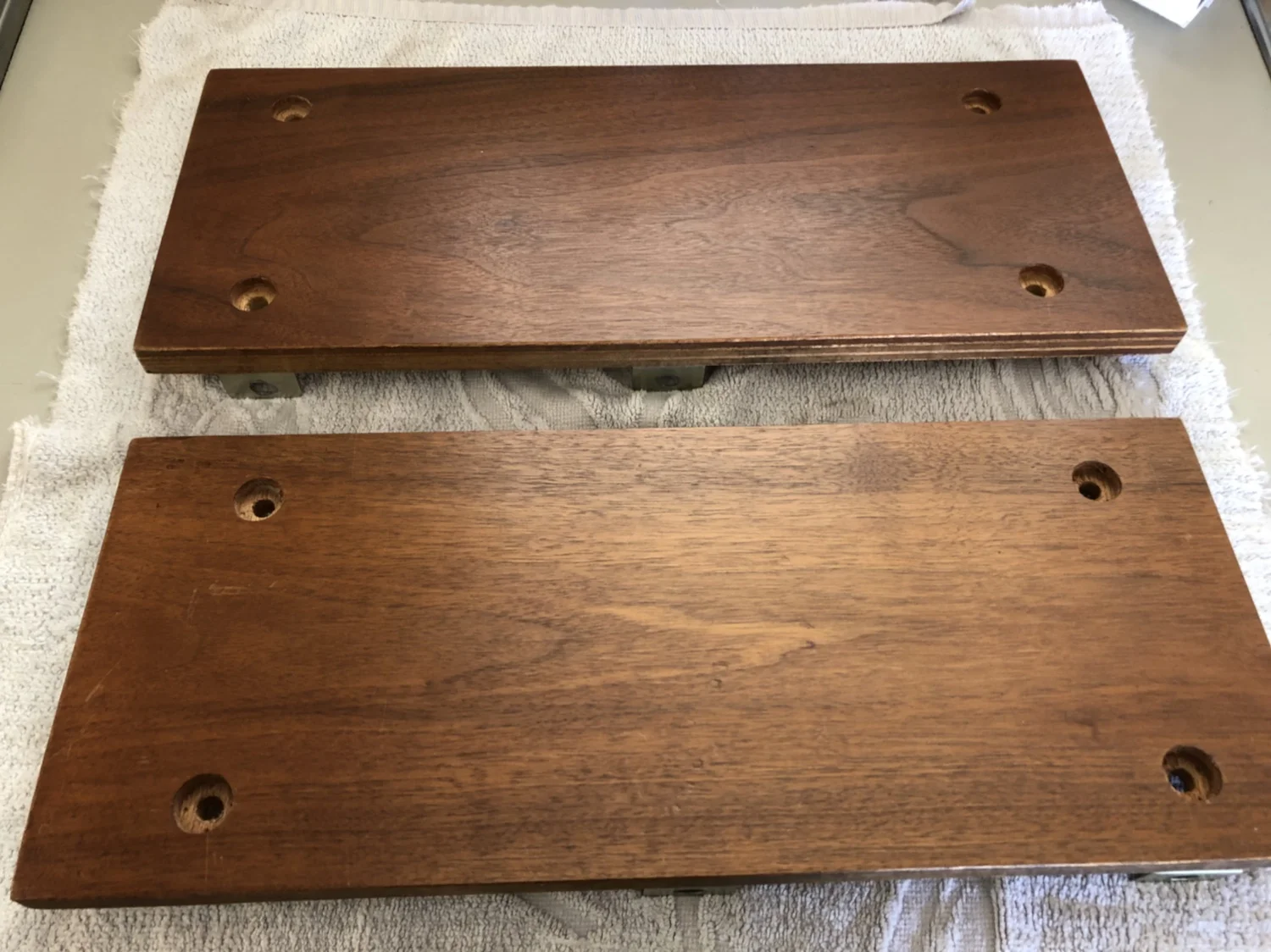

Better already. Next step involves applying beeswax furniture polish or oil, depending on the finish. In this case, I applied beeswax…
img 1998

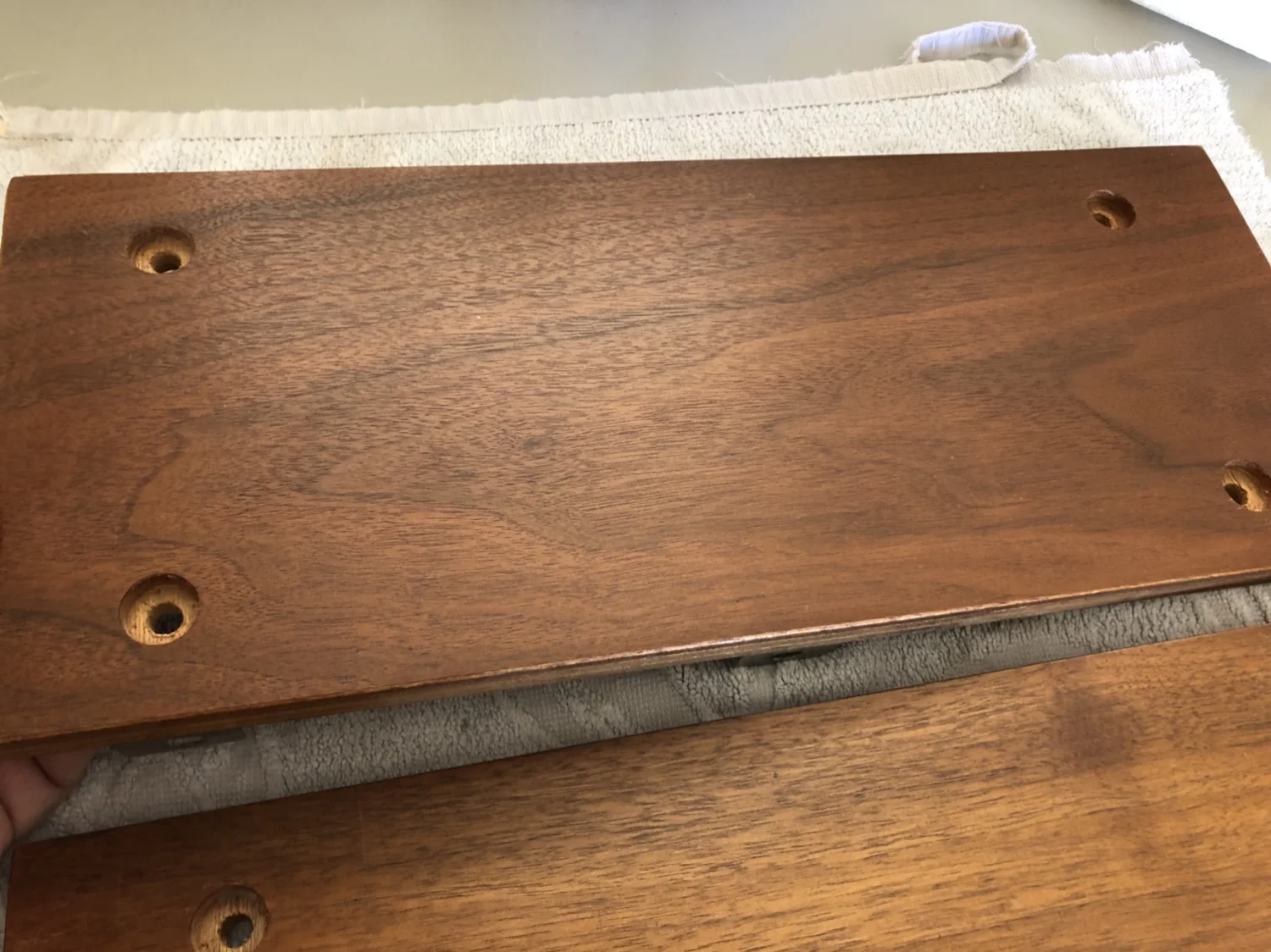

After rubbing the wax in and buffing off, the wood’s rich lustre has returned.
img 1999

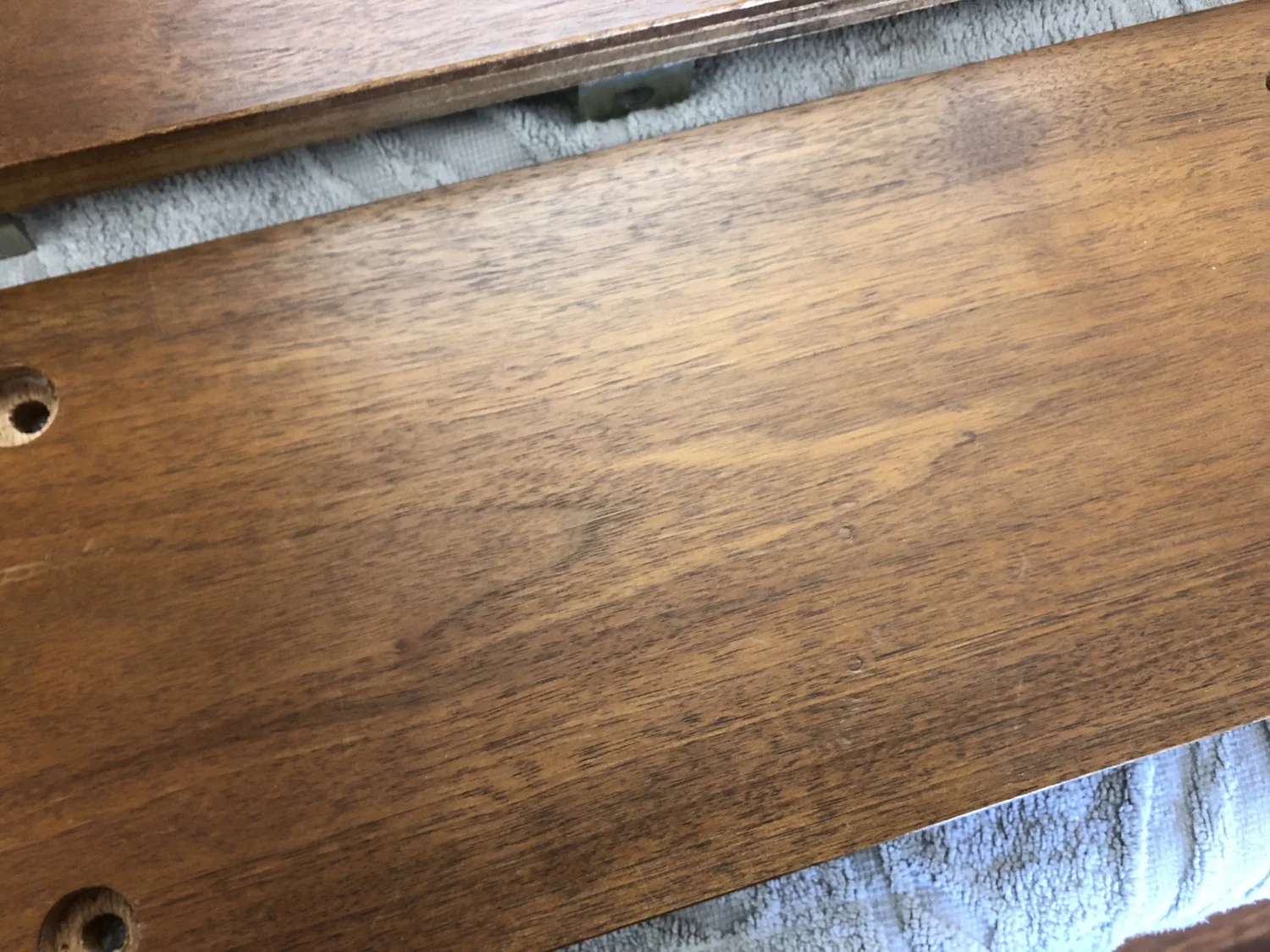

I think you’ll agree, this looks spectacular. They used really nice veneer on this unit.

Results

This Realistic STA-2000 came up just beautifully after a few hours of TLC. I’m not sure the owner realised how they lucky they were to have brought this to me, rather than one of the less careful repairers out there, but I think regulars to the site and those reading this will realise this!

img 2001

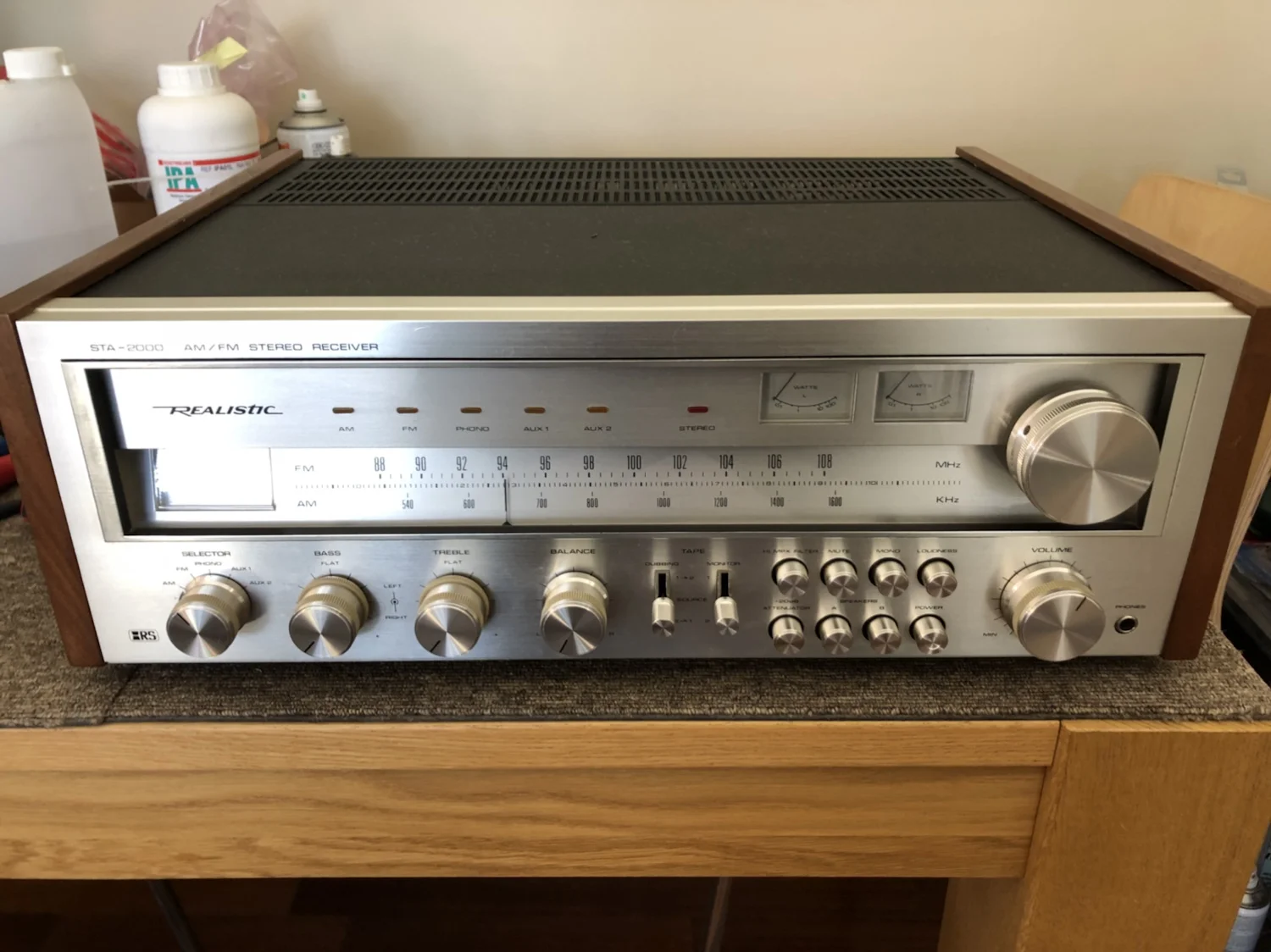

The final work on this Realistic STA-2000 involved cleaning the fascia and knobs and putting those gorgeous side panels back on. That’s the job done.
img 2002
img 2003

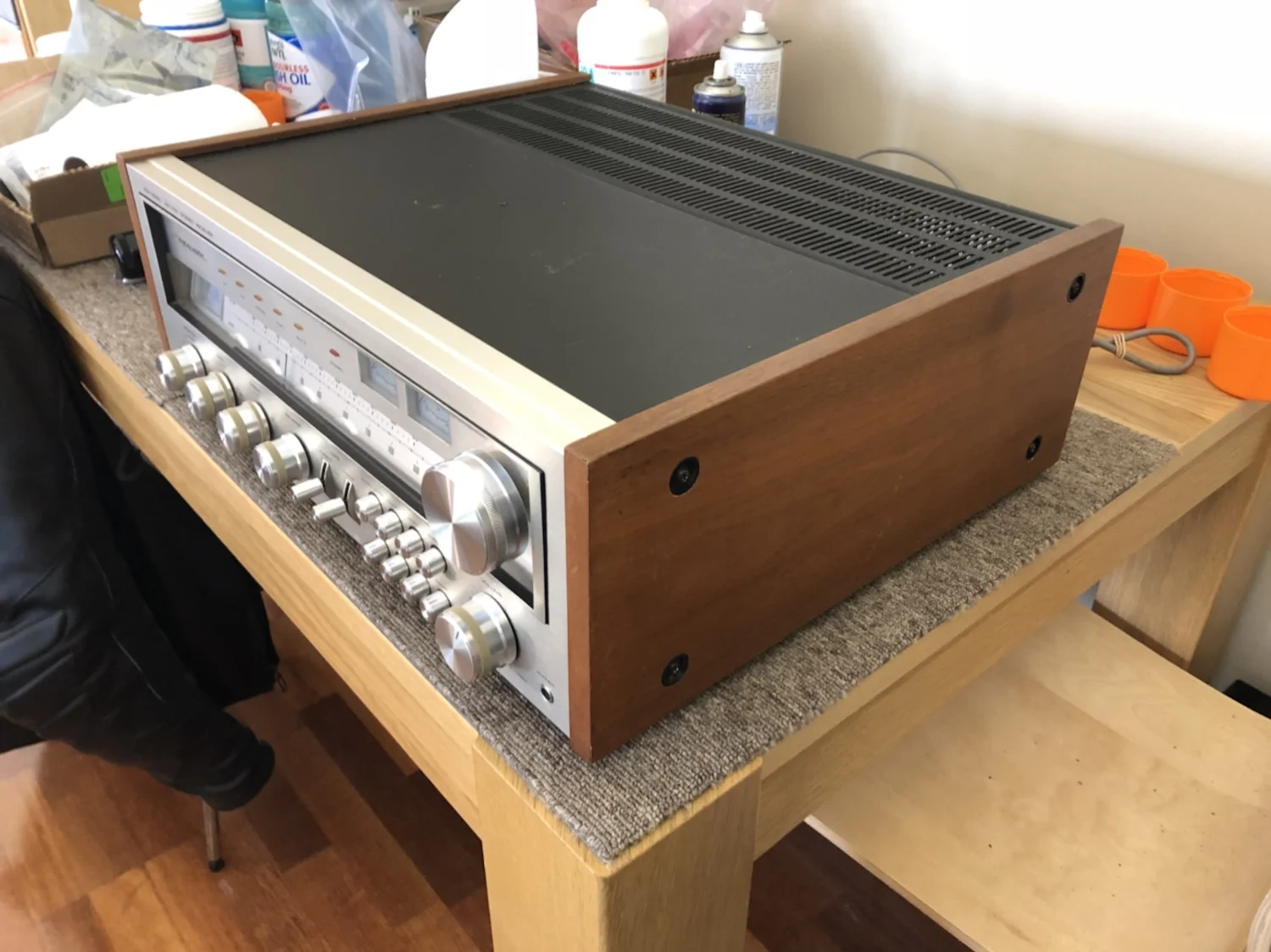

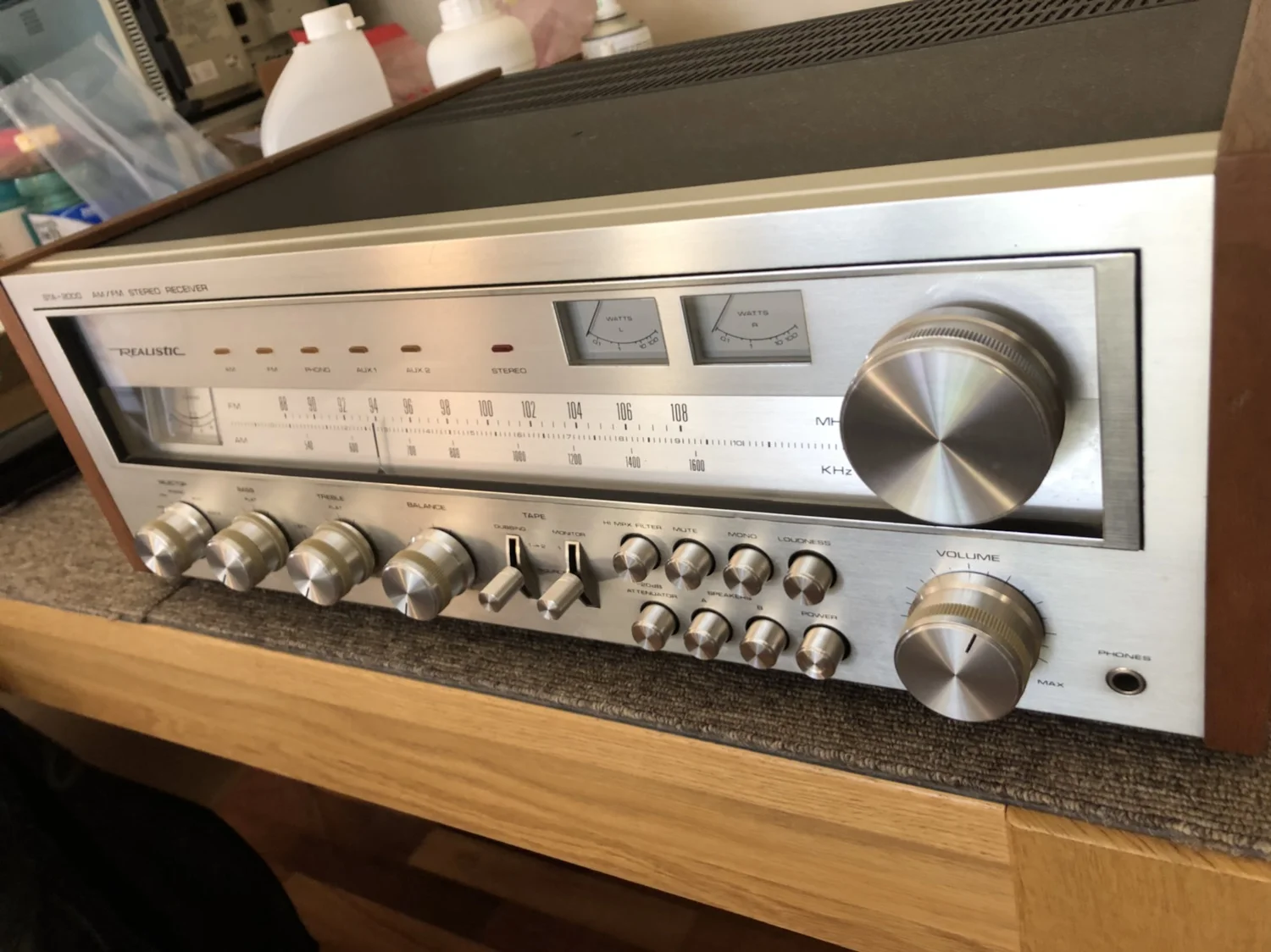

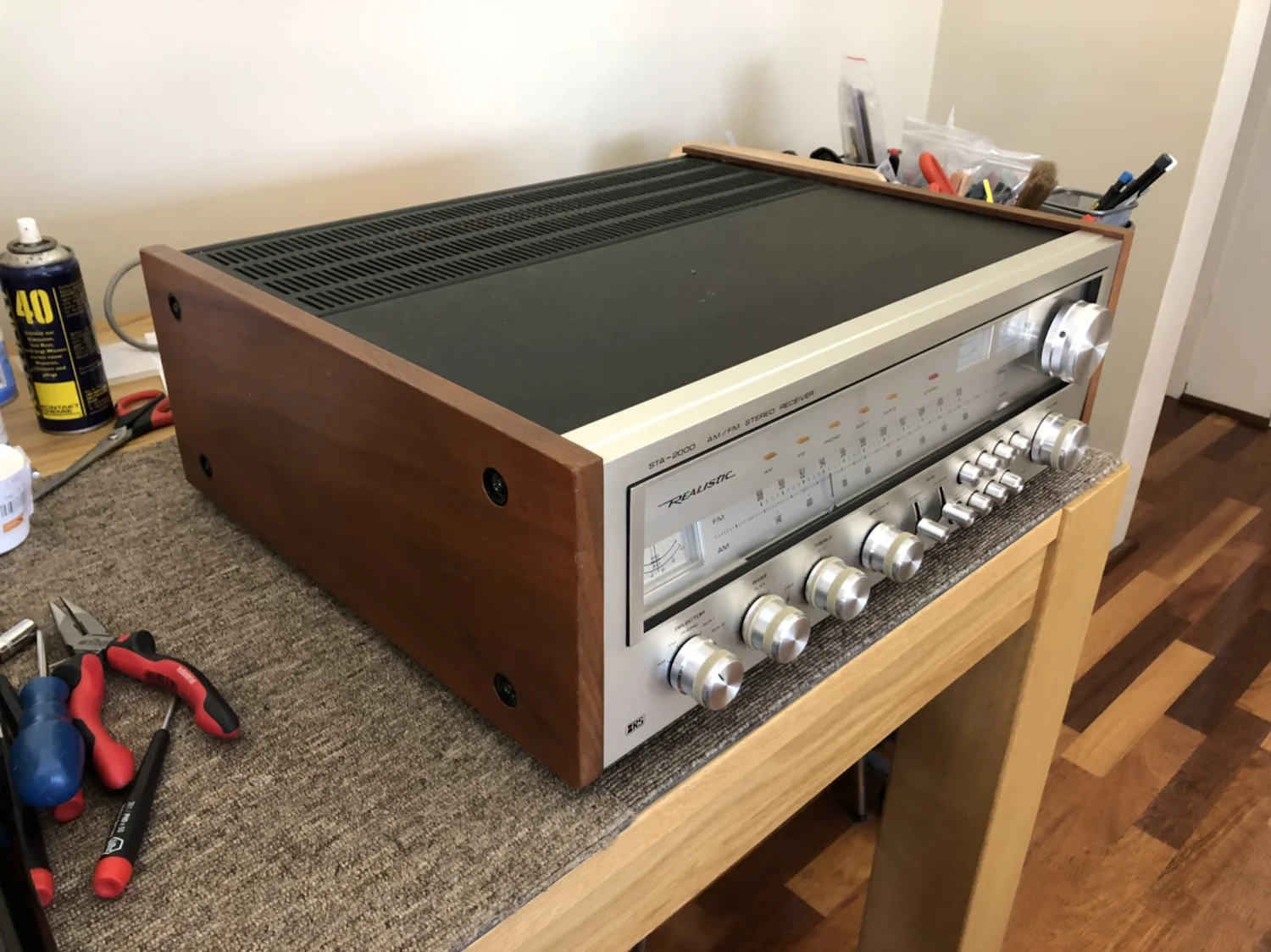

What a stunning piece, my customer is very lucky to own this Realistic STA-2000.
img 2004
img 2008

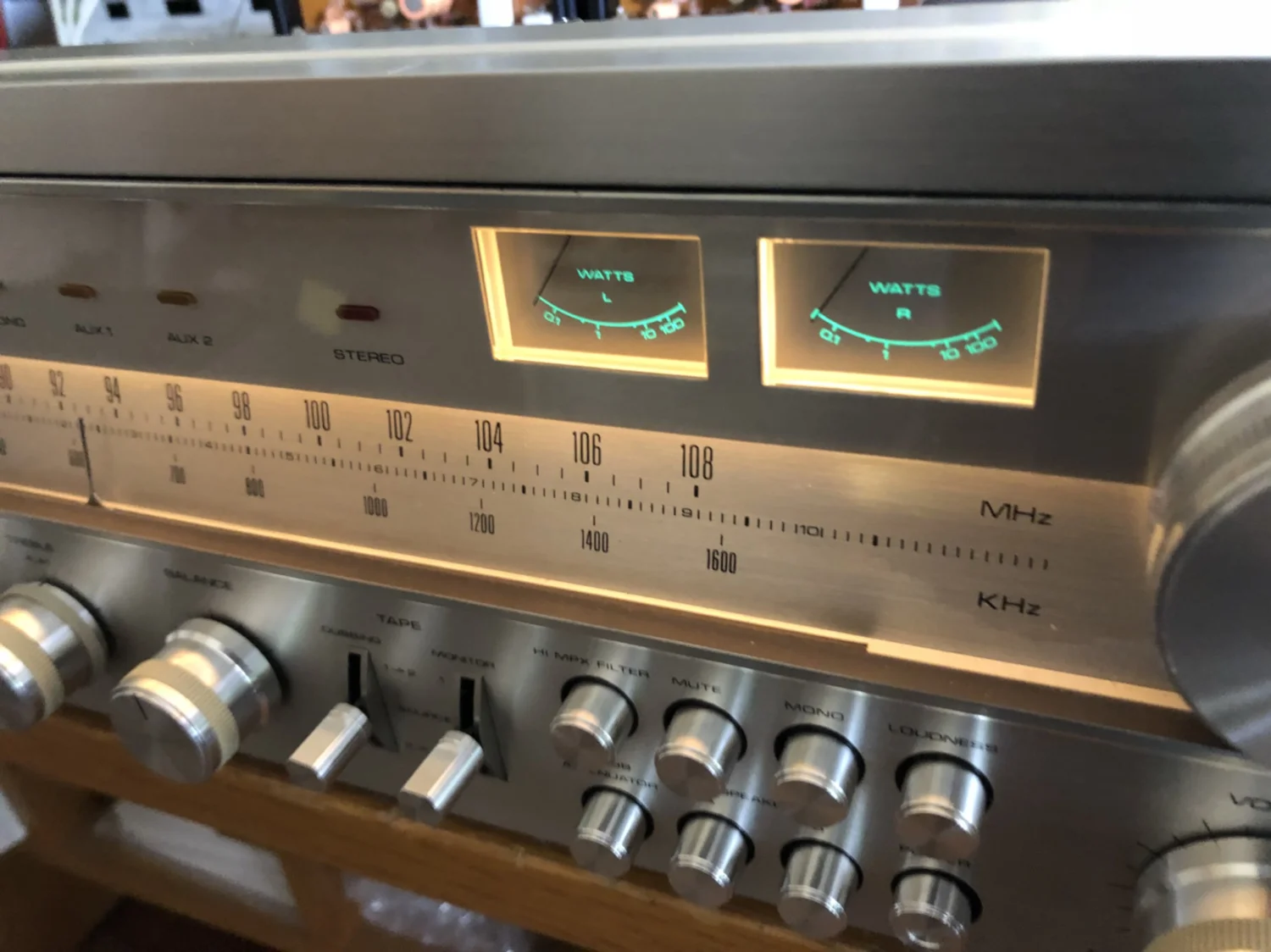

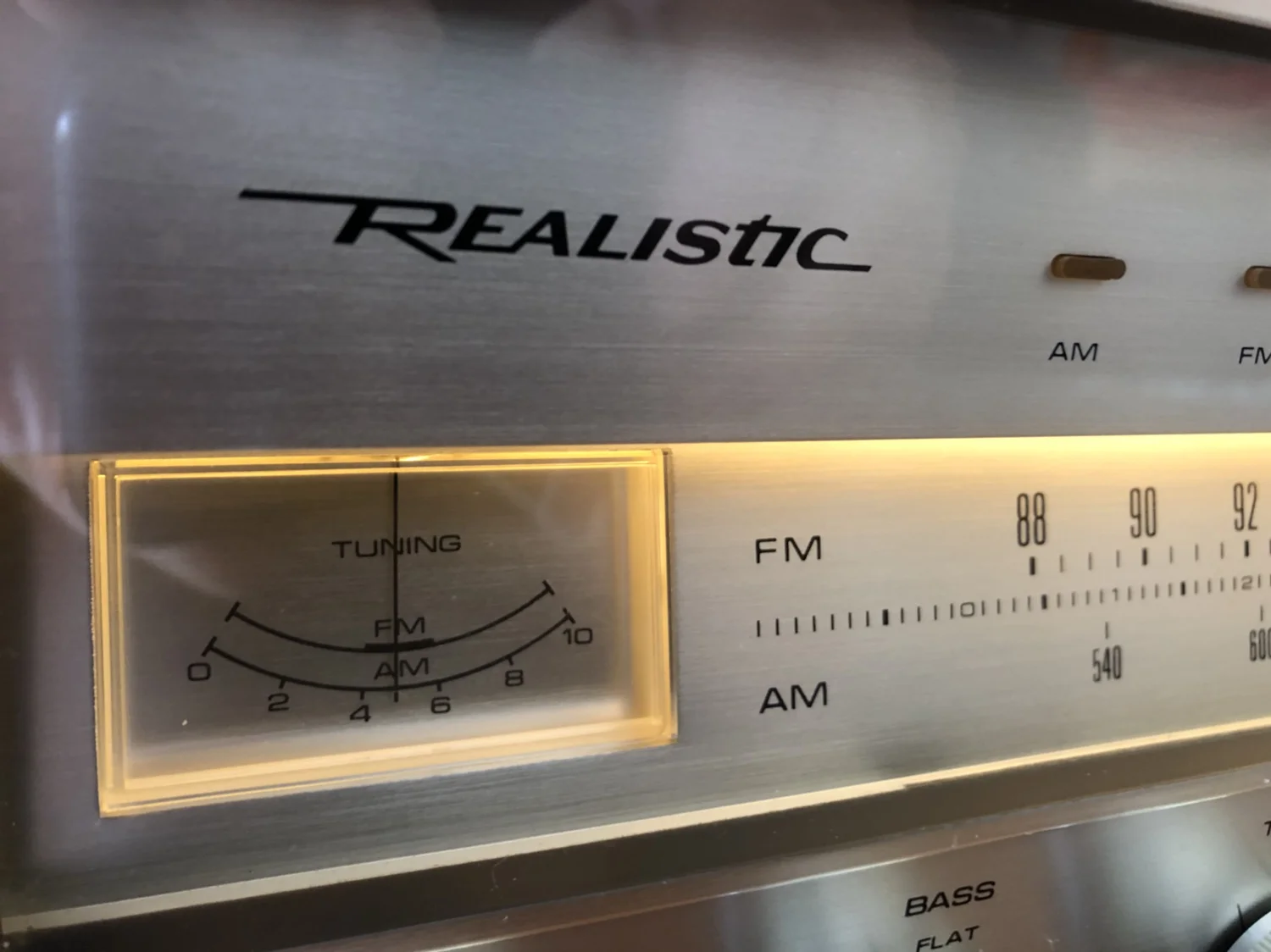

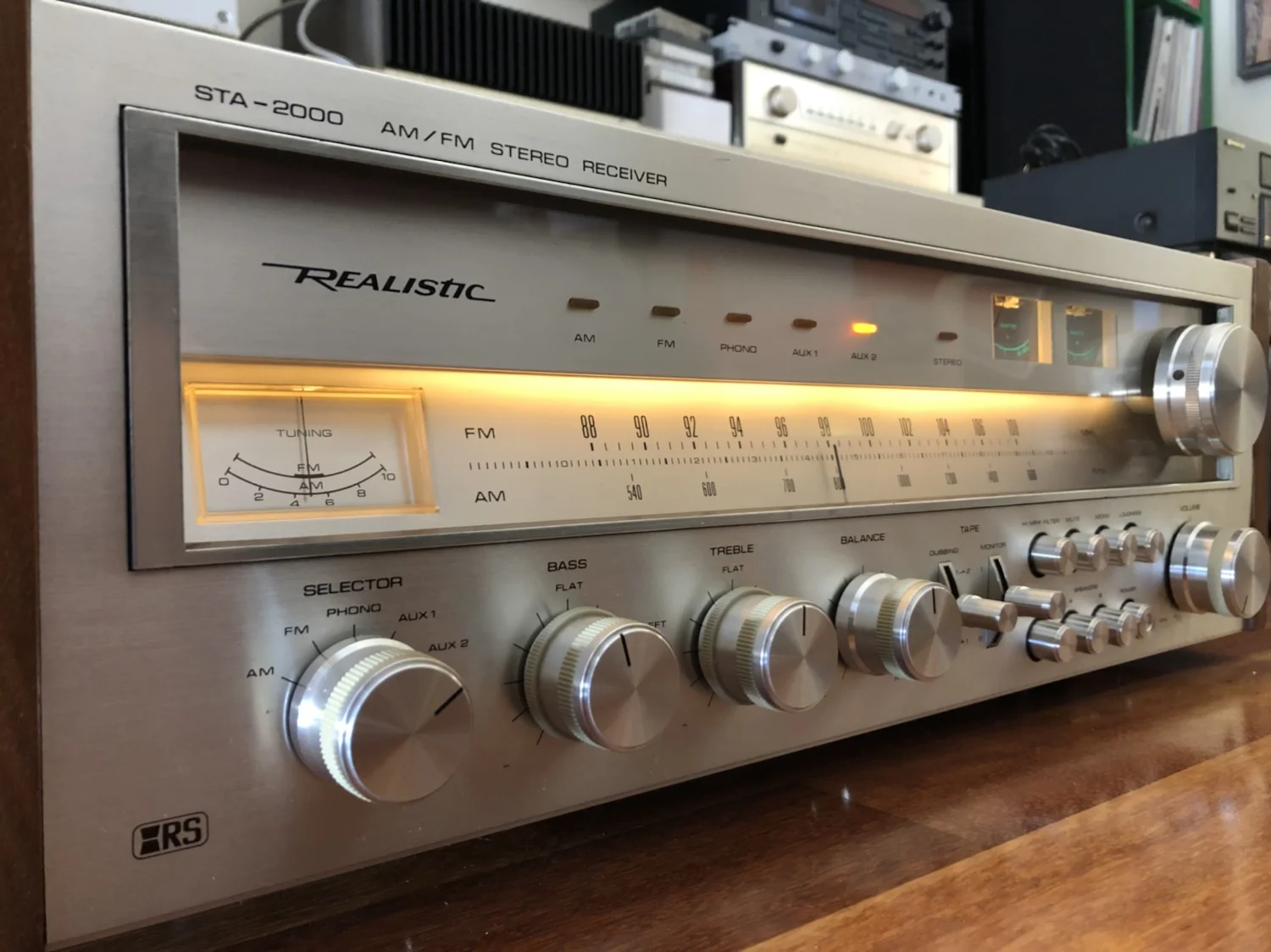

Beautiful dial illumination. Don’t anyone try and tell me modern gear looks better than this.
img 2009
img 2010

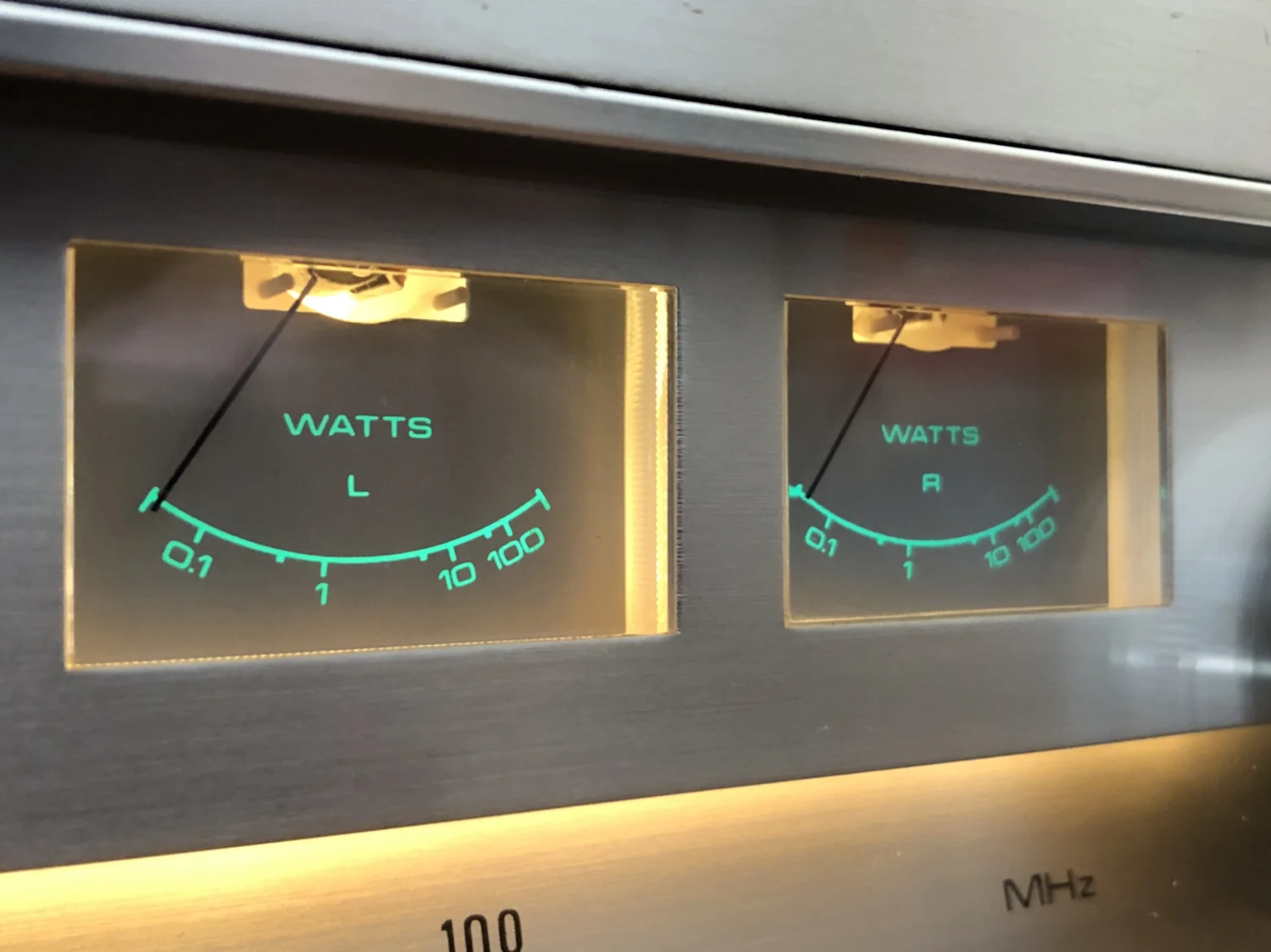

Wow, the metering on the STA-2000 is just gorgeous.
img 2011

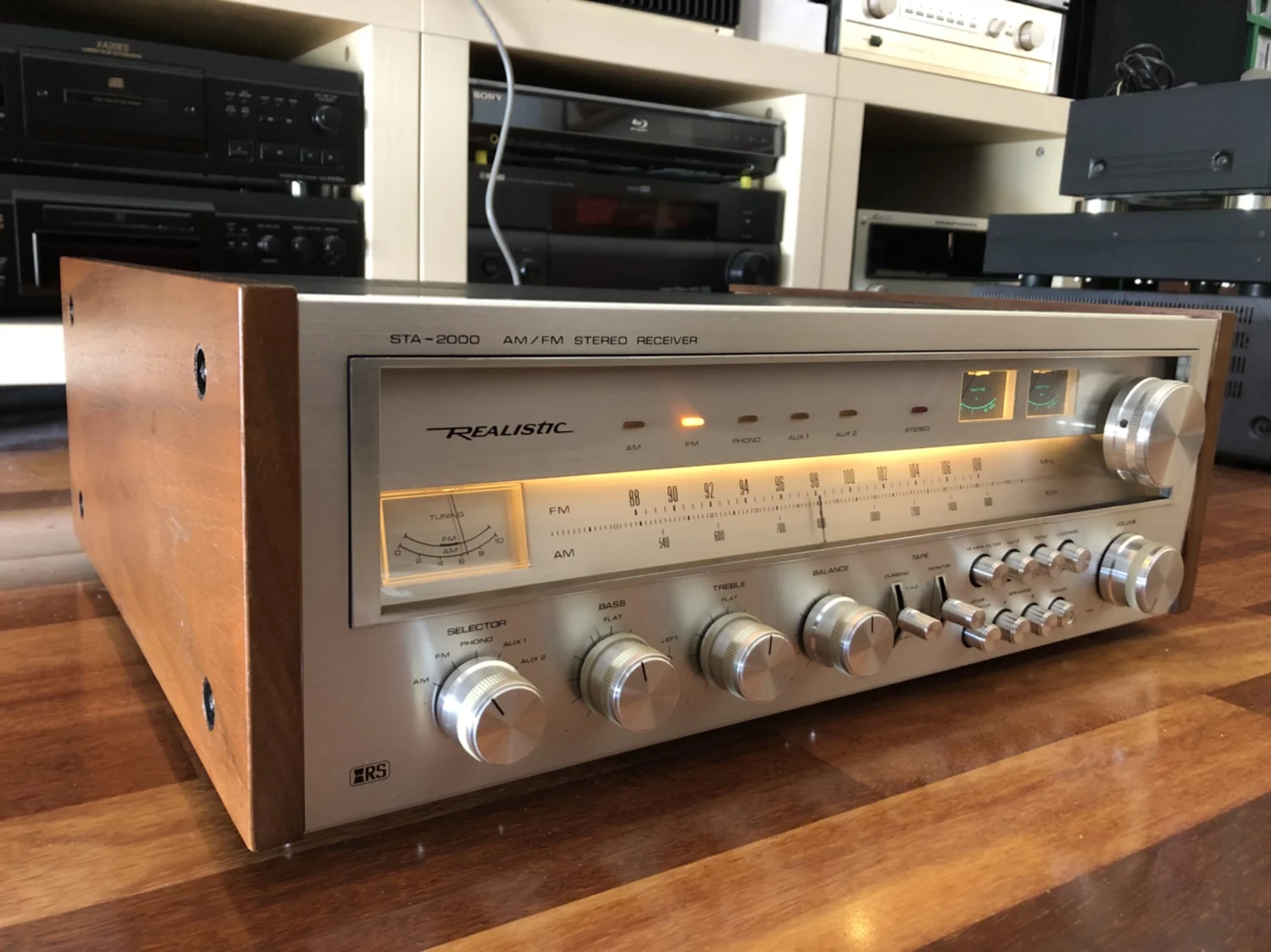

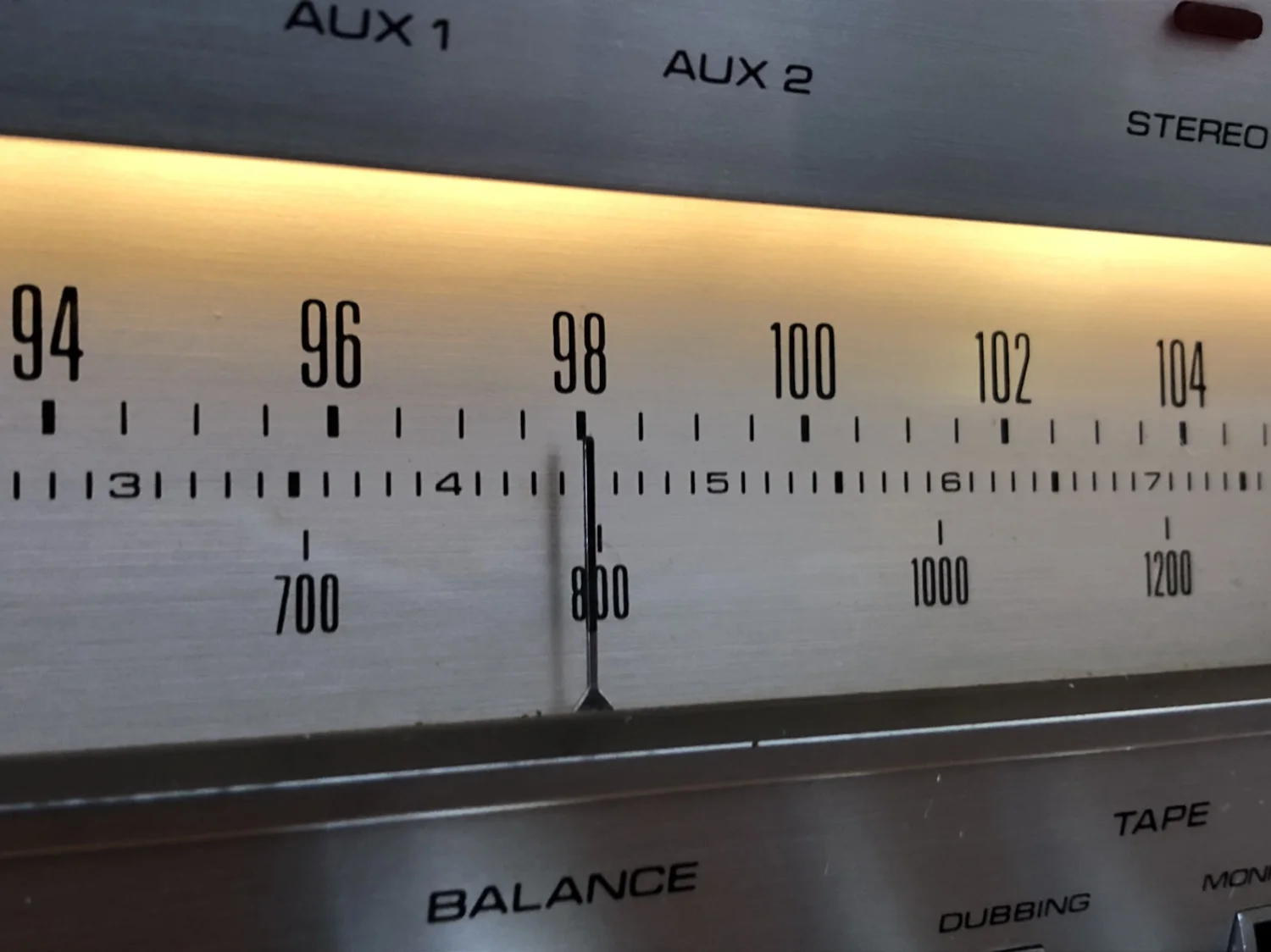

They really don’t make radios like they used to. There’s something tactile about weighted tuning and illuminated dials that creates a feeling of magic with older gear.
img 2012
img 2014

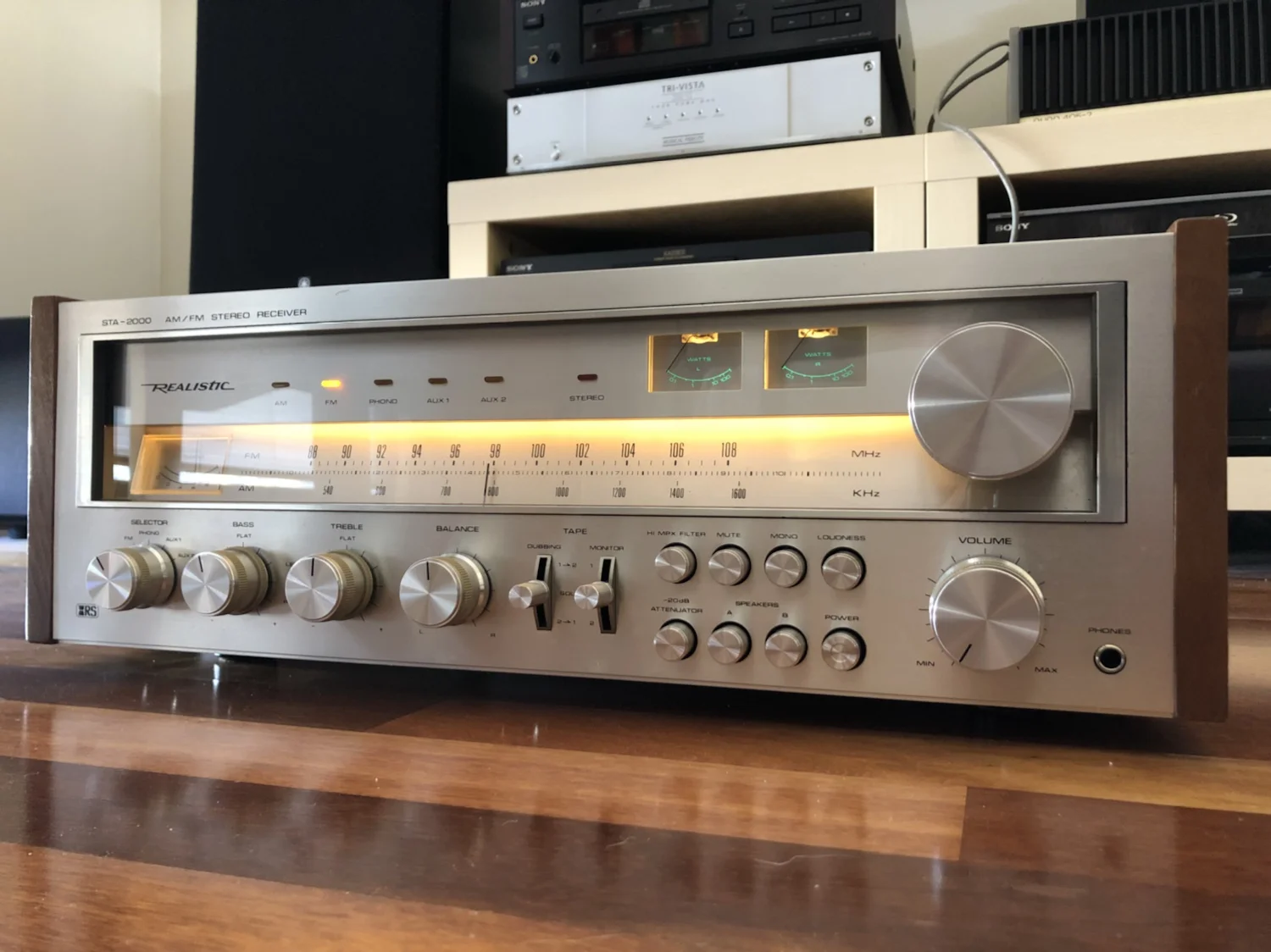

If you see a Realistic STA-2000 for sale, please just buy it, or at least tell me about it so I can!

Get in touch if you’d like me to service or repair your vintage Realistic receiver.
