Gainclone

LM3886 Gainclone Chip-Amp Project Build

In this article, I discuss the history of the LM3886/chip-amp/gaincard and run through building my own dual-mono LM3886 gainclone amplifier.

The LM3886 is one of Texas Instrument’s single-chip monolithic amplifier integrated circuits. It’s almost an entire amplifier-on-a-chip, with only a few extra parts required to build a fully functional, high-performance amplifier.

LM3886

The LM3886 features low distortion (less than 0.1%) and respectable power output into easy loads. Each mono chip will output around 50 watts RMS into 8 ohms, with adequate heatsinking and power rails. It delivers a little less power into 4 ohms, though this depends on the voltage you feed the chip.

Origins

The LM3886 gainclone concept goes all the way back to 1999 and a company called 47 Labs. The designers at 47 Labs introduced an amplifier called the 4706 Gaincard. The Gaincard was well-reviewed at the time but caused considerable controversy. It sounded great, despite not using much power supply filtering and hardly any parts.

Gaincard
The very elegant and simple 4706 Gaincard amplifier, by Sakura Systems.

The Gaincard cheekily flew in the face of conventional amplifier design. Most of the controversy, however, came from the sealed 47 Labs chassis and what was hidden inside. The sealed chassis and $3300USD price tag naturally made owners keen to take a peek, and when someone finally did, the sh%t hit the fan

4706 Gaincard back

Enter the Gainclone

The audio community quickly discovered that the Gaincard, retailing for over $3K, was nothing more than a couple of LM3886 integrated circuits and a few bucks worth of parts. Sure, this was creative, ingenious even. The total signal path was only a few centimetres long and the chassis was beautiful, but owners felt duped, having paid thousands of dollars for a very nice chassis and some very cheap parts.

4706 Gaincard Open
The image that caused all the fuss – well one of them. You’ll see that there really only are a couple of attenuators and two tiny boards with half a dozen parts on each. The total cost of parts? Not much. The real cost is in the chassis and separate ‘Humpty’ power supply.

The DIY audio community became interested at this point because people realised that they could create clones, with perhaps even better sound than this expensive, well-reviewed amplifier. And so was born one of the great DIY audio phenomena of recent years – the gainclone!

My Project

There are/were several LM3886 gainclone kits available online, like this and this beauty, but I like the set of boards and parts I got from the now-defunct chipamp.com. The PCB and parts quality are excellent and, after extensive research, I found that this was the best of all the kits available at the time.

There are some excellent online resources, including this new one all about building LM3886 amplifiers, from Circuit Basics.

Everything was very easy to assemble and the Chip Amp kits include quality 10,000uF Panasonic filter capacitors, quality resistors and other passives. The traces are gold-plated and boards are fibreglass construction.

LM3886 gainclone
Here’s what you get in the kit – note the excellent board quality, great parts and packaging. There really is no need to buy a cheap Chinese kit when you can have all this for 100 bucks and from a nice guy like Brian!

I was going to use two spare 100VA transformers with dual 12V secondaries, wired in series. The problem was that the 12V secondaries of these 100VA transformers wouldn’t be ideal in this application, yielding around 17V DC, before diode losses.

Instead, I decided to use a single 300VA transformer, with dual 25V secondaries. The amp is still configured with a dual-mono layout, the secondary voltage is now correct for driving an 8-ohm load and the single toroidal transformer mounts nicely where the old one did in this chassis. The 25V secondaries rectify up to around 35V (25 x 1.414), minus diode losses.

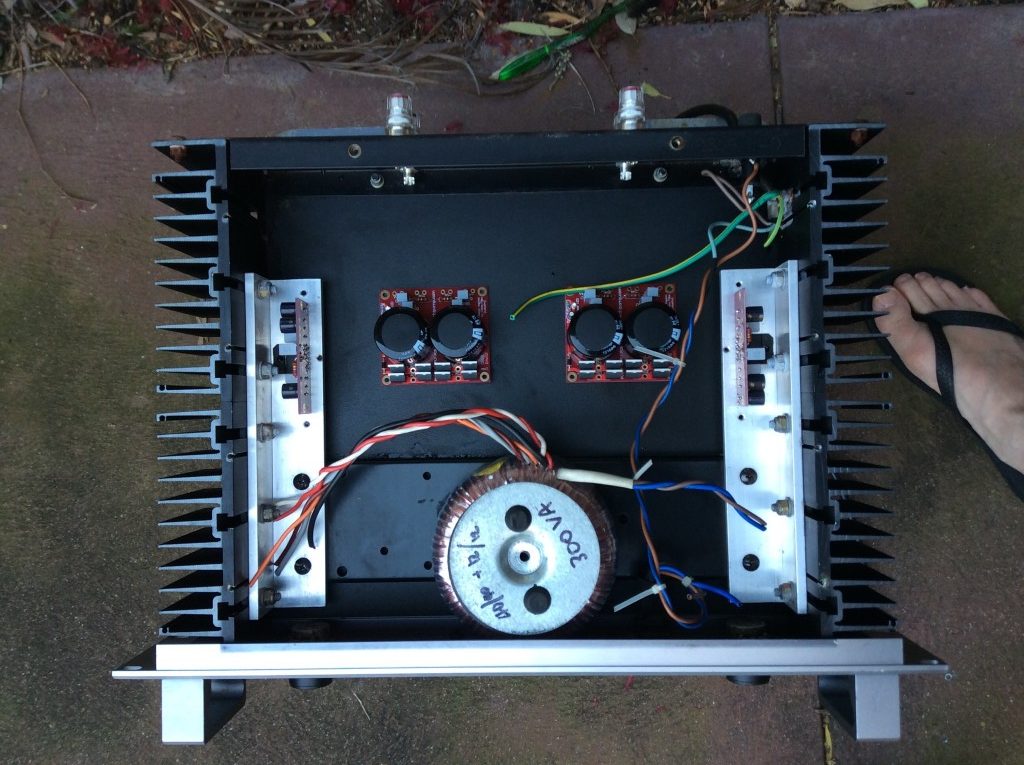

I decided to use this old amplifier chassis I had lying around:

LM3886 gainclone
An old power amp chassis – unfortunately the 300VA mains transformer has the wrong secondary voltage, so I have ordered another 300VA with 25V secondaries.

The next few pictures document my preparation of the chassis, including fitting CMC silver speaker binding posts, CMC silver RCA jacks and getting the heatsink mounting set-up.

The Build

LM3886 gainclone
This chassis is almost perfect. I used the existing heat-sinks and right-angle brackets, the transformer mounting point, mains inlet and mains switch. I just added silver CMC speaker terminals.
LM3886 gainclone
Here’s a close-up of the inside end of these lovely silver-plated CMC terminals. Silver is the best conductor and CMC makes killer connectors.
LM3886 gainclone
Here we see the CMC connectors from the outside
LM3886 gainclone
This is an early mock-up of the boards, sitting inside the chassis, to check for clearances, board arrangement, wiring lengths and so on.
LM3886 gainclone
Here you can see a close-up of the finished power supply module on the left, wired up to its amplifier module. Note the thick-gauge copper wire I’ve used here. I’ve used the thickest wire I could solder to the boards, for the lowest power supply impedance.
LM3886 gainclone
Here’s a  reverse view, showing the amplifier module close-up. You’ll perhaps notice the bypassed local filter capacitors on the board, a nice way to do things.
LM3886 gainclone
This is a close-up of the relationship between amplifier, PSU boards, heat-sink and speaker terminals
Gainclone
I’ve chosen these new-old-stock (from my stock) terminal blocks. I like these because they are very sturdy and can take some serious wire gauge if required. I’ve used one per channel, on either side of the mains transformer. This allows me to pull the amplifier apart easily if I ever need to.
LM3886 gainclone
The left channel now wired in and the other still to do. I’ve used heavy-gauge stranded copper, which is quite stiff. An advantage of this wiring, apart from its low DCR, is that it adds structural rigidity to the boards when soldered into place.
LM3886 gainclone
You can see here that I am using PCB standoffs that have a sticky bottom, making for easy board mounting.
_DSC6262
Time to add the CMC silver RCA connectors. These are superb quality, better than the Neutrik connectors I’ve used previously.
LM3886 gainclone
Everything wired up here and ready for a test. I have added cable ties and twisted two stands of solid-core silver-plated copper wire to carry the input signals.
LM3886 gainclone

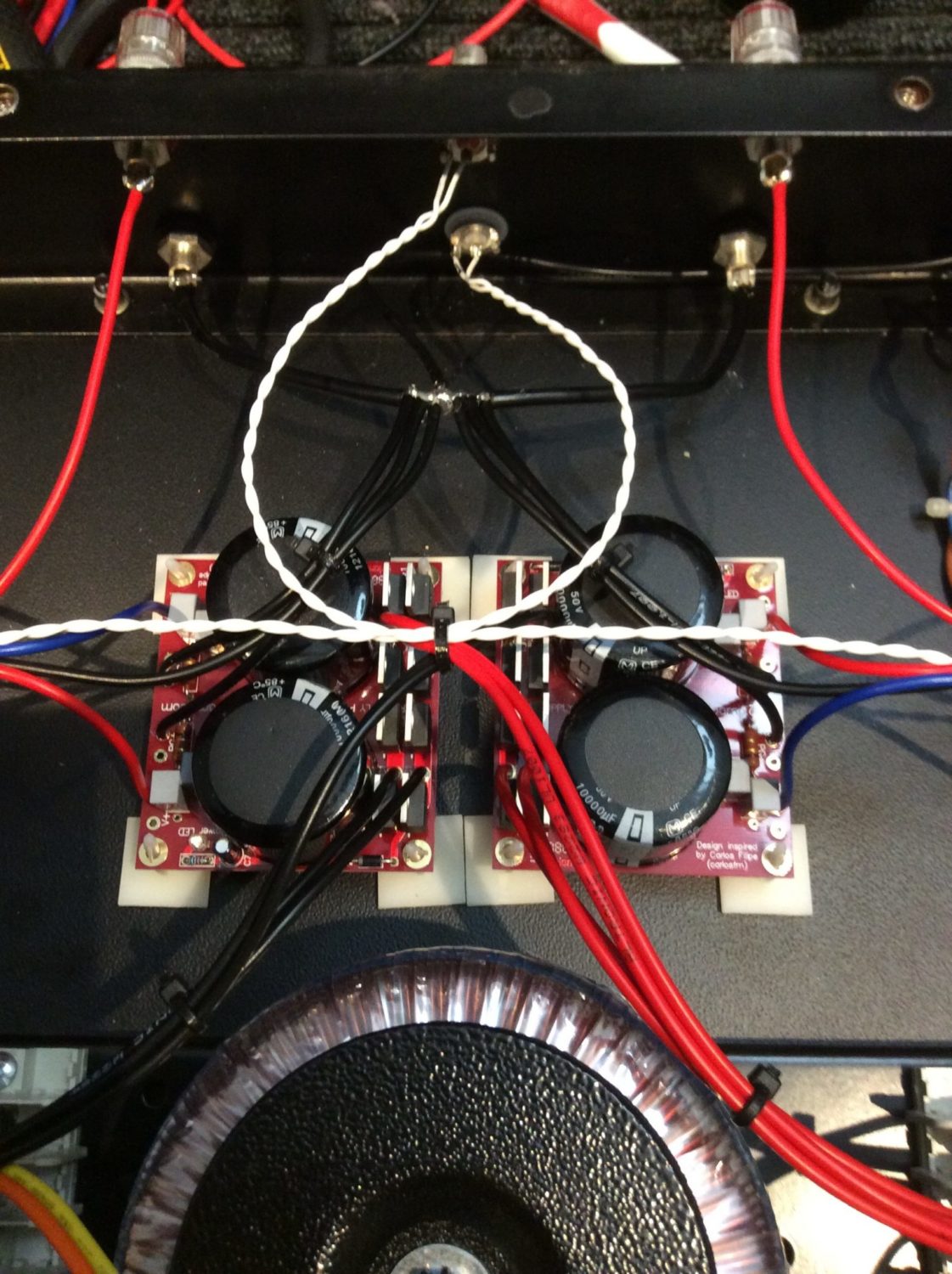

Detail of some of the wiring
LM3886 gainclone
This is a close-up of some of the wiring detail in this version 1 of my LM3886 amplifier. I later modified the wiring to include a true star-ground in version 2. This was in response to some hum issues.

Performance & Ground Loops

You can see from the above image that my LM3886 gainclone amplifier is up and running and she sounds great! This amplifier has air, tone and sounds smooth and relaxed. Perhaps the amplifier is a little bass-shy, compared to my Krell KSA-150, but realistically, in most installations, the LM3886 gainclone is a cracking amp.

One small issue came about through not thinking carefully enough about the wiring layout. I experienced some hum on initial testing, which surprised me. After thinking and reading, I decided to modify the ground wiring layout, as shown in the images below. I rewired the ground wiring to include a true star ground. This would avoid the multiple earth returns of my initial layout, which caused the hum.

Look at the image below, to the rear of the chassis near the inputs. I’ve added a thick buss bar, linking loudspeaker grounds, amplifier and power supply grounds. I connected the new ground buss to chassis-ground, where the line cord earth wire terminates. This arrangement is now totally silent.

LM3886 gainclone
This is my revision to the amplifier and chassis wiring, after deciding on the need for a better grounding arrangement. I have completely refreshed the chassis earth at the right rear of the chassis, near the mains inlet. I also added a heavy-duty buss bar and routed power supply returns and amplifier earths to this point. From there they run to chassis earth. This is proper star-grounding and completely eliminated the hum I experienced previously.
LM3886 gainclone
Note the heavy buss-bar to the rear of the chassis. All power supply returns and speaker grounds tie into this point. Amplifier grounds also run back to this point. As a result, we have no ground loops now and the star-earth, referenced to chassis ground, at the mains inlet.
