Quad 405-2 Power Amplifier Restoration

I recently restored a lovely Quad 405-2 power amplifier. Come along as I overhaul and upgrade this beautiful British classic.

The Quad 405-2 is still revered, some 40 years after its release. These are truly special amplifiers, don’t let the understated English looks fool you. What almost all of them need however is work, so come along for this Quad 405-2 Power Amplifier Restoration as I walk through some of what I cover when I do this sort of work.

UPDATE: Revised with additional information, in 2021!

For some extra reading, check out my Quad 405-2 review, Quad 405 refresh, and Keith Snook’s Quad 405-2 page.

Quad 405-2 Power Amplifier Design

The amplifier we are looking at here is a Quad 405-2, but the previous 405 and 405-2 are similar. They are masterpieces of thoughtful, understated design and showcase the less-is-more approach of Quad’s legendary engineer, Peter Walker.

I can’t think of a mainstream commercial amplifier with fewer parts than the Quad 405. Yes, there is an op-amp in the front-end to keep the parts count down, but the driver stage is just two TO-220 devices operating in class-A. The output stage is another two N-channel TO-3 devices per channel. No complimentary pairs here!

The driver and output transistors are thermally coupled to a block of aluminium and board-mounted, eliminating wiring. Add a sprinkling of passive components of very high quality and you have the elegant simplicity that is the Quad 405 amplifier module.

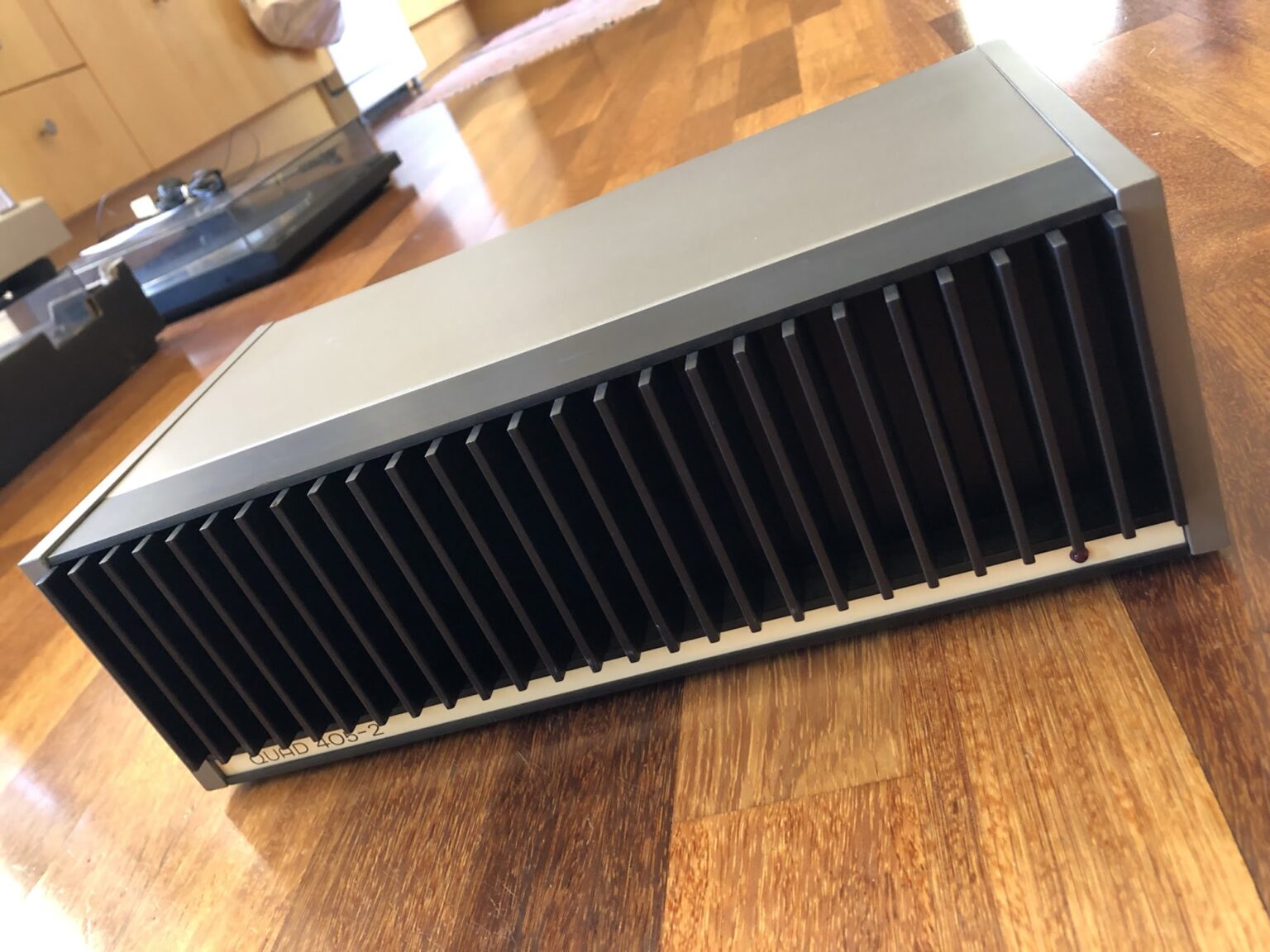

Quad 405-2

Restoration

I tend to utilise a less-is-more approach to my work, avoiding senselessly replacing perfectly good parts. Quad used excellent parts in most places and most are perfect, so why change them? To that end, transistors, resistors and most other parts remain stock.

This 405 needed some TLC, despite the seller telling me it was ‘restored’. I was keen to see what that actually meant, but it turns out it means something very different to me. This amplifier was not restored and needed a full overhaul. On top of that, the amp was damaged during shipping. I made a claim through eBay and was refunded most if not all of the original purchase price, a good result.

Apart from that, this unit has two different amp modules, one revision apart. Quad made something like 10 revisions of the 405/405-2, improving them as they went. This is of no real consequence in a dual mono amp like this, and I’ve since acquired and installed a matching revision module, but an original must have blown up at some point.

Quad had a simple repair policy – simply install a new module, job done. My amp contained a few original and dead caps, some old chewed-out screws and other bits and pieces that I decided to sort out. Let’s have a look inside…

img 5043

Quad 405-2
So far, so good. Original filter capacitors could do with changing and see if you can spot the non-original, but old axial electrolytic cap. Note the neat, typically British, wiring loom.
img 5051
There she is. Some caps have been replaced, but others are original. Not great for a so-called ‘restored’ amp!
img 5065 e1587785472506
I removed the diode bridge and applied some thermal paste before securing back in place.
Quad 405-2
On the first board, note the unpotted protection modules, original RCA output devices, messy application of thermal paste and original ERO capacitor. But what a great layout – almost no wiring, drivers and output transistors thermally coupled and just a small number of really good quality parts. You can see why these are so lovable from technical and design standpoints.
img 5062

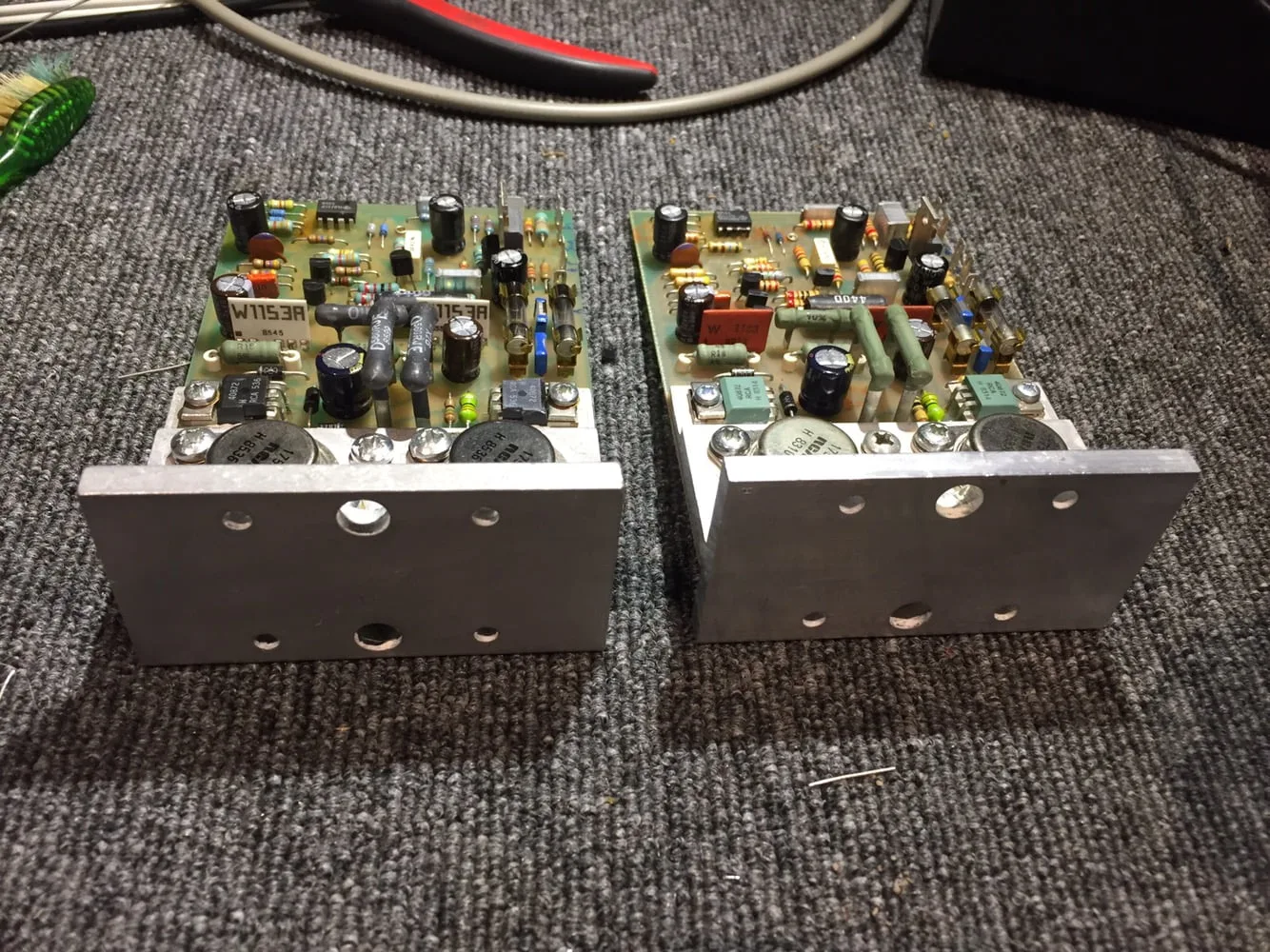

Both modules removed, along with the thermal paste
Quad 405-2

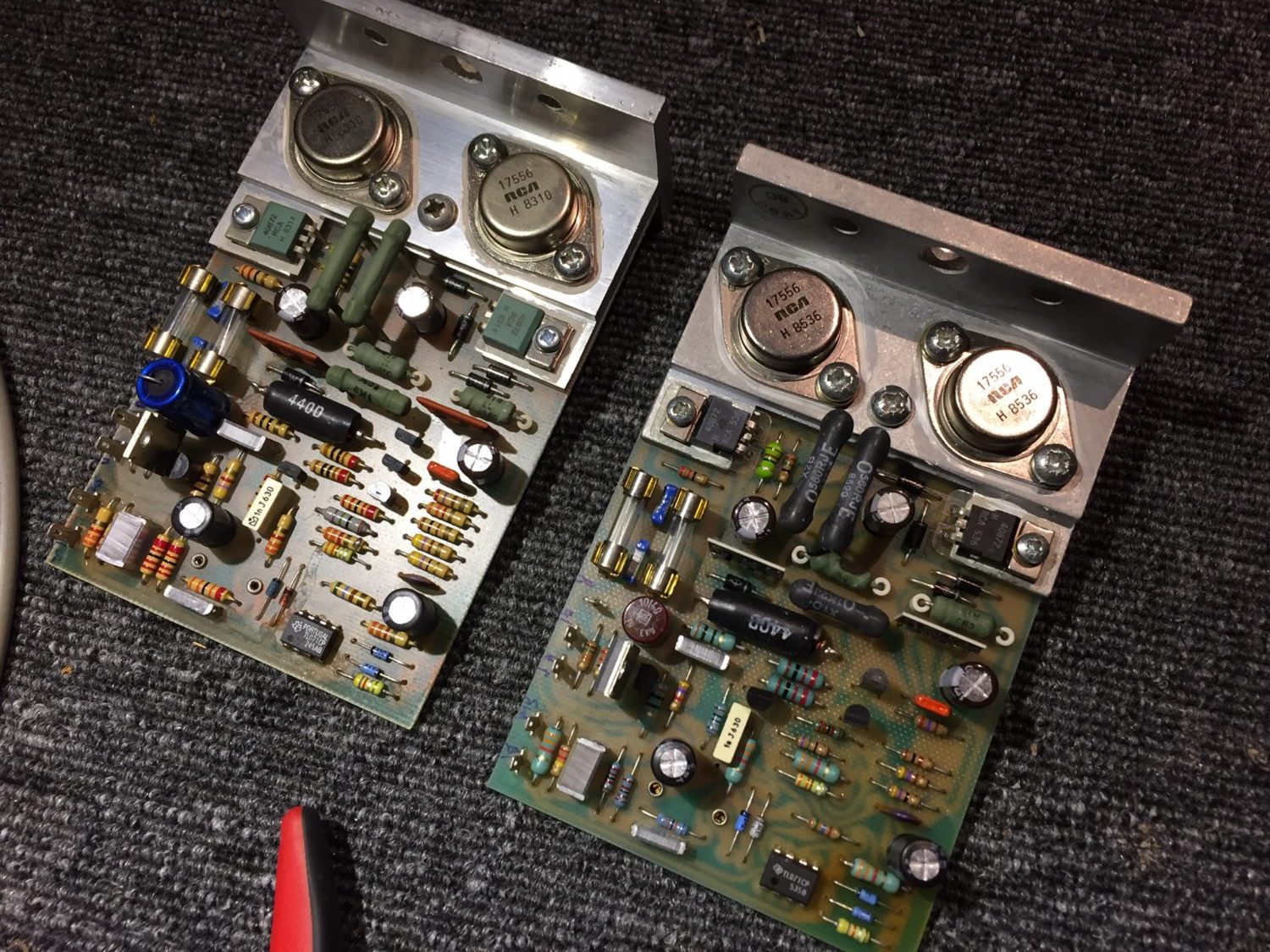

Side-by-side, one can see the variations between the revision 6 and 7 boards. On the left is a revision 7 board. Note the date codes on the output devices dating this board to 1985. On the right is a revision 6 board from 1983. Some resistor types are different, plus a few different small-signal transistors.
img 5059

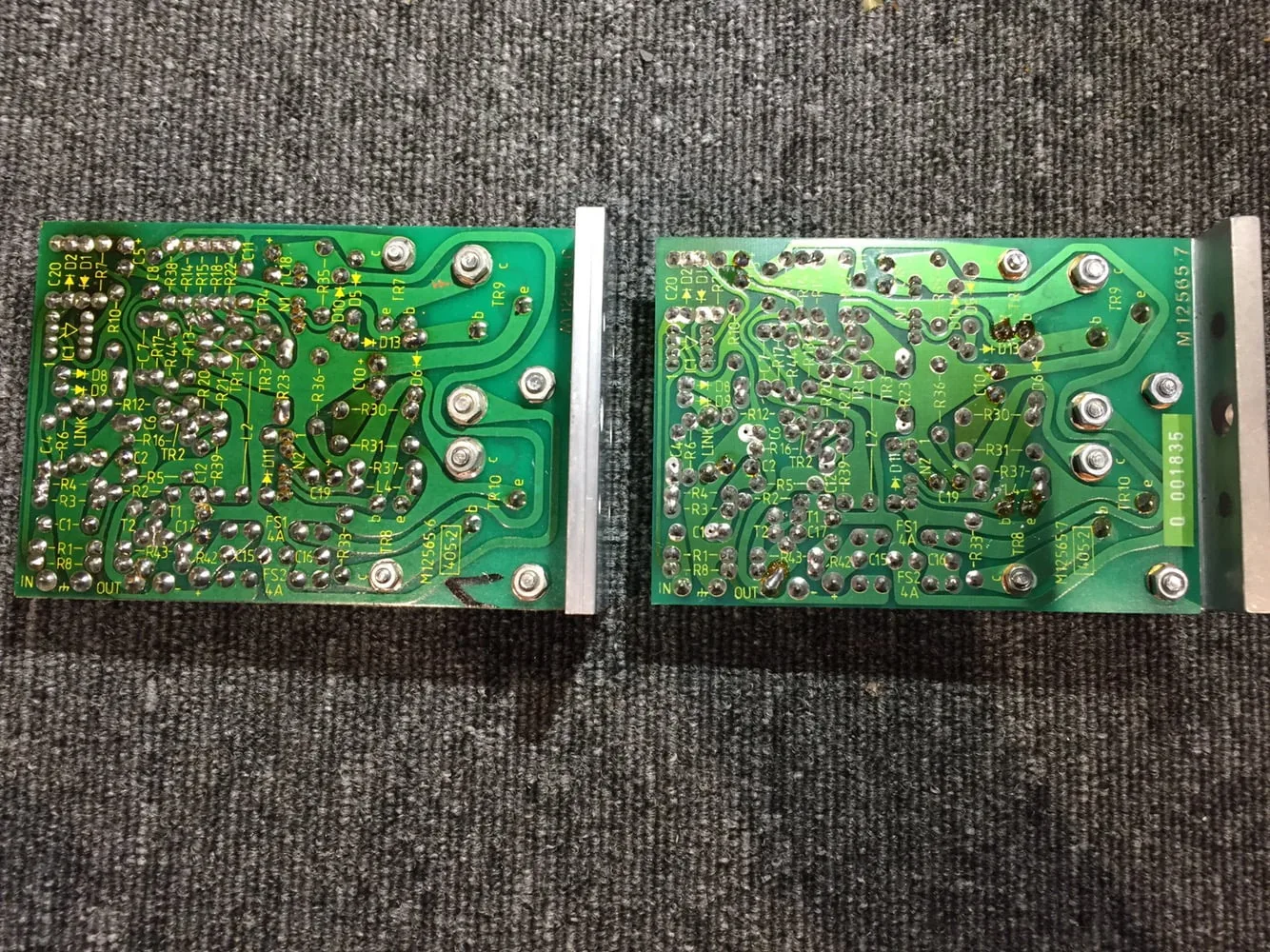

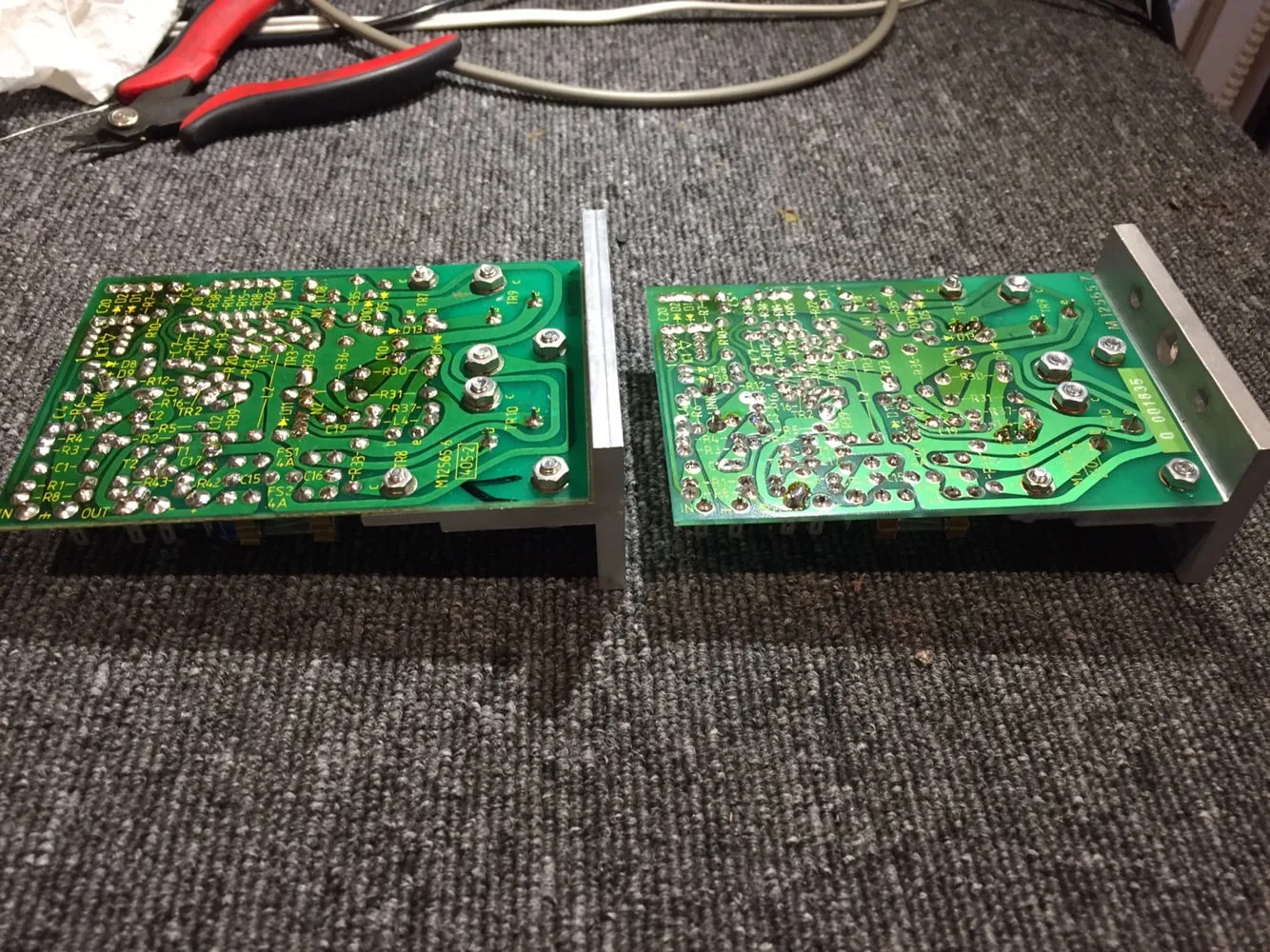

The back of the boards reveals some factory markings and the slightly different layouts of versions 6 and 7.
img 5058
This design is so simple and elegant, I love it.
img 5057
In detail now, version 6 board with 1983 output transistors
img 5056
While version 7 board devices are from 1985, all RCA 17556 TO-3 devices. I often improve these in my later rebuilds.
img 5055
Unpotted current-limiter modules…
img 5054
Vs potted current-limiters
img 5053
Anyway, time to replace a few capacitors with modern, high-spec replacements

img 5052 e1587522410362

img 5061

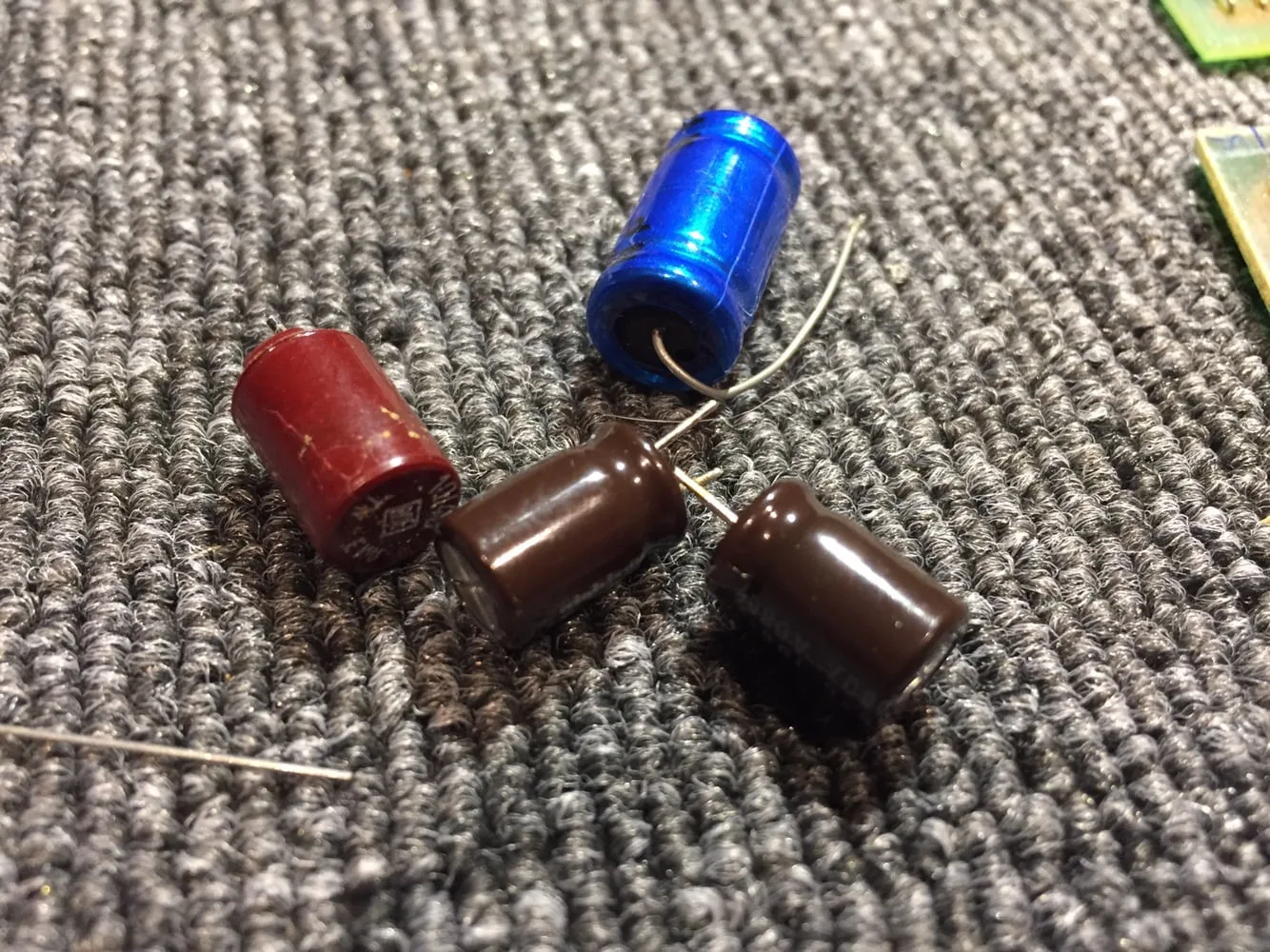

Out with some old capacitors…
img 5335 e1506130284411
And in with some lovely Nichicon MUSE bipolar caps to replace these terrible Capxon parts. I also use Panasonic, Nippon-Chemicon and Elna parts in restorations like this.
Quad 405-2
They sound seriously good
Quad 405-2
Next, I decided to bypass the main filter caps. I used some of my MIL-spec NOS Siemens film caps and used the 405 like this until I replaced the main filter capacitors.

After completing this initial overhaul work, the Quad 405-2 sounded great. The 405-2 sounded much better after replacing the old board-mounted capacitors and generally tidying up the old girl.

Phase 2 – Additional Quad 405-2 Restoration & Improvement

I initially left the original TL-071 FET input op-amps in place as I wanted to baseline and characterise the first steps of improvement, so I could speak with authority about how each step influenced the sonic results and performance of the amplifier. As some will already know, I’m against the unscientific swapping of op-amps. It’s better, and smarter, to try to understand the reasons behind the choices originally made and then pick an actually better replacement, based on science.

There are several other improvements I’ve tested and now incorporate into most customer jobs. The first is to replace a few critical ceramic caps with polystyrene or silver mica 1% rated parts. The second is to replace the TL-071 input op-amps with the modern TL-2071 equivalent. Other FET input op-amps work as well and there are a couple of others I also use, with great success in more premium overhauls. I also now modify the ground scheme in many of the 405 and 405-2s I work on along with the RCA connectors. I upgrade the mains inlet and fit special film snubbers there and in other locations on the transformer and filter caps.

Filter Capacitors

The remaining important mod with this particular Quad 405-2 was to replace the original filter capacitors with modern, higher-spec parts. STC branded 10,000uF @ 63V parts came factory-fitted. I replaced these with premium Kemet capacitors. The Kemet parts sound better and are rated for much longer service life. Before doing so, I examined the increased inrush current to ensure this was within the limitations of the diode bridge.

In some 405 and 405-2 upgrades, I now fit even better computer grade Illinois Capacitor parts, shipped to me all the way from the USA! These awesome capacitors are a real bonus in terms of the extra bass control and authority they provide, in combination with the other improvements I incorporate into my current resto’s.

IC capacitors for Quad 405
Here are a couple of boxes of special IC main filter capacitors I use in many 405-2 overhauls.
Quad 405 bodge scaled
By the way, this is how NOT to replace the filter capacitors. This photo was sent by a friend of mine and shows what he found inside a Quad 405 he worked on recently. This is messy, lazy work and there’s no need for it when you can simply use parts of the correct size, replace the capacitor clamps or make an appropriate adapter.

The original STC filter caps measured quite poorly. Capacitance was OK, but ESR was quite high for large caps. We should see an ESR of very close to 0 Ohms for large caps, measured using a proper ESR meter. The STC caps measured around 0.5 Ohms, which is too high. The new Kemet parts were as close to zero as you can get, at around 0.01 Ohms, plus they have 50% greater capacitance, so this is a worthwhile improvement.

Quad 405-2
Note, this amp has been modified previously, adding the two RCA connectors on the left, where the rubber service access plugs used to be. Mine has the recessed banana plugs and no power switch!
img 6588
Replacements looming in the background!
img 6591
My goal was to ensure the replacement parts looked factory and to re-use the existing wiring. I wanted to make the minimum number of changes needed to do the job. Part of doing this involved carefully choosing the new caps so they were a perfect size match. This turned out well, it’s neat and I’m not sure most could tell it isn’t factory. New filter caps provide greatly improved performance.
Quad 405-2

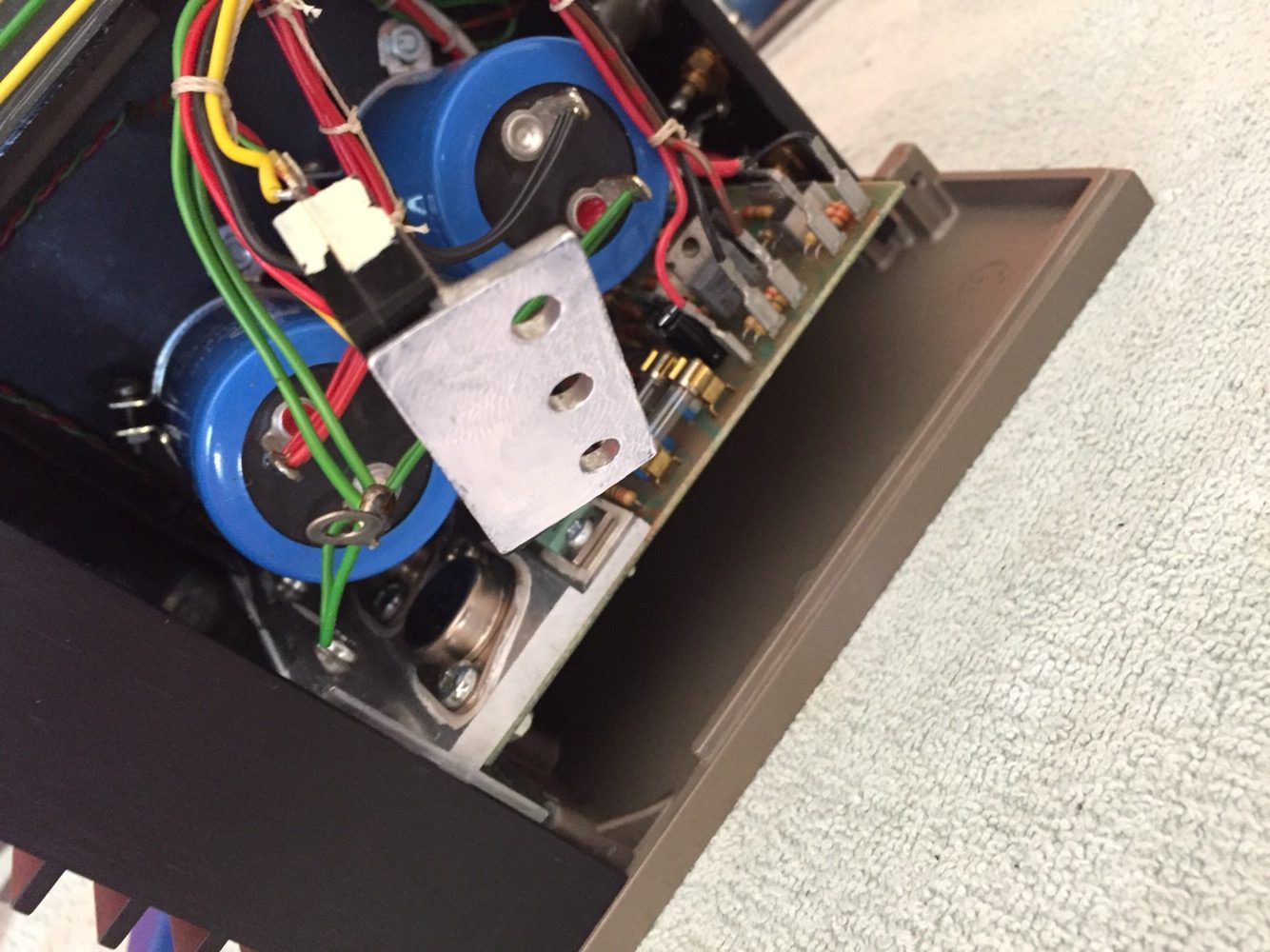

Another angle on the replacement filter capacitors. The amp sounds remarkably improved with these new filter capacitors. The old ones didn’t test so good, one has quite high ESR. The new parts were as close to zero ohms as one would expect of premium parts.
Quad 405-2 power supply filter capacitors
This is how you really do it if you want the neatest and technically best result. Here, in another 405-2, I’ve used two lab/computer grade Illinois Capacitor filter capacitors of about the largest size I like to fit to these amplifiers. You’ll note I have used special wire terminal tags for the capacitor wiring.
Quad 405-2 filter capacitor upgrade
Here I’ve installed my premium double bypassed filter capacitor upgrade for the Quad 405-2. This is the best package I currently offer.
Quad 405-2 overhaul list

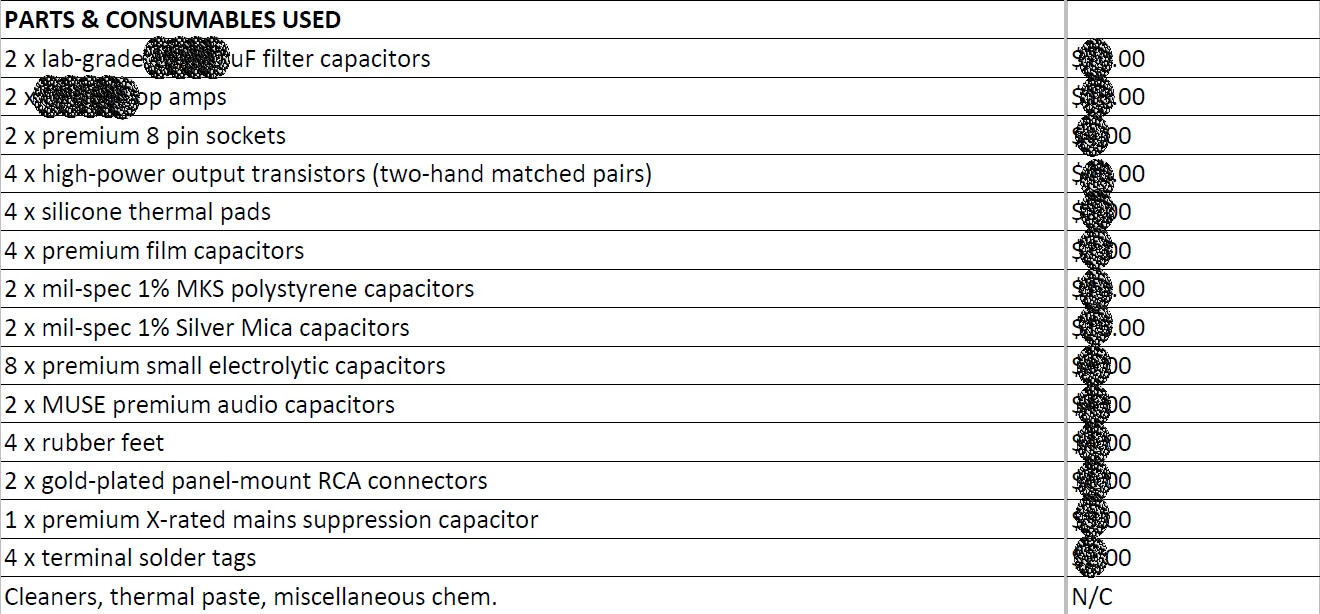

Here’s a snip from a fairly typical Quad 405-2 overhaul invoice, with some parts and prices redacted. You’ll note that this is a pretty involved piece of work, I do much more than many in this space and use much, much better parts in most cases, with the results tested, measured and extensively listened to.

The Chassis

To complete the Quad 405-2 restoration and because of the damage incurred during shipping, I decided to replace the screws with new zinc-plated parts. New fasteners were easy to find at my local fasteners supplier, yours too I’m sure. They made a big difference to the appearance of my Quad 405-2.

The last thing is a new side panel to replace the dented one, ordered from Quad UK and on its way. That isn’t here yet and so does not feature in these images – yet!

img 5049
This is what happens to Quad 405 fasteners when you drop the thing on its end! It’s lucky the damage wasn’t worse.
img 5238
New fasteners really lift the appearance of a piece of audio equipment and are much nicer to work with.
img 5237
Amplifier modules and side panels secured by new fasteners and washers. Note the original filter caps – I did the chassis stuff prior to changing these.
img 5236
Same for this side. I’ve used fresh thermal paste to mate each module to front panel heatsink.
img 5235 e1497091710535
These new parts lift the look of the Quad and are much nicer to work with. The finished amplifier looks and sounds fantastic now, a huge improvement. I will update this page with any other work I decide to do.

I hope you’ve enjoyed this Quad 405-2 restoration. If you would like me to take care of your Quad 405 or 405-2, you need only visit my contact page.
