Krell has produced some stunning gear over the years and this Krell PAM-7 is a great example. Come with me as I repair and overhaul this lovely old girl.

The Krell PAM-7 preamplifier dates back to earliest days of Krell, but all the trademark features are present: thick boards, premium parts, class-A operation, separate power supply and the unique styling the company used back in the day.

Krell PAM-7

I particularly like the industrial grey brushed aluminium finish on the Krell PAM-7 and all Krell gear from this era. Nothing else looks like older Krell gear and certainly, the mechanical and electronic build quality are extraordinary, even now.

Sonically, this unit gives nothing away next to the most expensive modern preamps. There are no new circuits and parts in 2019 that these guys didn’t understand and have access to in the ’80s.

This unit has all the best features: premium switches and pots, zero wiring, FETs, lots of local capacitance, discrete & configurable phono preamp, multiple regulated power supplies, class-A, all discrete circuitry, and on it goes.

Krell still has the owner’s manual available and the excellent staff in the Krell service centre are always kind enough to assist me with what data they have available – thanks, Patrick!


This Krell PAM-7 exhibited several issues and she had never been in for service until she came to me. Signals from the PAM-7 showed distortion and gain was low in one channel. Strange noises emanated from the phono preamp and it turned out that one of the 15V rails was sitting down at around 5V.

A couple of the onboard (as opposed to external) power supply capacitors looked suspicious and didn’t measure well. Obviously, the unit needed repair and at least some basic maintenance. Despite the impeccable service life and fantastic performance of this wonderful preamp, it took some convincing her owner that this was a worthwhile repair. He really didn’t want to spend any money on it.

Fault Finding

The first steps were to assess the PAM-7 and diagnose what was wrong. I traced the noises, distortion and low gain to a bad Zener diode voltage reference which sets one of the power supply rails. This failed diode caused that rail to fail, and the now asymmetrical rails caused the sonic problems in the form of distortion the owner and I heard.

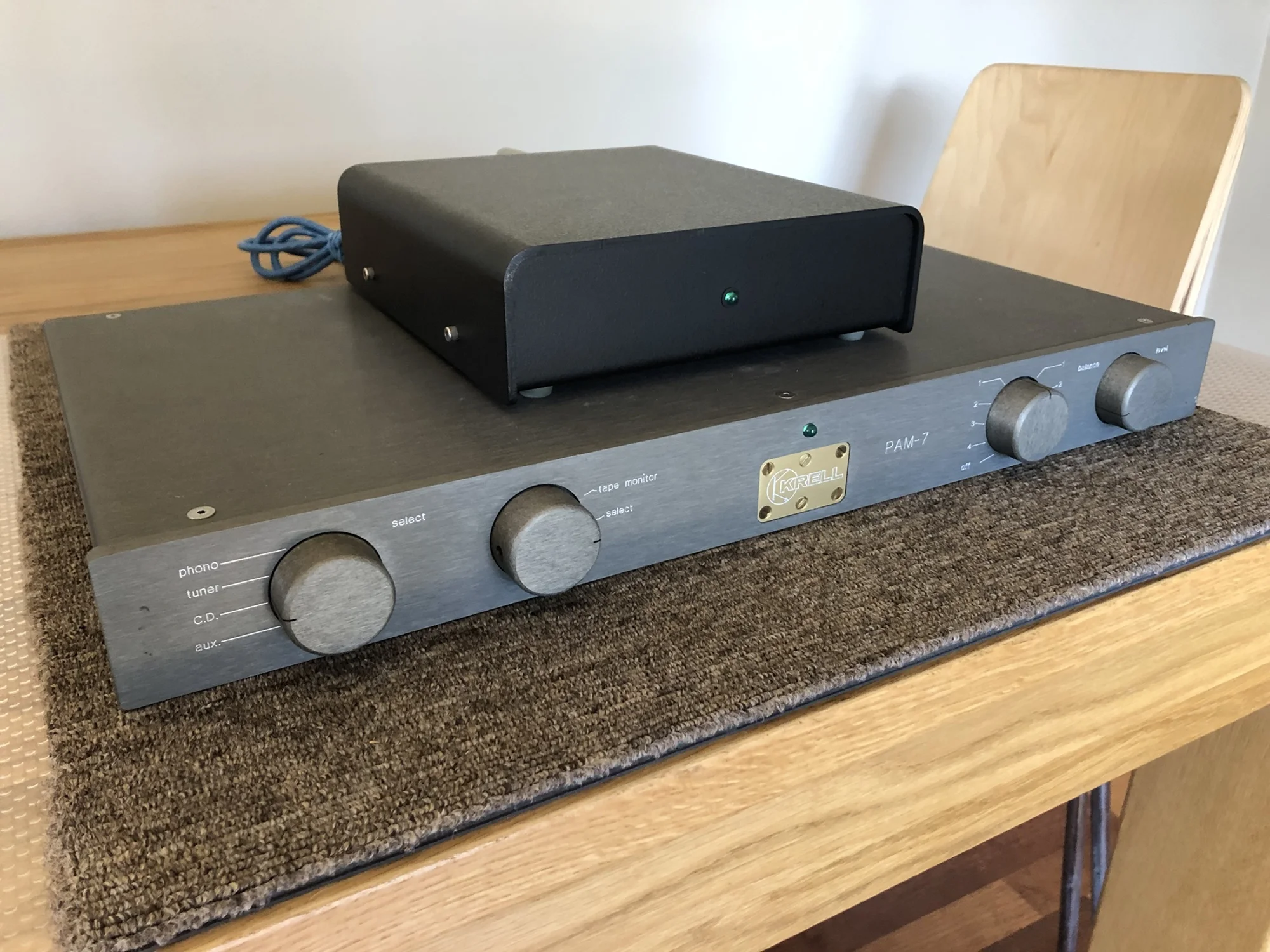

Krell PAM-7

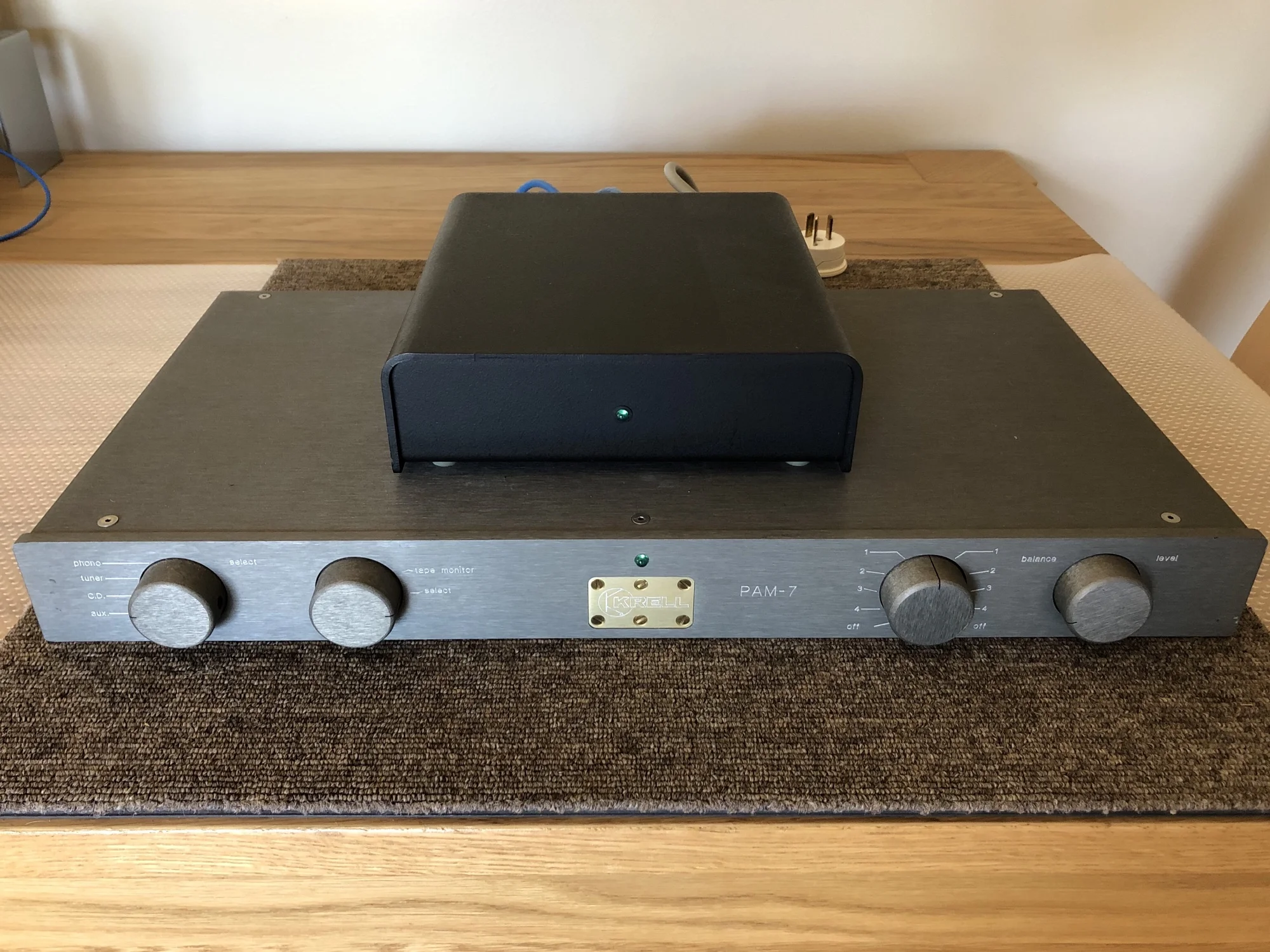

Very cool looking Krell gear, time to get inside…
img 3817

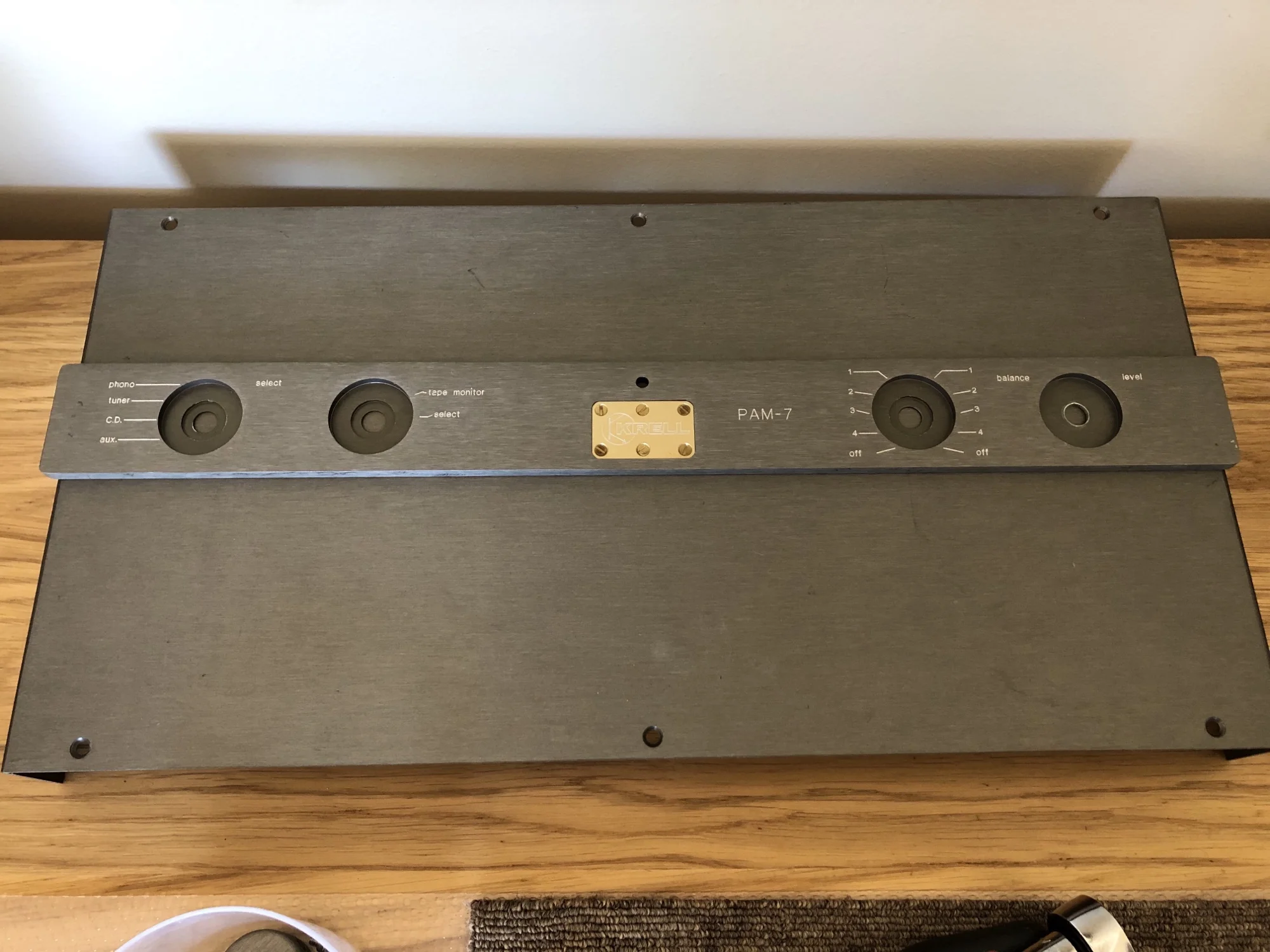

Covers and panels stored for later detailing.
Krell PAM-7

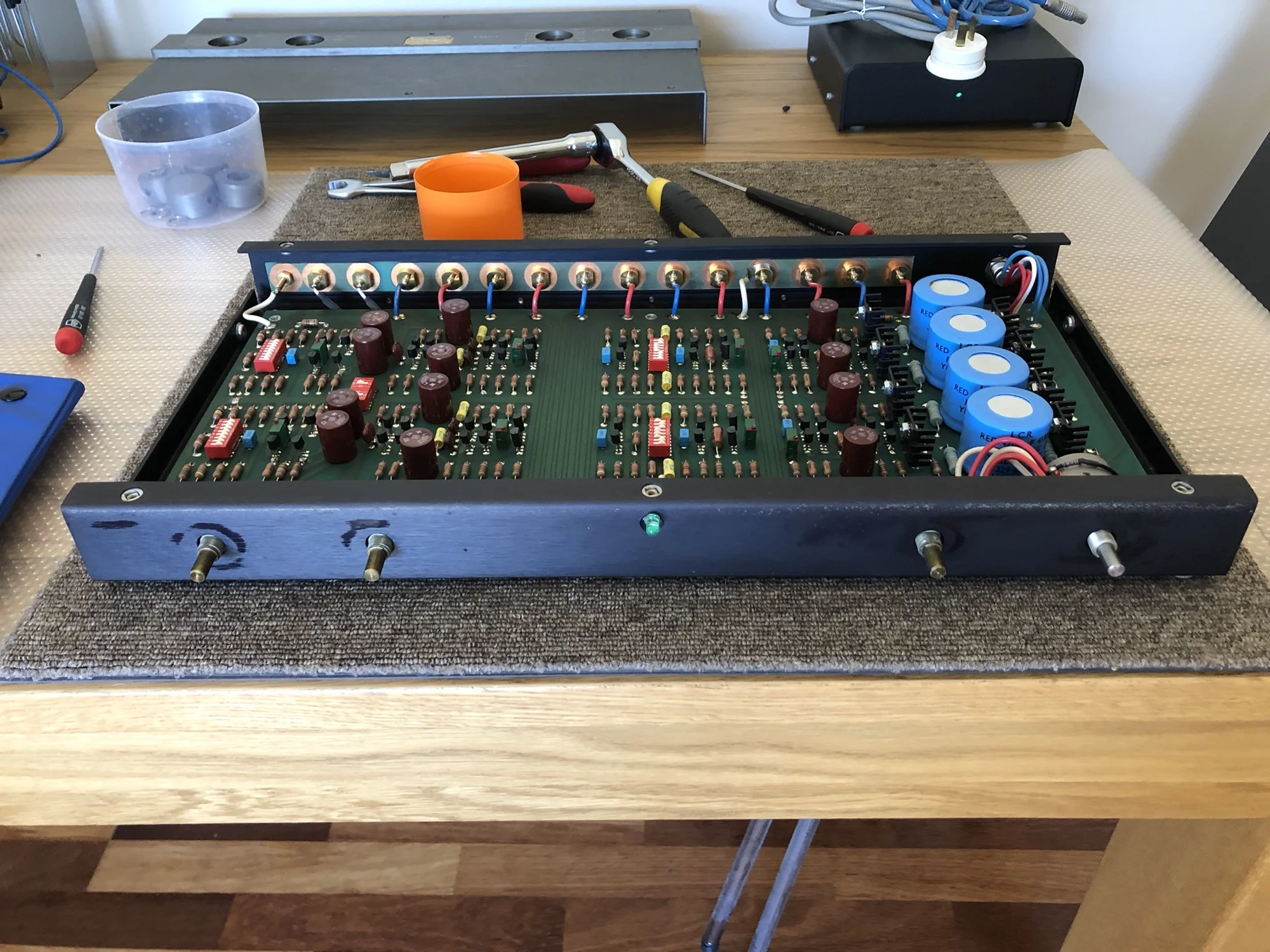

Here’s the unit, ready for some diagnostics. Once that’s done, the board can come out.
img 3813

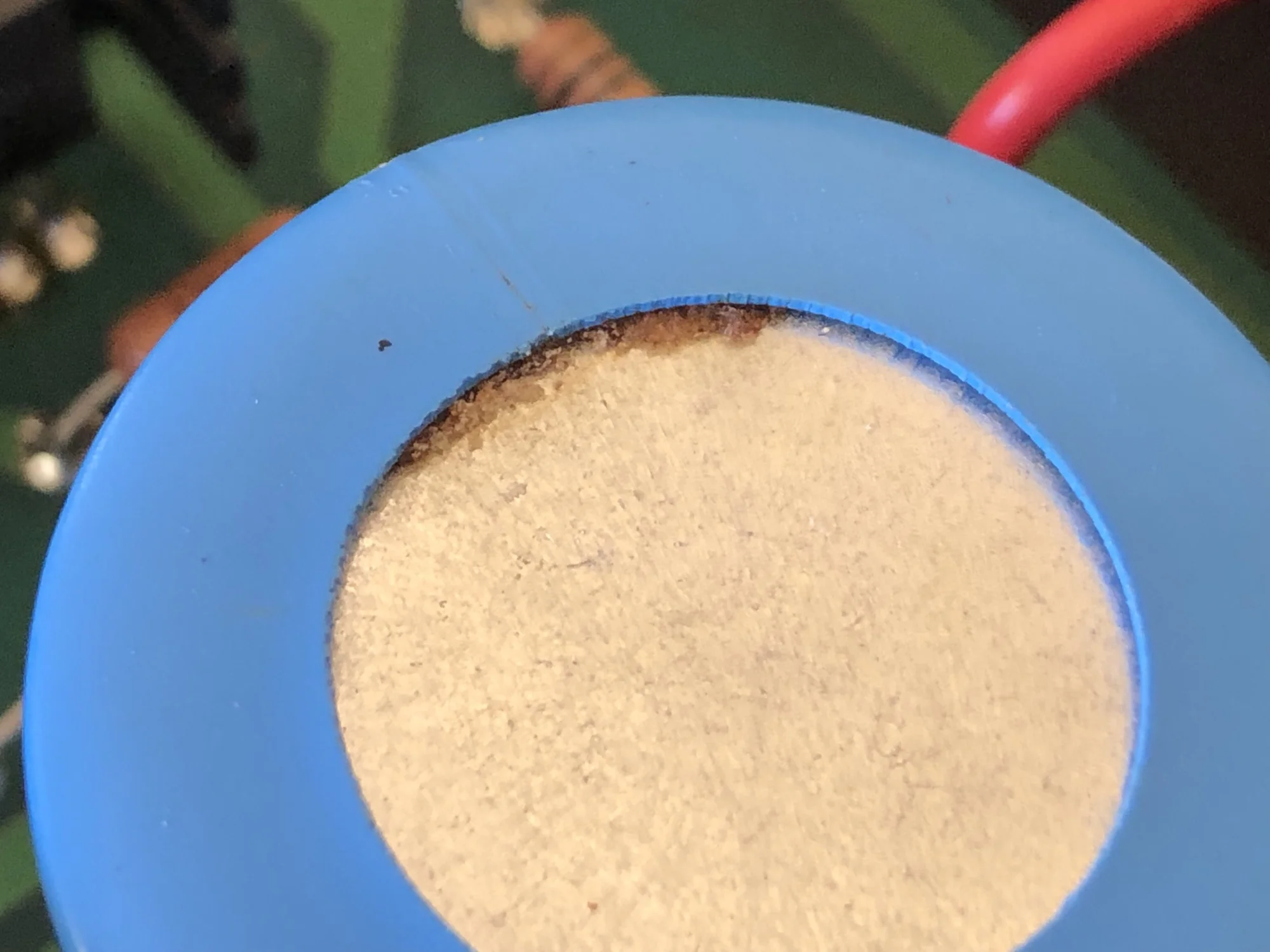

I noted what looked to be either corrosion, leaking electrolyte or both from this filter capacitor. It could also have been glue, but a couple of these caps didn’t measure well, so I decided to replace them.
img 3814

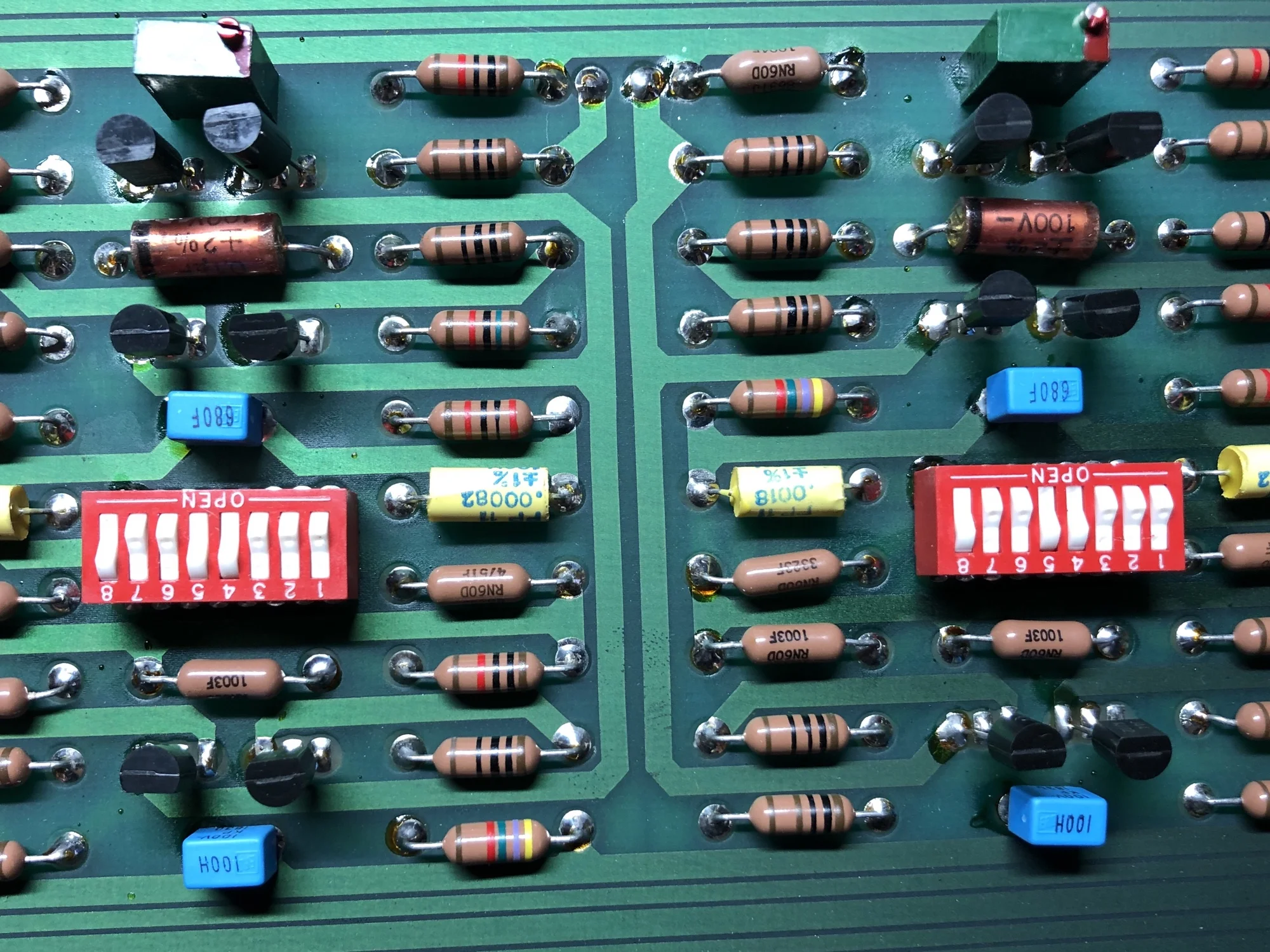

A detail shot of one set of internal configuration switches. There are phono and line-level options in the PAM-7.
img 3820

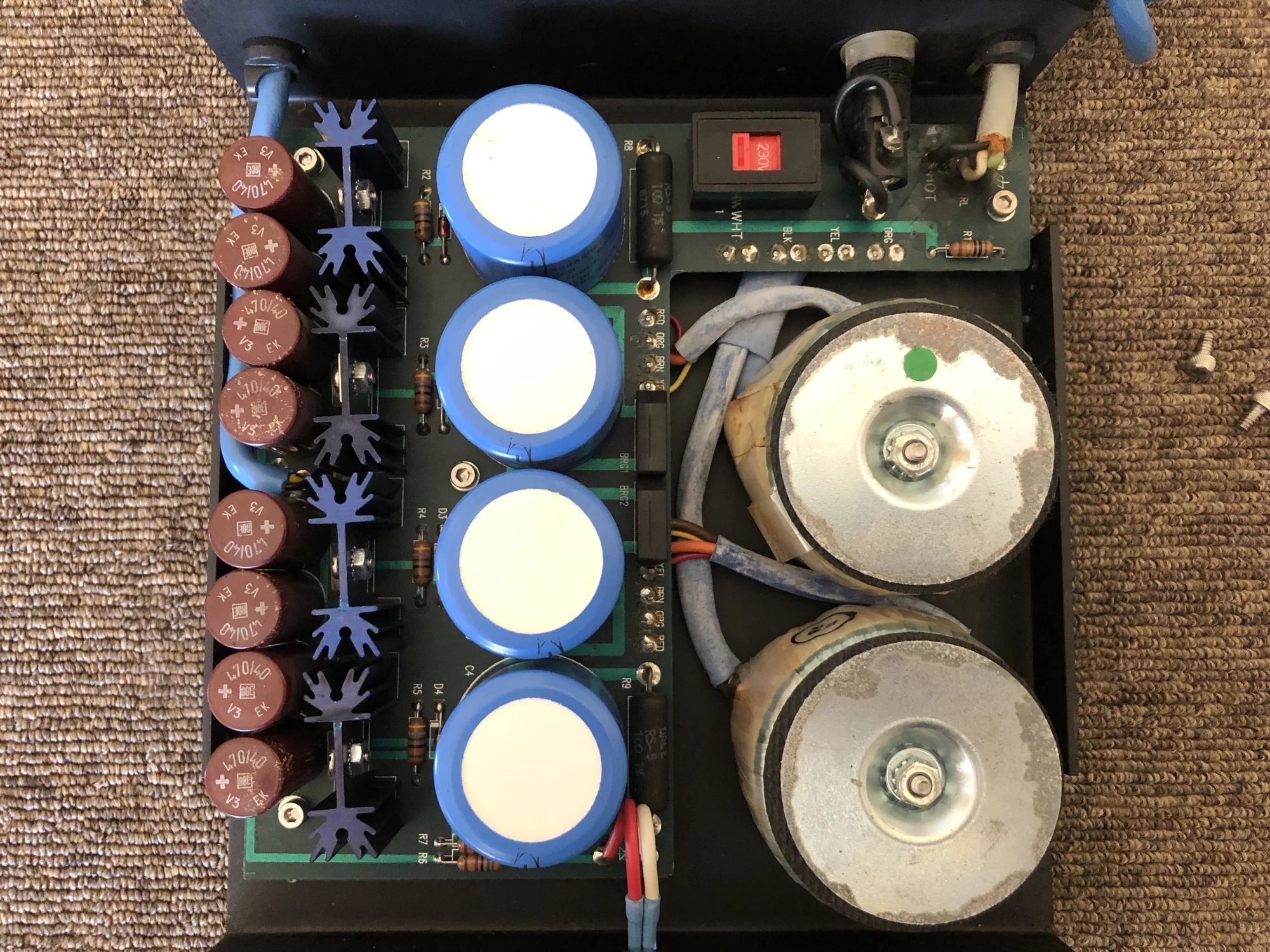

And here’s the external power supply. Very Krell, two transformers, generous filters caps of a different type to those used inside the pre and regulation. Everything here tested well, and the owner’s small budget meant I left this alone, apart from cleaning up a messy mains cable installation. I wanted to rebuild it, maybe next time…
img 3822

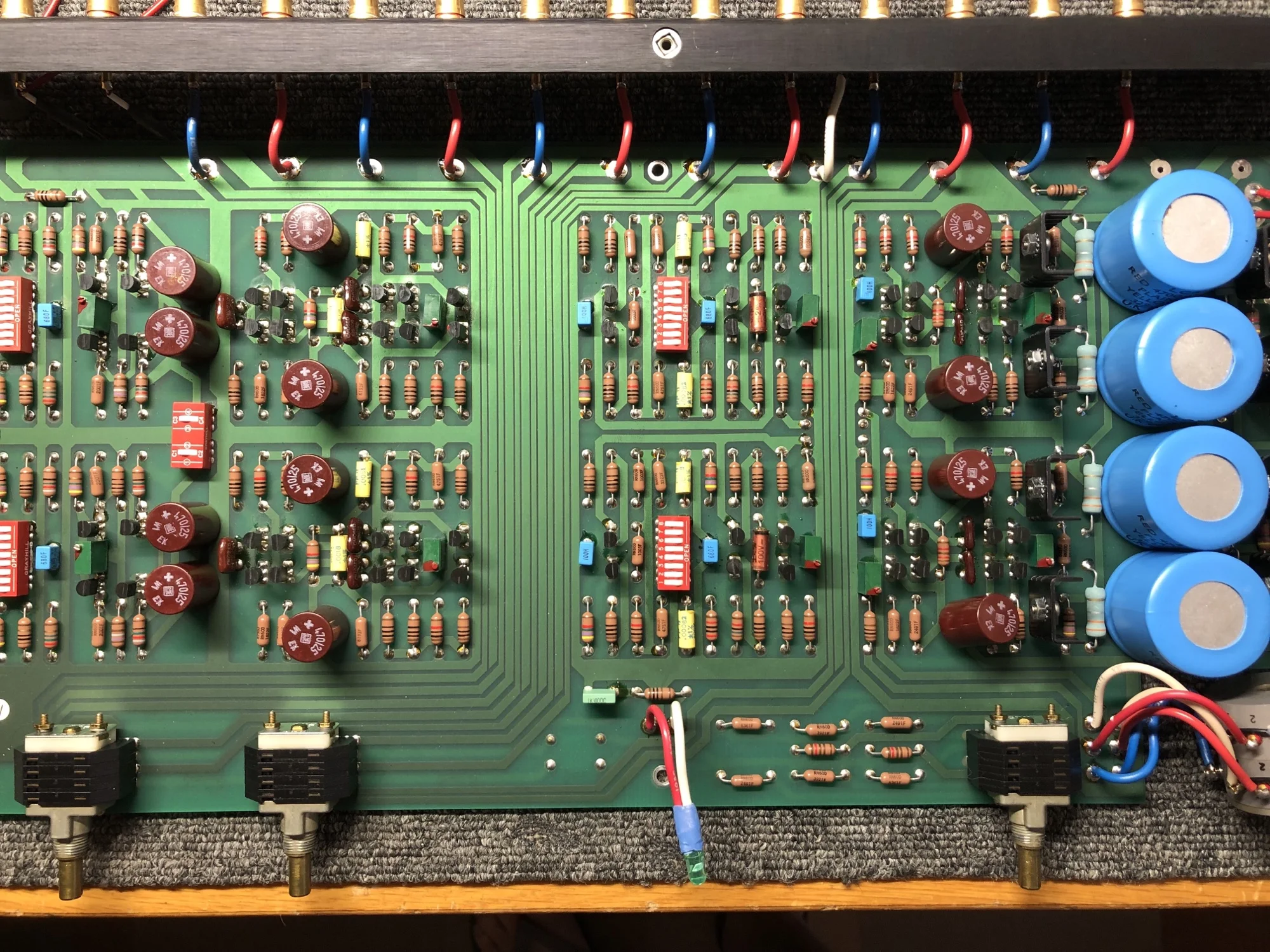

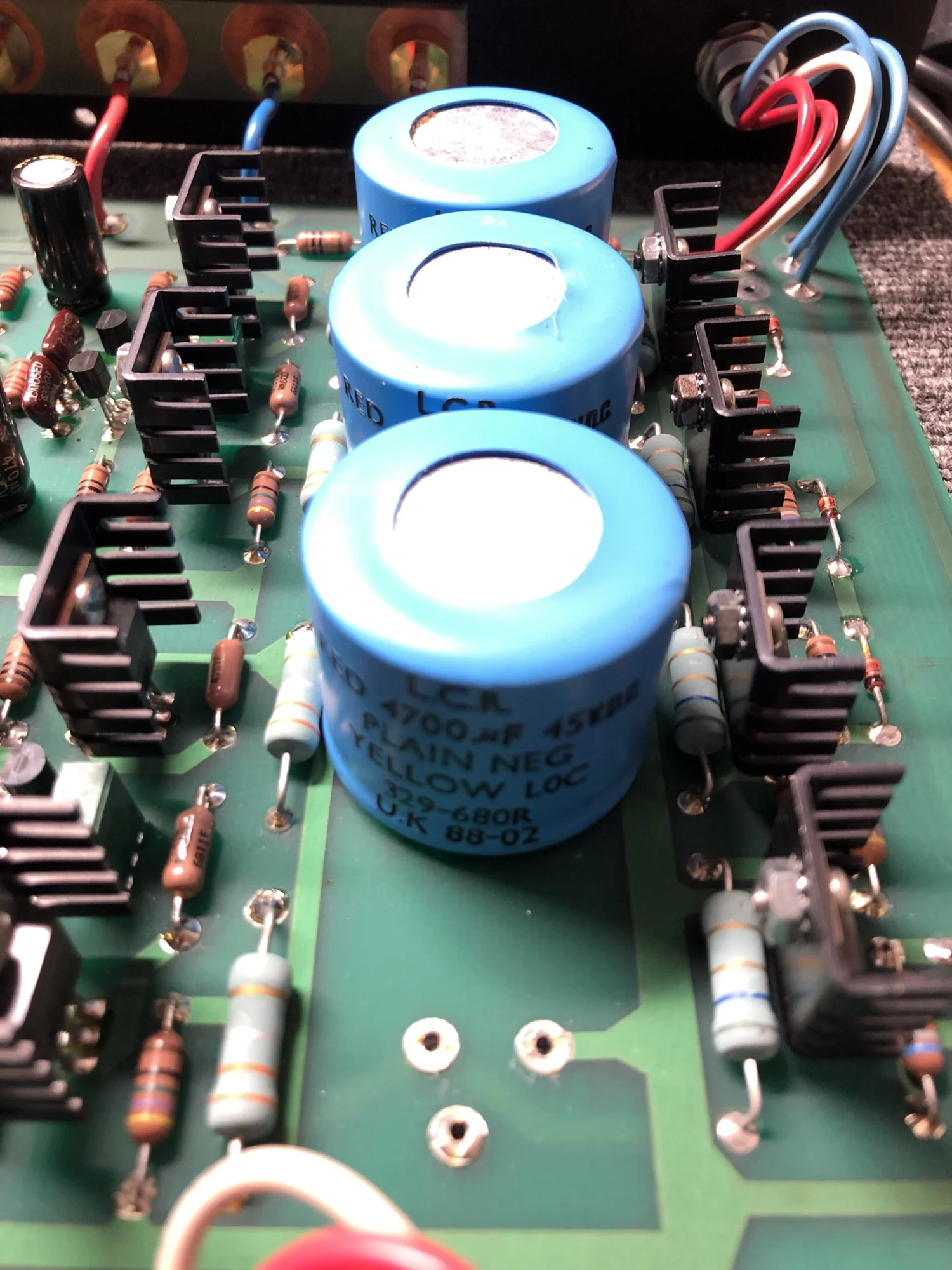

View of the main board after repairing the Zener diode, just to the right of the blue filter caps. Nothing much to see, so I didn’t get a close-up.
img 3873

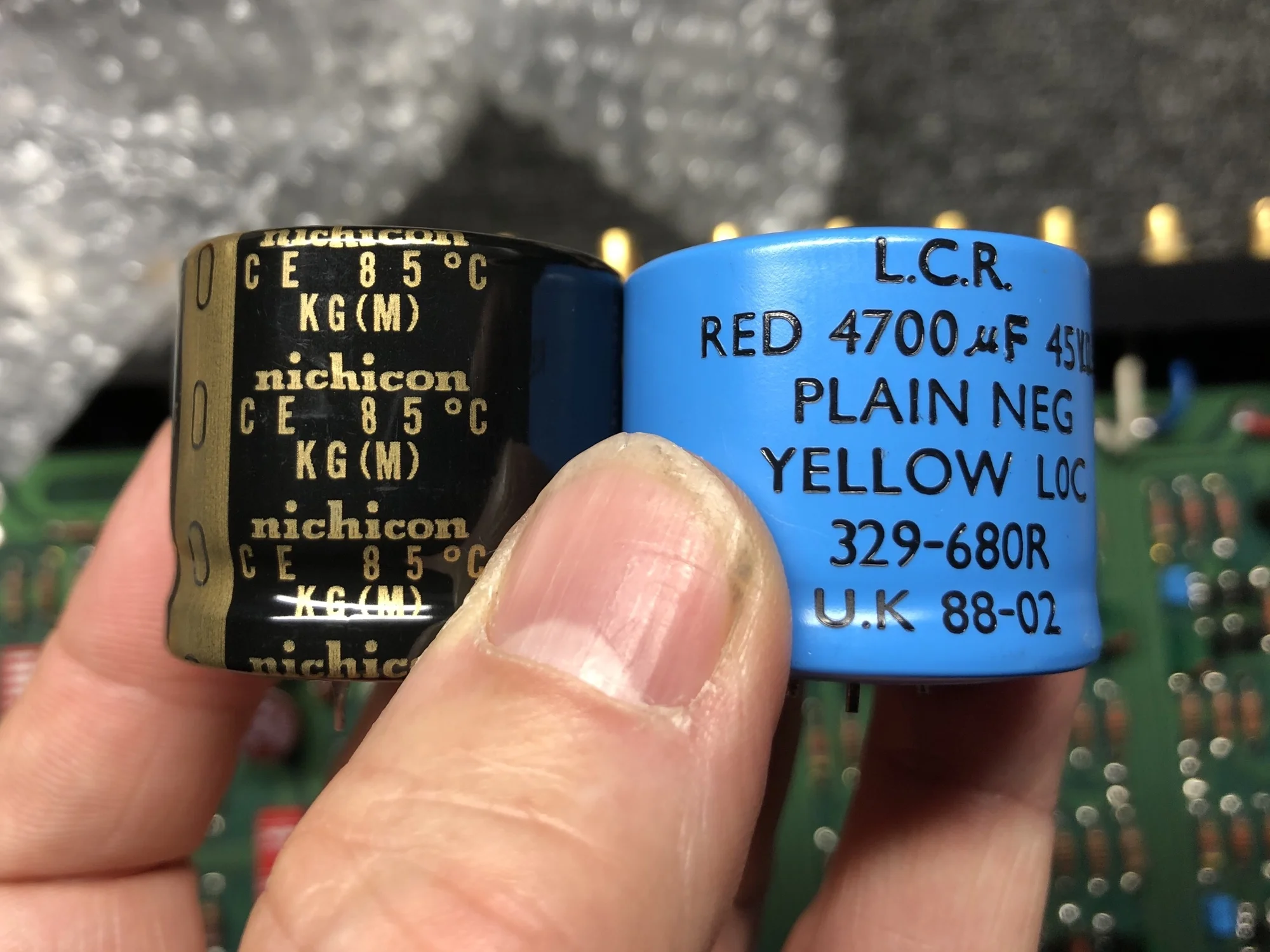

After testing these original parts I ordered some Nichicon KG Gold Tune replacements. These are extraordinary caps, every time I use them I hear an improvement.
img 3874

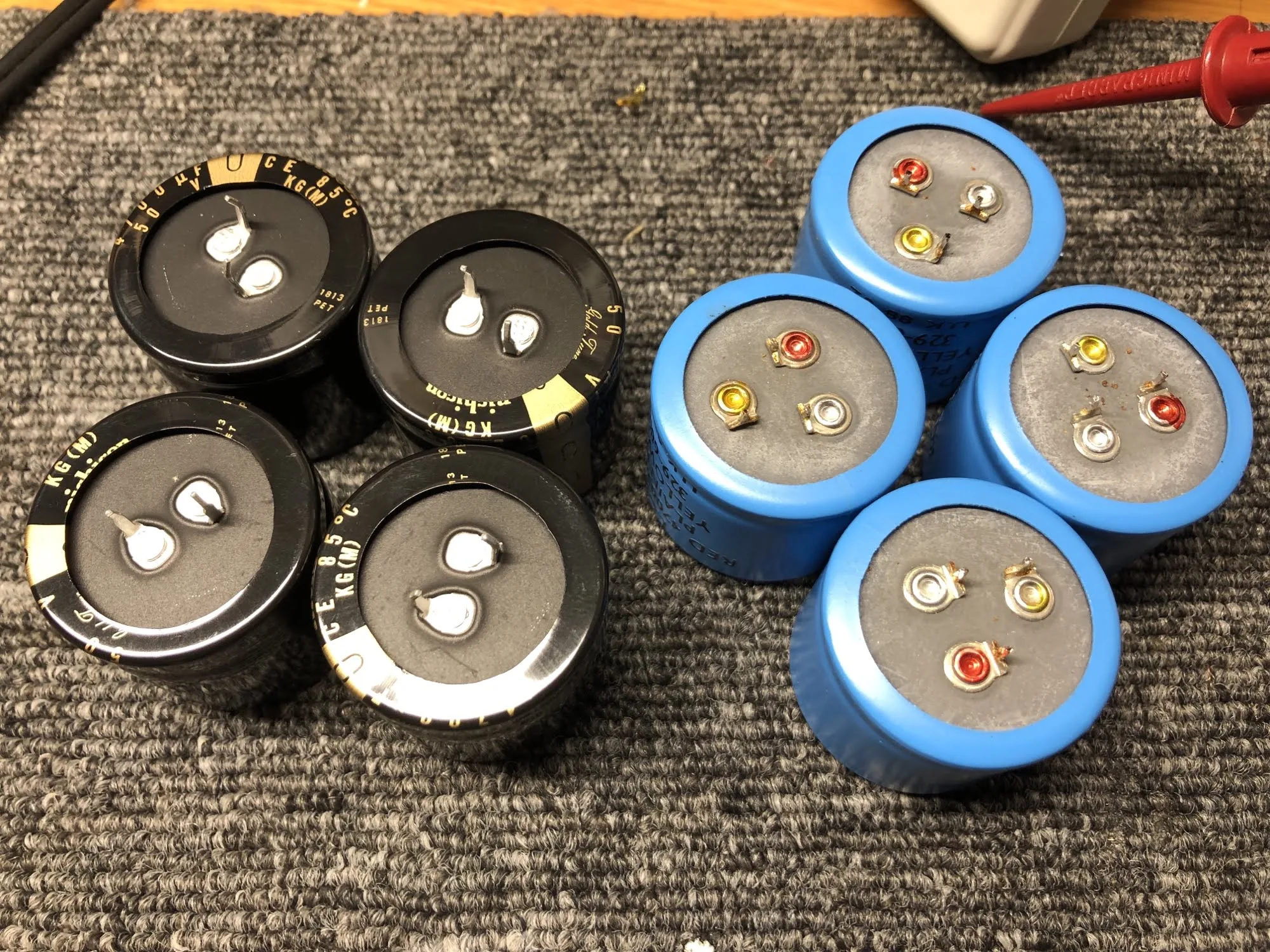

Out with the old…(see the diodes..?)
img 3875
Krell PAM-7

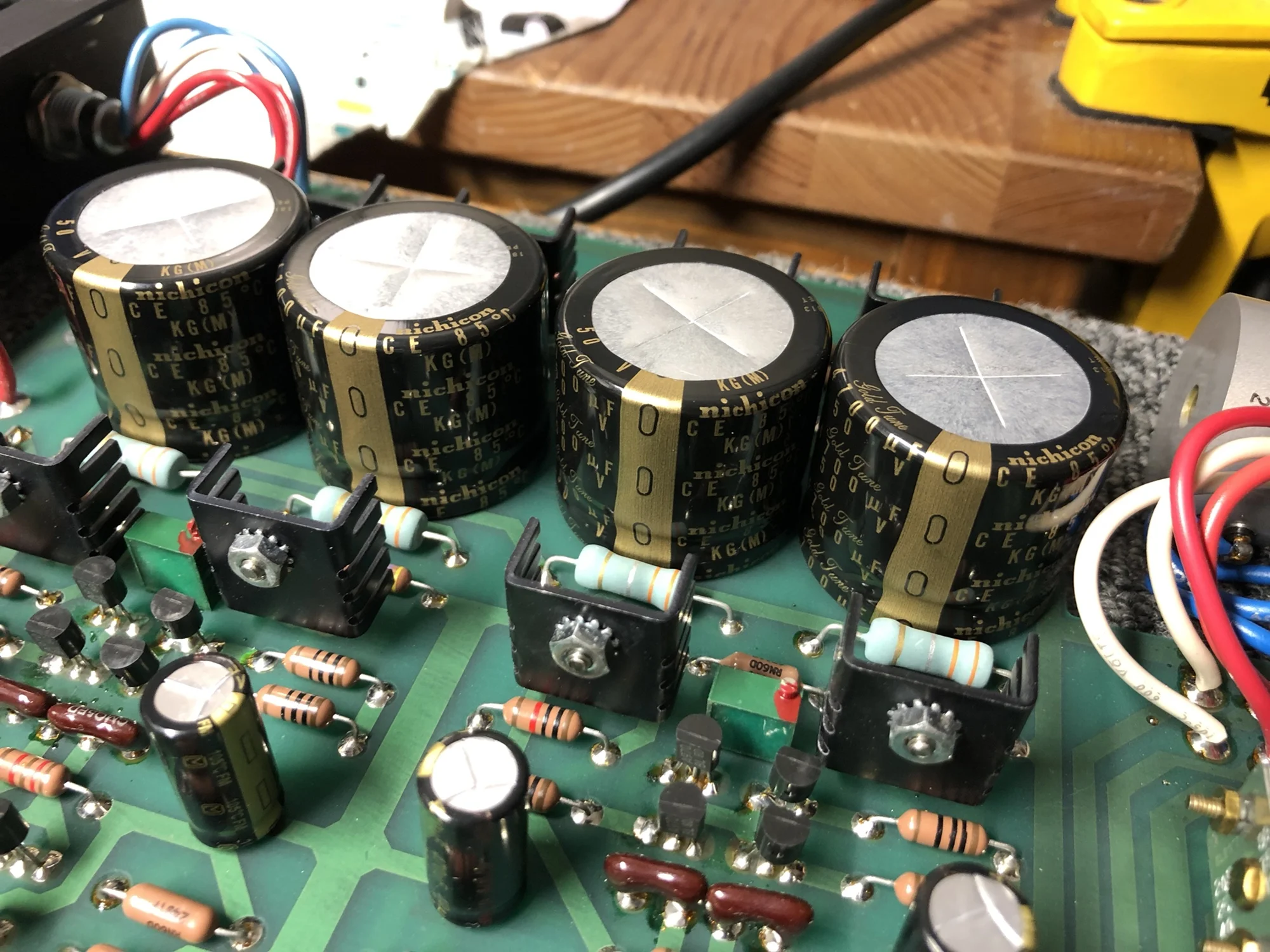

And in with the new…
img 3878

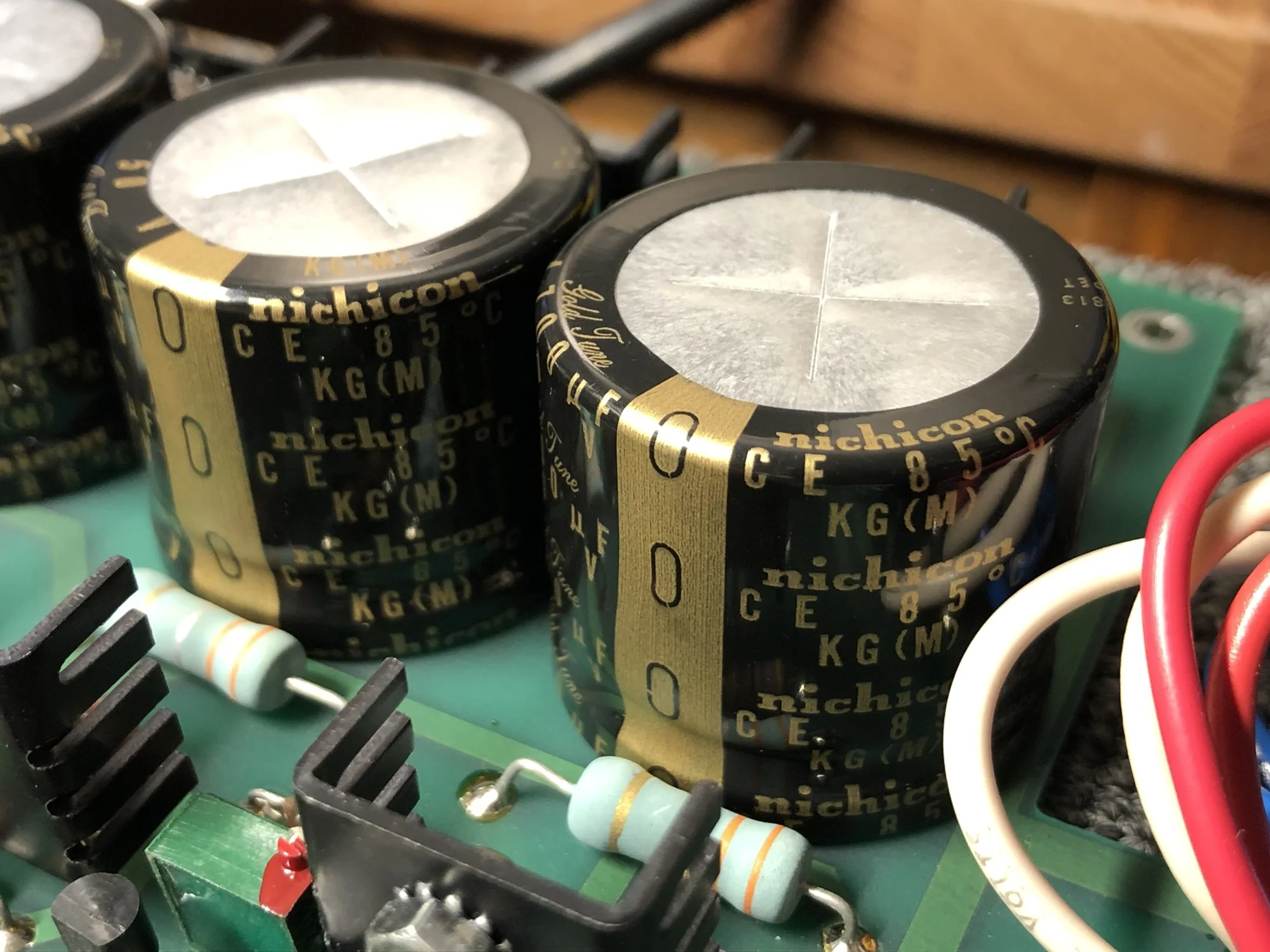

Awesome audio-grade capacitors from a legendary Japanese manufacturer – I highly recommend them.
img 3887
Power supply restored, note the additional new Panasonic FM capacitors in this shot.


Attending to all the little details that make something really look and feel like it’s had proper service is part of the value add that I provide for my customers. In this case, that meant a full clean of all panels, fascia, knobs, cleaning and treatment of connectors and lubrication of all switches and controls.

img 3884

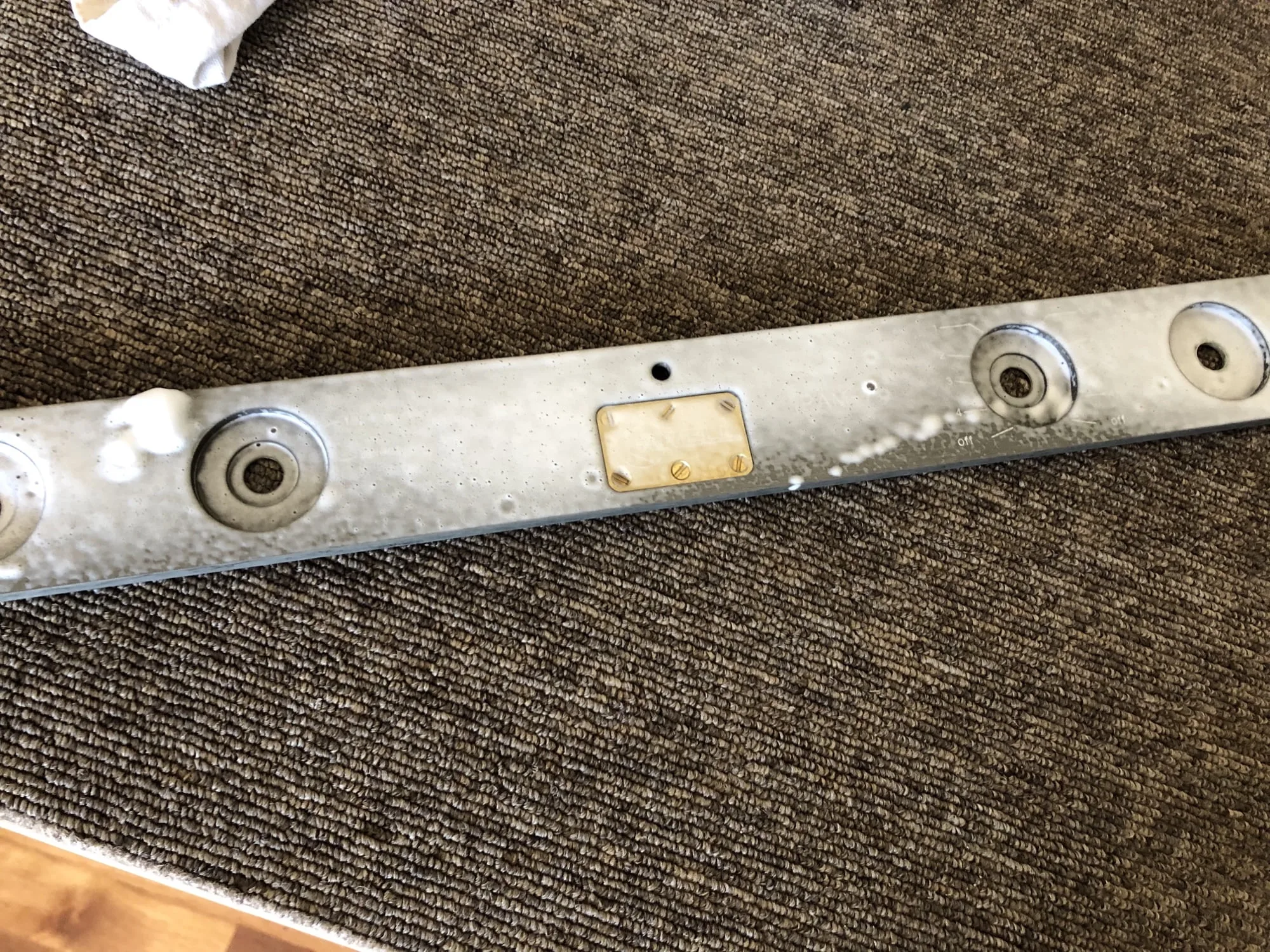

This is such a lovely piece but has years of patina added to it. Time for a clean.
img 3883

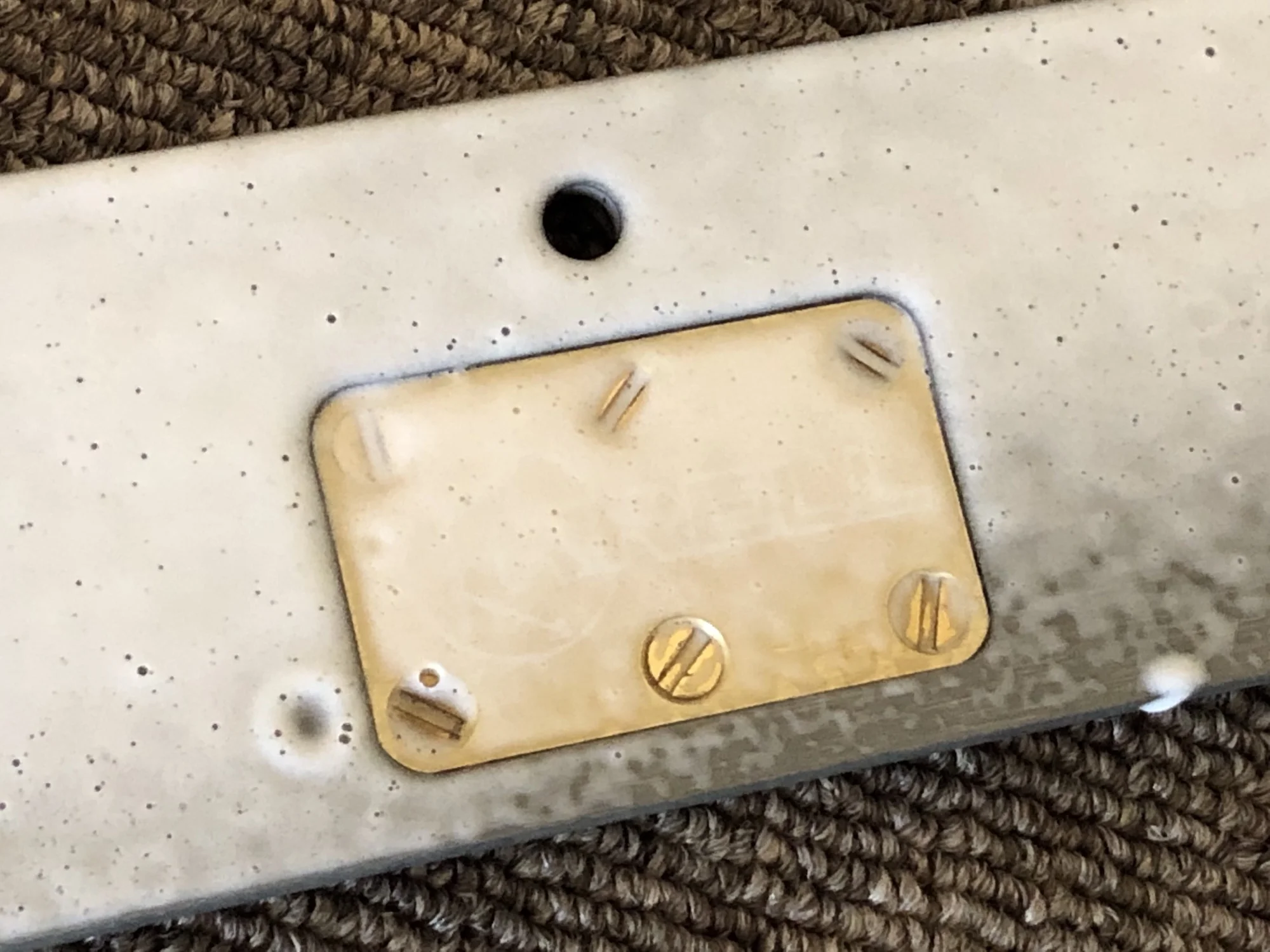

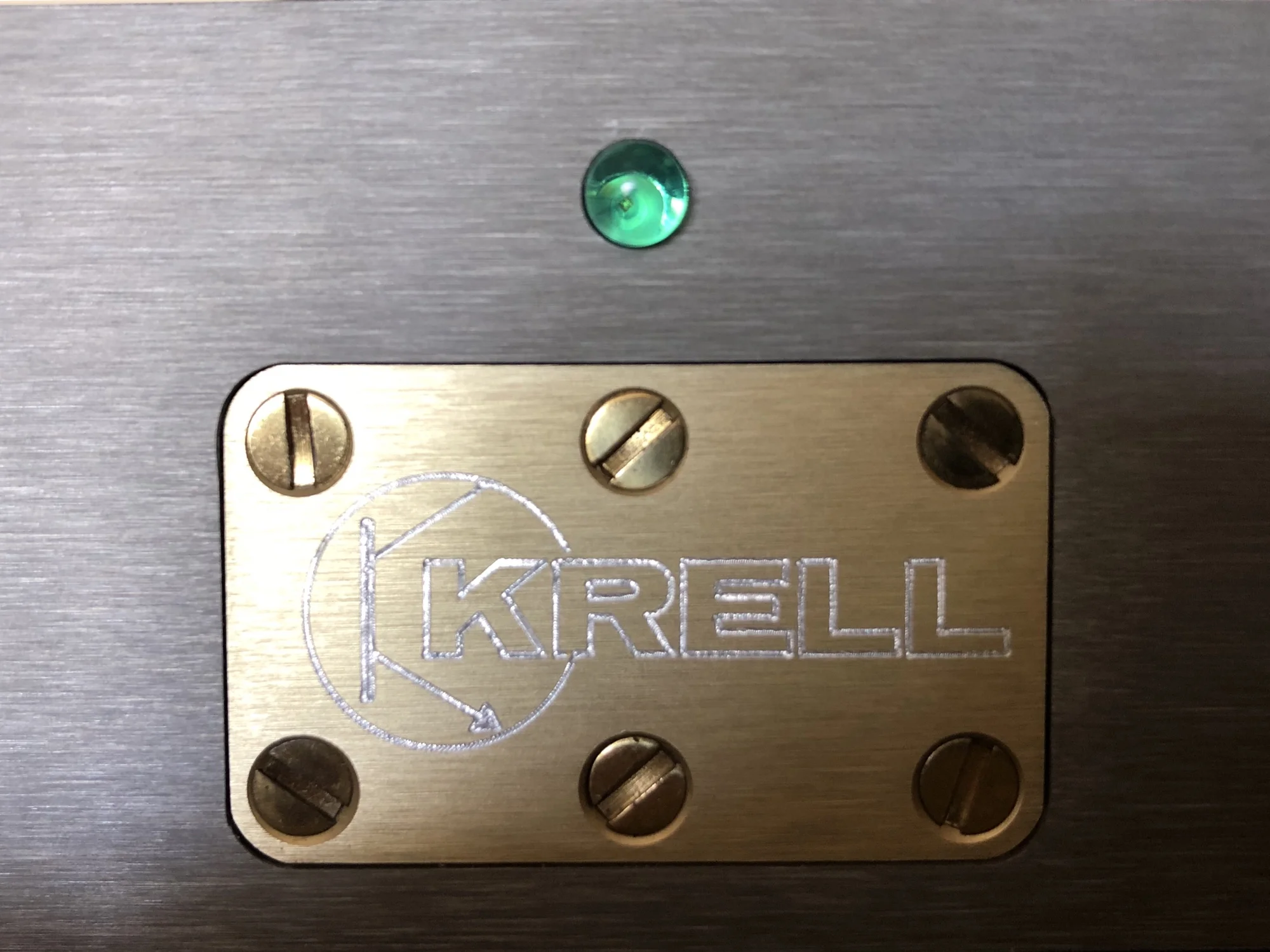

Is there another logo with this attention to detail..? Those are actual screws holding the brass, engraved Krell emblem in place.
img 3885

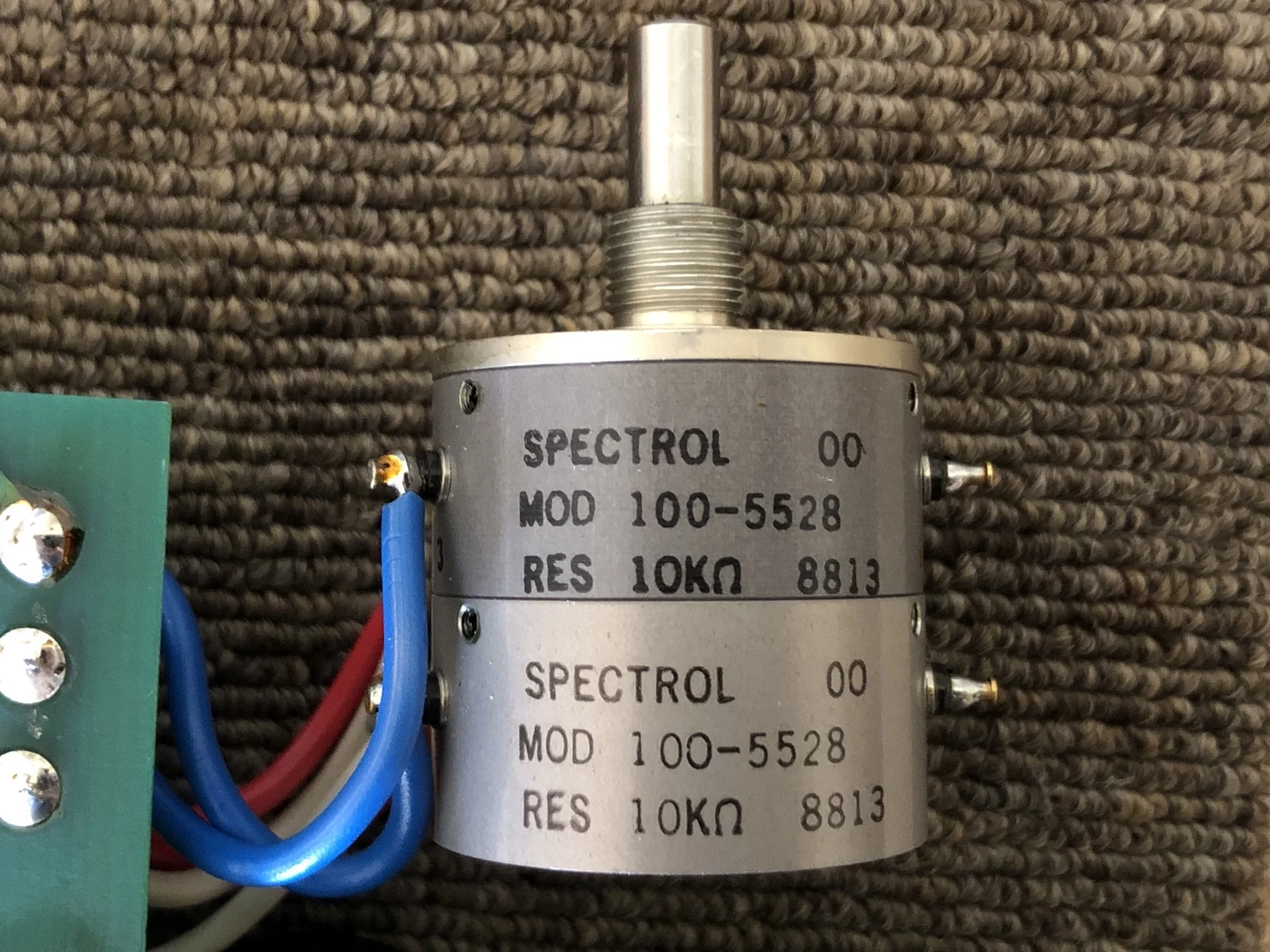

The serviced Spectrol volume pot. Let’s talk for a moment about volume potentiometers. There’s lots of chatter about ALPS Blue Velvet and similar, good consumer-grade potentiometers, but toys compared to this one. Few have heard of Spectrol and you wouldn’t unless you own and work on serious test and measurement gear as I do. This is a REAL volume potentiometer,  used in military, aerospace and laboratory gear. Extraordinarily expensive, here’s a PDF datasheet for those potentiometer aficionados…
img 3886

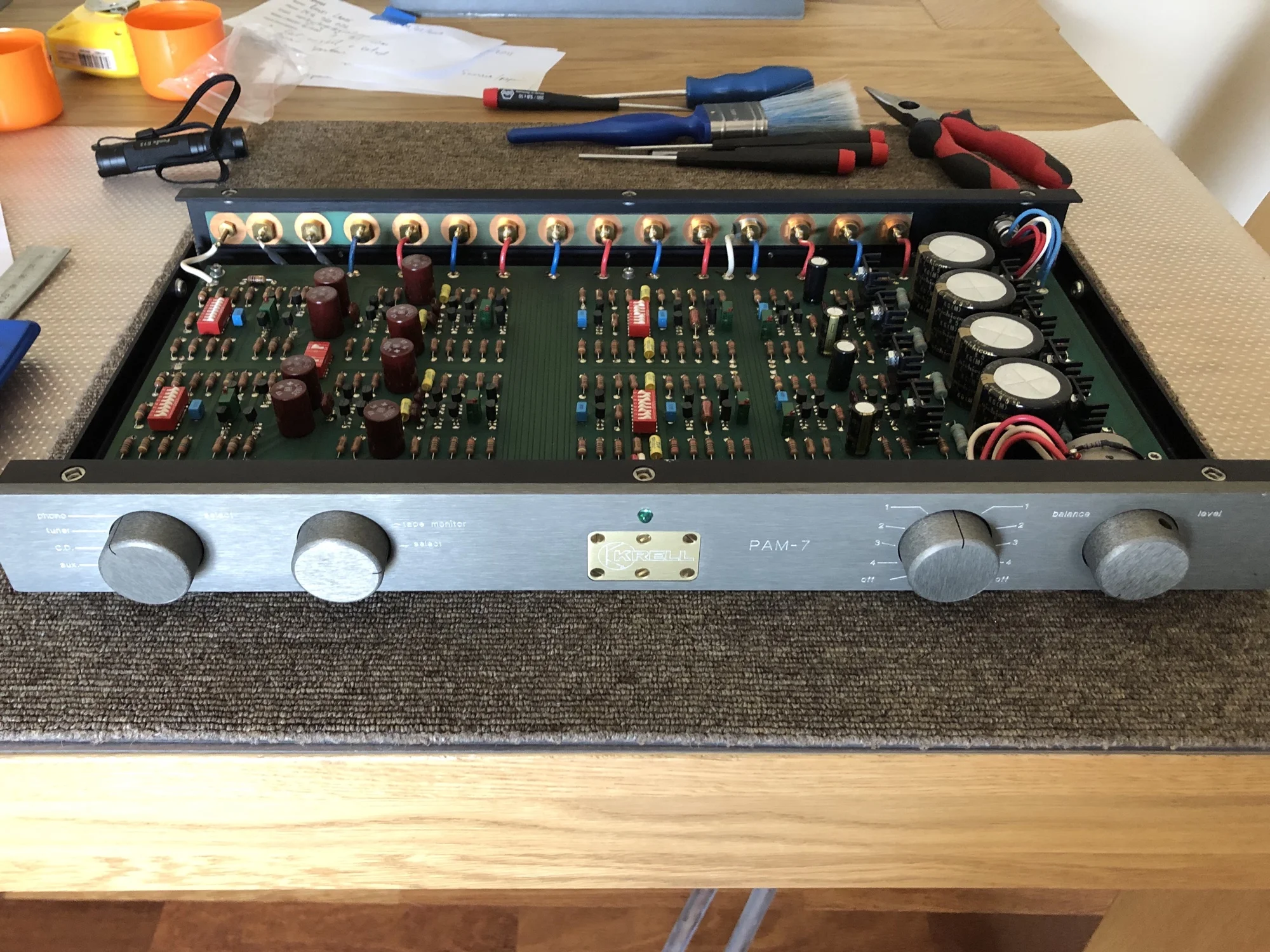

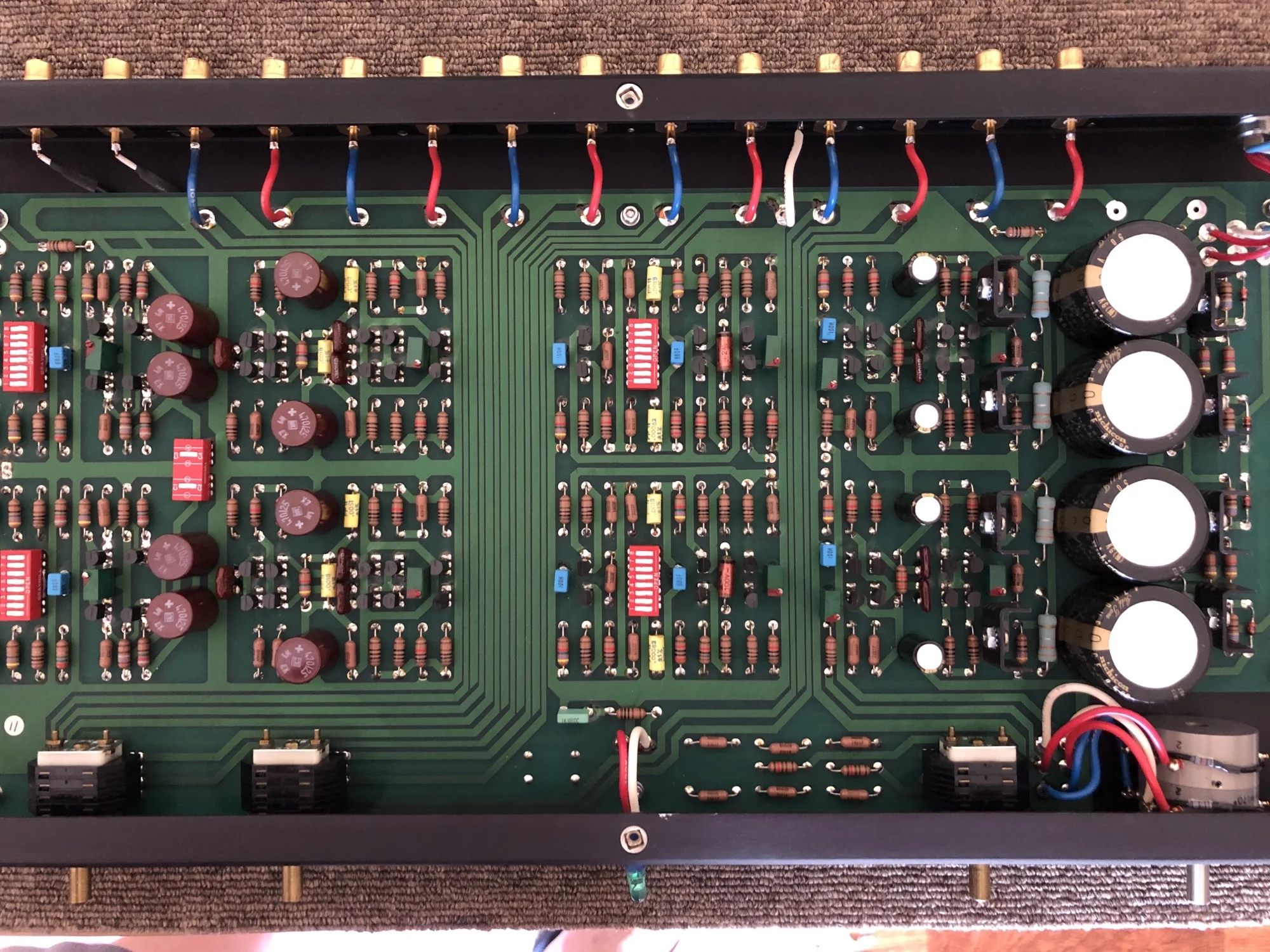

Overhauled board back in the chassis now and with all switches and controls cleaned and serviced. Astute readers will note that I left the original Roederstein capacitors on the left-hand side of the board in place. Don’t be concerned, all measured like new. They are exceptional capacitors and contribute to the sound of these preamps. Normally I would replace these but I was working to a tight budget here, this customer wanted to spend the minimum possible to get the preamp back up and running.
img 3889

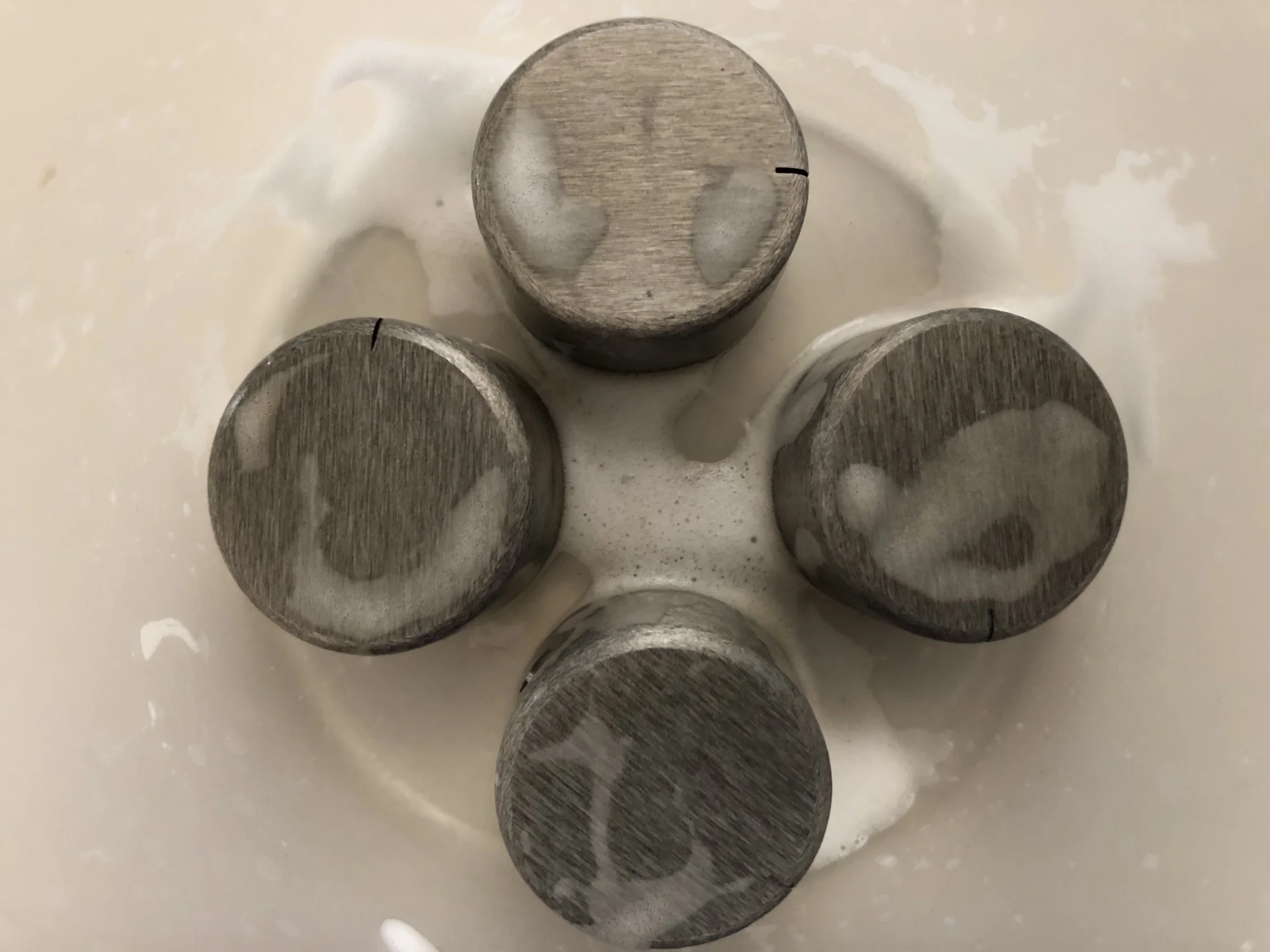

You’ve gotta have clean knobs…
img 3890
A good sign they needed cleaning…
img 3891

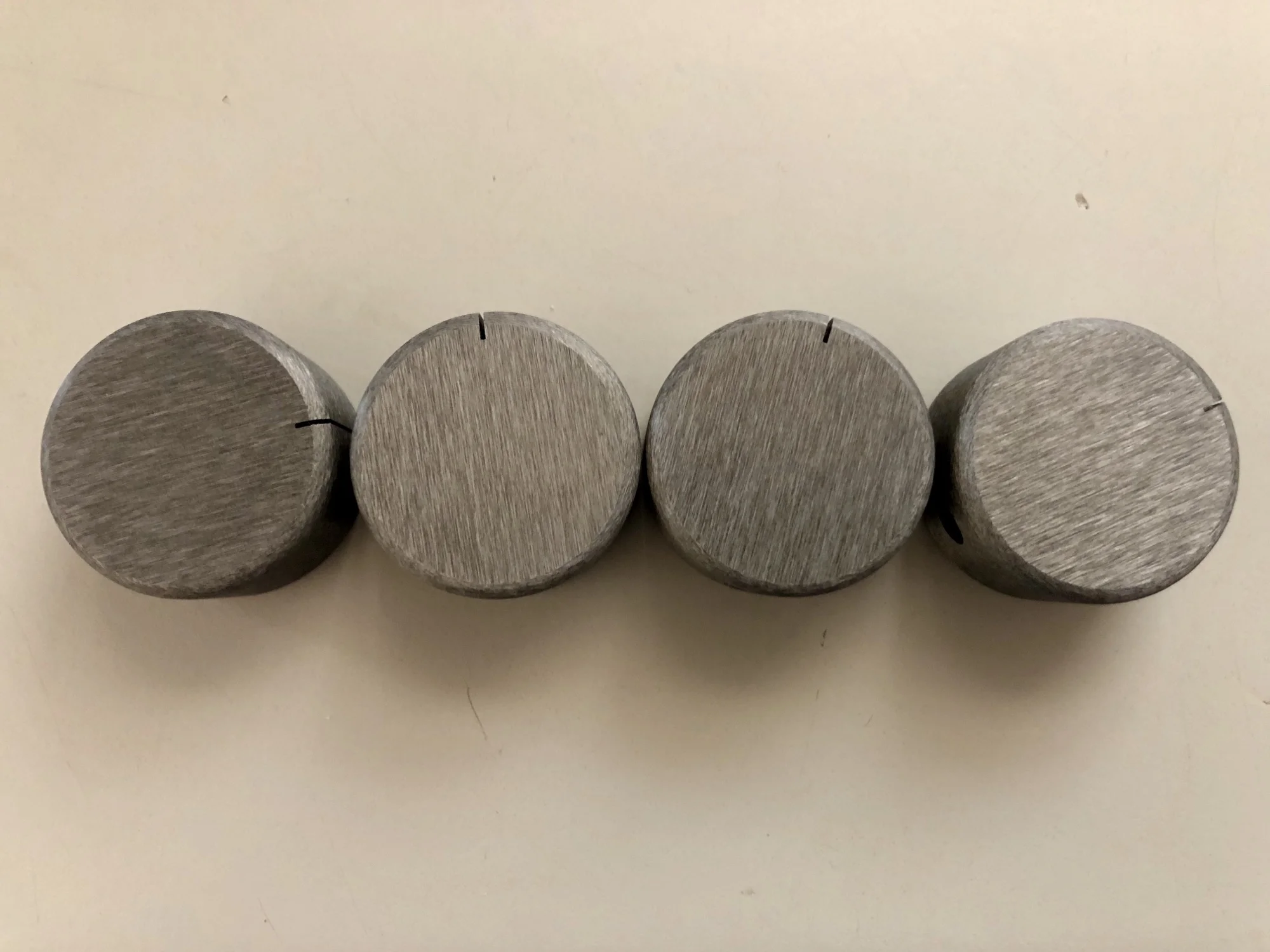

Much better, all these details help when combined. Note Krell’s attention to detail – all the brushing is perfect and runs in-line with the pointer.


This repair and overhaul were critically important for this PAM-7. Without them, I suspect she might have been tossed out, or taken to a butcher.

Folks occasionally struggle with the idea that you need to periodically spend some money to have an expert look at beautiful equipment, like this. It’s fair to say the owner fell into this category. It’s a shame because I suspect he failed to appreciate the beauty and performance of a piece like this, or that it is SO worth spending a little one a Krell PAM-7 to bring it back to full performance.

This isn’t like taking a digital watch to a shopping mall store to get a new battery. It’s much more like taking a Rolex to a good jeweller for service, surely worth doing properly! Remember, even Krell doesn’t make anything like this anymore.

Krell PAM-7
Perhaps about to be sealed for the next 30 years..?!

I think the results speak for themselves. The Krell PAM-7 now sounds better than ever. Her sonic behaviour is perfect and she sounds sublime, especially via that stunning, adjustable phono preamp. If only all hi-fi equipment was this beautifully constructed.

When I explained to her owner that to replace the PAM-7 with a modern ‘equivalent’ with similar sound quality and likely cheaper build one would need to spend well over $5000 AUD, I think it began to sink in.

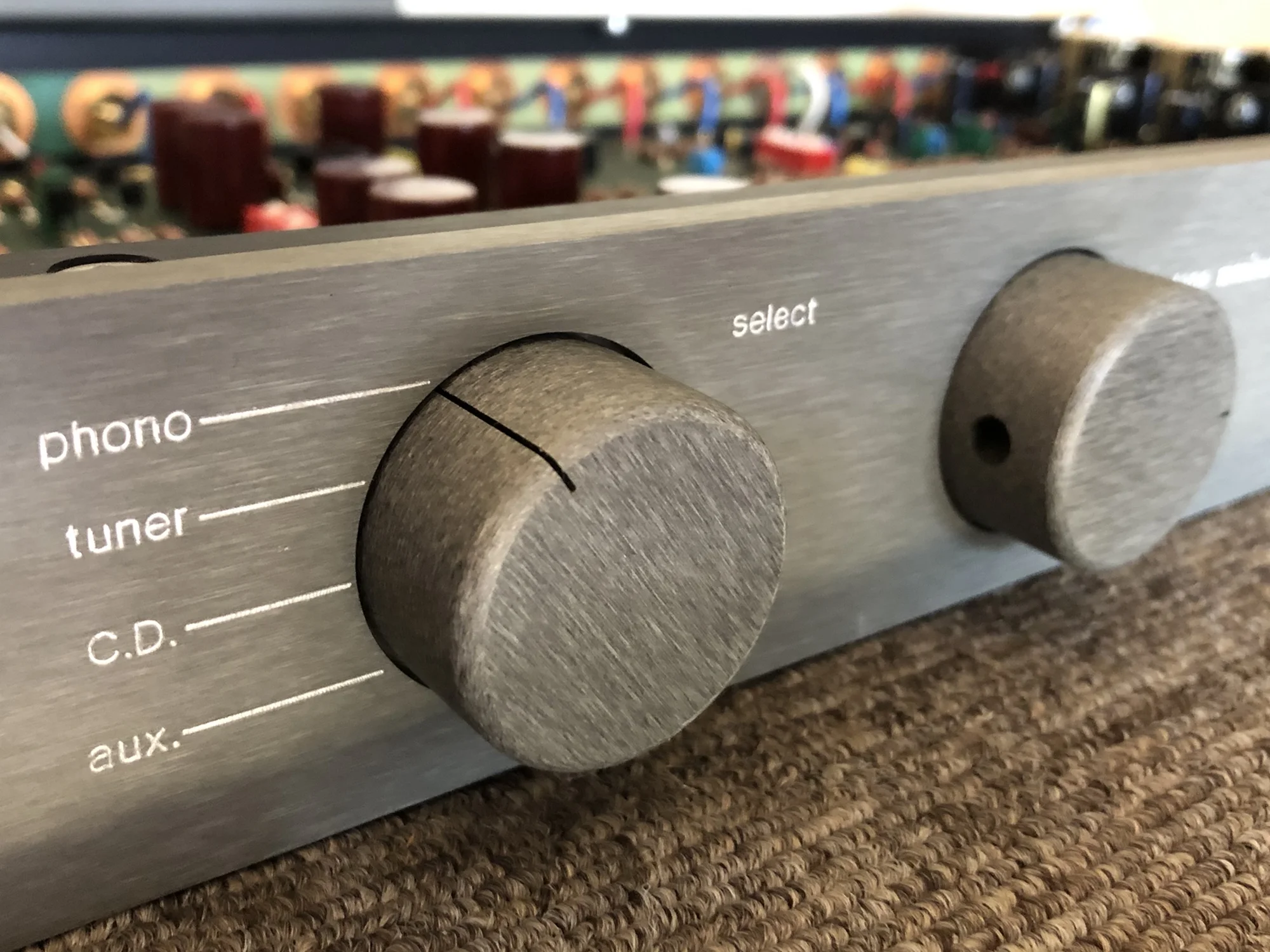

img 3893

For example, you could buy a lovely Bryston BP6 for $5500, but that’s not really in the PAM-7’s league. How about a Musical Fidelity M8 for $6999 – do you imagine that this might sound better? Looking at the M8’s internals, I can guarantee it won’t.

img 3894

So what can we learn from all this? Hopefully, you can see that humans could build this stuff perfectly, decades ago. Newer doesn’t mean better and in fact, it often means the opposite. Most of all, I hope it shows that spending just a few hundred dollars to have your beautiful old equipment professionally serviced, is some of the most sensible money you can spend.

If you would like me to look at your lovely vintage Krell equipment, you need only get in touch!
