JVC JL-F45 Direct-Drive Turntable Service & Repair

I’ve just finished servicing yet another interesting and unusual direct drive deck – a JVC JL-F45 – what a cool machine!

I was surprised by the weight and overall build quality of this lovely direct-drive turntable. The JVC JL-F45 is a fully automatic direct-drive deck. For those who don’t know, fully automatic means that the tonearm is controlled by the turntable, not by you. You should not, as long as the deck is functioning correctly, ever have to touch the tonearm to play a record. You hit play and the deck then lifts, cues and lowers the tonearm automatically for you – nice!

The JL-F45 is very solidly built, weighing in at 11kg. The specifications are courtesy of the Vinyl Engine, and you can visit here to find an owner’s manual too!

JVC JL-F45 Specifications

Type: fully automatic
Drive method: direct drive
Motor: DC servo motor
Wow and flutter: less than 0.03% WRMS
Signal-to-noise ratio: more than 70dB
Pitch control range: more than 2.5%
Platter: 311mm die-cast aluminium alloy
Tonearm: statically balanced, s-shaped, tubular pipe arm with TH balancing system and tracking force dial
Effective length: 220mm
Overhang: 15mm
Tracking force range: 0 to 3g
Cartridge weight: 14 to 25g (inc headshell)
Dimensions: 460 x 368 x 130mm
Weight: 11kg

Repair & Service

This particular JL-F45 needed some work to repair the auto-return mechanism and the owner wanted a much better cartridge fitted. The spindle-mounted drive gear had cracked and was essentially spinning on the spindle. I repaired the gear and mounted it on the spindle using adhesives that won’t allow it to budge.

The owner had also fitted a very cheap and awful-sounding cartridge to the deck and I explained to him that this really needed to be binned, in favour of something much more befitting of a deck of this quality. We settled on an Ortofon 2M Blue, a very nice moving magnet cartridge and one which works perfectly on this tonearm.

See below for some images of the work and further explanations.

JVC JL-F45
Right, so here she is, fully clothed, looking slim and very space-aged. Nice job JVC…
JVC JL-F45
IMG_3209
Nice s-shaped tonearm with anti-skate, always nice to see and usually found on proper decks.
JVC JL-F45

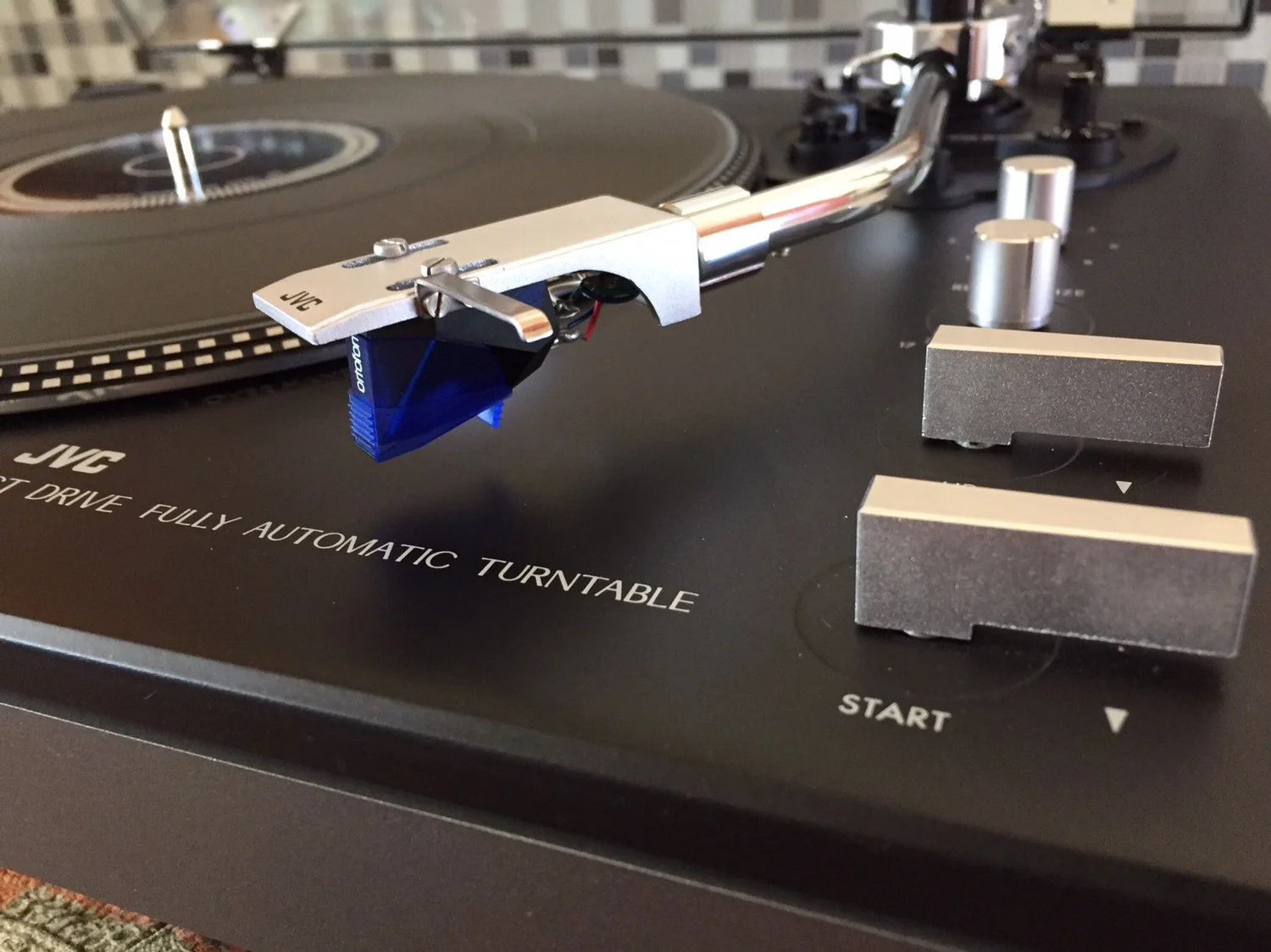

Close-up of the headshell and deck controls. Here you can see the start/stop lever, arm raise/lower lever, records size and repeat knobs.
IMG_3208
IMG_3211
One the other side of the deck you get speed selection and fine adjustment, with a strobe indicator thrown in for good measure. My goodness, the Japanese really knew how to make a proper turntable.
IMG_3212
Just in case the strobe dies, you can fall back on an incandescent light driven by mains frequency AC, shining onto this strobe pattern in the centre of the platter.
JVC JL-F45
Remove the platter and we can see why the owner reported the deck to be not working properly…
IMG_3202
Do you see that crack in this drive gear? That was why this deck was broken. It needs to be glued back together and re-installed on the spindle.
JVC JL-F45
Here she is ready for testing after a clean, lube and fixing the drive gear…
IMG_3206
Cleaned, lubed, fixed and ready for the owner, except that he decided he wanted me to fit an Ortofon 2M Blue. I installed that after this image was taken!
JVC JL-F45
