Marantz PM-8 – Dead Filter Capacitors

Just a short post while I am repairing/restoring an absolutely massive Marantz PM-8 integrated amplifier.

These main filter capacitors in the Marantz PM-8 sit in the power supply and do all the ‘heavy lifting’ required to make the power supply smooth and quiet. All four 15,000uF capacitors have literally spewed their contents all over the insides of this beautiful amplifier.

Repairing the Marantz PM-8 involves removing these dead capacitors, cleaning the chassis and installing new parts. I’m using higher capacity, higher spec Illinois Capacitor (IC) parts in place of these original Matsushita caps. It’s astonishing that this amplifier was even working with this level of damage to the power supply!

I wrote another piece on dead caps in a lovely Pioneer SX-1250 and on the complete overhaul of this SX-1250.

Marantz PM-8 Filter Capacitor Replacement

Marantz PM-8

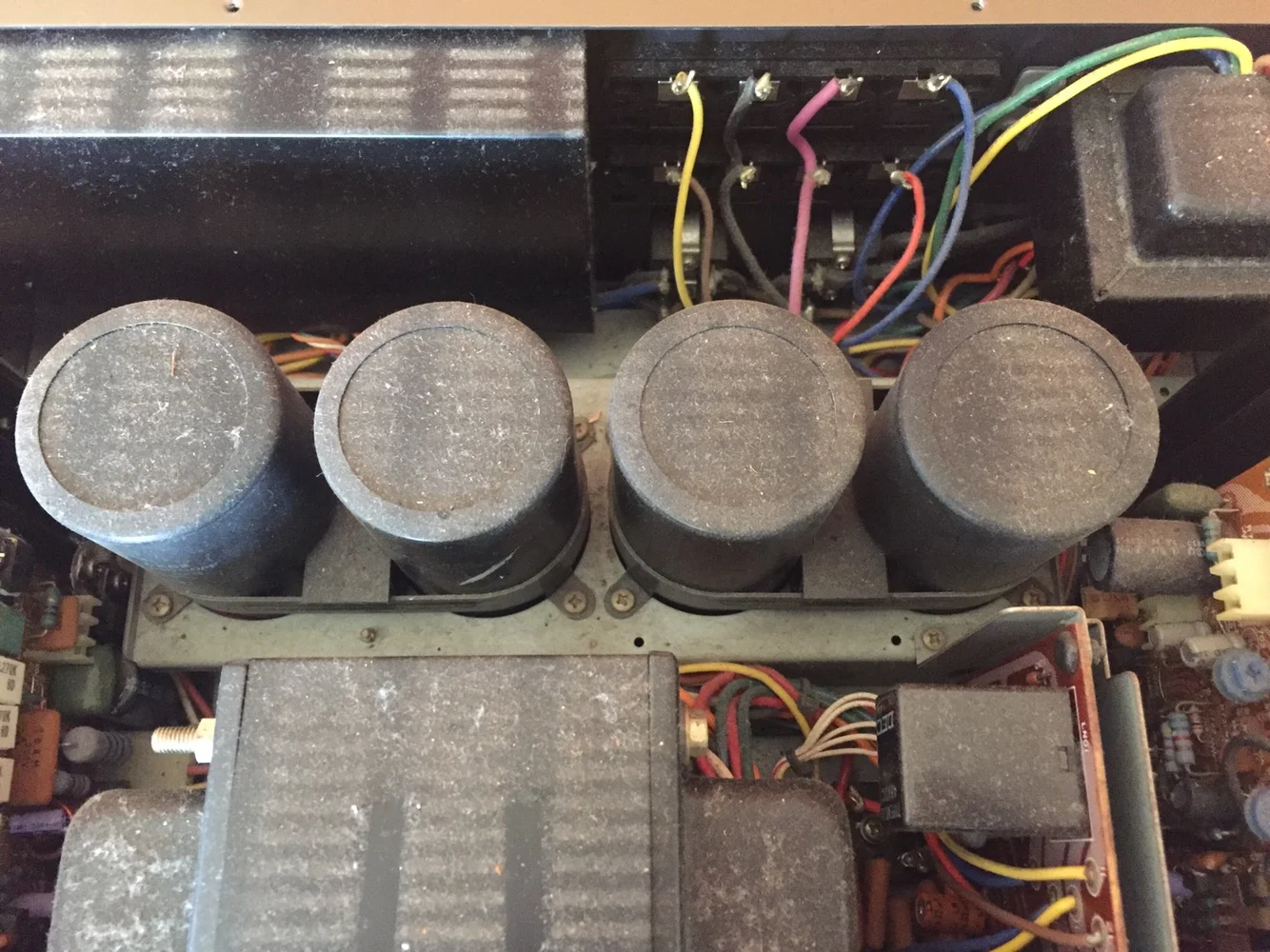

At first glance, I could see lots of dust, but not much else
img 6228 e1492336022894

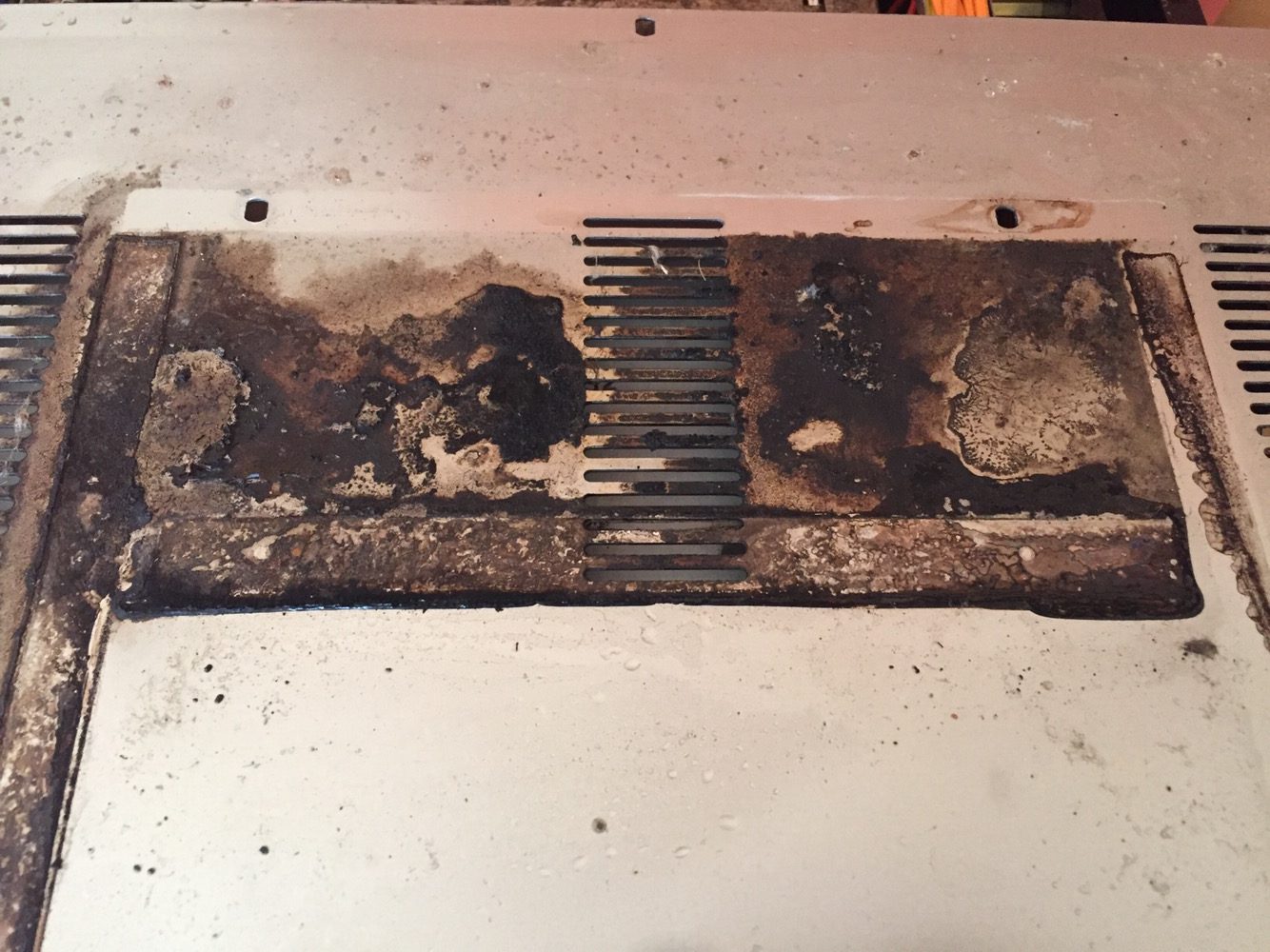

After thoroughly washing the whole Marantz PM-8 chassis, this was revealed – the corrosive mess on the bottom panel, underneath these capacitors.
Marantz PM-8

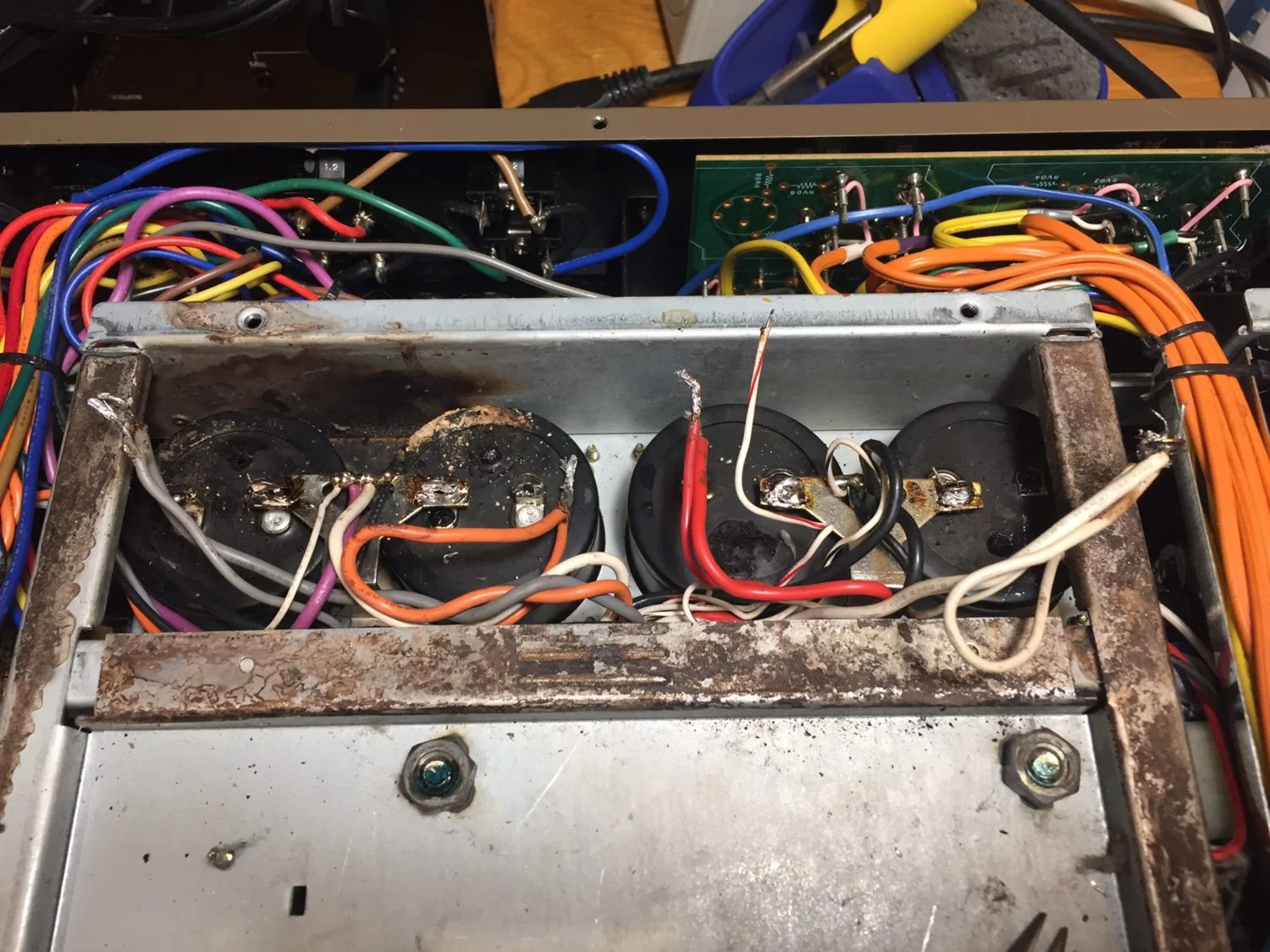

Obviously, they had to come out and be replaced…
img 6266

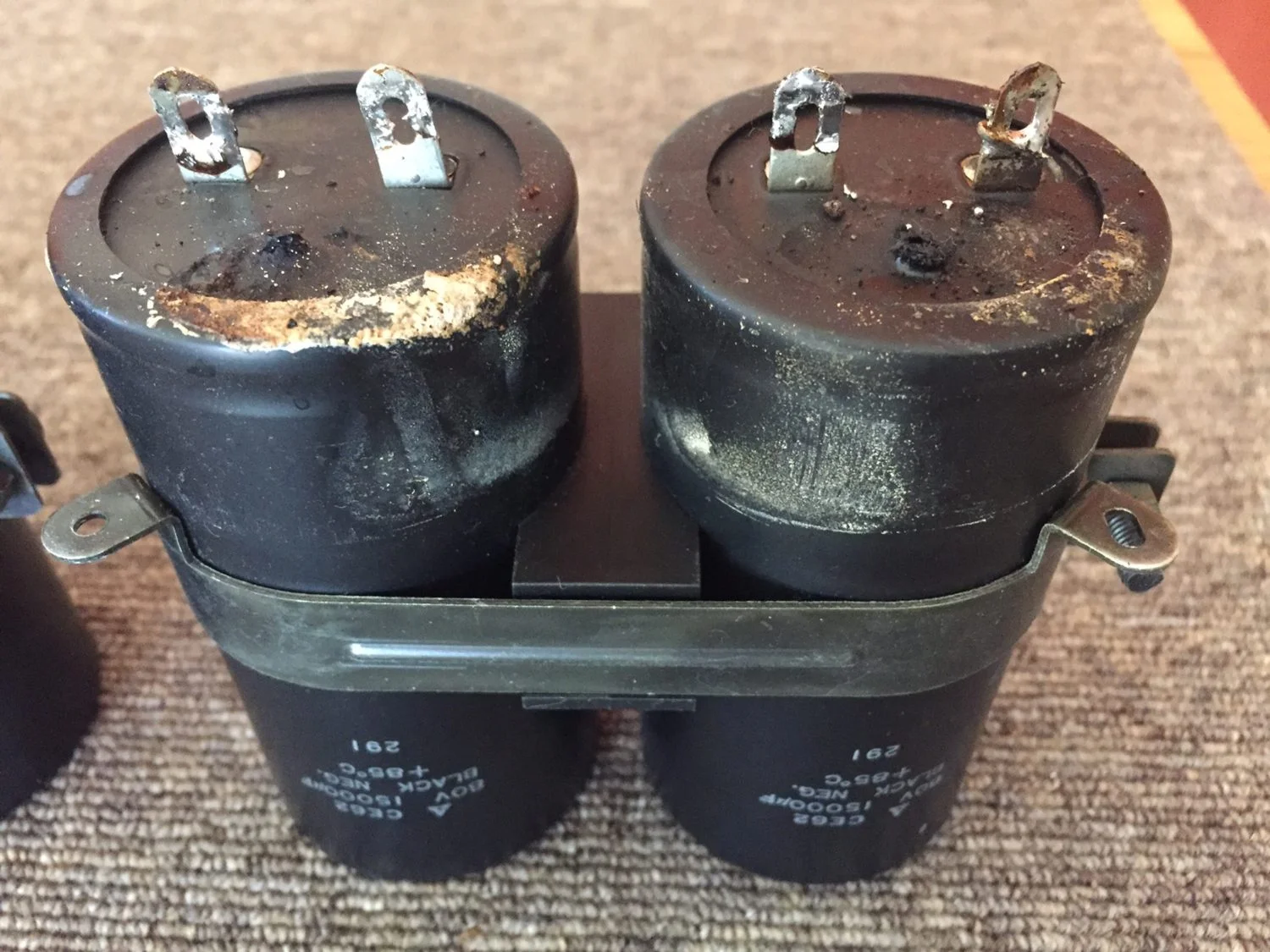

So here are the original Marantz PM-8 filter caps. Note the electrolyte residue around each vent hole, a sure sign that they all must be changed. This venting happens when the internal pressure builds up, due to resistive heating. The reason for the resistive heating is the deterioration of the electrolyte over time. The cap starts to flow DC, which it’s not meant to do. As current flows through the capacitor, it heats, and this is the result.
img 6267

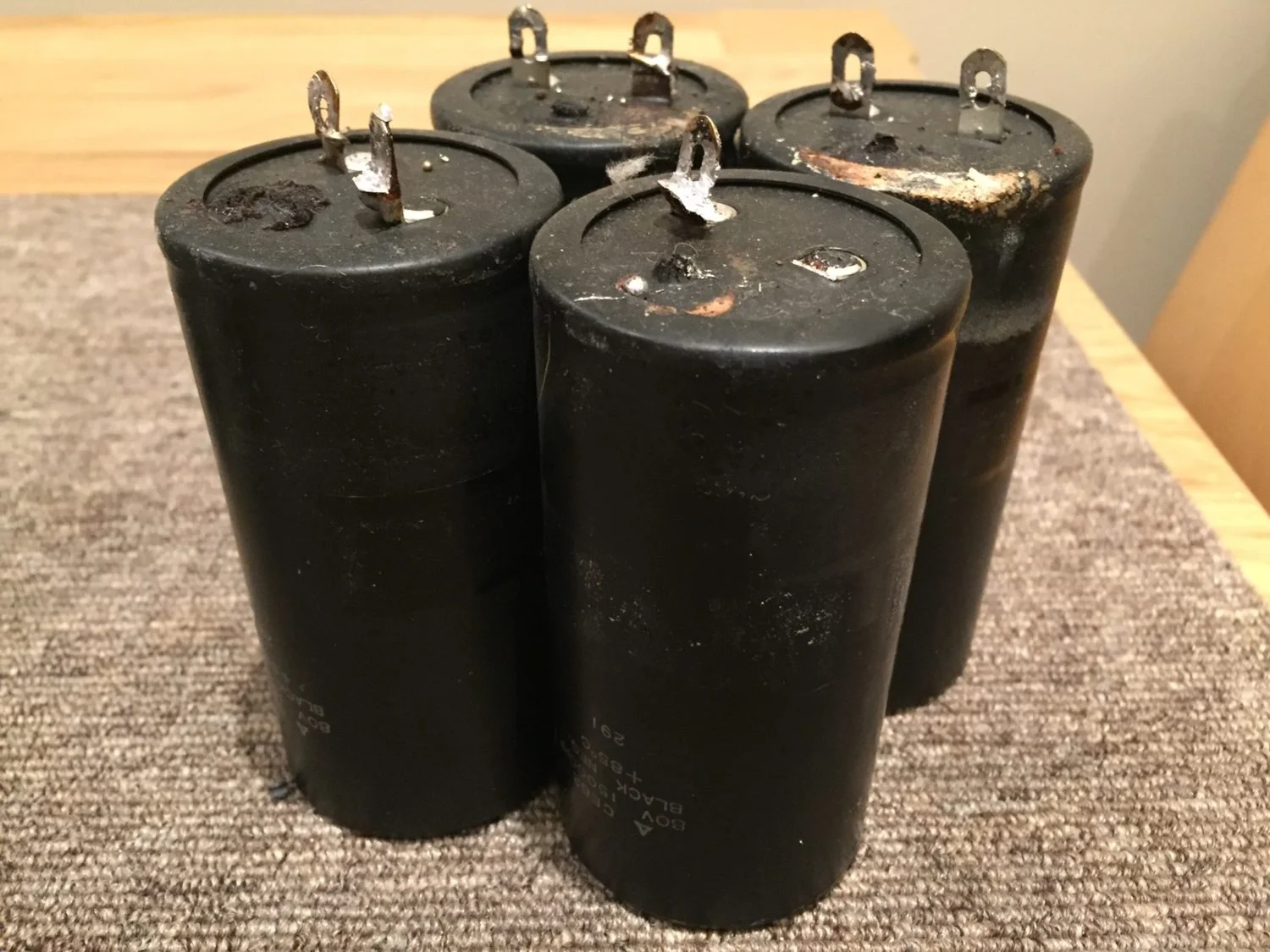

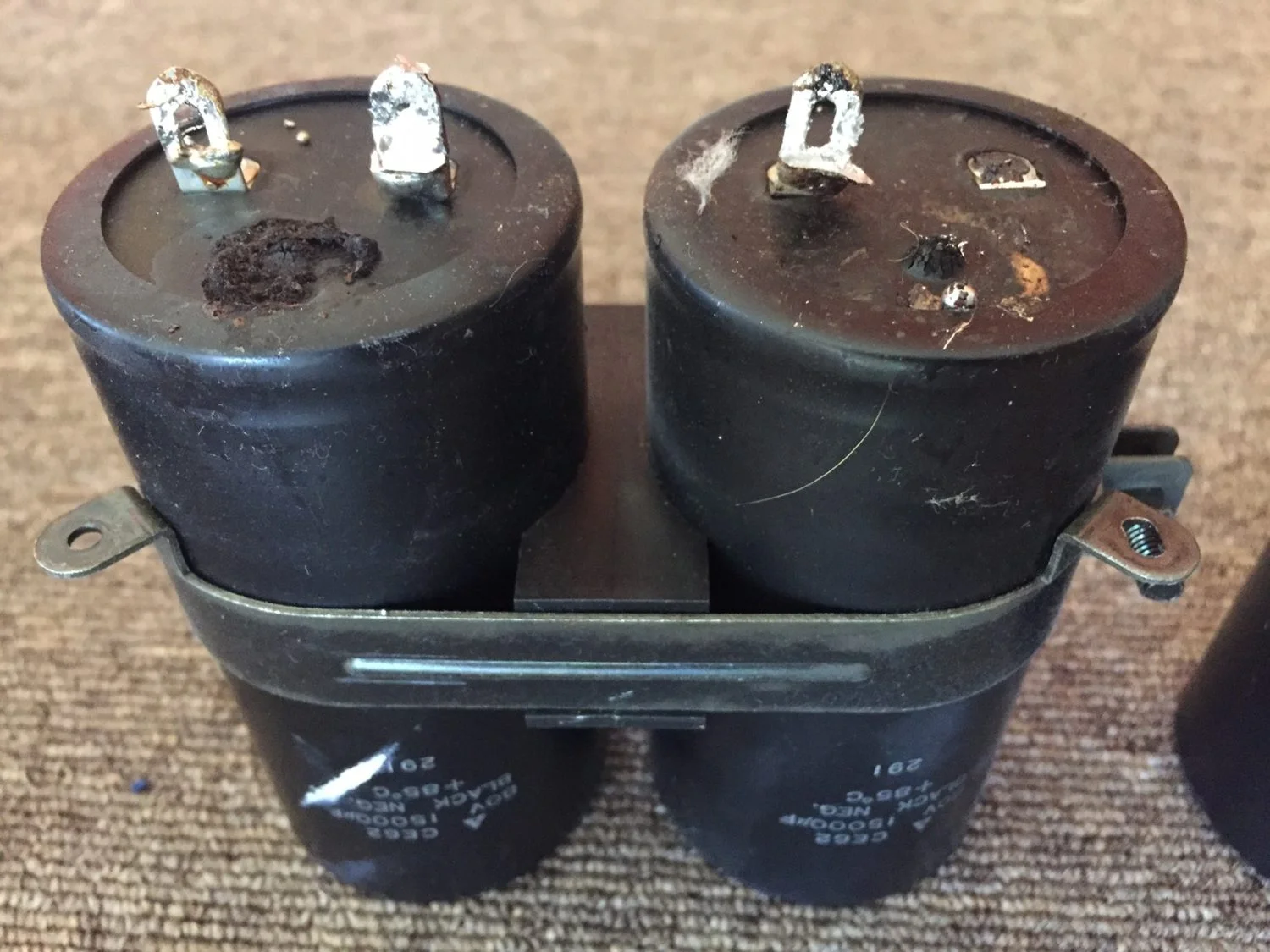

All four are dead, completely, totally dead. No option here but to throw them away. New parts are on their way!
img 6499

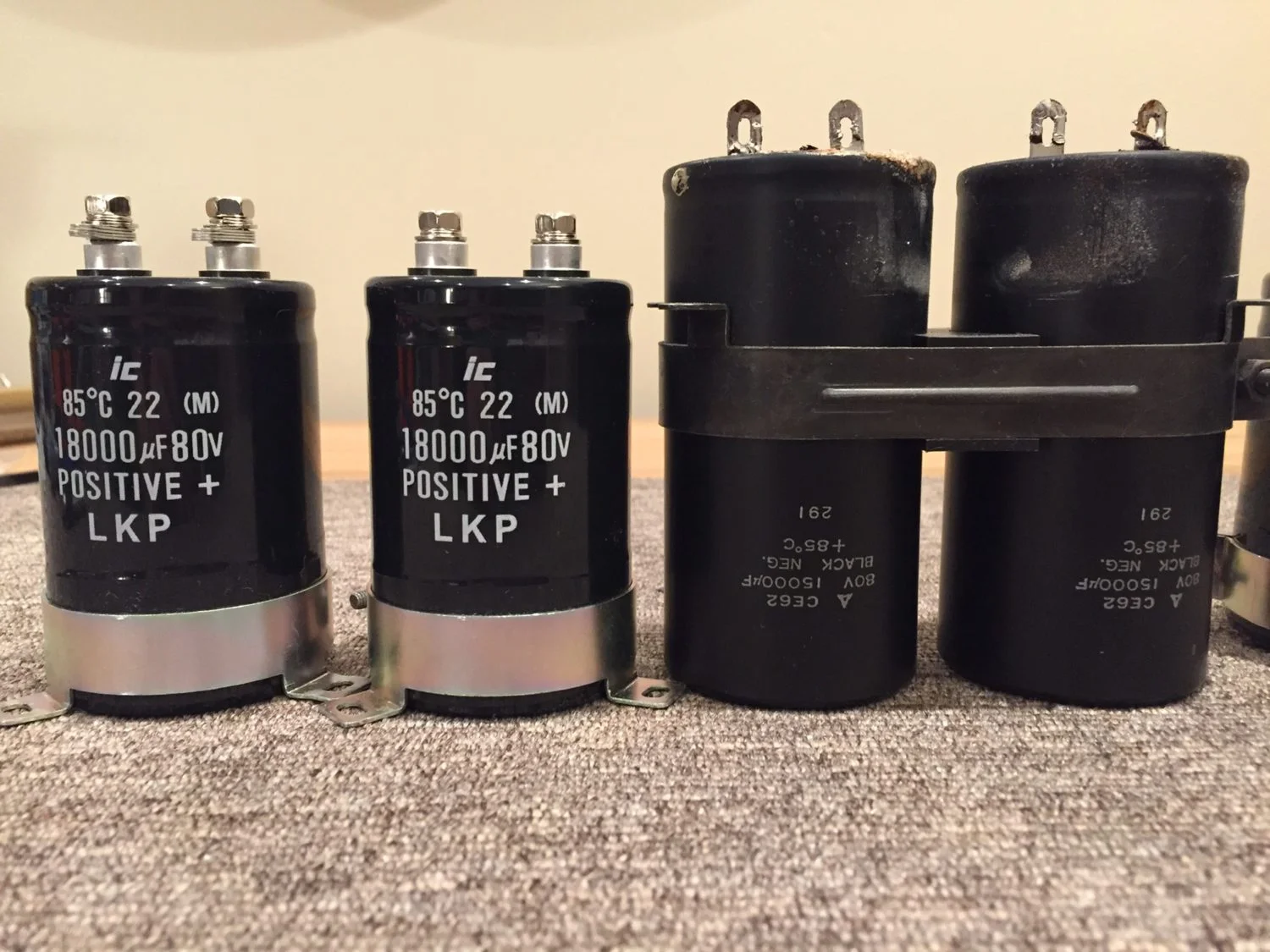

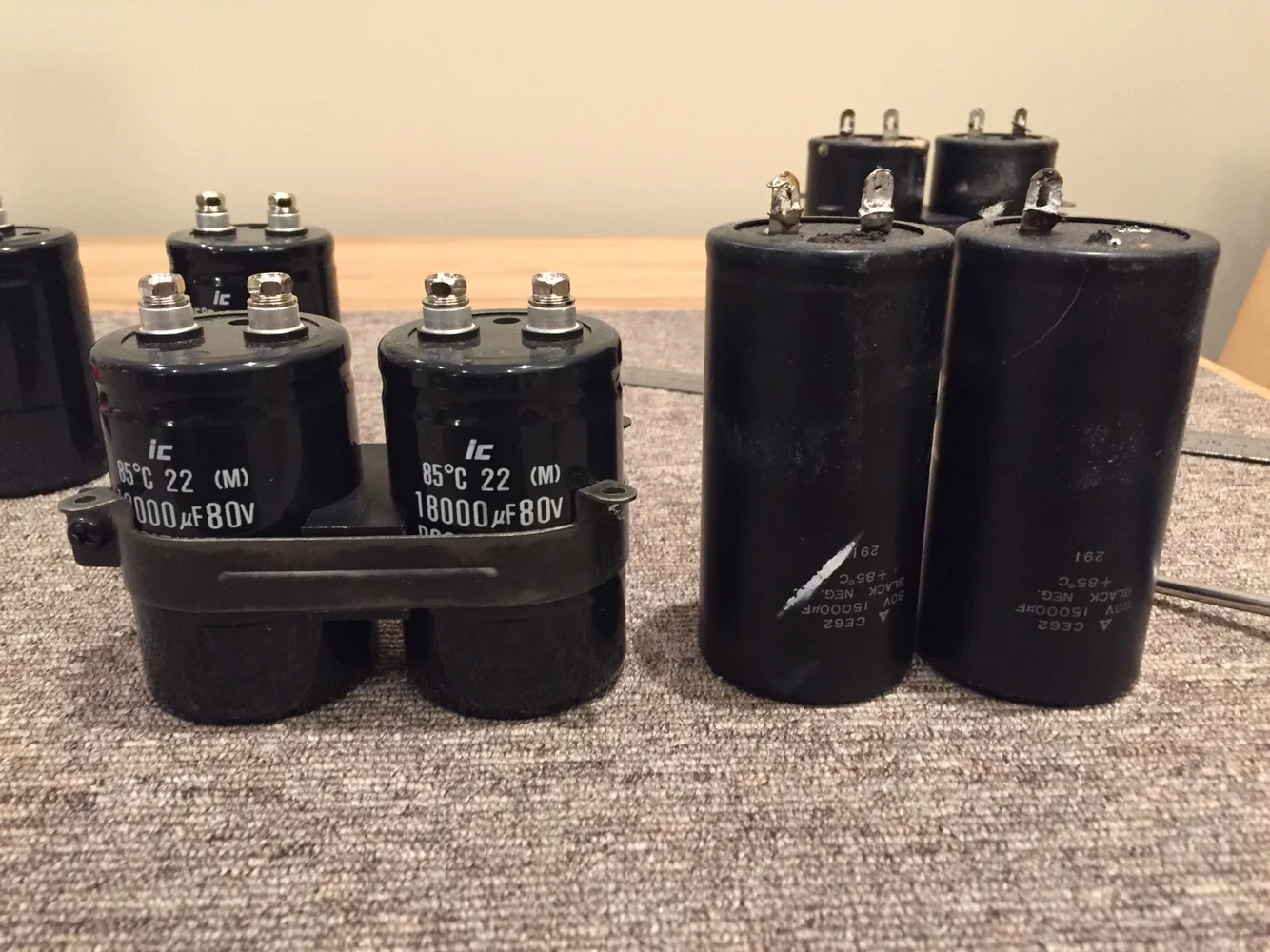

New parts next to old. Here you’ll note that I’ve specified uprated replacement parts, but they are still smaller than the originals.
img 6500

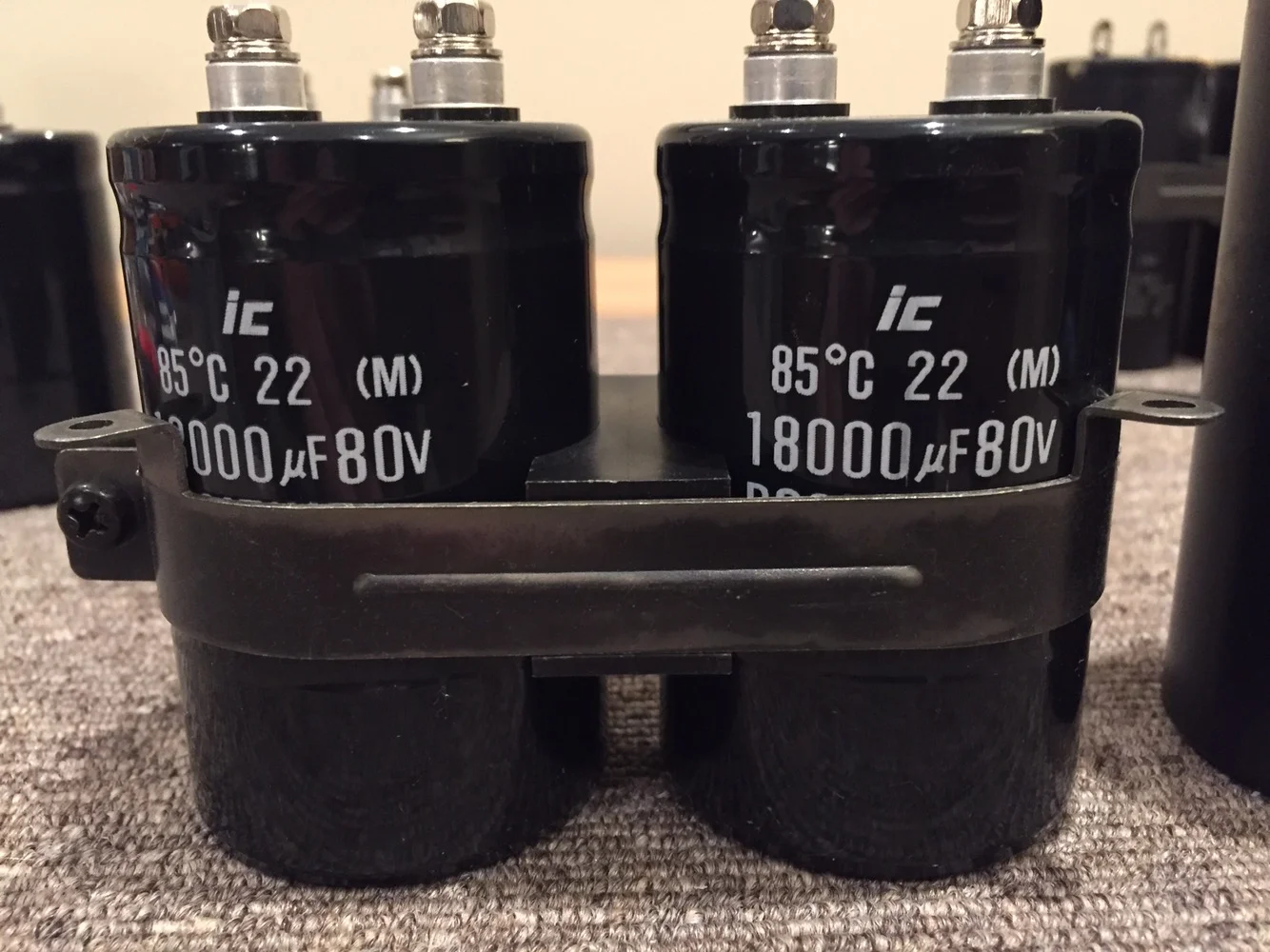

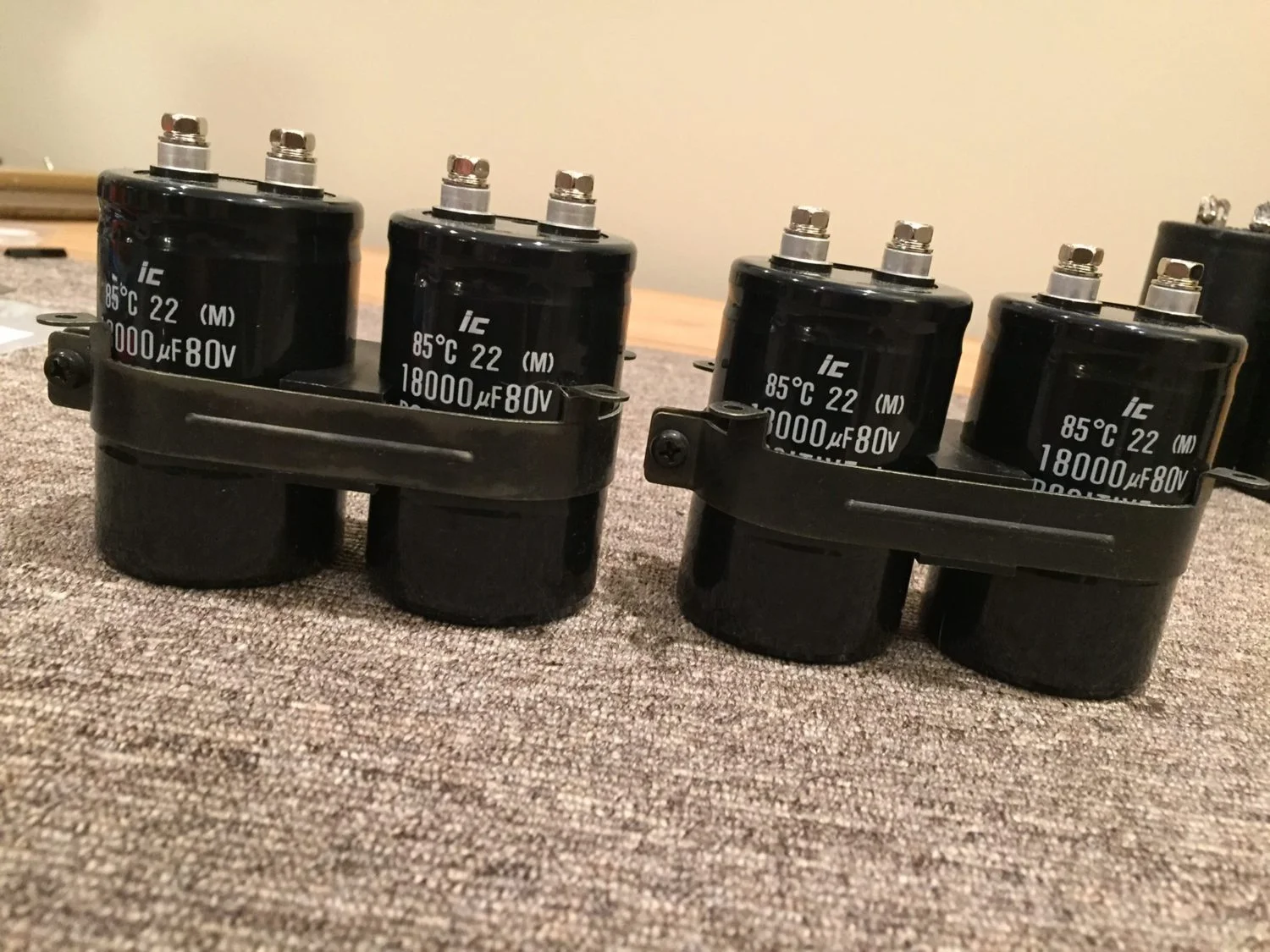

Very high-quality parts from Illinois Capacitor, these have proper hex nut fasteners to really provide low impedance connections.
img 6501

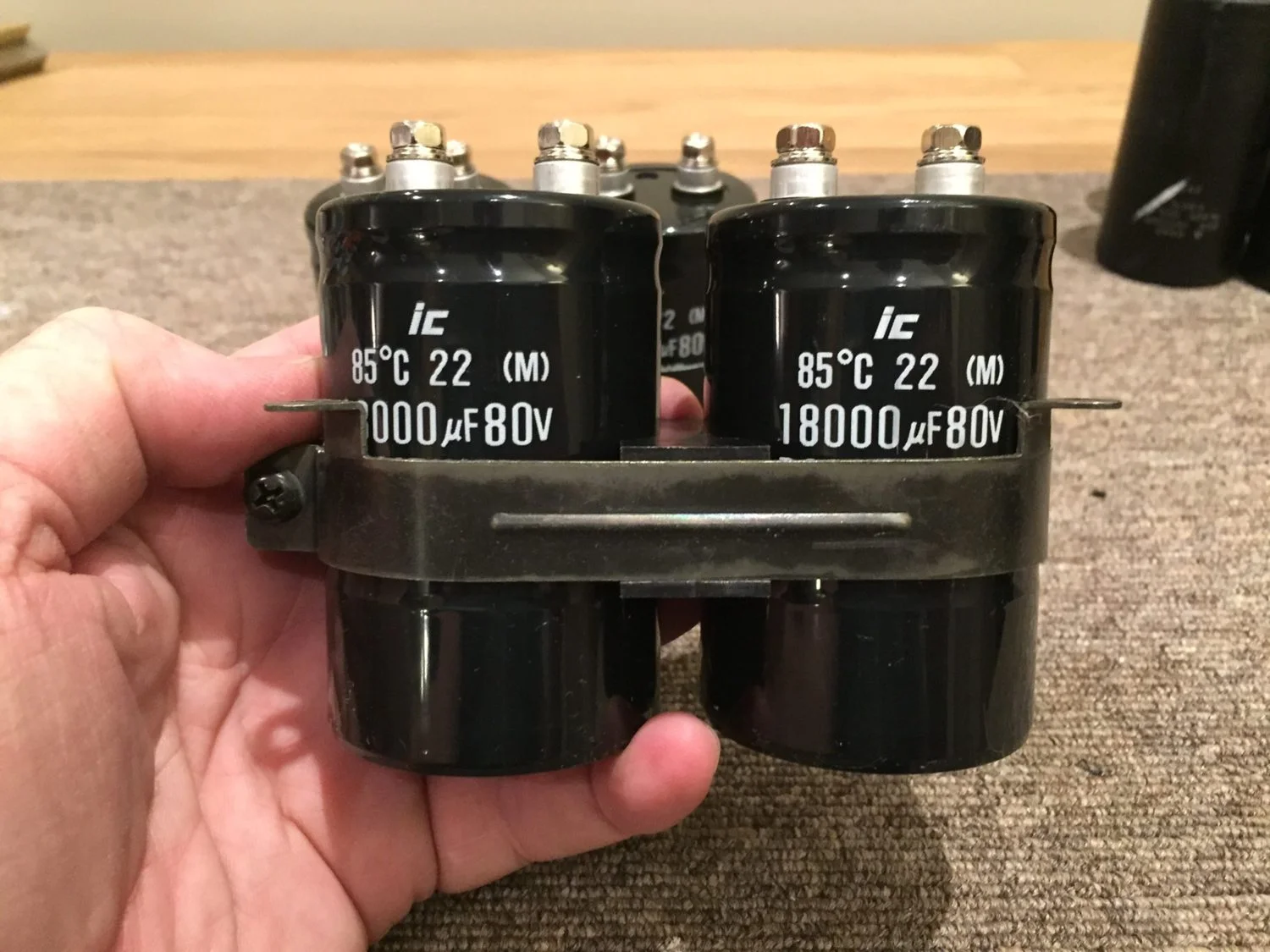

New capacitors in the original brackets. I carefully selected the new parts to ensure they would fit, and look factory.
img 6502
Perfect fit and the look is very much similar to the factory parts. This is an excellent improvement on what was in there and will sound far better than the original parts.

img 6496

img 6503
Time for the bin!
