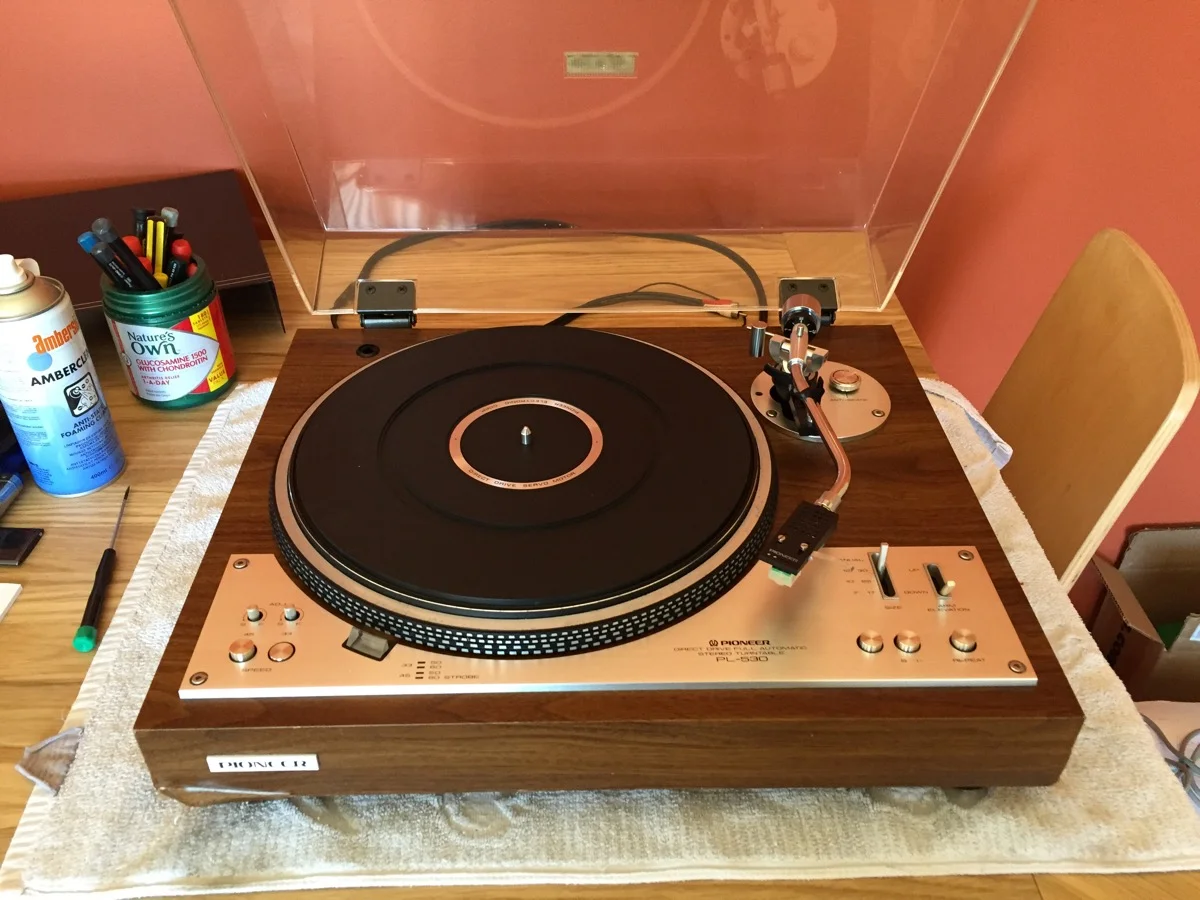

Pioneer PL-530 Direct-Drive Turntable Service & Repair

I recently overhauled this lovely old Pioneer PL-530 direct-drive turntable. Let’s take a closer look.

This model is not especially common, but it has a great vintage look and some great features that I think make it one to keep an eye out for. Pioneer made some great belt-drive and direct-drive decks and many of them have a highly sought-after ‘vintage look’ – like the PL-530.

Problems

This particular Pioneer PL-530 needed attention in a few areas though, it wasn’t very happy when it came to me. Something was not quite right with the power supply and this is a common problem. The tonearm and cartridge weren’t set up correctly, another very common problem. The deck also needed comprehensive cleaning and lubrication.

Part of the arm control mechanism was jammed solid. This occurs due to the volatile elements of the lubricants originally used vapourising, leaving behind a sticky grease-like solid. Rectification of this issue restored full automatic arm functionality.

Once all this work was attended to, we had a very nice and perfectly functional vintage direct-drive deck! You can read more about the Pioneer PL-530 at one of my favourite websites – Vinyl Engine.

Specifications

Courtesy of Vinyl Engine

Type: direct drive
Motor: brushless DC servo Hall motor
Platter: 330mm aluminium alloy diecast
Speeds: 33 and 45rpm
Speed control range: +-2%
Wow and flutter: 0.03%
Rumble: 70dB
Tonearm: static-balanced type, s-shaped pipe arm
Effective length: 221mm
Overhang: 15.5mm
Cartridge weight range: 4 to 14.5g
Dimensions: 480 x 390 x 170mm
Weight: 10kg

IMG 2521

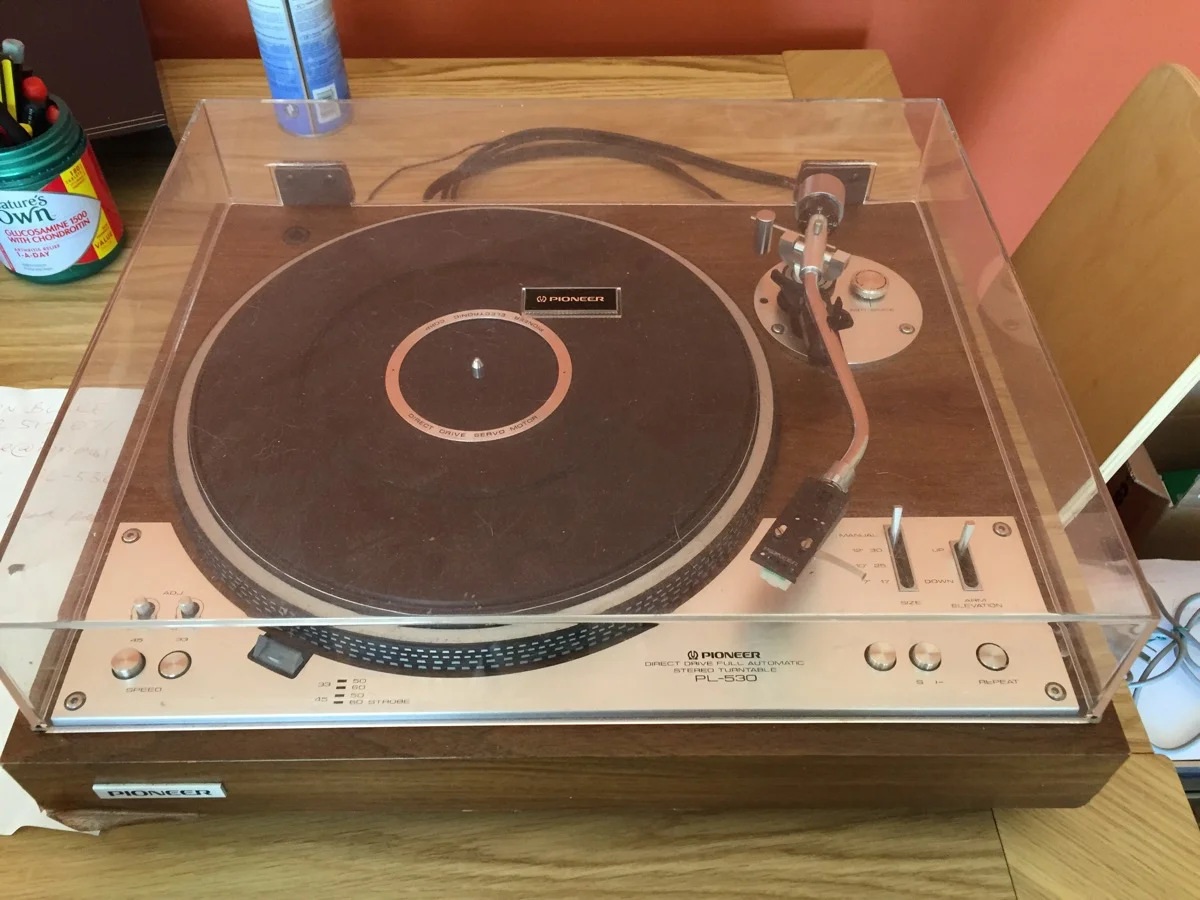

The PL-530 is an elegant looking deck finished in brushed aluminium and wood-grain veneer
IMG 2522

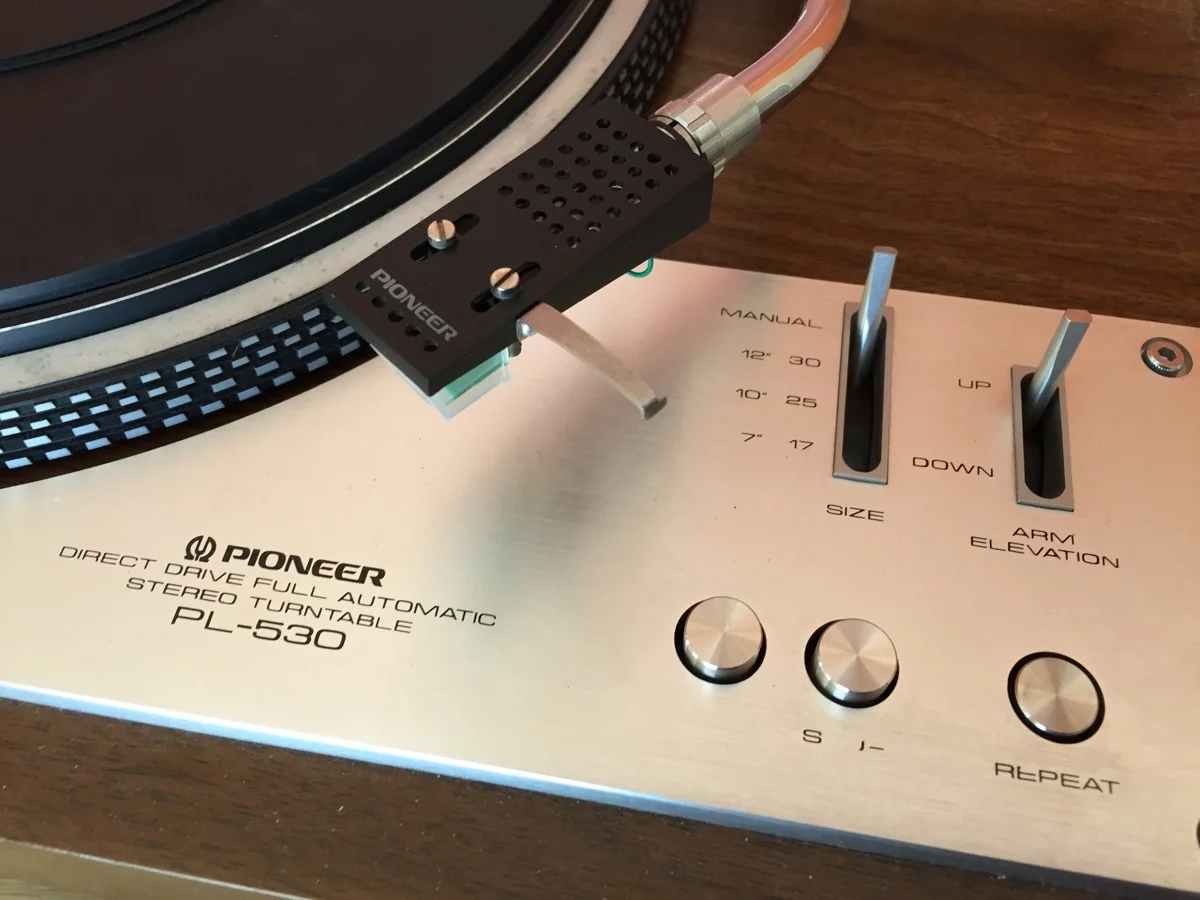

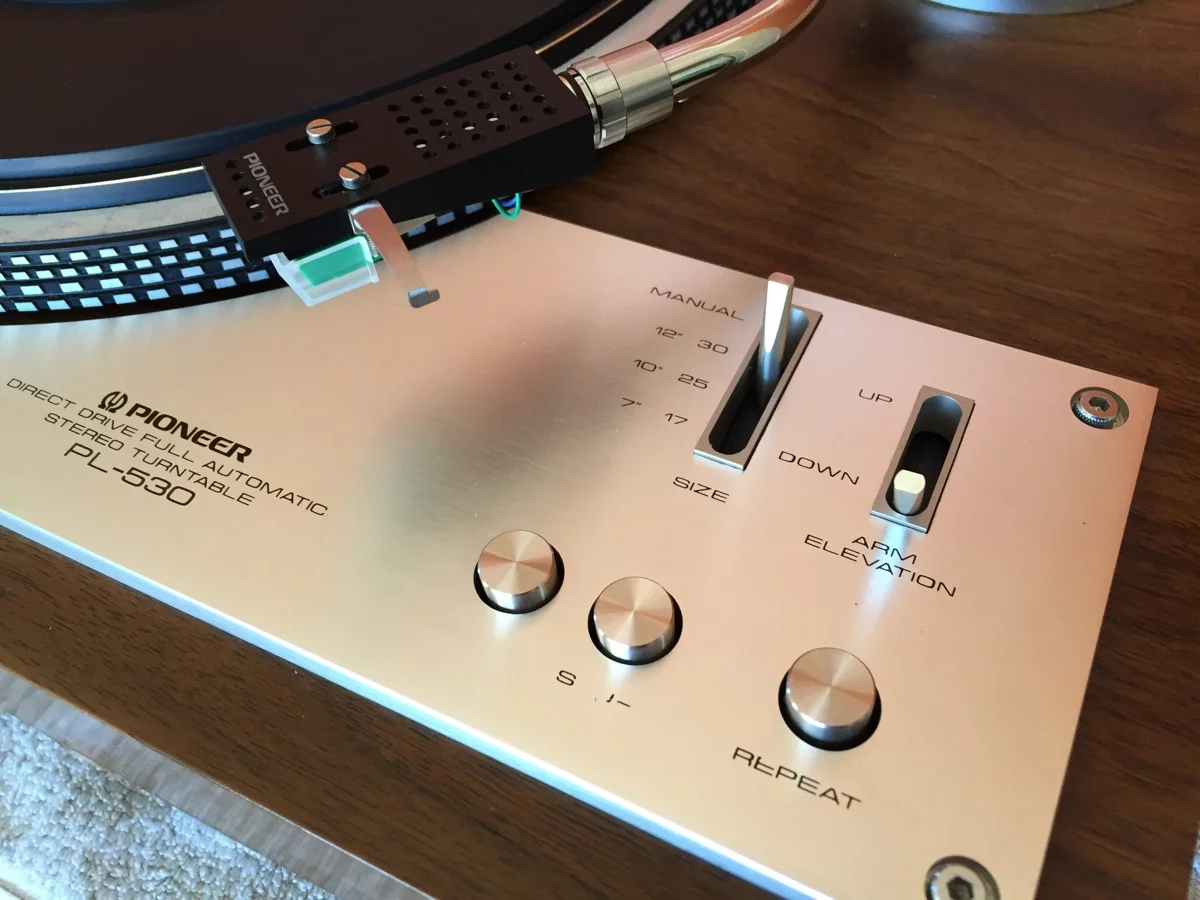

The PL-530 is fully automatic and has controls for selecting disc size and play mode. The tonearm is a quality design, with adjustable anti-skate control and a lateral balance weight, nice touches and typical of great Japanese engineering from the time.
IMG 2524
IMG 2525
IMG 2523
IMG 2555

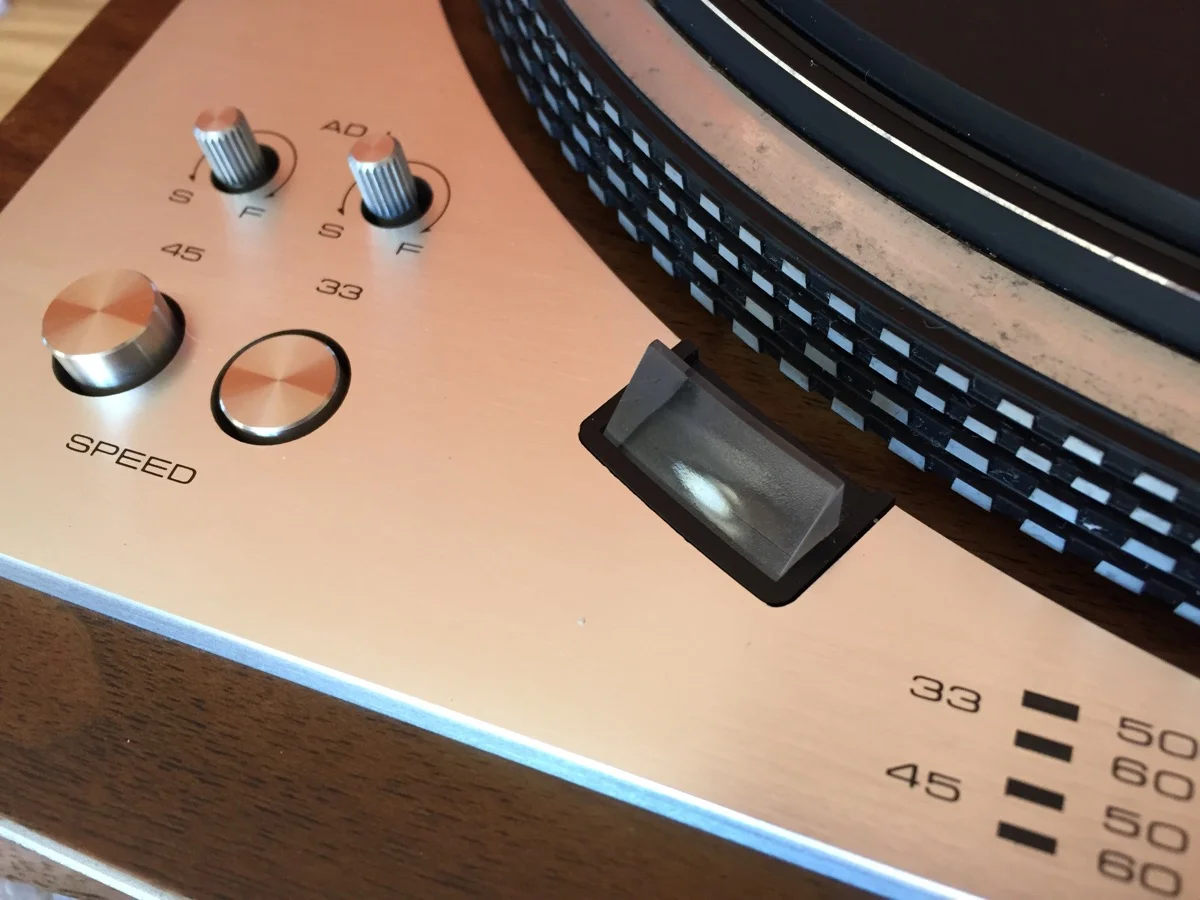

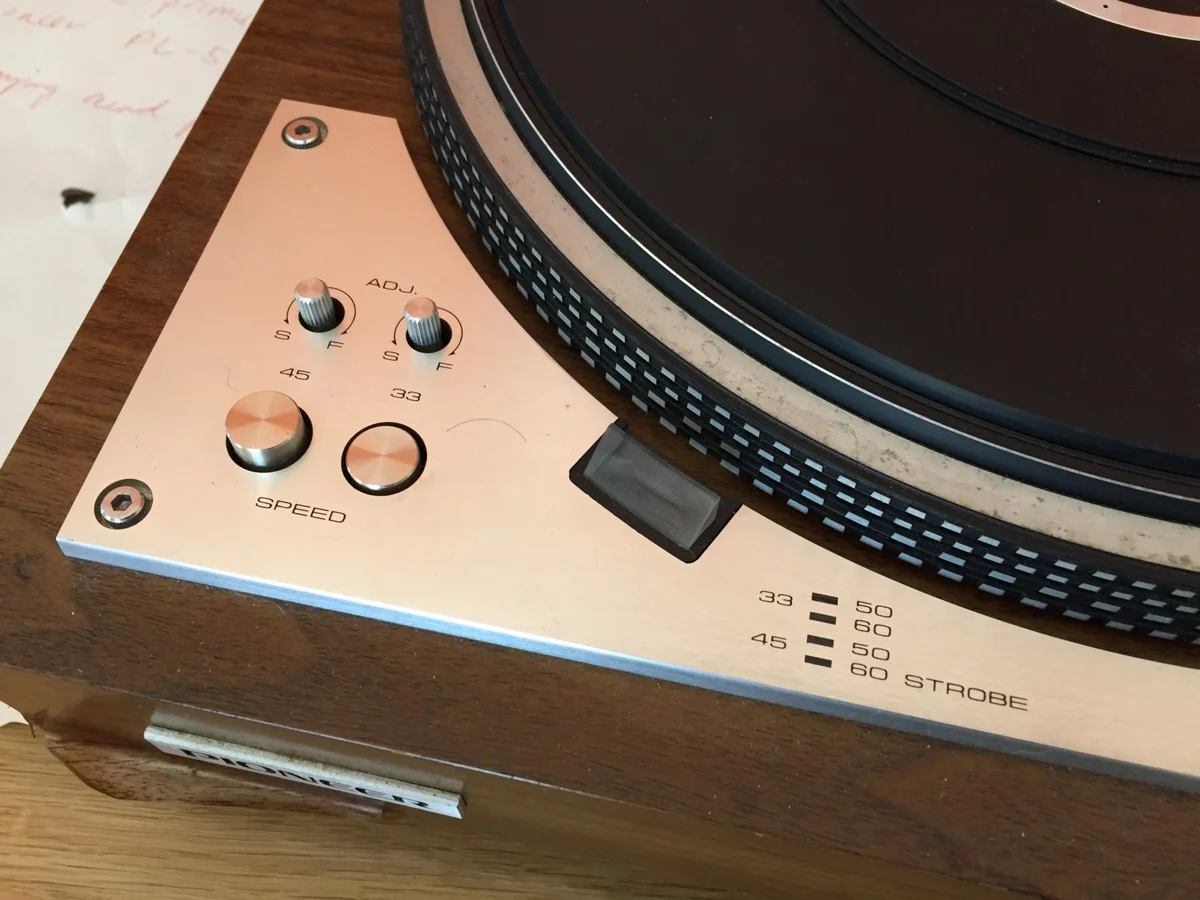

Close-up of speed controls and stroboscope
IMG 2526

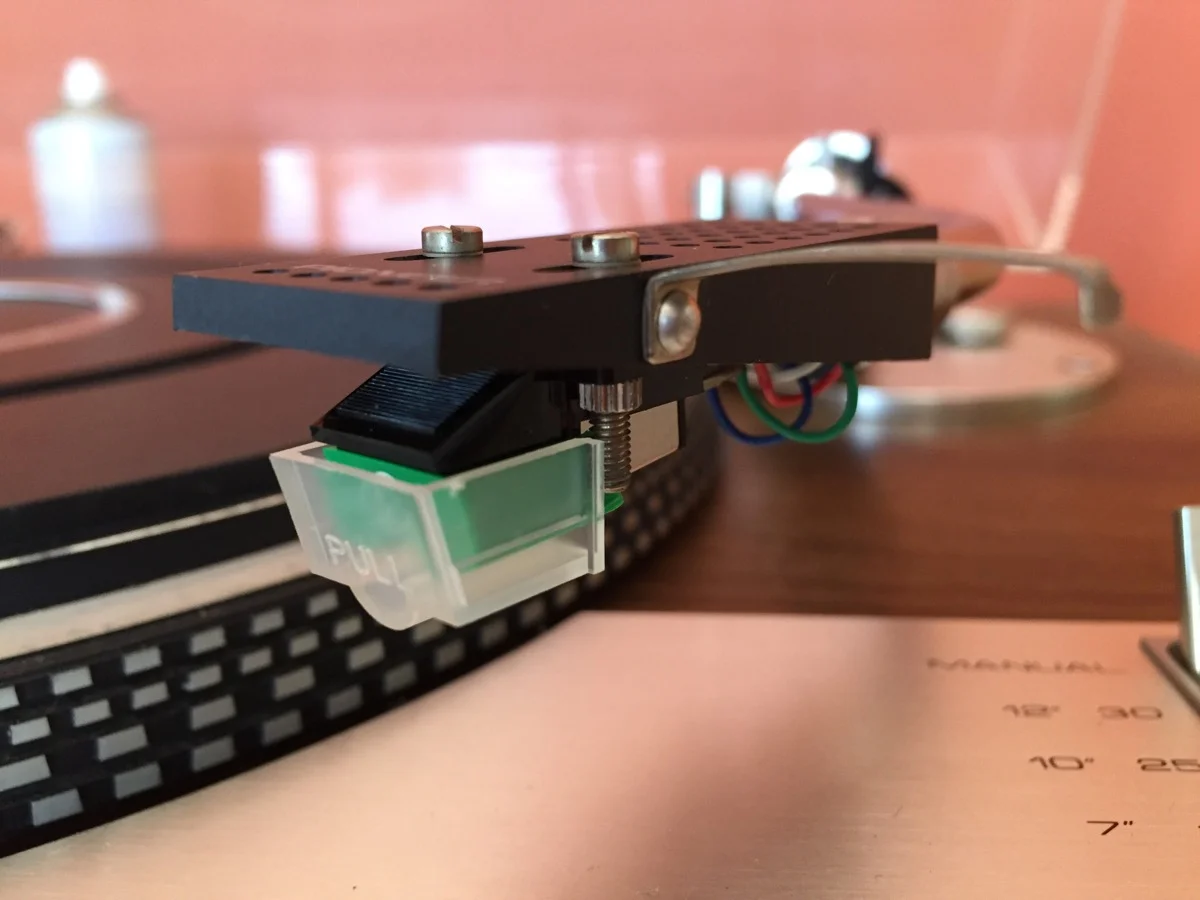

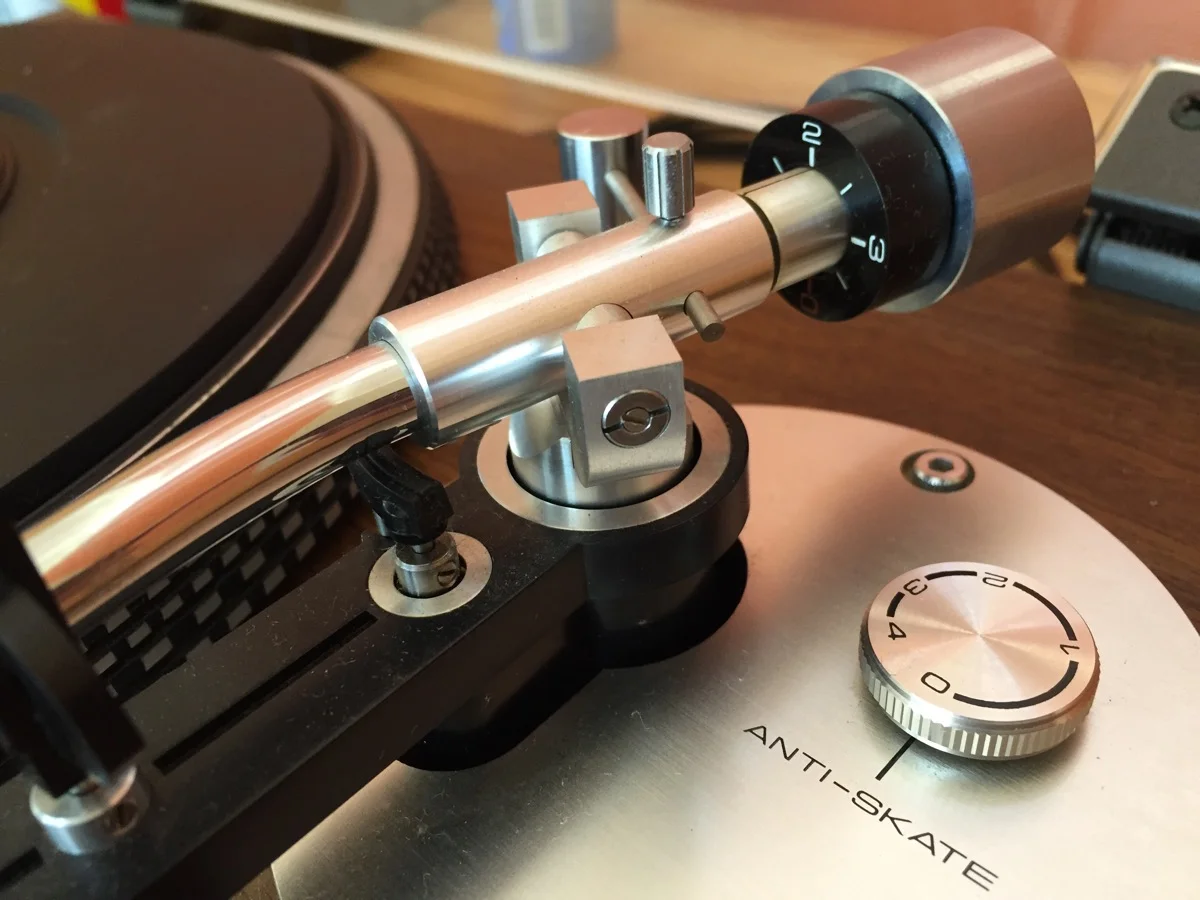

Nice detail of the surprisingly good tonearm. Note the adjustable lateral outrigger weight and anti-skate.
IMG 2527

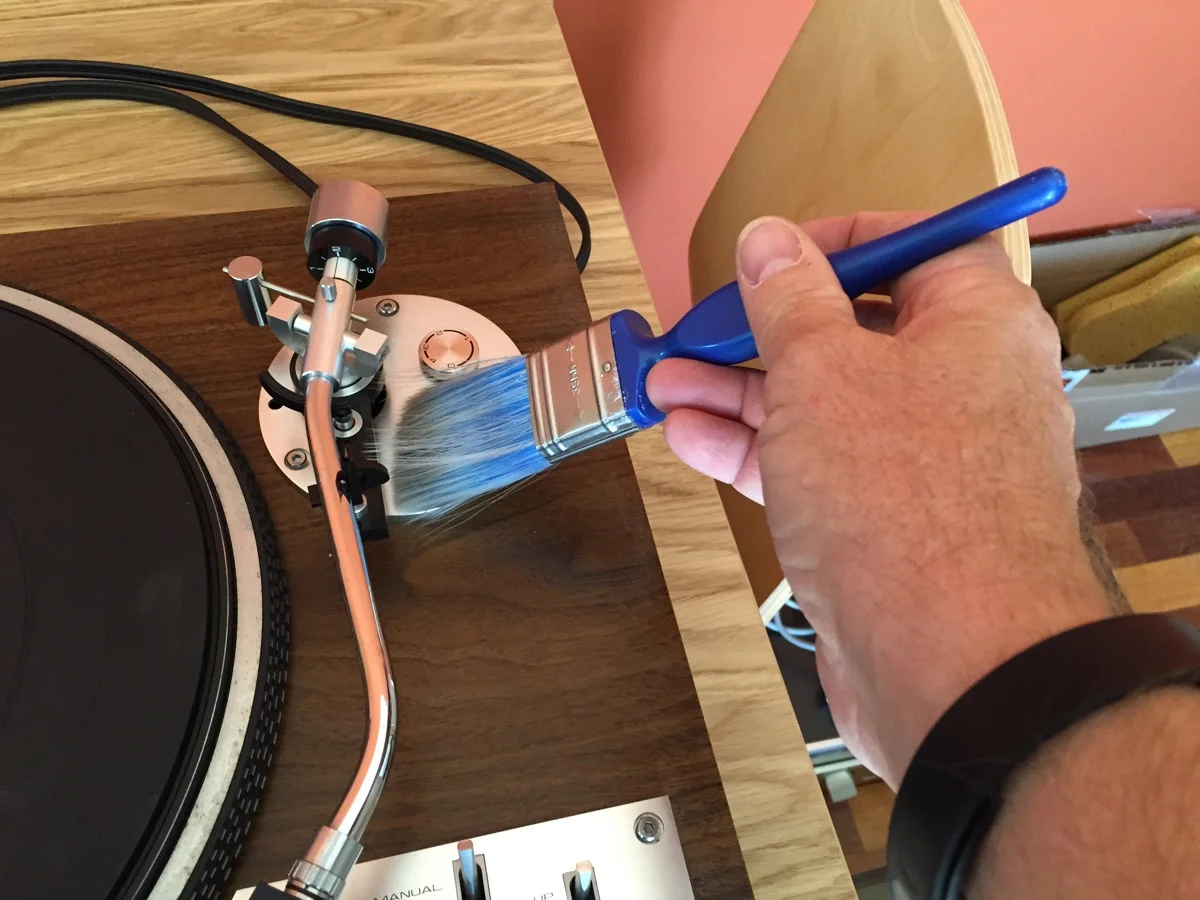

Cleaning always starts with a good brush…
IMG 2535
IMG 2536

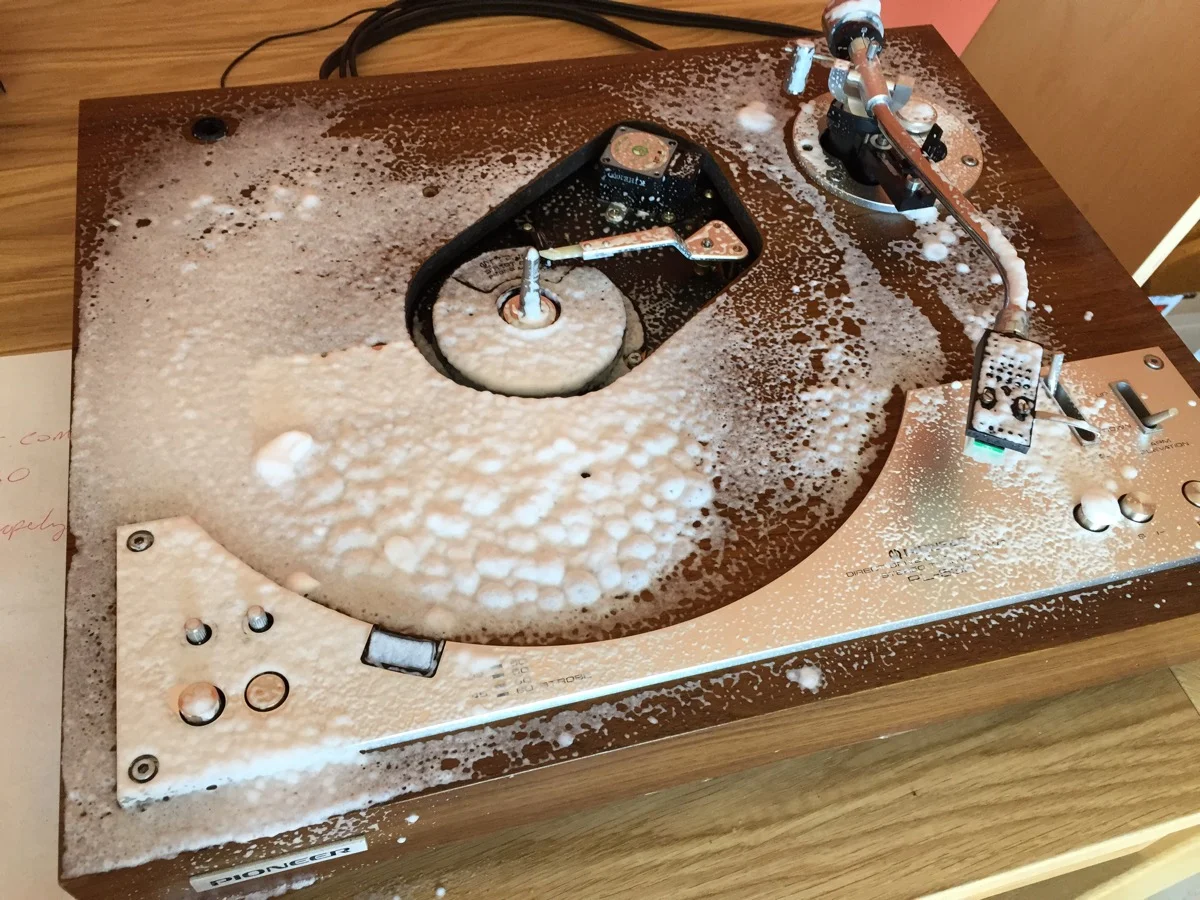

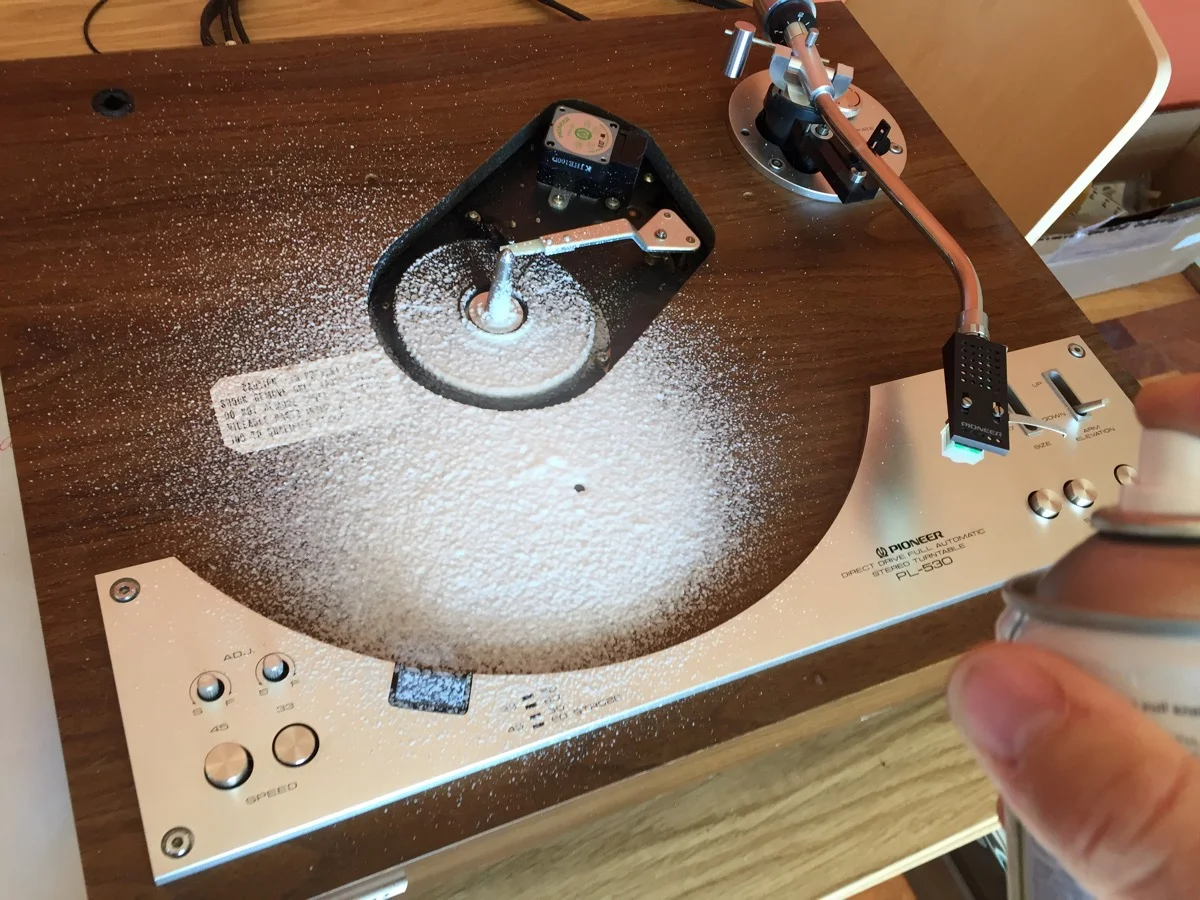

Followed by a cleaning with a quality cleaning agent. Foaming cleansers work very well for jobs like this, I use a specific premium formulation, but there are many variants, many of which will do a good job.
Pioneer PL-530
IMG 2538
… and then a good wipe down with a lint-free cloth or quality paper towel
IMG 2539

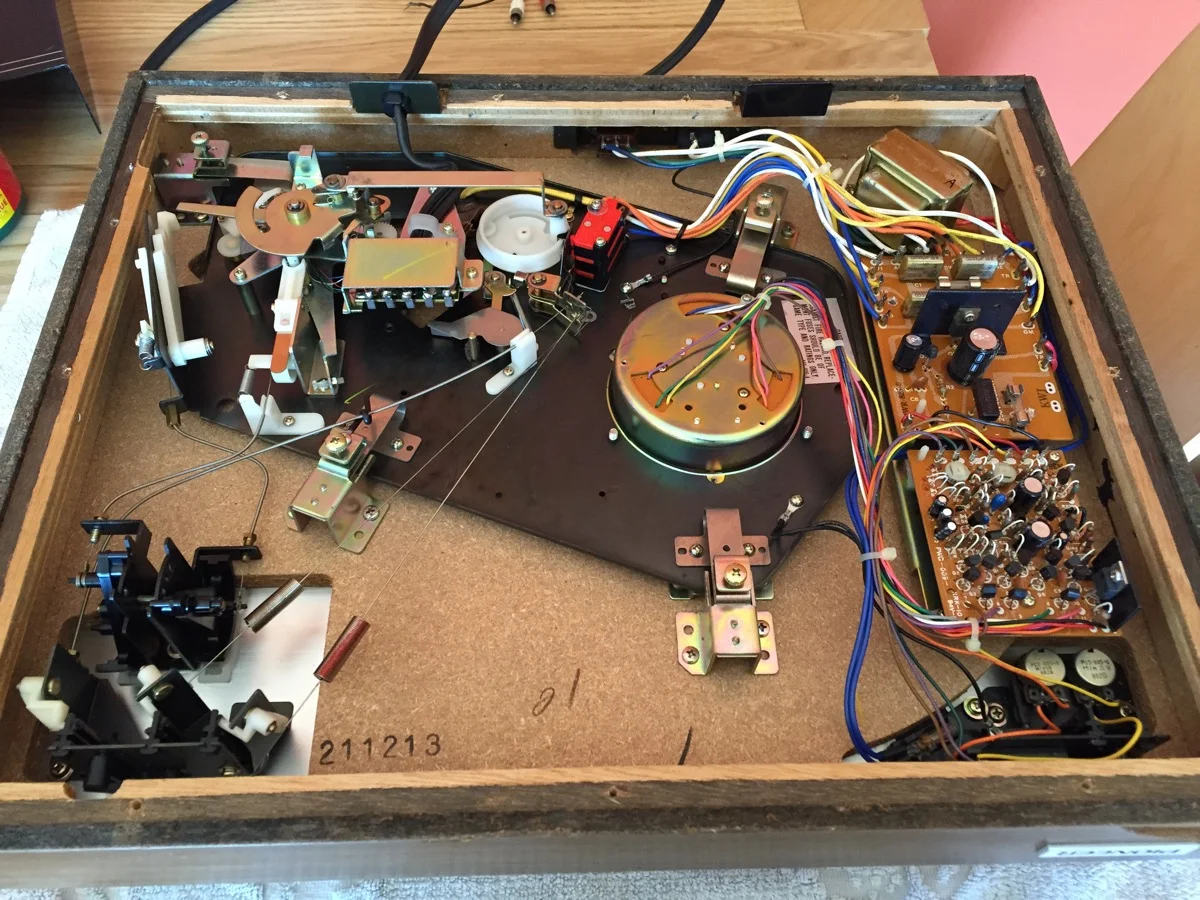

Here we see the innards of the PL-530 – power supply and motor control on the right, mechanicals and switching on the left.
IMG 2540

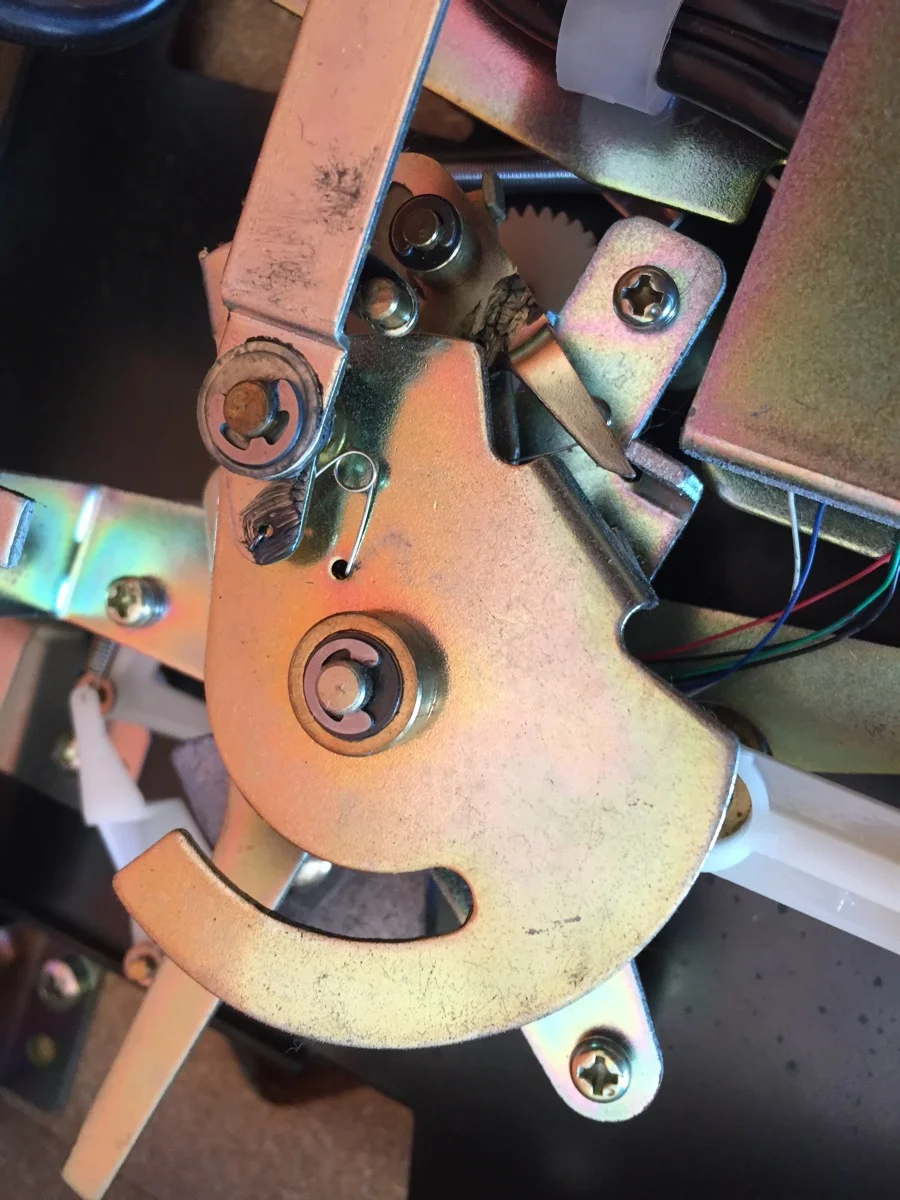

This part of the mechanism was completely jammed up with dried-out lubricants, mostly grease. I had to carefully free this part of the mechanism before the arm controls would work correctly.
IMG 2541

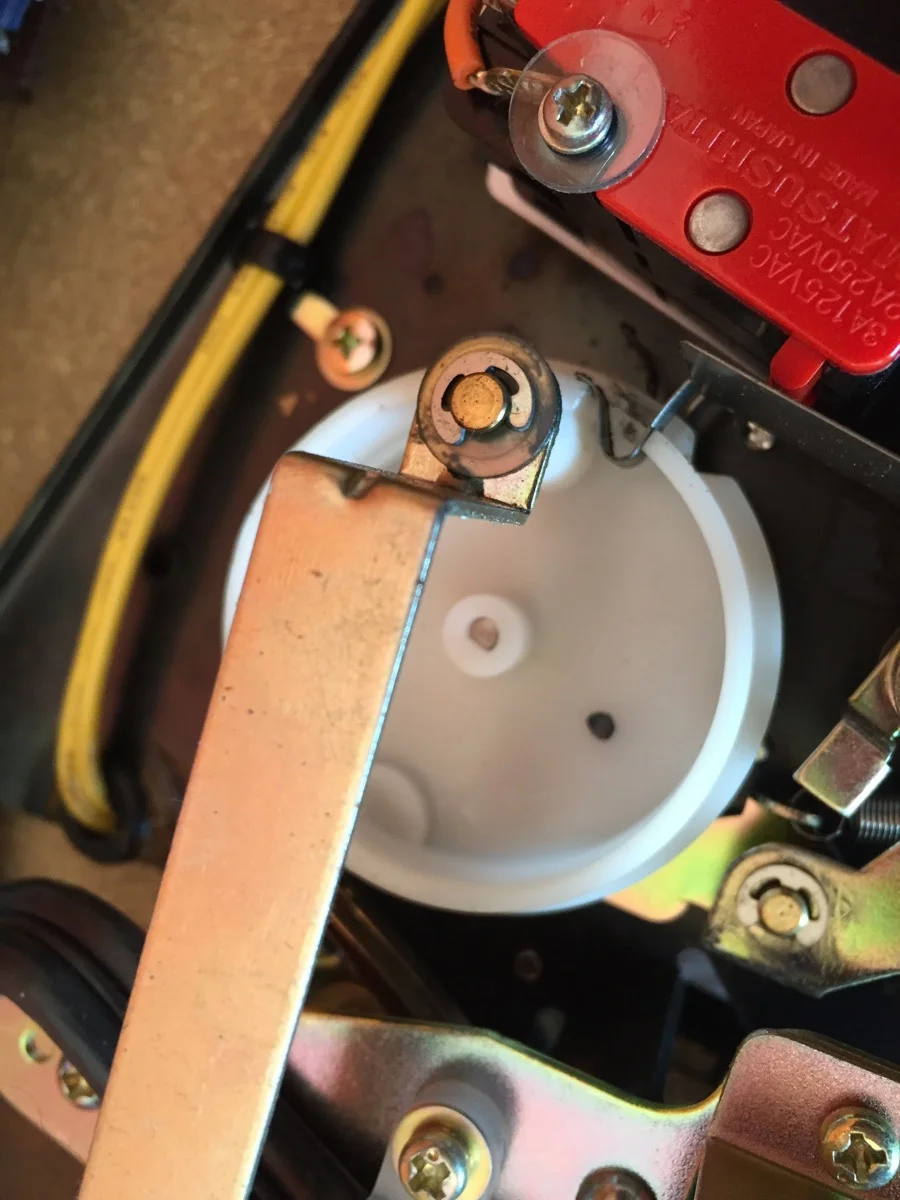

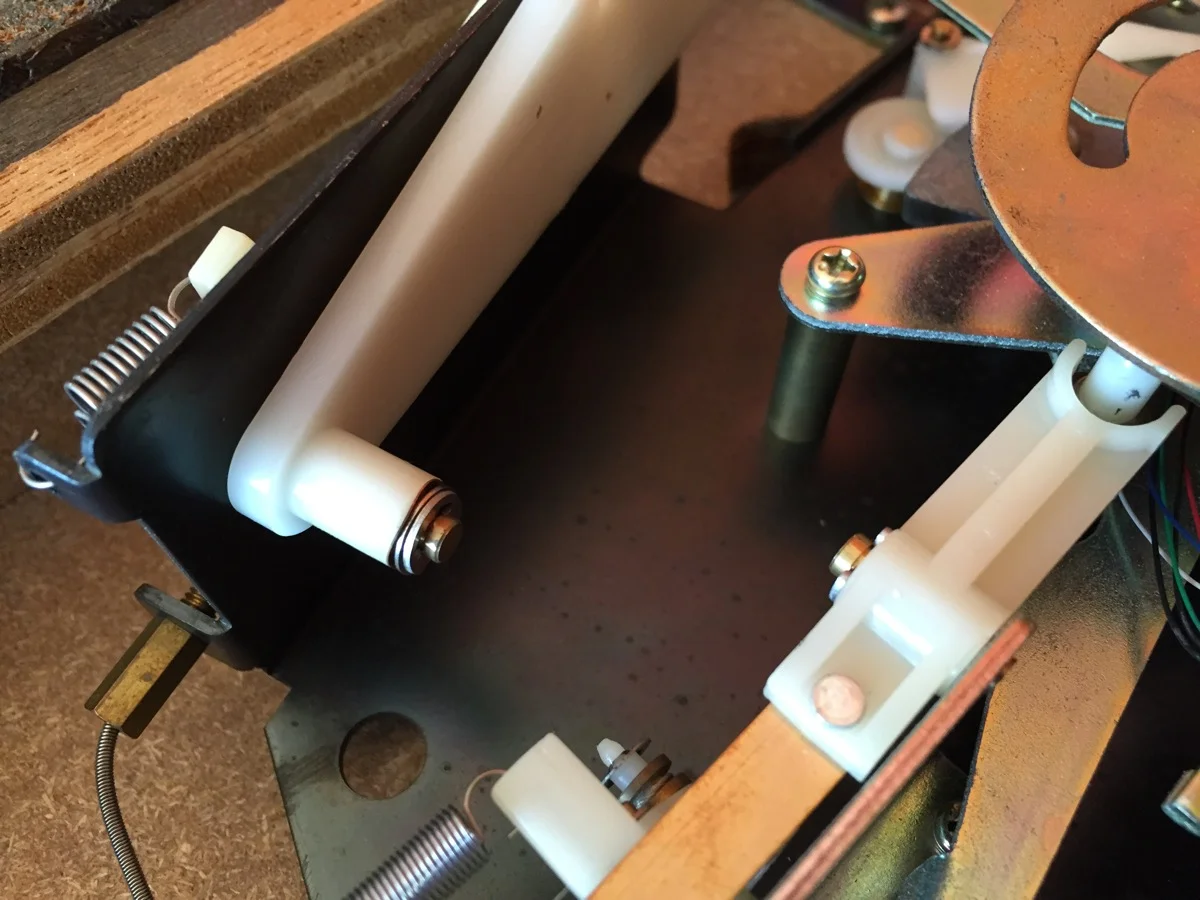

Additional cleaning and lubrication were needed here, as well as everywhere there was a mechanical pivot or attachment point..
IMG 2542
IMG 2543
IMG 2544

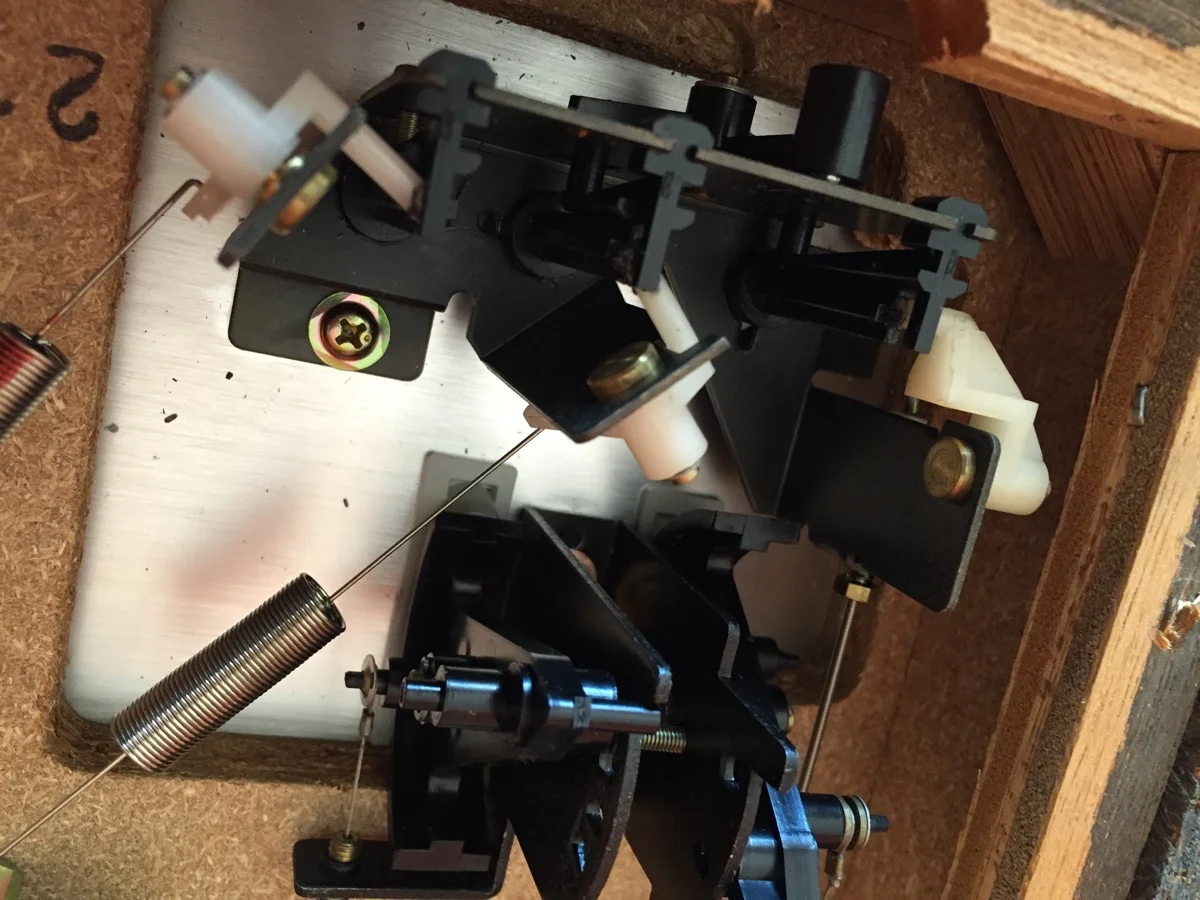

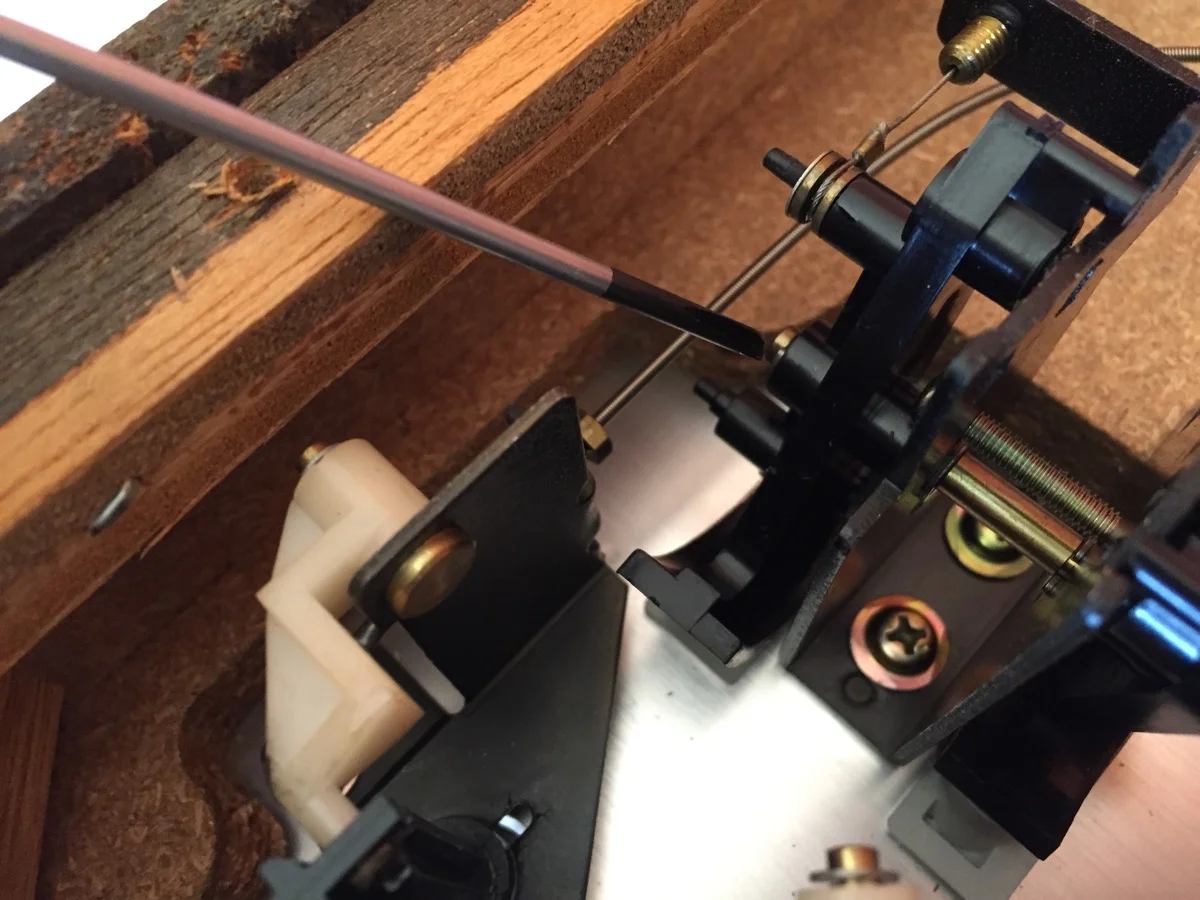

Some mechanical features are cable-controlled on this deck. These all need careful cleaning and lubrication.
IMG 2545

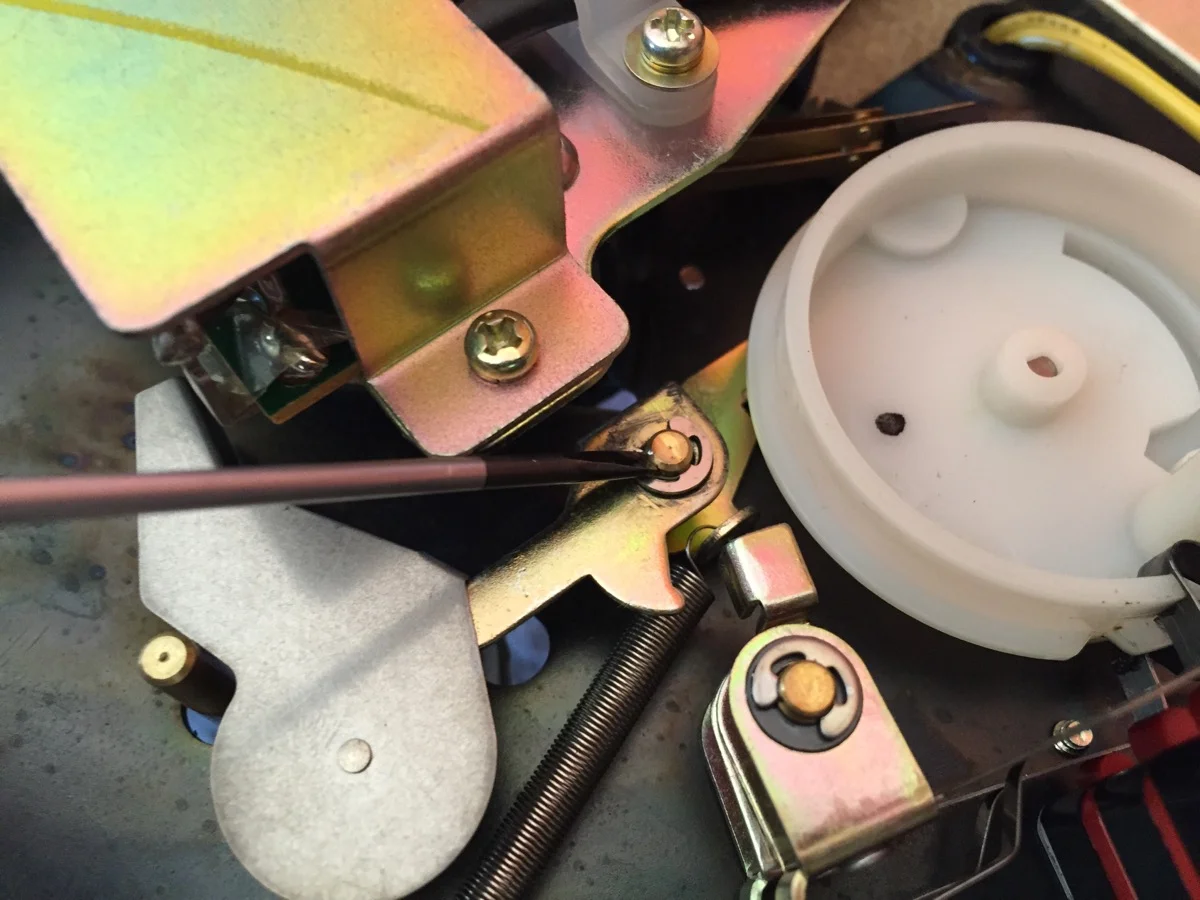

Here I am applying a very small and measured amount of oil using an ‘oiler’ – a device that allows a small amount of oil to be precisely deposited in a given place. I took this technique from my experience of oiling mechanical watches. Nowadays I use needle dropper bottles, each of which contains a specific type and grade of oil.
IMG 2546

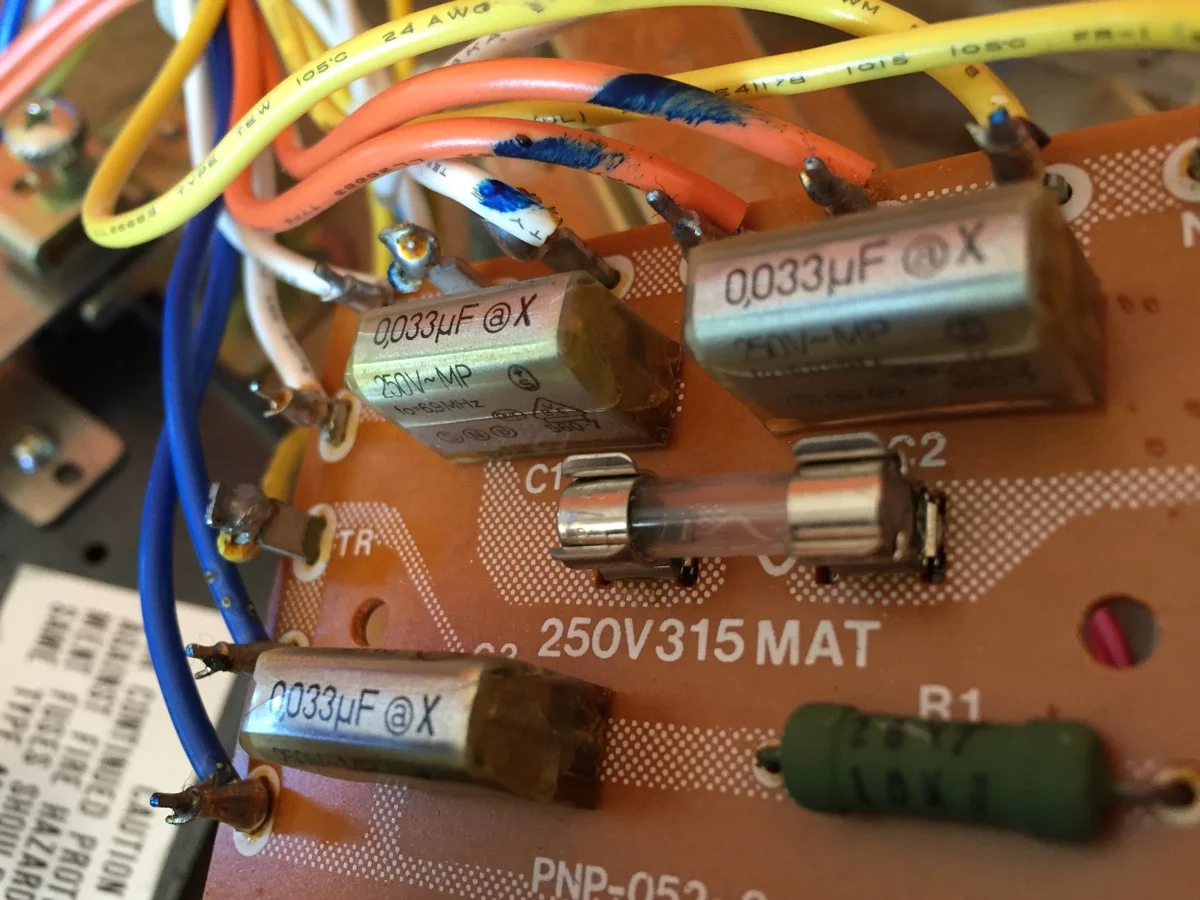

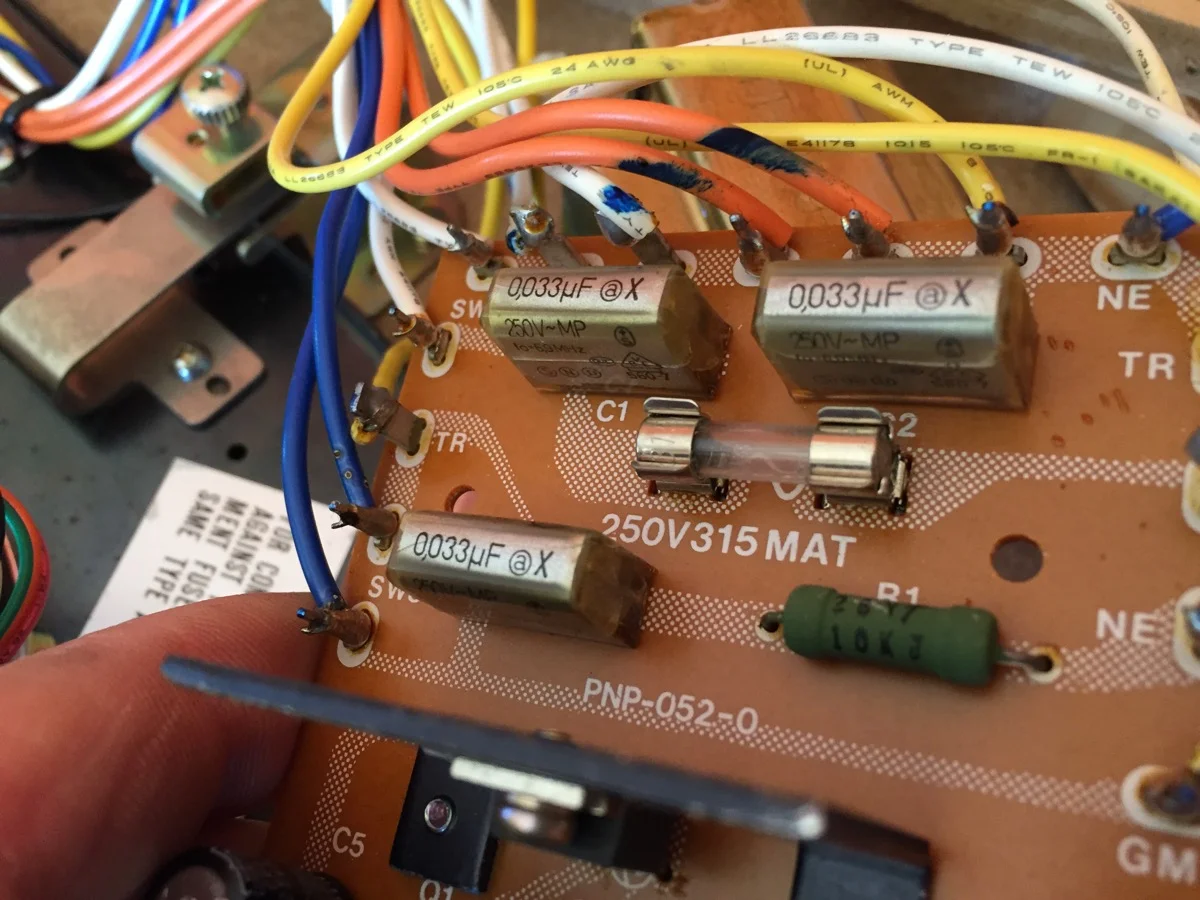

These Rifa metal foil and epoxy capacitors across the mains were the cause of the problems with the power supply. These Rifa capacitors ALWAYS crack and let in moisture, leading to their demise. They must always be replaced when they exhibit any signs of cracking.
IMG 2547

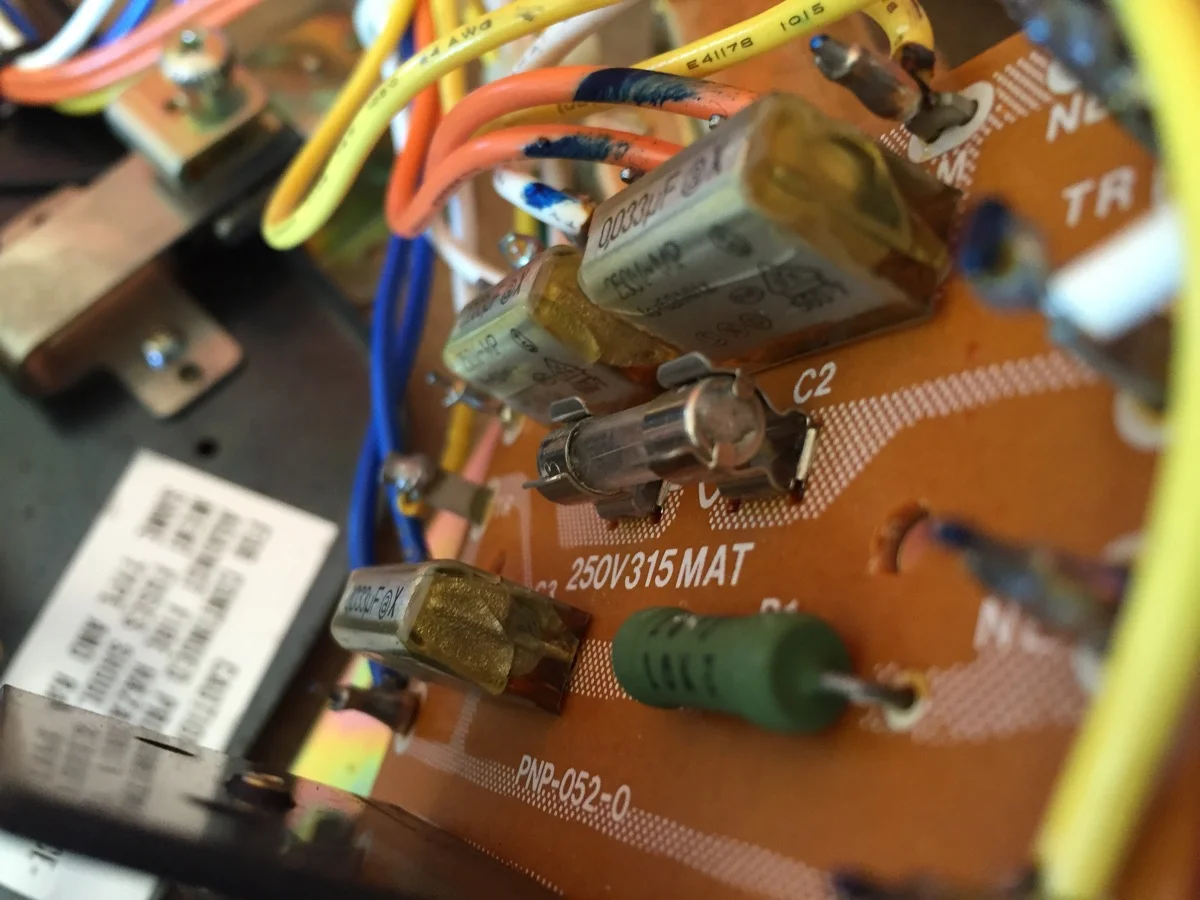

Another view of the cracked plastic Rifa capacitors
IMG 2548
… and another!
IMG 2550

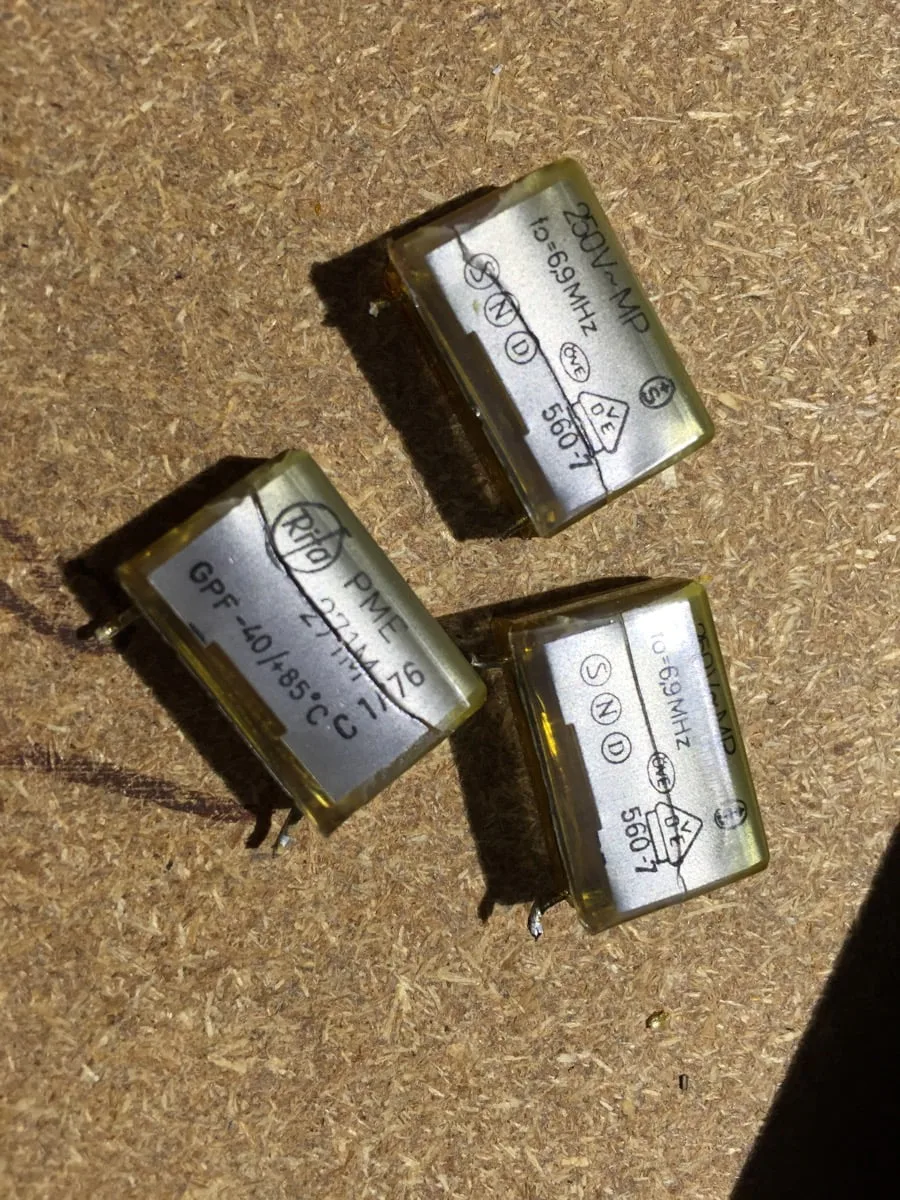

Out with the old…
IMG 2551

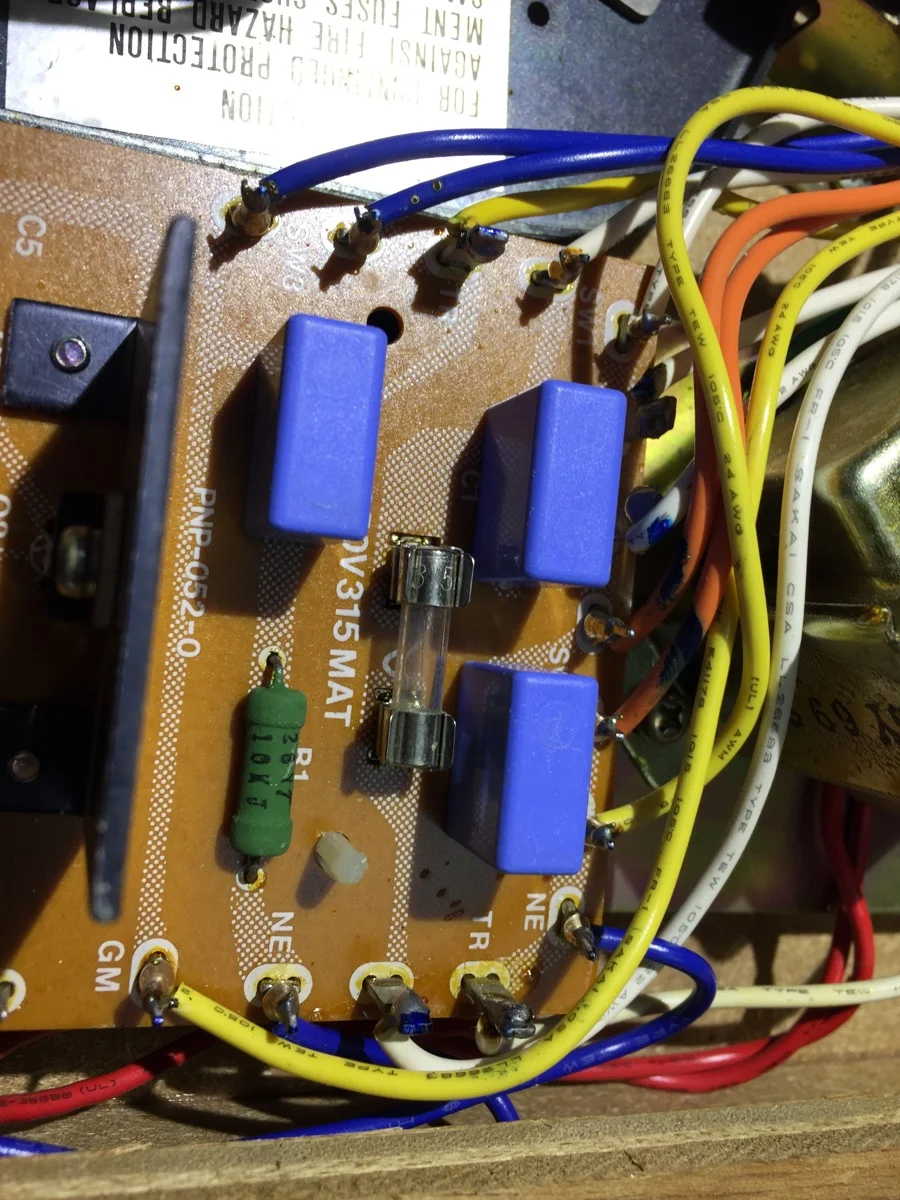

… and in with the new – in this case premium Panasonic X2-rated mains caps
