Denon SL-7D Direct Drive Turntable Service & Review

This lovely Denon SL-7D direct drive turntable needed a thorough service in order to play records nicely again. I figured it was a great opportunity to review this classic deck.

I’ve written about the Denon SL-7D previously, they are good, honest turntables and I enjoy working on them. The SL-7D definitely isn’t a super-deck, but they are well-engineered turntables, relatively affordable and, with regular service, should provide many years of listening pleasure.

If you’d like a brief summary and prefer a video, check out my Denon SL-7D service and set-up video, on the Liquid Audio YouTube channel.

img 0892 1

Features / Colours / Market Sector

Typical of the era and price point, the Denon SL-7D comes with a basic vinyl wrap and fairly lightweight platter, not quite in keeping with the rest of the deck. It does have a nice tonearm however, and she’ll play a record very well, once properly set-up.

I’m aware of two finishes – the first is this light coloured vinyl wrap you see above. The second, and my preferred colour, is the darker wrap you see below, as featured on this SL-7D I worked on earlier in the year.

img 8831

The deck is fully manual, meaning you set your speed, manually raise and lower the tonearm and return the arm to the resting position at the end of a record. Manual operation is usually best for sound quality, but many people prefer the push-button simplicity of an automatic machine, or the arm return benefits of a semi-automatic deck.

In terms of where the SL-7D fits into the turntable spectrum, she is definitely not as nice as a Technics SL-1200 or Kenwood KD-500 / 550. The deck is more similar to something like the Denon DP-30L, JVC QL-F4 or Kenwood KP-2055.

The SL-7D would make a great first direct drive deck for someone moving up in the turntable world. It would also be an ideal stepping stone into proper vintage turntabling and ideal if you want something a little nicer than plastic Pro-Ject, Rega and Thorens rubbish, but at a similar price-point.

img 0894 1
I like the look of the brushed aluminium control panel and push-button controls. This definitely reminds me of the Marantz Model 6300 turntable…

Specifications, courtesy of The Vinyl Engine

Drive method: direct drive
Speed control: servo-controlled
Motor: 6-pole outer rotor
Platter: 338mm aluminium alloy diecast – light-weight, not great
Speeds: 33 and 45rpm
Wow and flutter: 0.04% wrms – pretty good spec
Signal to noise ratio: 60dB
Tonearm: static balanced, S-shaped pipe arm
Effective length: 235mm
Overhang: 14mm
Cartridge weight range: 4.5 to 10.5g
Dimensions: 484 x 405 x 163mm
Weight: 9kg – moderate overall weight

img 0895 1
As I received her, the arm set-up was all wrong, but the arm itself on the SL-7D is quite decent.

Issues and Faults

SL-7Ds are generally reliable machines, the most common problems being speed control issues. This unit came to me supposedly working. I’ve learned over the years that this rarely means working correctly or even playing a record. Often, it just means the platter turns and, sure enough, that was the case here. The unit produced no sound out of one channel, with high levels of noise. The speed controls were also at the end of their travel, indicating adjustments were needed.

Testing and inspection showed that the Ortofon OM20 cartridge fitted to the deck was broken where the body meets the mounting flange. This wasn’t a problem, I have Ortofon OM series bodies in stock and (with a few exceptions) the bodies are common across the range. The upgrade path comes via the stylus assemblies, which improve as you go up through the range from the OM3 and 5, to the 30 and 40. The OM20 stylus was perfect. More on cartridges for the SL-7D later in this article.

Service

Right, let’s get started. All controls and switches needed the usual attention, as did the deck setup, chassis fasteners, bearing etc.

img 0896 1
Bottom removed and we see the neat layout of this deck. It would never be made like this now, it would just be too expensive. The switches and motor used here are of high quality.
img 0897 1

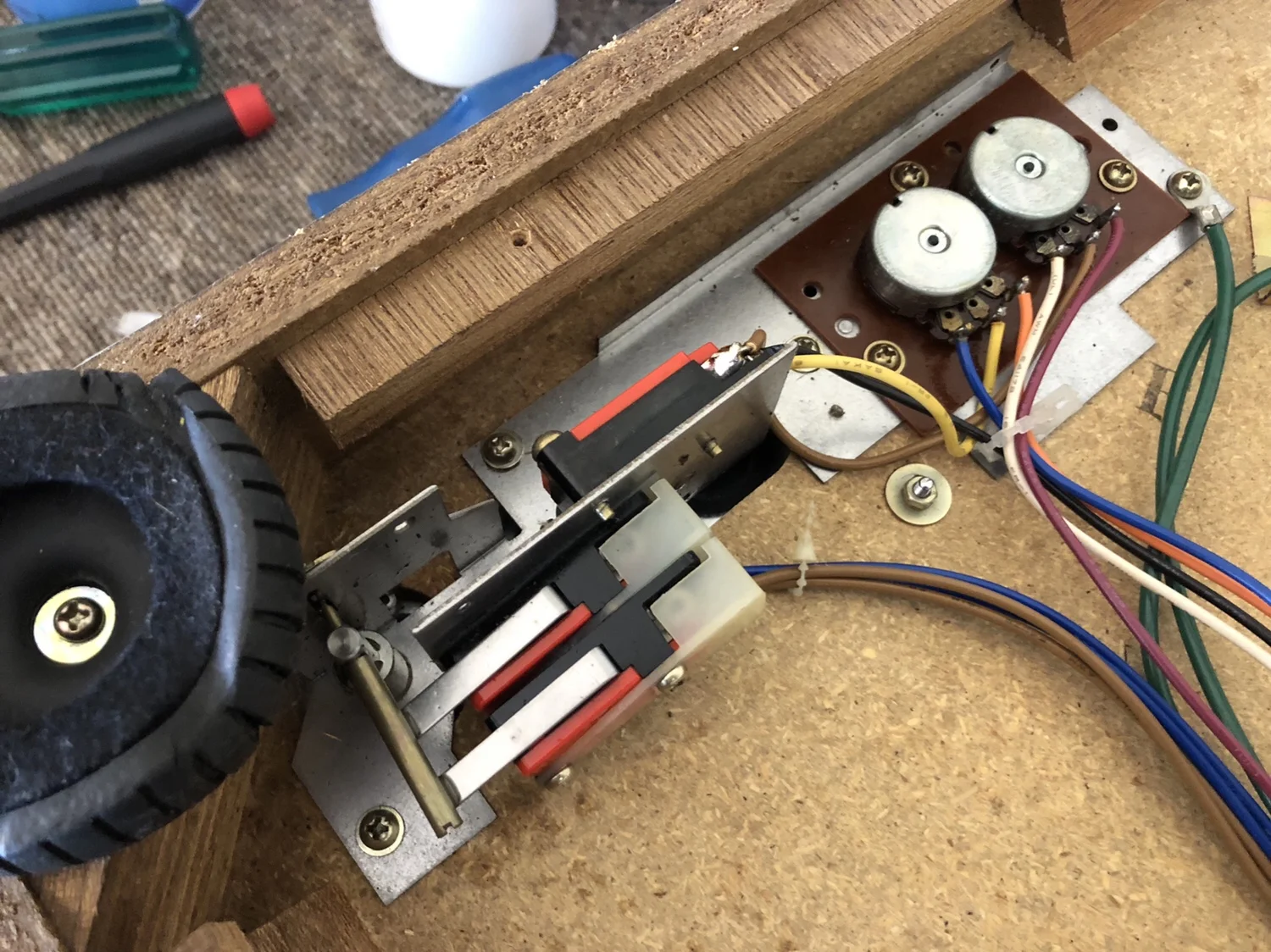

I clean and lubricate switches and controls with a variety of different lubricants, according to purpose. It’s important never to use things like WD40 or cheap ‘sewing machine’ oils here.
img 0900 1
Denon actually made bearing service very easy, but the correct cleaning products and oils are essential. In this image, we see the open bearing, to the left of that the removed bearing cap, with O-ring seal, and the thrust pad just below it. Note the dirty oil. Lint-free materials that leave no fibres and suitable solvents are essential. Then a high-grade bearing oil of the correct viscosity is added before sealing her up!
img 0901 1
Back on the top-side of the deck, I removed years of oil and residue, probably much of it from smoking, or poor storage.
img 0902 1
This is what she looked like after a good clean, what a difference!

img 0903 1

img 0904 1
The last step in this process is to zero the speed control verniers on the top panel, and set the master speed controls. This is technical, requires work jigs and I recommend you leave this part to me for example. What you get though is the full range of speed adjustment back, with correct speeds achieved midrange on the top panel verniers. Again, a little touch, but something most don’t even consider doing for their customers.
img 0905 1
The lid gets the same cleaning treatment and I always lubricate the hinges…
img 0906 1
You have to love a good strobe. This isn’t the best strobe, but hey, she’s got a strobe!

Cartridges for the SL-7D

This is pretty important and easy to get wrong. The height of the SL-7D tonearm is non-adjustable. Sadly, this is a shortfall that limits the number of cartridges usable with this deck.

Most cartridges are not tall enough to use on the SL-7D. Use the wrong cartridge and the back end will be too high. This compromises the vertical tracking angle, negatively impacting sound quality.

As it turns out, the Ortofon OM series of cartridges is one of a few that will work well and let you achieve the correct ride height when installed in the SL-7D.

Once I’d installed a new OM series body on the deck, I slipped on the supplied OM20 stylus and she was good to go. I used a spacer with this OM20 installation to get the vertical tracking angle spot on. This had the added benefit of creating a little more mass at the headshell, better suiting this light cartridge/headshell combination.

img 0907 1
Final testing after resolving the cartridge issue.

Other good cartridge options for the SL-7D come from the Ortofon 2M series. Earlier this year I serviced another SL-7D and fitted an Ortofon 2M Bronze for that customer. The 2M Bronze is an excellent cartridge and worked well with the deck, albeit with a better headshell. The 2M series doesn’t have quite the height of the OM series, but again a spacer helps there.

We’ve only discussed moving magnet carts so far. In terms of moving coils, you have to keep in mind the fairly lightweight tonearm and smallish counterweight of the SL-7D. There aren’t many moving coil carts with high enough compliance to work with this deck, but the AT OC9 mk3 springs to mind as a good option.

I can of course supply and professionally fit any of these models to your deck.

img 8832

Sound Quality & User Experience

“So how does she go, Captain..?” Good question. When properly serviced and set up, these decks sound really good and play a record nicely. Choose your cartridge and headshell carefully, get the deck serviced, the alignment spot-on and you’ll be rewarded with low distortion from the long-ish arm, low noise and lower wow & flutter than most belt-drive decks at this point in the market.

The SL-7D is definitely a step up from a more basic belt-driven deck like the Technics SL-23 for example, as much as I like those decks. The pitch and tone of piano, stringed instruments and singers is more solid and bass performance is better than with more basic machines.

You also have the generally high level of precision the Japanese manufacturers are famous for. All the switches and controls are silky smooth once serviced and everything here is built for the long haul, down to the O-ring seal in the brass bearing housing. Very nice and puts many others to shame.

The Bottom Line

The Denon SL-7D is a proper direct-drive deck for sensible money. I mean sensible though, occasionally you’ll see people trying to sell these for $1000+AUD, but that’s just being stupid. Get a sensibly priced one though, a nice one might go for say $750 with a cartridge, and you’ll be rewarded with a real old-skool player you can have some fun with. And don’t we all just want a player we can have some fun with..?!

Don’t forget to contact me for all your vinyl service and repair requirements if you live in Perth, WA. I love working on turntables, I think you’ll hear that when you get yours back from me and set-up again in your system!

img 0908 1
And yes, I need to clean the work area…!

Denon SL-7D Direct Drive Turntable

$400 - $800AUD
7.2

Chassis / Build-Quality

6.5/10

Features

7.0/10

Sound Quality

6.5/10

Serviceability

9.0/10

Bang-Per-Buck

7.0/10

Pros

  • Solid build
  • Serviceable
  • Decent tonearm
  • Manual operation

Cons

  • No tonearm height adjustment
  • Very lightweight platter
  • Cheap vinyl wrap

8 thoughts on “Denon SL-7D Direct Drive Turntable Service & Review”

  1. Thomas Langshaw

    How important do you consider replacing the electrolytic capacitors in decks of this age, purely as a maintenance practice, given that they can easily fail and cause damage to other components, for example, an unobtainable IC? I did this for a Technics SL-Q2 yesterday and, although it was working fine, a few caps had a double or higher ESR value than then new ones that went in as well a few showing physical signs of leakage. Every deck of this age that I service gets the capacitors replaced, especially Direct Drives. I used to not consider it necessary until the IC in a nice Technics SL-1710 got damaged as a result of the main electrolytic failing, which also happened to a SL-1610 that was thankfully recovered by a full re-cap. I don’t believe in re-capping as a cure all ills solution and do believe that any issue should be directly rectified before committing to the task, but in equipment of this age, my experience has taught me that it is absolutely essential maintenance.

    1. Hi Thomas, thanks for your query. This is a complex topic and not easily answered here, but let’s just say there is an enormous amount of misinformation out there about capacitors in general. Replacing caps purely as a maintenance exercise in a turntable like this is generally not warranted. Replacement should always be based on diagnosis and testing. In low temperature, low current scenarios, old caps often test perfectly, especially better quality ones. Having said that, in some equipment, bad batches or high temperatures can kill almost all of them. The simplest answer is that one should be guided by testing and proceed from there. Re-capping is definitely not a cure all, but in some situations, it literally can cure all the problems a particular piece of gear is experiencing. As with most things, there is no one ‘rule’ when working with electronics. In the literally hundreds of turntables I work on each year, only a tiny handful have needed re-capping. Thanks again for writing!

  2. Musyrif Bin Abu Bakar

    I have this one in my vault. The switch is getting old and I need to push 2-3 times before the switch is on or off position.

    Is there any way to make the switch works again?

    1. Hi Musyrif, faults like this can usually be repaired, the machine will need service which should focus on the switches and controls in particular. Do you have someone you can take it to?

  3. Hi Mike. Great write up and pics, very informative.
    Do you know anything about the Denon SL-50DF?

  4. Hello,
    Great article thanks for sharing. I have an sl7d just like this and I have noticed my speed control is at the end of its travel and not table is no spinning fast enough now. Is this an easy fix and adjustment to make?

    1. Hi Ben, glad you enjoyed it! Sounds like master speed adjustment is needed, you’ll need the service manual and a jig for raising the deck, some precision screwdrivers, etc. As the entire deck will need deep maintenance at this age anyway, I suggest that this is all done together, by someone experienced with servicing direct-drive machines like this one. If you are good with your hands, by all means, have a go.
